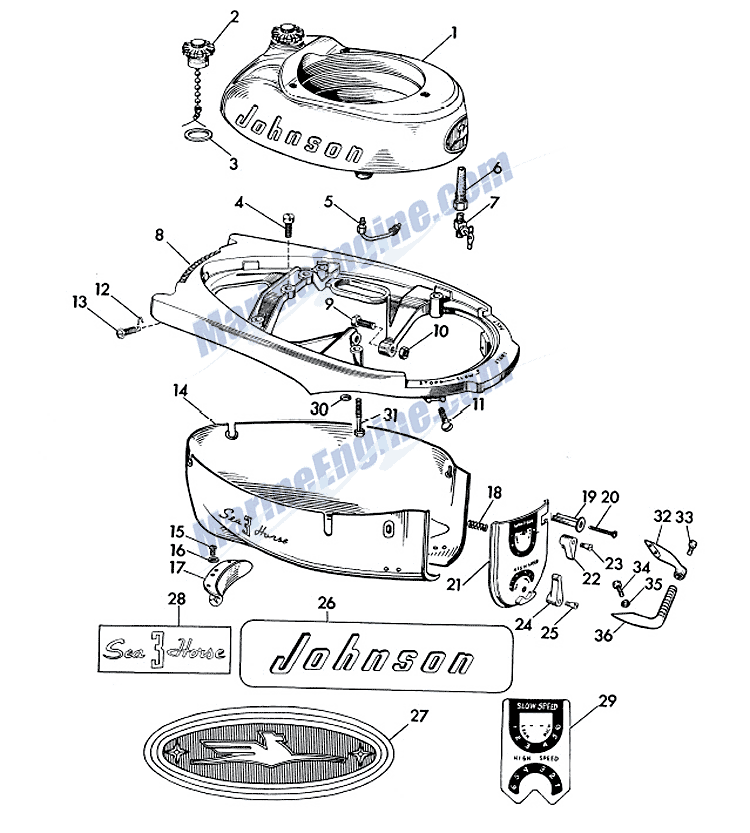

Shroud Group Parts for 1957 Johnson 3 hp JW-13 Outboard Motor
Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
| #1 — 376888 — (1 required per assembly) | ||
 |
|
0376888 - L/P 4.05 [ More info ] Unavailable |

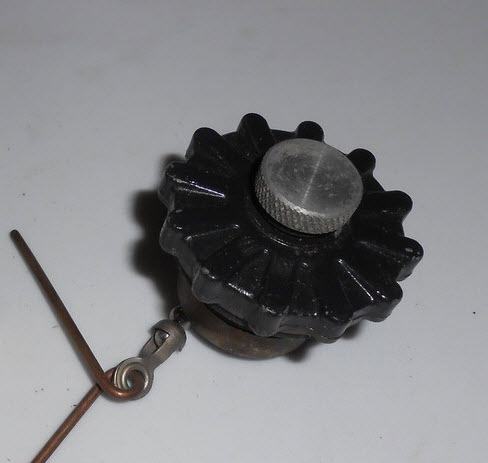

| #2 — 375514 — (1 required per assembly) | ||
  |
|
0375514 - Filler Cap, NLA [ More info ]
|
| #3 — 5-48 — (1 required per assembly) |
| #4 — 21-167 — (3 required per assembly) |

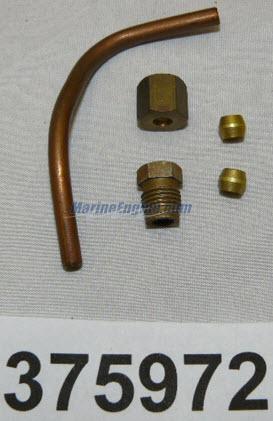

| #5 — 375972 — (1 required per assembly) | ||
  |
|
0375972 - Fuel Line Assembly I13 [ More info ] Unavailable |
| #6 — 277187 — (1 required per assembly) | ||
  |
|

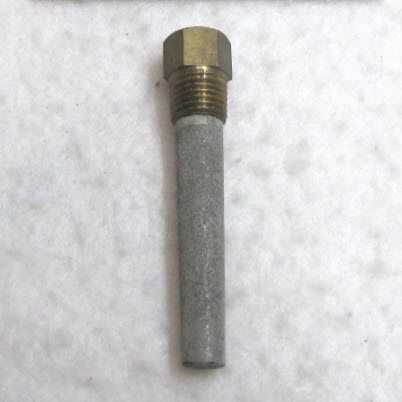

0277187 - Conn & Filter [ More info ]
|

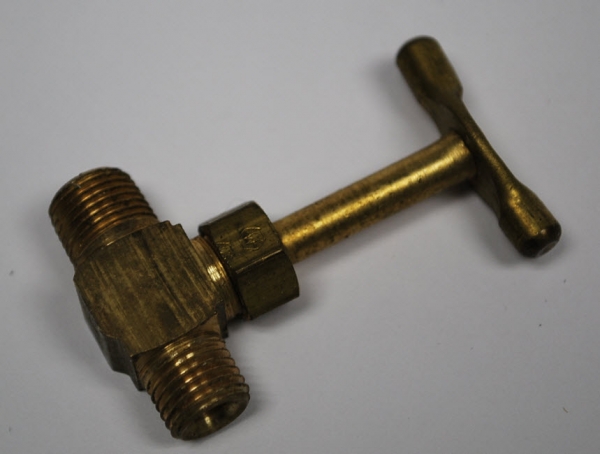

| #7 — 300612 — (1 required per assembly) | ||
  |
|
0300612 - Shut Off Valve [ More info ]
|
| #8 — 304199 — (1 required per assembly) |

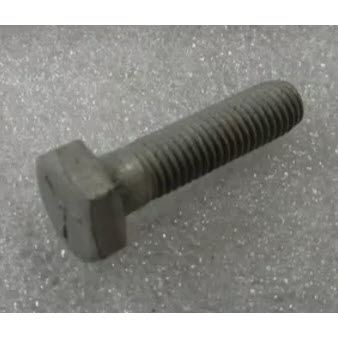

| #9 — 300635 — (2 required per assembly) | ||
  |
|
|
| #10 — 19-136 — (4 required per assembly) |
| #11 — 300290 — (2 required per assembly) | ||
  |
|

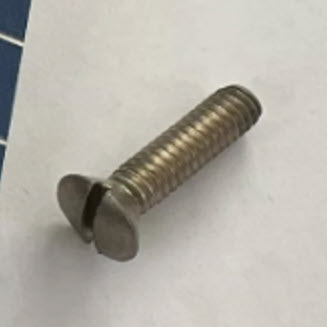

0300290 - Screw [ More info ] Unavailable |
| #12 — 41-110 — (2 required per assembly) | ||
|
|
PRO41-110 - Spark Plug AC Delco-Iridium [ More info ] Unavailable |

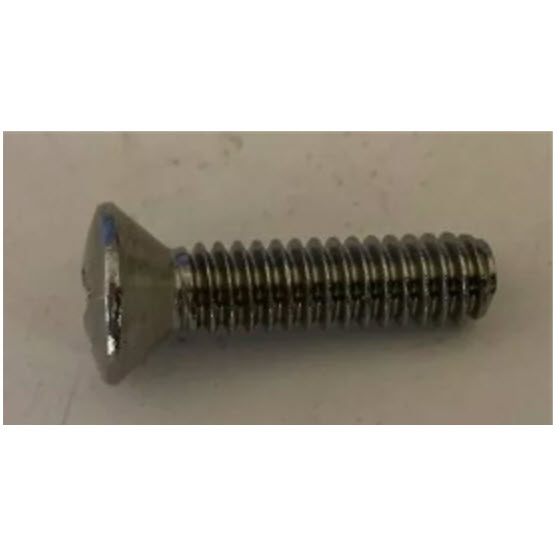

| #13 — 300616 — (2 required per assembly) | ||
  |
|
|
| #14 — 376931 — (1 required per assembly) | ||
|
|
0376931 [ More info ] Unavailable Replaced by 0379639 |
|
|
0379639 - COVER [ More info ] Unavailable |
| #15 — 39-169 — (5 required per assembly) |
| #16 — 3-28 — (5 required per assembly) |
| #17 — 301727 — (1 required per assembly) | ||
|
|
0301727 - Handle [ More info ]
|

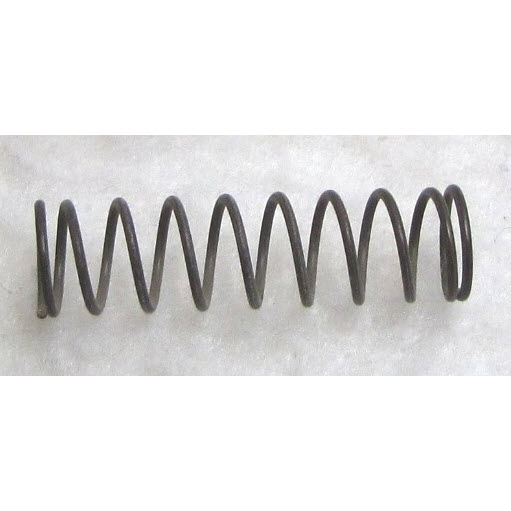

| #18 — 302993 — (2 required per assembly) | ||
  |
|
0302993 - Slow Speed Spring [ More info ]
|
| #19 — 203189 — (1 required per assembly) | ||
|
|
0203189 [ More info ] Unavailable Replaced by 0317715 |
  |
|

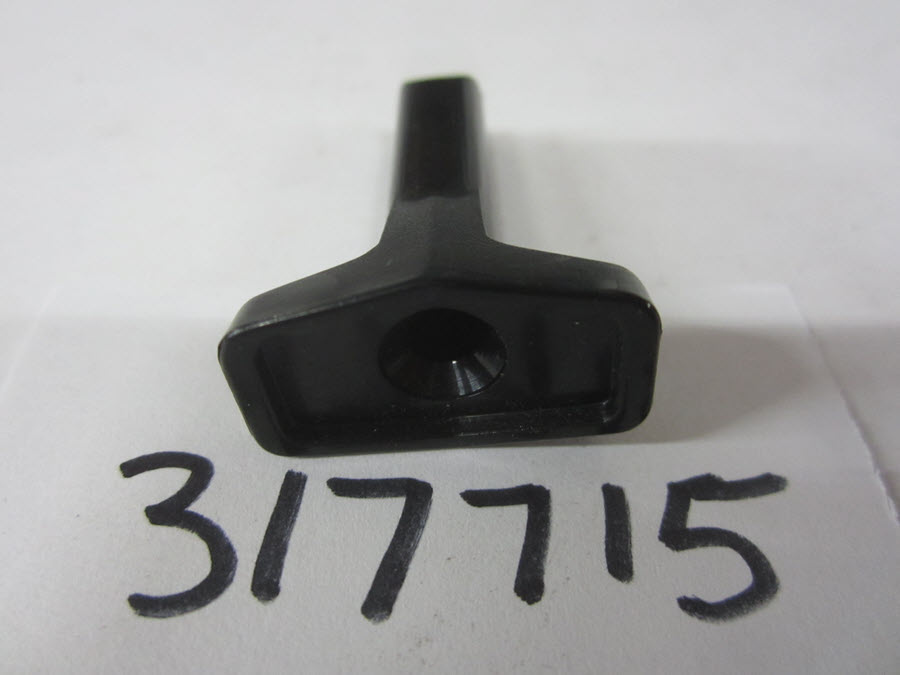

0317715 - Control Knob [ More info ]
|
| #20 — 303060 — (1 required per assembly) | ||
|
|
|
| #21 — 376889 — (1 required per assembly) | ||
|
|
0376889 - CONTROL PANEL [ More info ] Unavailable |

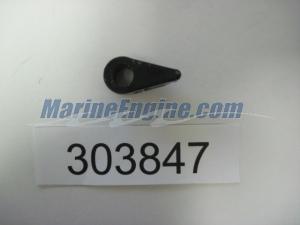

| #22 — 303847 — (1 required per assembly) | ||
  |
|
|
| #23 — 551517 — (2 required per assembly) | ||
  |
|
|

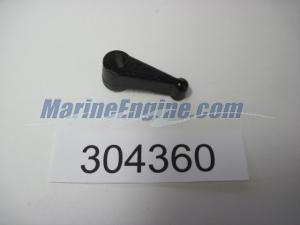

| #24 — 304360 — (1 required per assembly) | ||
  |
|
|
| #25 — 551517 — (2 required per assembly) | ||
|
|
|
| #26 — 304331 — (2 required per assembly) |
| #27 — 304831 — (1 required per assembly) |
| #28 — 304841 — (2 required per assembly) |
| #29 — 304832 — (1 required per assembly) |
| #30 — 19-124 — (10 required per assembly) |
| #31 — 303459 — (4 required per assembly) | ||
  |
|
|
| #32 — 304872 — (1 required per assembly) | ||
  |
|

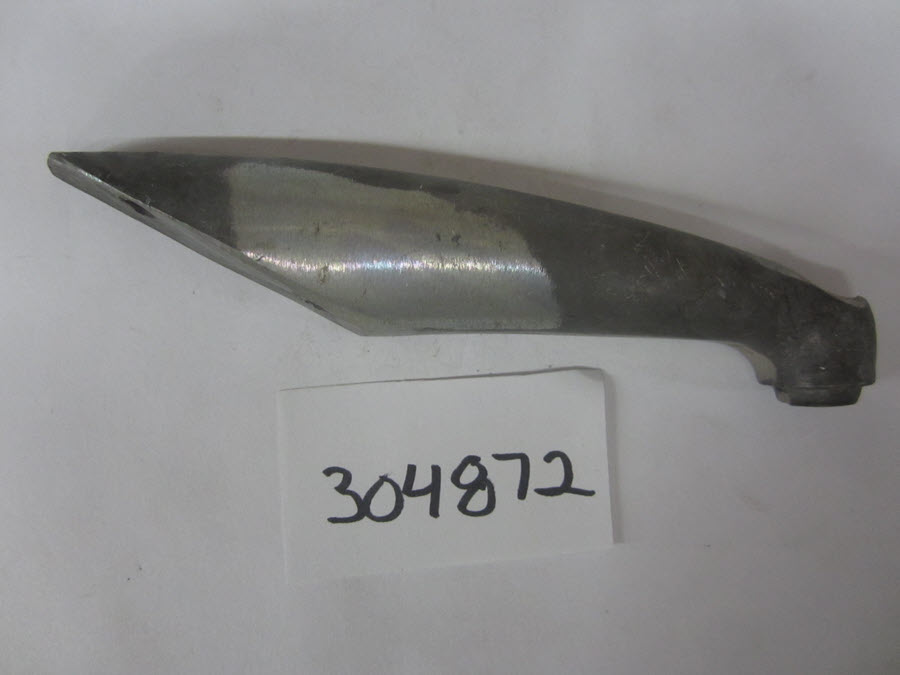

0304872 - Carrying Handle, NLA [ More info ]
|
| #33 — 33-76 — (1 required per assembly) |
| #34 — 304012 — (4 required per assembly) | ||
  |
|

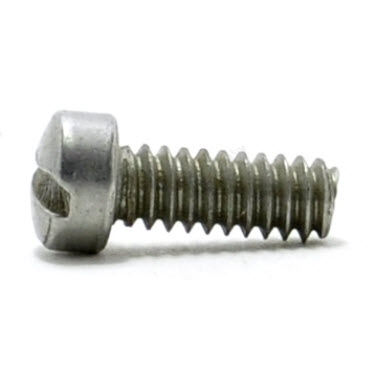

0304012 - Screw, Retainer [ More info ] Unavailable |
| #35 — 510150 — (4 required per assembly) | ||
|
|
0510150 - Washer [ More info ]
|
| #36 — 304873 — (1 required per assembly) | ||
|
|
0304873 [ More info ] Unavailable Replaced by 0309347 |
|
|
0309347 - Handle [ More info ] Unavailable |
