Powerhead Parts for 1957 Johnson 3 hp JW-13 Outboard Motor

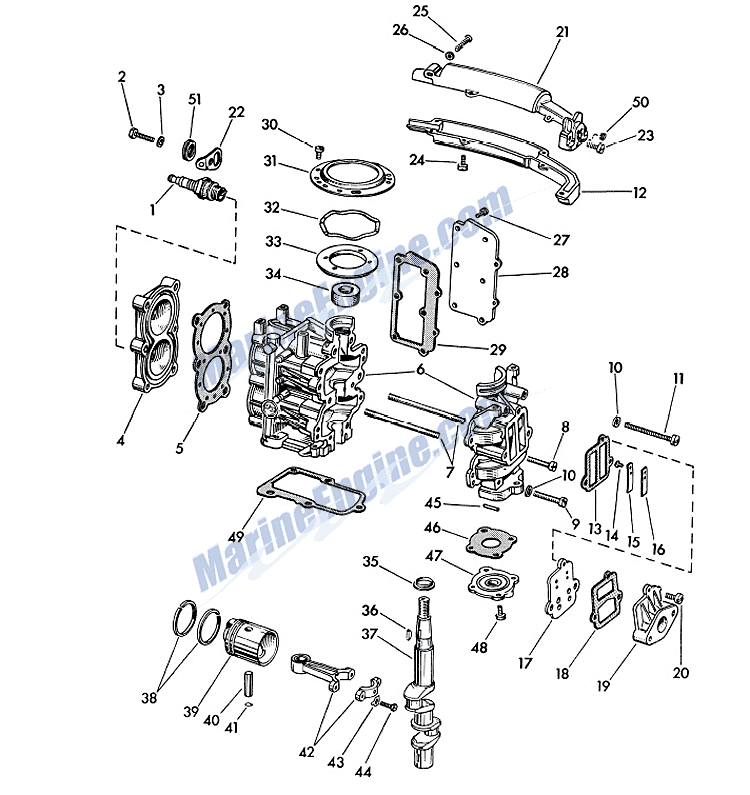

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
| #1 — 200322 — (2 required per assembly) | ||
  |
|
0200322 [ More info ] Unavailable Replaced by 0507467 |
  |
|
0507467 [ More info ] Unavailable Replaced by 0593871 |
  |
|
0593871 - 0593871 - SPARK PLG J6C 8 [ More info ] Unavailable Replaced by 0502895 |
  |
|
0502895 - J 6C Spark Plug [ More info ] Unavailable |
  |
|
J6C - Champion Spark Plug ( #823) [ More info ]
|
|
|
J6C - Champion Spark Plug ( #823) [ More info ]
|
| #1 — 376290 — (2 required per assembly) |
| #2 — 21-358 — (6 required per assembly) |
| #3 — 43-302 — (5 required per assembly) |
| #4 — 203176 — (1 required per assembly) | ||
  |
|

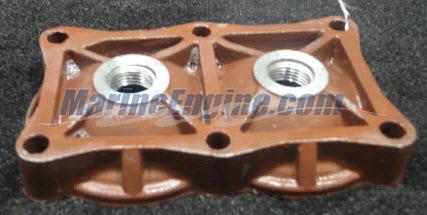

0203176 - Head [ More info ] Unavailable |
| #5 — 203130 — (1 required per assembly) | ||
  |
|
0203130 - Head Gasket [ More info ]
|
  |
|

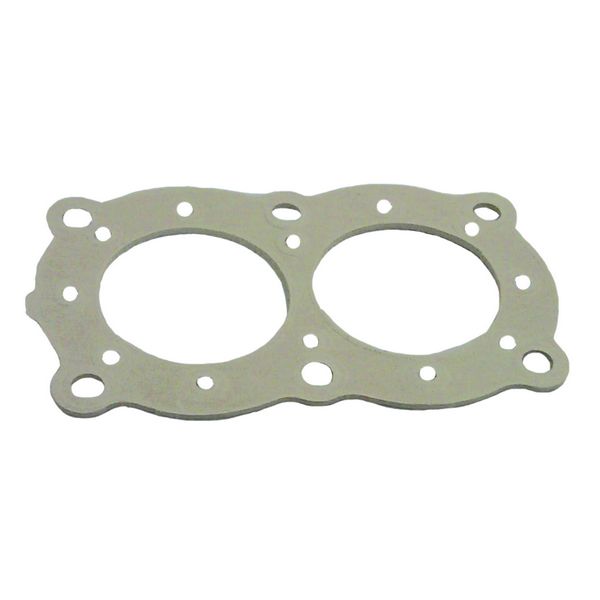

18-3841-2 - Head Gasket 203130 [ More info ]
|
| #6 — 277171 — (1 required per assembly) | ||
  |
|
0277171 [ More info ] Unavailable Replaced by 0379436 |
  |
|
0379436 - Cylinder Assembly, 3HP [ More info ] Unavailable |
| #7 — 203159 — (2 required per assembly) | ||
  |
|
|
| #8 — 21-167 — (9 required per assembly) |
| #9 — 27-17 — (2 required per assembly) |
| #10 — 300399 — (4 required per assembly) | ||
  |
|

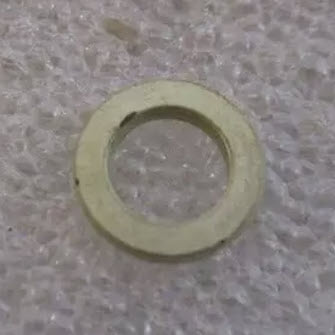

0300399 - Washer [ More info ] Unavailable |
| #11 — 39-72 — (2 required per assembly) |
| #12 — 203225 — (1 required per assembly) | ||
  |
|
0203225 - SILENCER [ More info ] Unavailable |
| #13 — 203180 — (1 required per assembly) | ||
  |
|
0203180 - Leaf Plate Gasket [ More info ]
|
| #14 — 303764 — (4 required per assembly) | ||
  |
|
0303764 - Screw, Leaf To Manifold [ More info ]
|
| #15 — 203173 — (2 required per assembly) | ||
  |
|

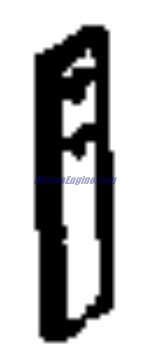

0203173 - Reed Stop [ More info ]
|
| #16 — 203175 — (2 required per assembly) | ||
  |
|

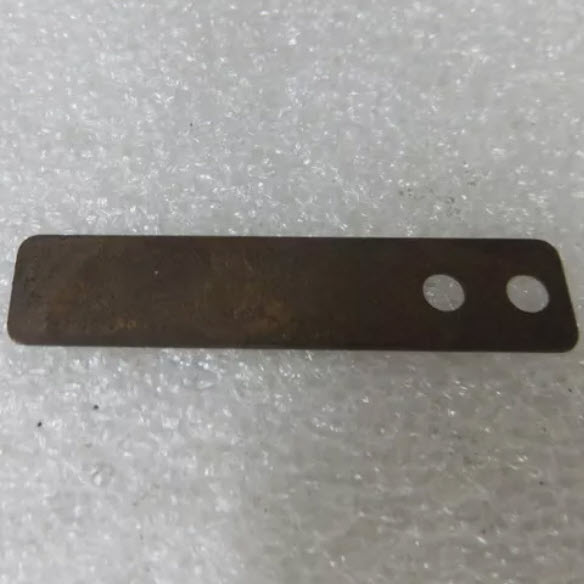

0203175 - Reed, One Only [ More info ] Unavailable |

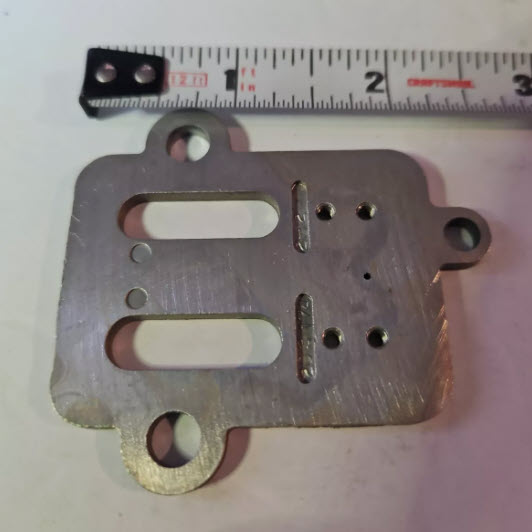

| #17 — 203174 — (1 required per assembly) | ||
  |
|
|
| #17 — 277174 — (1 required per assembly) | ||
  |
|

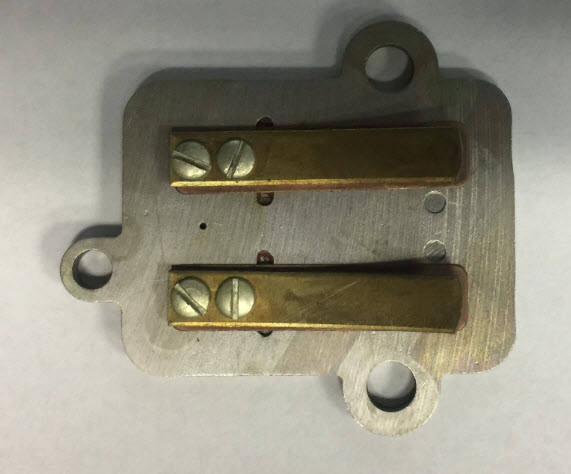

0277174 - Reed Plate AS [ More info ]
|
| #18 — 203228 — (1 required per assembly) | ||
  |
|

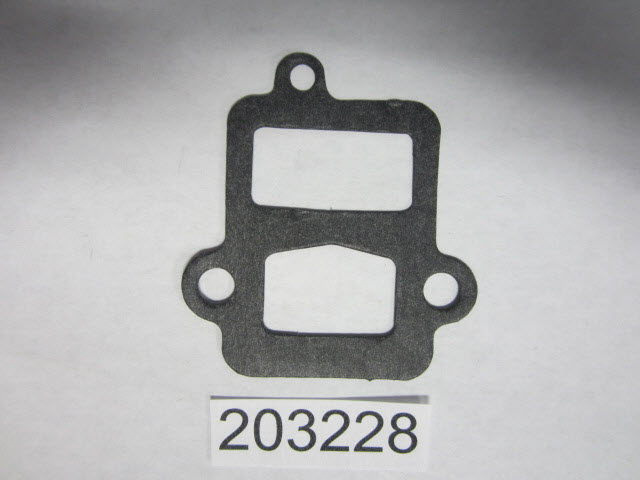

0203228 - Intake Manifold Gasket [ More info ]
|
| #19 — 203144 — (1 required per assembly) | ||
  |
|

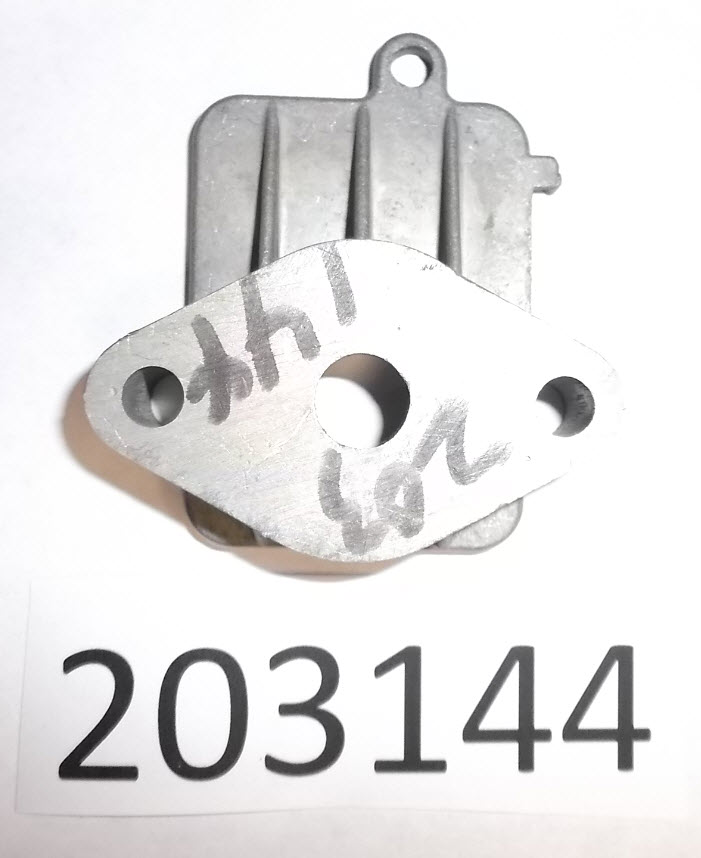

0203144 - Intake Manifold [ More info ] Unavailable |
| #20 — 304889 — (7 required per assembly) | ||
  |

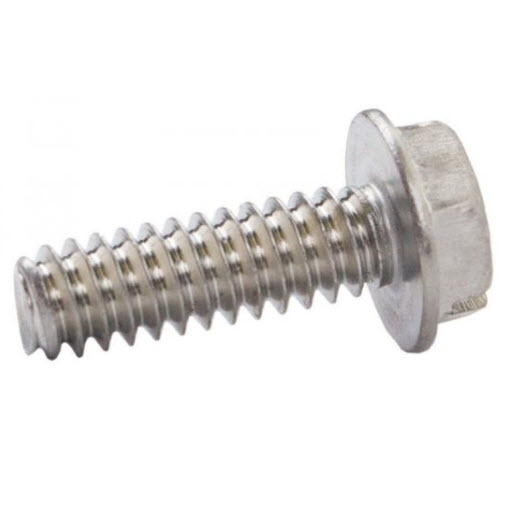

0304889 - Screw, Exhaust Cover [ More info ] Unavailable |
|
  |
|
|
| #21 — 203224 — (1 required per assembly) | ||
  |
|
0203224 - Silencer [ More info ] Unavailable |
| #21 — 277199 — (1 required per assembly) | ||
  |
|
0277199 - SILENCER [ More info ] Unavailable |
| #22 — 300455 — (1 required per assembly) | ||
  |
|

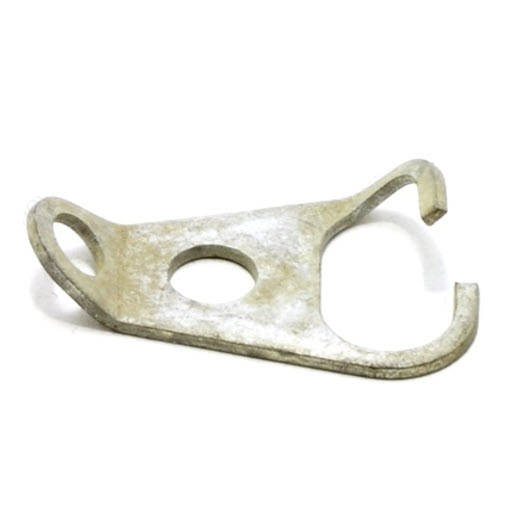

0300455 - Ignition Lead Anchor [ More info ]
|
| #23 — 304889 — (7 required per assembly) | ||
|
0304889 - Screw, Exhaust Cover [ More info ] Unavailable |
|
|
|
|
| #24 — 43-156 — (7 required per assembly) |
| #25 — 132123 — (1 required per assembly) | ||
  |
|

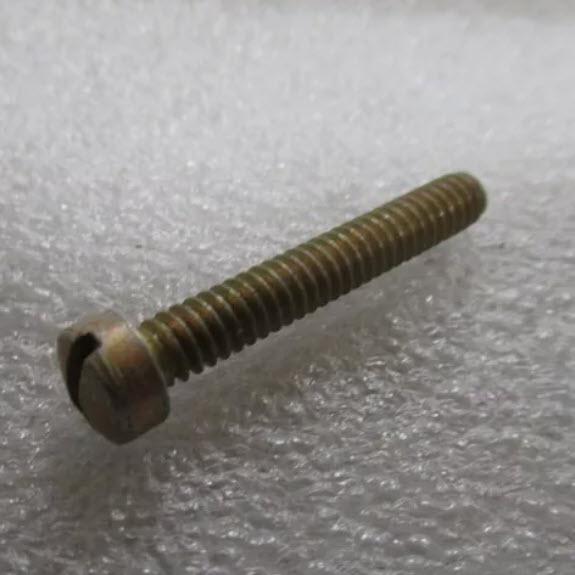

0132123 - Screw, Long, (1-1/4 Inch) [ More info ]
|
| #26 — 300154 — (2 required per assembly) | ||
  |
|
0300154 - Washer [ More info ]
|
| #27 — 43-147 — (7 required per assembly) |
| #28 — 203172 — (1 required per assembly) | ||
  |
|

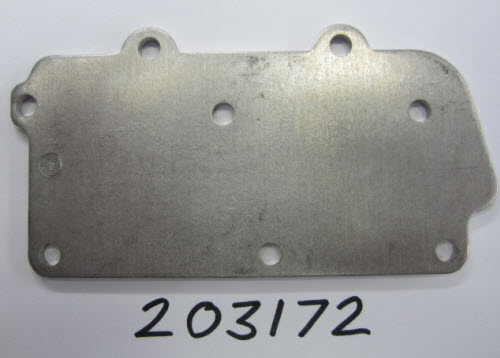

0203172 - Exhaust Cover Plate [ More info ]
|
  |
|

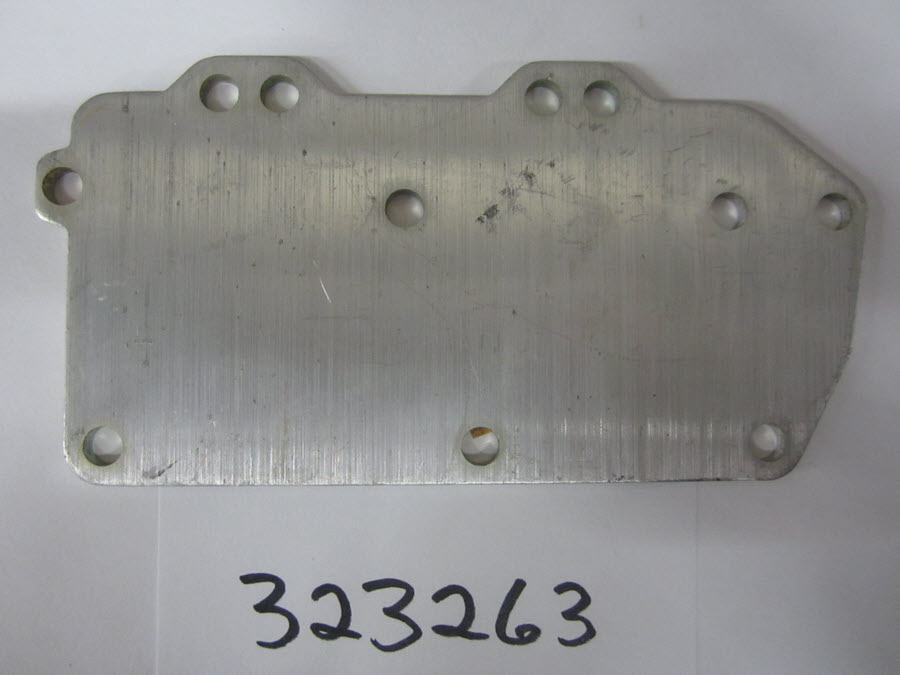

0323263 - Exhaust Cover Plate [ More info ]
|
| #29 — 203171 — (1 required per assembly) | ||
  |
|

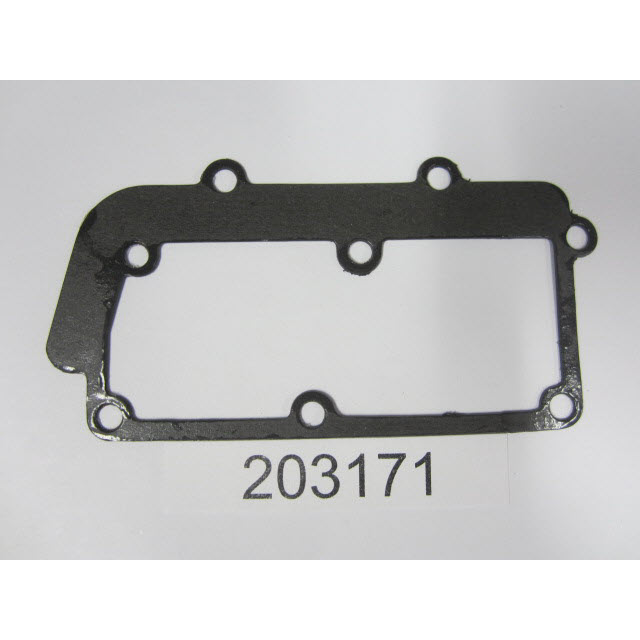

0203171 - Exhaust Cover Gasket [ More info ]
|
| #30 — 41-223 — (3 required per assembly) |
| #31 — 302599 — (1 required per assembly) | ||
  |
|

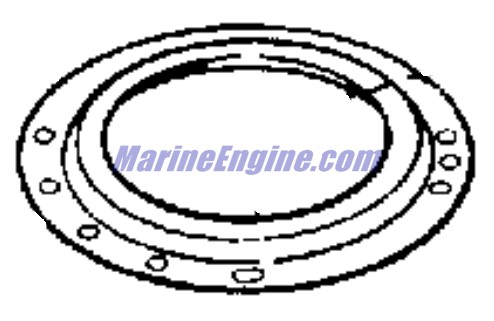

0302599 - Support [ More info ]
|
| #32 — 552029 — (1 required per assembly) | ||
  |
|

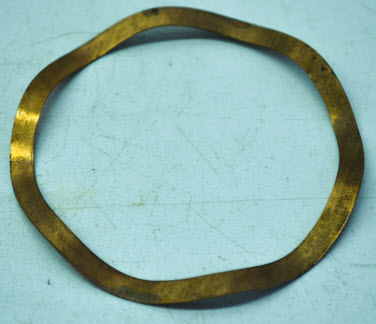

0552029 - Wave Washer [ More info ]
|
| #33 — 302442 — (1 required per assembly) | ||
  |
|

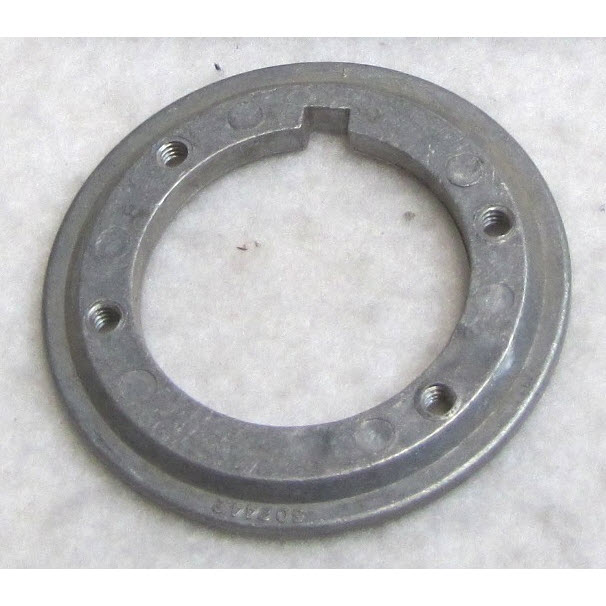

0302442 - Retaining Ring [ More info ]
|
| #34 — 510167 — (1 required per assembly) | ||
  |
|

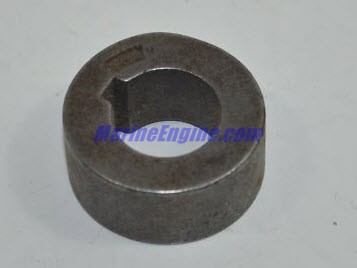

0510167 - Cam, Magneto [ More info ]
|
| #35 — 301781 — (1 required per assembly) | ||
  |
|

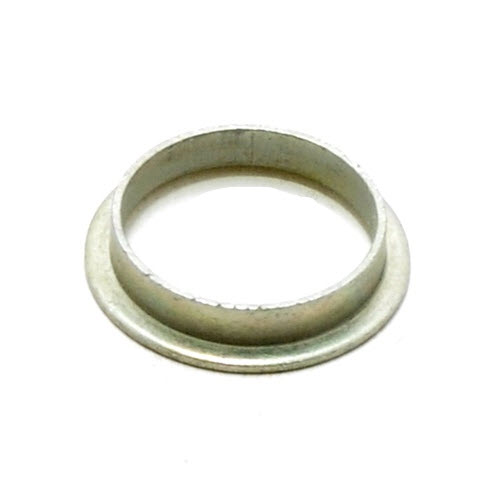

0301781 - Oil Slinger [ More info ]
|
| #36 — 120395 — (1 required per assembly) | ||
  |
|
|
| #37 — 203177 — (1 required per assembly) | ||
  |
|
0203177 [ More info ] Unavailable Replaced by 0203555 |
  |
|

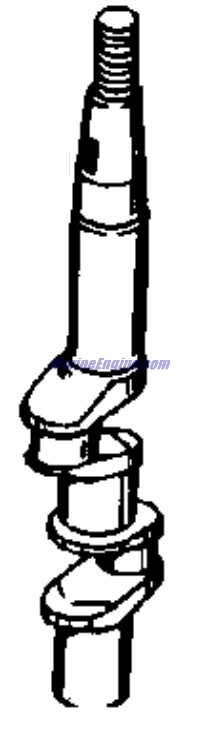

0203555 - CrankShaft [ More info ] Unavailable |
| #38 — 203152 — (4 required per assembly) | ||
  |
|
0203152 - Rings , Standard [ More info ] Unavailable |
| #39 — 376991 — (2 required per assembly) | ||
  |

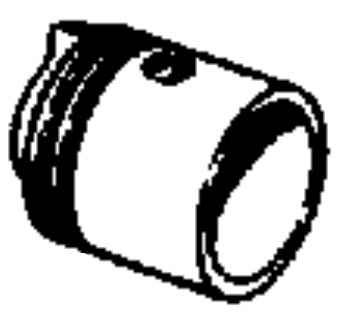

0376991 - Piston Assembly, STD [ More info ] Unavailable |
|
  |
0396997 - Piston and Rings [ More info ] Unavailable |
|
  |
|
0432739 - Piston and Rings [ More info ] Unavailable |
| #39 — 277738 — (2 required per assembly) | ||
  |
|
0277738 - Part [ More info ] Unavailable |
| #40 — 203151 — (2 required per assembly) | ||
  |
|

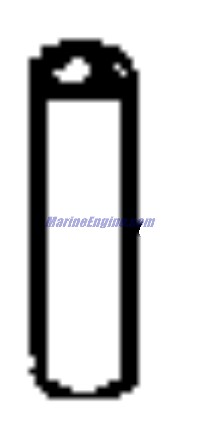

0203151 - Wrist Pin [ More info ] Unavailable |
| #41 — 120960 — (4 required per assembly) | ||
  |
|
0120960 - Circlip [ More info ]
|
| #42 — 277301 — (2 required per assembly) | ||
  |
|
0277301 - Connecting Rod [ More info ]
|
  |
|

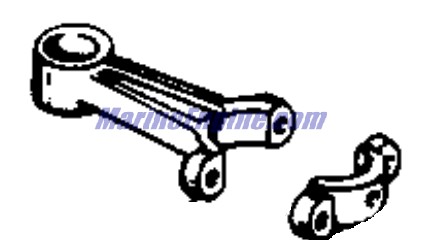

0383459 - Connecting Rod [ More info ]
|
| #43 — 43-17 — (4 required per assembly) |
| #44 — 43-44 — (4 required per assembly) |
| #45 — 30040-2 — (2 required per assembly) |
| #46 — 203161 — (1 required per assembly) | ||
  |
|

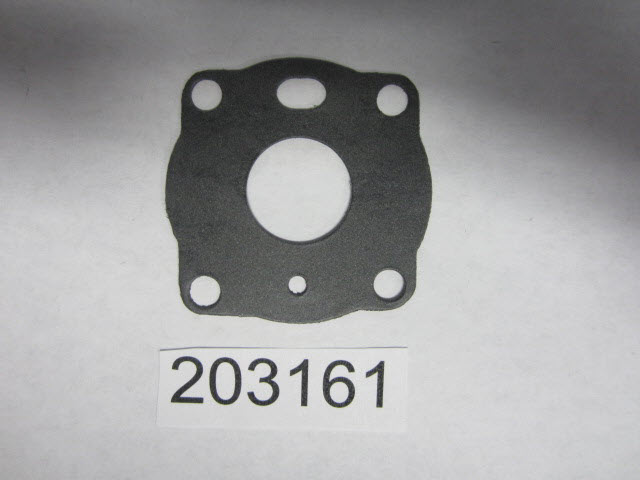

0203161 - Inner Flange Gasket [ More info ]
|
| #47 — 203145 — (1 required per assembly) | ||
  |
|

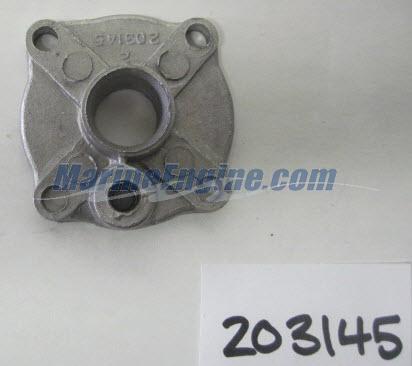

0203145 - Inner Flange [ More info ]
|
| #48 — 304889 — (7 required per assembly) | ||
|
0304889 - Screw, Exhaust Cover [ More info ] Unavailable |
|
|
|
|
| #49 — 203160 — (1 required per assembly) | ||
  |
|

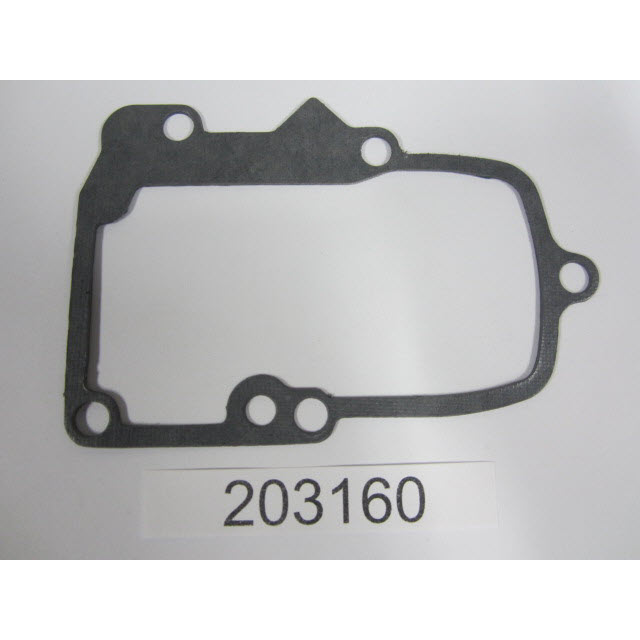

0203160 - Powerhead Adaptor Gasket [ More info ]
|
| #50 — 203652 — (1 required per assembly) | ||
  |
|

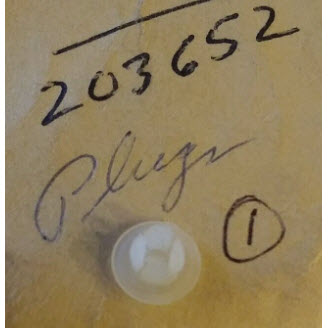

0203652 - Plug Button, Rear Cover [ More info ]
|
| #51 — 300454 — (1 required per assembly) | ||
  |
|

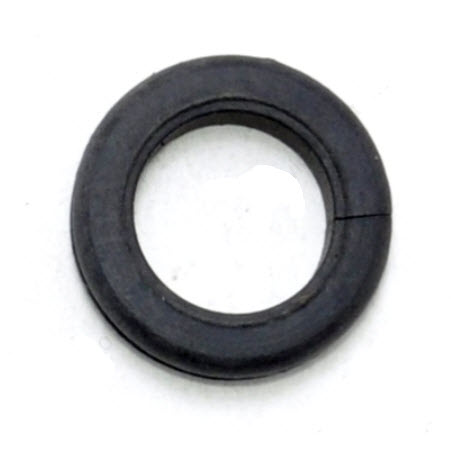

0300454 - Ignition Lead Grommet [ More info ]
|
