Carburetor Group Parts for 1957 Johnson 3 hp JW-13 Outboard Motor
Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
| #1 — 203166 — (1 required per assembly) | ||
  |
|
0203166 - Spring [ More info ]
|
| #2 — 203162 — (1 required per assembly) | ||
  |
|

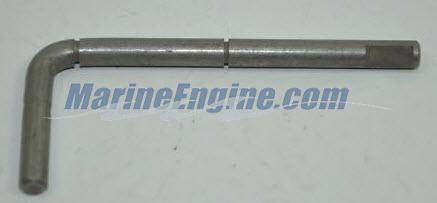

0203162 - Cam [ More info ] Unavailable |
| #3 — 71-1052 — (2 required per assembly) |
| #4 — 376726 — (1 required per assembly) | ||
  |
|
0376726 - Lever & Screw Assembly [ More info ] Unavailable |
| #5 — 203164 — (1 required per assembly) | ||
 |
|
|
| #6 — 41-110 — (2 required per assembly) | ||
|
|
PRO41-110 - Spark Plug AC Delco-Iridium [ More info ] Unavailable |
| #7 — 376725 — (1 required per assembly) | ||
  |
|

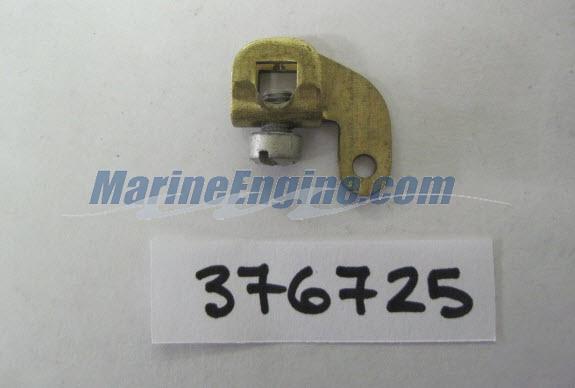

0376725 - Lever, NLA [ More info ] Unavailable |
| #8 — 303049 — (1 required per assembly) | ||
  |
|
0303049 - COTTER PIN [ More info ]
|
| #9 — 303048 — (1 required per assembly) | ||
  |
|
0303048 [ More info ] Unavailable Replaced by 0330191 |
  |
|
0330191 - Washer [ More info ]
|
| #10 — 302983 — (1 required per assembly) | ||
  |
|
0302983 - Throttle Valve [ More info ]
|
| #11 — 303760 — (1 required per assembly) | ||
  |
|
|

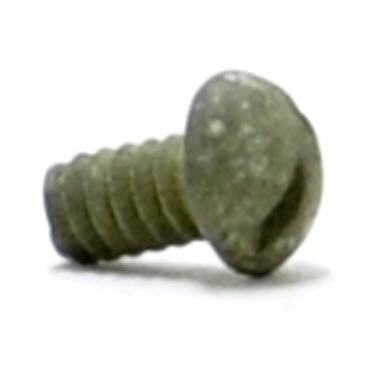

| #12 — 302996 — (1 required per assembly) | ||
  |
|
0302996 - Spring [ More info ]
|
| #13 — 375922 — (1 required per assembly) | ||
  |
|

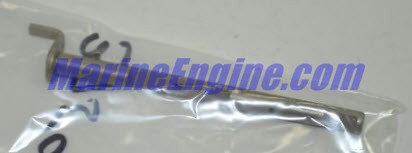

0375922 - Throttle Shaft [ More info ]
|

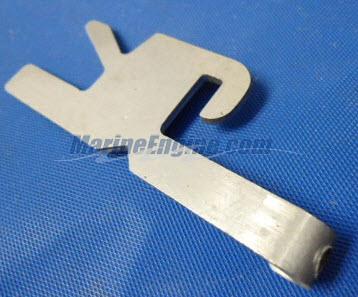

| #14 — 302997 — (1 required per assembly) | ||
  |
|
|
| #15 — 302977 — (1 required per assembly) | ||
|
|
0302977 [ More info ] Unavailable Replaced by 0204405 |
  |
|

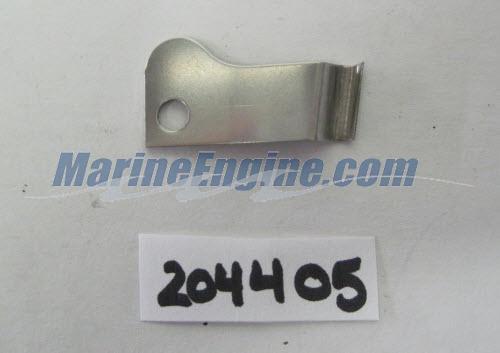

0204405 - Spring [ More info ]
|
| #16 — 302430 — (1 required per assembly) | ||
  |
|

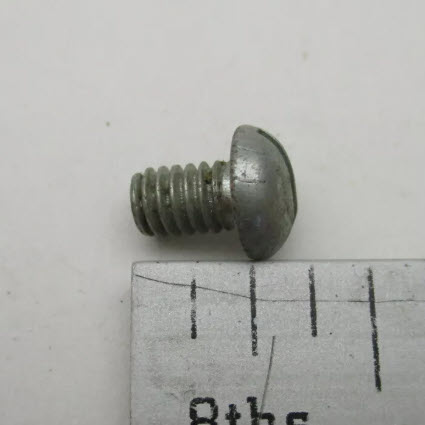

0302430 - Screw, Bracket And Pin, NLA [ More info ]
|
| #17 — 21-163 — (1 required per assembly) |
| #18 — 375921 — (1 required per assembly) | ||
  |
|

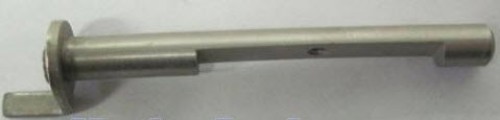

0375921 - Choke Shaft [ More info ]
|
| #19 — 302979 — (1 required per assembly) | ||
|
|
0302979 - Choke Valve [ More info ]
|
| #20 — 43-123 — (4 required per assembly) |
| #21 — 302991 — (1 required per assembly) | ||
  |
|
0302991 - Needle Valve [ More info ]
|
| #22 — 300179 — (2 required per assembly) | ||
  |
|
0300179 - Gland Nut [ More info ]
|
| #23 — 376978 — (1 required per assembly) | ||
|
|
0376978 - Carburetor Body, NLA [ More info ] Unavailable |
| #23 — 376977 — (1 required per assembly) | ||
|
|
0376977 - Carburetor, [ More info ] Unavailable |
| #24 — 303003 — (1 required per assembly) | ||
  |
|
0303003 - Carburetor Mount Gasket [ More info ]
|
| #25 — 304572 — (2 required per assembly) | ||
  |
|
0304572 - Arm to Shaft Screw [ More info ]
|
| #26 — 19-136 — (4 required per assembly) |
| #27 — 301996 — (1 required per assembly) | ||
  |
|
0301996 - Float Valve Washer [ More info ]
|
| #28 — 375918 — (1 required per assembly) | ||
|
|
0375918 [ More info ] Unavailable Replaced by 0379312 |
  |
|

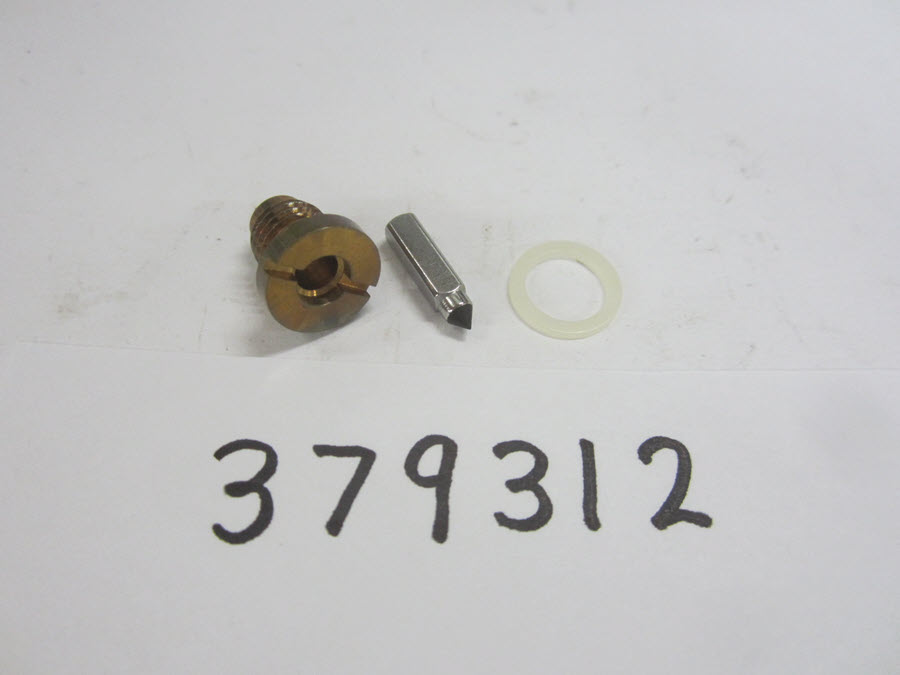

0379312 - Float Valve [ More info ]
|
  |
|

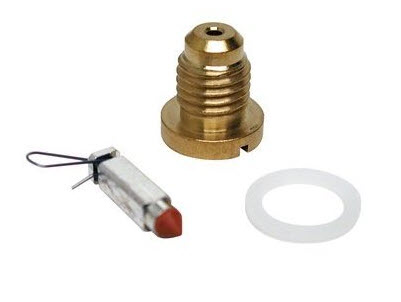

0387262 - Float Valve & Seat Assembly [ More info ]
|
  |
|

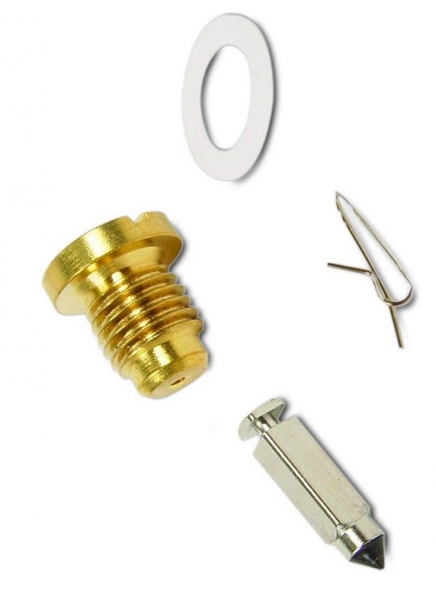

18-7038 - Needle Seat, 387262, 396520 [ More info ]
|
| #29 — 375919 — (1 required per assembly) | ||
  |
0375919 - Cork Float and Arm [ More info ] Unavailable |
|
  |
|
0396514 - Float And Arm [ More info ]
|
| #30 — 300096 — (1 required per assembly) | ||
  |
|
0300096 - Hinge Pin [ More info ]
|
| #31 — 304949 — (1 required per assembly) | ||
  |
|
0304949 - Nozzle [ More info ]
|
| #32 — 302984 — (1 required per assembly) | ||
  |
0302984 - Nozzle To Bow Gasket [ More info ] Unavailable |
|
  |
0331181 - Gasket [ More info ] Unavailable |
|
  |
|
0344037 - Gasket - Sold individually [ More info ]
|
| #33 — 302994 — (1 required per assembly) | ||
  |
0302994 - Bowl Gasket [ More info ] Unavailable |
|
  |
0331203 - Float Bowl Gasket, Sold Individually [ More info ] Unavailable |
|
  |
|
0338886 - Float Bowl Gasket, Sold Individually [ More info ]
|
  |
|
18-2890-9 - Float Bowl Gasket 338886 2-Pack [ More info ]
|
| #34 — 302985 — (1 required per assembly) | ||
|
|
0302985 - Float Bowl [ More info ] Unavailable |
| #35 — 303041 — (1 required per assembly) | ||
  |
|

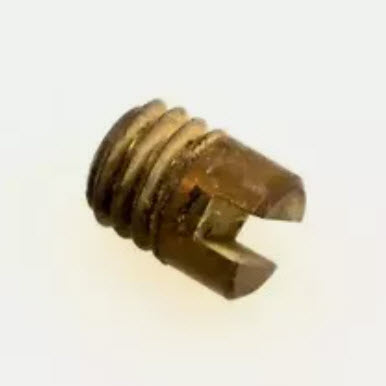

0303041 - Screw, Bowl Drain [ More info ]
|
| #36 — 71-1589 — (5 required per assembly) |
| #37 — 302992 — (1 required per assembly) | ||
  |
|

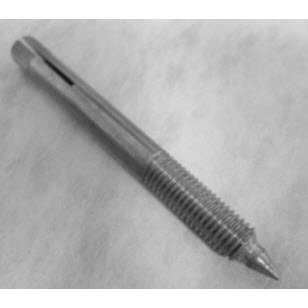

0302992 - Needle Valve [ More info ]
|
| #38 — 27-309 — (1 required per assembly) |
| #39 — 203320 — (1 required per assembly) | ||
  |
|

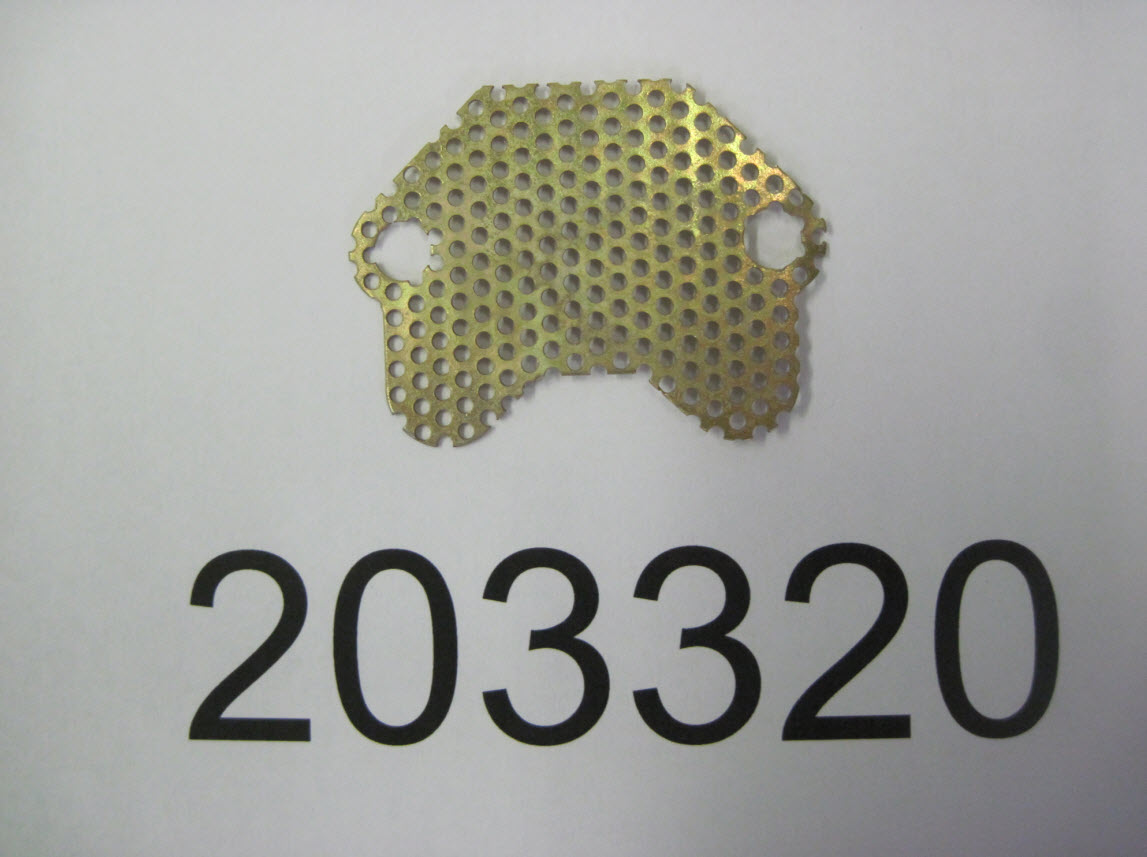

0203320 - Screen [ More info ] Unavailable |
| #40 — 304038 — (1 required per assembly) | ||
|
|
|
