Crankcase - Crankshaft Parts for 1957 Evinrude 3 hp 3024 Outboard Motor

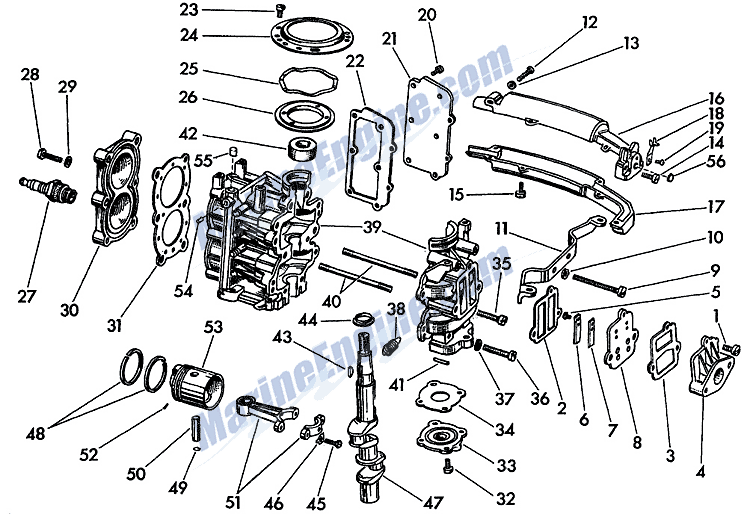

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
| #0 — 277174 — (1 required per assembly) | ||
  |
|
0277174 - Reed Plate AS [ More info ]
|
| #0 — 217199 — (1 required per assembly) |
| #1 — 304889 — (1 required per assembly) | ||
  |
0304889 - Screw, Exhaust Cover [ More info ] Unavailable |
|
  |
|
|
| #2 — 203180 — (1 required per assembly) | ||
  |
|
0203180 - Leaf Plate Gasket [ More info ]
|
| #3 — 203228 — (1 required per assembly) | ||
  |
|
0203228 - Intake Manifold Gasket [ More info ]
|
| #4 — 203144 — (1 required per assembly) | ||
  |
|
0203144 - Intake Manifold [ More info ] Unavailable |
| #5 — 303764 — (4 required per assembly) | ||
  |
|
0303764 - Screw, Leaf To Manifold [ More info ]
|
| #6 — 203173 — (2 required per assembly) | ||
  |
|
0203173 - Reed Stop [ More info ]
|
| #7 — 203175 — (2 required per assembly) | ||
  |
|
0203175 - Reed, One Only [ More info ] Unavailable |
| #8 — 203174 — (1 required per assembly) | ||
  |
|
|
| #9 — 39X72 — (2 required per assembly) |
| #10 — 300399 — (4 required per assembly) | ||
  |
|
0300399 - Washer [ More info ] Unavailable |
| #11 — 203148 — (1 required per assembly) | ||
  |
|
|
| #12 — 132123 — (1 required per assembly) | ||
  |
|
0132123 - Screw, Long, (1-1/4 Inch) [ More info ]
|
| #13 — 300154 — (1 required per assembly) | ||
  |
|
0300154 - Washer [ More info ]
|
| #14 — 304889 — (2 required per assembly) | ||
|
0304889 - Screw, Exhaust Cover [ More info ] Unavailable |
|
|
|
|
| #15 — 43X156 — (7 required per assembly) |
| #16 — 203224 — (1 required per assembly) | ||
  |
|
0203224 - Silencer [ More info ] Unavailable |
| #17 — 203225 — (1 required per assembly) | ||
  |
|
0203225 - SILENCER [ More info ] Unavailable |
| #18 — 203474 — (1 required per assembly) | ||
  |
|
0203474 - STOP [ More info ] Unavailable |
| #19 — 303678 — (1 required per assembly) | ||
  |
|
0303678 - Screw [ More info ] Unavailable |
| #20 — 43X147 — (7 required per assembly) |
| #21 — 203172 — (1 required per assembly) | ||
  |
|
0203172 - Exhaust Cover Plate [ More info ]
|
  |
|
0323263 - Exhaust Cover Plate [ More info ]
|
| #22 — 203171 — (1 required per assembly) | ||
  |
|
0203171 - Exhaust Cover Gasket [ More info ]
|
| #23 — 41X223 — (3 required per assembly) |
| #24 — 302599 — (1 required per assembly) | ||
  |
|
0302599 - Support [ More info ]
|
| #25 — 552029 — (1 required per assembly) | ||
  |
|
0552029 - Wave Washer [ More info ]
|
| #26 — 302442 — (1 required per assembly) | ||
  |
|
0302442 - Retaining Ring [ More info ]
|
| #27 — 200322 — (2 required per assembly) | ||
  |
|
0200322 [ More info ] Unavailable Replaced by 0507467 |
  |
|
0507467 [ More info ] Unavailable Replaced by 0593871 |
  |
|
0593871 - 0593871 - SPARK PLG J6C 8 [ More info ] Unavailable Replaced by 0502895 |
  |
|
0502895 - J 6C Spark Plug [ More info ] Unavailable |
  |
|
J6C - Champion Spark Plug ( #823) [ More info ]
|
|
|
J6C - Champion Spark Plug ( #823) [ More info ]
|
| #27 — 376290 — (2 required per assembly) |
| #28 — 21X358 — (6 required per assembly) |
| #29 — 43X302 — (6 required per assembly) |
| #30 — 203176 — (1 required per assembly) | ||
  |
|
0203176 - Head [ More info ] Unavailable |
| #31 — 203130 — (1 required per assembly) | ||
  |
|
0203130 - Head Gasket [ More info ]
|
  |
|
18-3841-2 - Head Gasket 203130 [ More info ]
|
| #32 — 304889 — (4 required per assembly) | ||
|
0304889 - Screw, Exhaust Cover [ More info ] Unavailable |
|
|
|
|
| #33 — 203145 — (1 required per assembly) | ||
  |
|
0203145 - Inner Flange [ More info ]
|
| #34 — 203161 — (1 required per assembly) | ||
  |
|
0203161 - Inner Flange Gasket [ More info ]
|
| #35 — 21X167 — (4 required per assembly) |
| #36 — 27X17 — (2 required per assembly) |
| #37 — 300399 — (4 required per assembly) | ||
|
|
0300399 - Washer [ More info ] Unavailable |
| #38 — 302827 — (1 required per assembly) | ||
  |
|

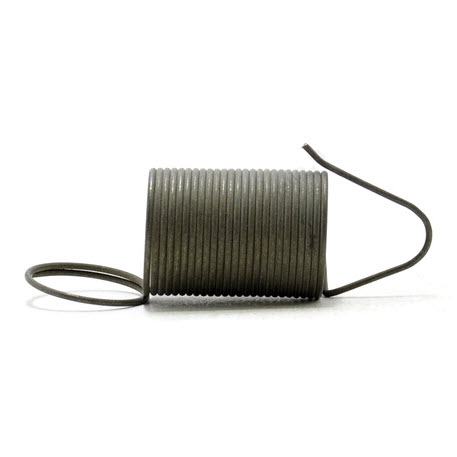

0302827 - High Tension Leads Spring [ More info ]
|
| #39 — 277171 — (1 required per assembly) | ||
  |
|
0277171 [ More info ] Unavailable Replaced by 0379436 |
  |
|
0379436 - Cylinder Assembly, 3HP [ More info ] Unavailable |
| #40 — 203159 — (2 required per assembly) | ||
  |
|
|

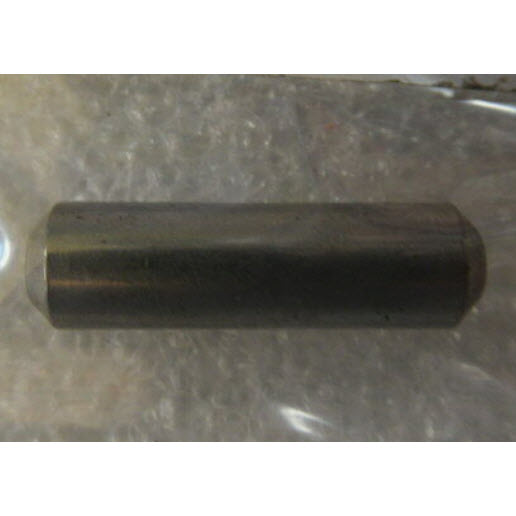

| #41 — 300402 — (2 required per assembly) | ||
  |
|
|
| #42 — 510167 — (1 required per assembly) | ||
  |
|
0510167 - Cam, Magneto [ More info ]
|
| #43 — 120395 — (1 required per assembly) | ||
  |
|
|
| #44 — 301781 — (1 required per assembly) | ||
  |
|
0301781 - Oil Slinger [ More info ]
|
| #45 — 43A44 — (4 required per assembly) |
| #46 — 43A17 — (4 required per assembly) |
| #47 — 203177 — (1 required per assembly) | ||
  |
|
0203177 [ More info ] Unavailable Replaced by 0203555 |
  |
|
0203555 - CrankShaft [ More info ] Unavailable |
| #48 — 203152 — (4 required per assembly) | ||
  |
|
0203152 - Rings , Standard [ More info ] Unavailable |
| #48 — 203398 — (4 required per assembly) |
| #49 — 120960 — (4 required per assembly) | ||
  |
|
0120960 - Circlip [ More info ]
|
| #50 — 203151 — (2 required per assembly) | ||
  |
|
0203151 - Wrist Pin [ More info ] Unavailable |
| #51 — 277301 — (2 required per assembly) | ||
  |
|
0277301 - Connecting Rod [ More info ]
|
  |
|
0383459 - Connecting Rod [ More info ]
|
| #52 — 300846 — (4 required per assembly) |
| #53 — 376991 — (2 required per assembly) | ||
  |
0376991 - Piston Assembly, STD [ More info ] Unavailable |
|
  |
0396997 - Piston and Rings [ More info ] Unavailable |
|
  |
|
0432739 - Piston and Rings [ More info ] Unavailable |
| #53 — 277283 — (2 required per assembly) | ||
  |
|
0277283 [ More info ] Unavailable Replaced by 0383240 |
  |
|

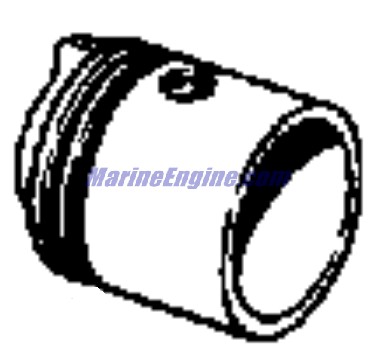

0383240 - Piston .020 [ More info ] Unavailable |
| #54 — 43X223 — (1 required per assembly) |
| #55 — 304067 — (1 required per assembly) | ||
  |
|
|
| #56 — 203652 — (1 required per assembly) | ||
  |
|
0203652 - Plug Button, Rear Cover [ More info ]
|
