Parts for Force 9.9 HP (1996) Clamp Brackets (Serial No. 0e127700 - 0e143887)
Tap to zoom. Scroll down to order.

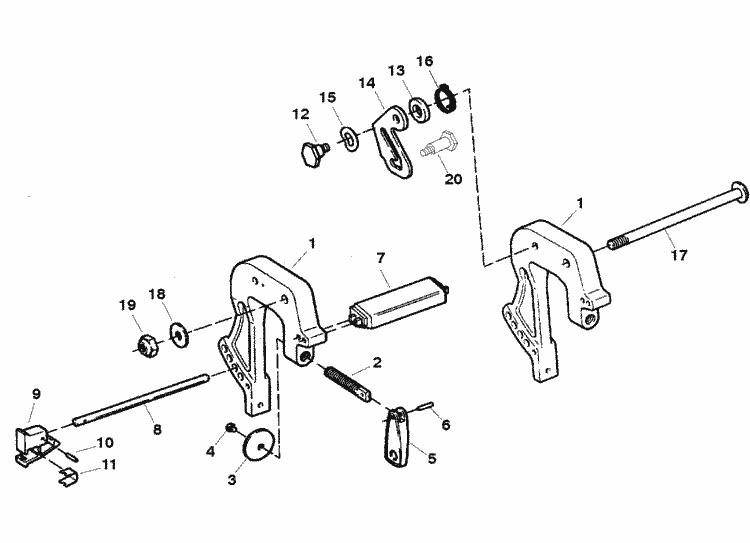

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.

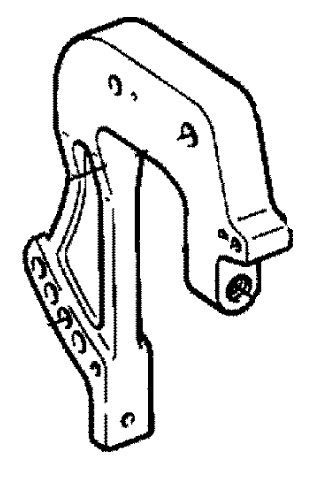

#1 | 1400-820068T 1 | BRACKET-Stern (Painted) (2 required per assembly) |
1400-850073A 1 - Bracket Kit-STER,NLA [ More info ] Unavailable |
||
#2 | 10-826248 | SCREW-Stern Bracket (2 required per assembly) |
#3 | F24074 | FOOT-Stern Bracket Screw (2 required per assembly) |
#4 | 10-69022 | SCREW (#10-32 x .500) (2 required per assembly) TORQUE 35 LB IN 3.9 N-M |
#5 | F424075T | HANDLE (Painted) (2 required per assembly) |
#6 | 17-24198 | PIN-Roll (2 required per assembly) |

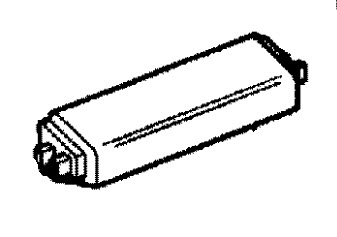

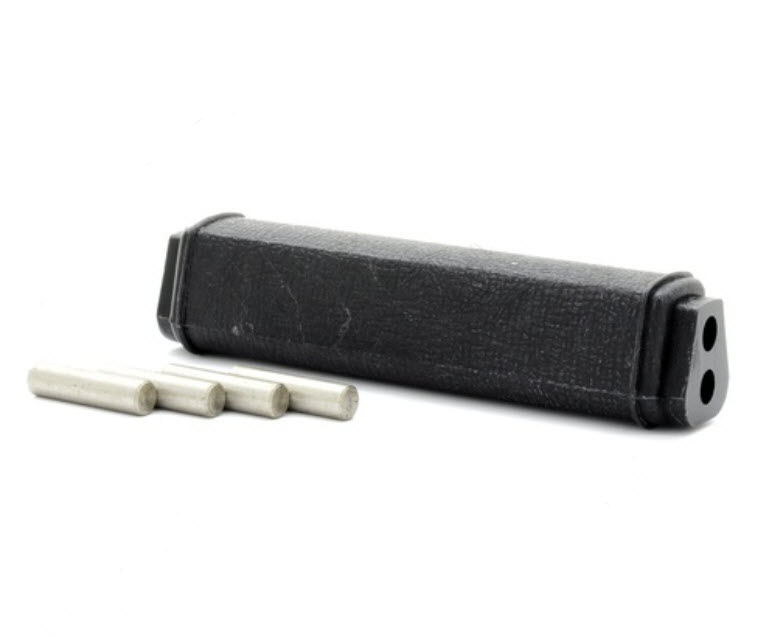

#7 | F286647 | HANDLE-Carrying (1 required per assembly) |
#8 | FA617113 | BAR KIT-Lock (1 required per assembly) |

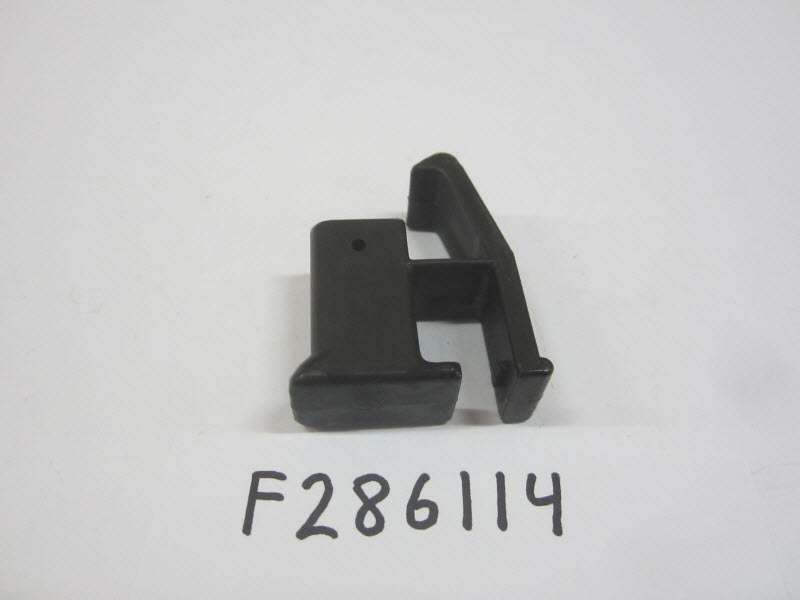

#9 | F286114 | HANDLE-Lock Bar (1 required per assembly) |
#10 | 17-38489 | PIN-Roll (1 required per assembly) |
#11 | 24-F286461 | SPRING-Lock Bar (1 required per assembly) |
#12 | 10-F286422 1 | SCREW-Tilt Lock (.312-18 Special) (1 required per assembly) |
#13 | 23-819226 | SPACER-Tilt Lock (1 required per assembly) |
#14 | F429541 | LOCK-Tilt (1 required per assembly) |
#15 | 13-69150 | WASHER-Wave (1 required per assembly) |
#16 | 24-F286544 1 | SPRING-Tilt Lock (1 required per assembly) |

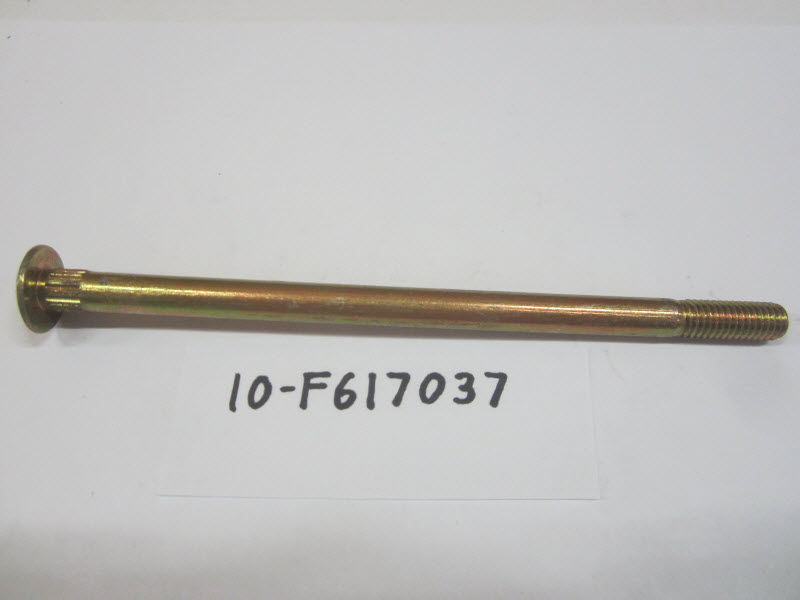

#17 | 10-F617037 | BOLT-Stern Bracket Pivot (1 required per assembly) |
#18 | 12-20553 | WASHER (1 required per assembly) |
#19 | 11-F7026 | NUT (.375-16) (1 required per assembly) TORQUE 125 LB IN 13.9 N-M |
#20 | 17-819707 | PIN-Tilt Lock (.250-20) (1 required per assembly) |
17-819707 - Pin, Tilt Lock (.250-20) [ More info ] Unavailable |
