Parts for Force 4 HP (1987) Gear Housing

Revise Search: All Models > 4 HP (1987) > 0C43F7A ( ) > Gear Housing

NEED PARTS OR KITS?
View diagram and parts list below. Tap to zoom. Scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

Engine section

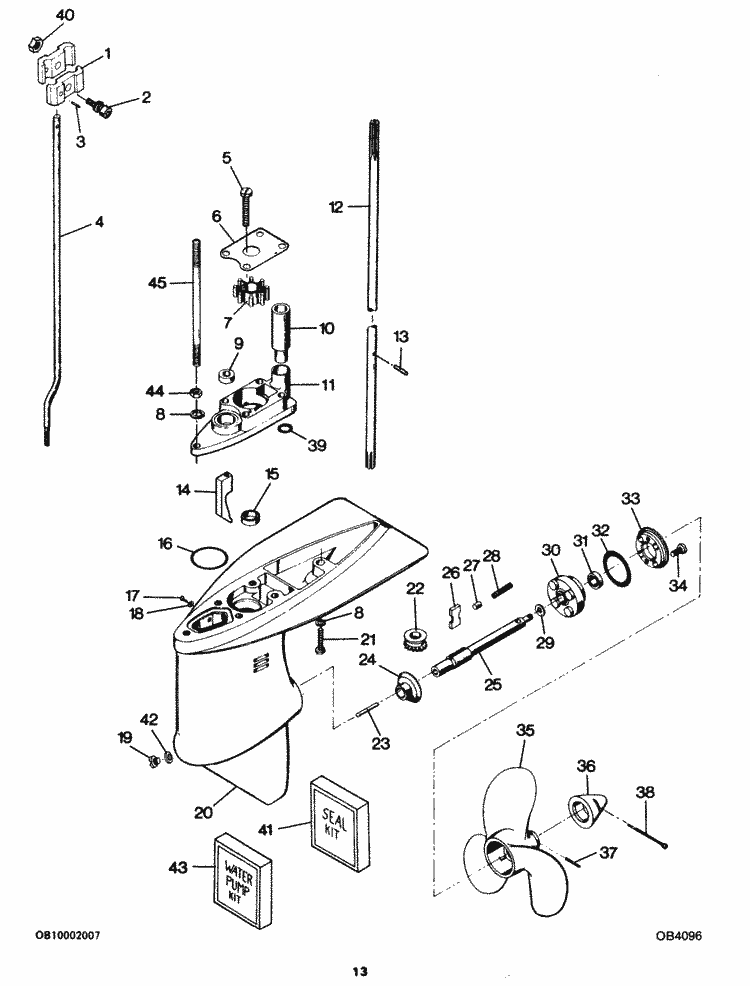

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

#	A521060 2	BODY, WATER PUMP (1 required per assembly)
#	FC341054	GEAR HOUSING COMPLETE. INCLUDES ALL ITEMS MARKED WITH AN AST (1 required per assembly)
		FC341054 - Gear Housing Complete [ More info ] Unavailable
		1600-819481A 1 - Gear Housing Kit [ More info ] Unavailable
		1600-820090A 3 - Gear Housing Assembly [ More info ] Unavailable
		1600-820090A 8 - Gear Housing,FORCE,NLA [ More info ] Unavailable
#1	F341704	COUPLING, GEAR SHIFT RODF W/ILLUS. 2 & 40 AND LITERATURE (1 required per assembly)
		F341704 - FK341704, NLA [ More info ] Unavailable
		FK341704 - Coupling Kit, NLA [ More info ] Unavailable
#2	F1371	SOCKET HD SCREW W/LOCKWASHER, 10-24X5/8 (1 required per assembly)

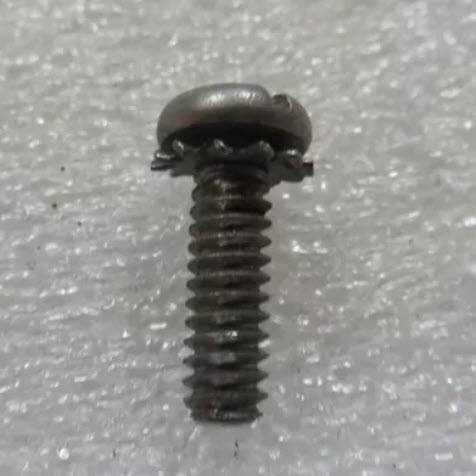

		10-F1371 - Screw -w/Lw, NLA [ More info ] $1.50 10+ In Stock.
#3	8538	SPRING PIN (1 required per assembly)
		1397-8538 - Air Horn Kit, NLA [ More info ] $70.00 2 In Stock.
#4	F521705	ROD, GEAR SHIFT LOWER (1 required per assembly)
		F521705 - F5217051 [ More info ] Unavailable
		F521705-1 - Shift Rod -15 In, NLA [ More info ] $15.22 10+ In Stock.
#5	F1504	FILL HD SCREW, 1/4-20X1-1/4 (4 required per assembly)
		10-F1504 - Screw -ss [ More info ] $2.80 Available to Order: Usually ships within 10 days.
#6	F521537	PLATE, WATER PUMP (1 required per assembly)
		F521537 - Water Pump Plate [ More info ] $7.91 10+ In Stock.

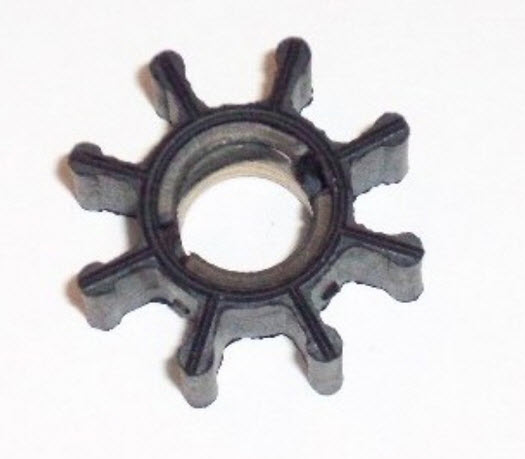

#7	F521065	IMPELLER (1 required per assembly)
		F521065 - 47F5210651 [ More info ] Unavailable
		47-F521065-1 - Impeller [ More info ] $118.50 Available to Order: Usually ships within 10 days.
#8	F8083	SPRING LOCKWASHER (2 required per assembly)
		F8083 - LockWasher SS [ More info ] Unavailable
		13-26992 - LockWasher - Priced Individually [ More info ] $1.20 10+ In Stock.
#9	F338618-1	**SEAL, SHIFT ROD (1 required per assembly)
		F338618-1 - SEAL [ More info ] Unavailable
		26-817472 - Seal [ More info ] $9.00 10+ In Stock.

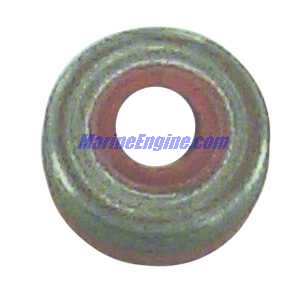

		18-0500 - Seal, 26-817472 [ More info ] $8.99 $7.38 Available to Order: Usually ships within 10 days.
#10	F521735	SEAL, WATER LINE W/LITERATURE (1 required per assembly)
		F521735 - SEAL [ More info ] Unavailable

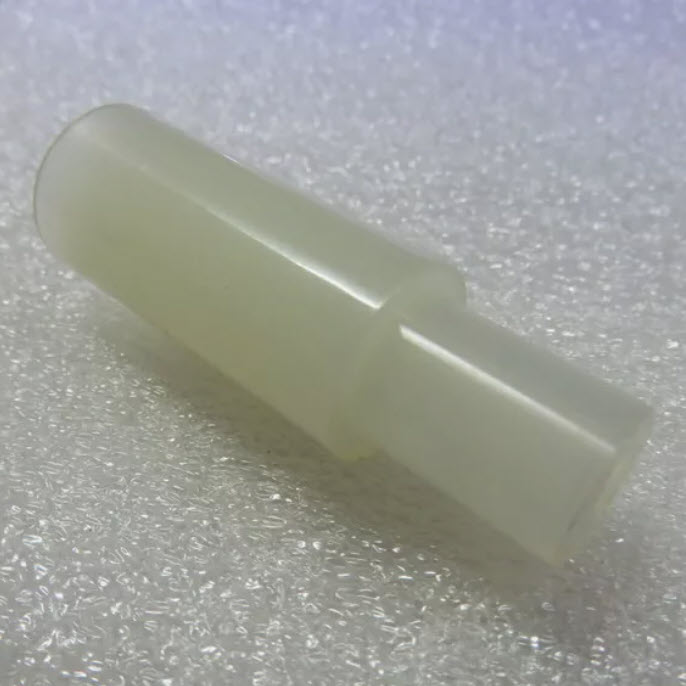

		FA521735 - Waterline Seal, NLA [ More info ] $14.06 9 In Stock.
#11	A521060-2	WATER PUMP BODY W/PLUG ILLUS. 39 (1 required per assembly)
#12	F521128	DRIVESHAFT (1 required per assembly)

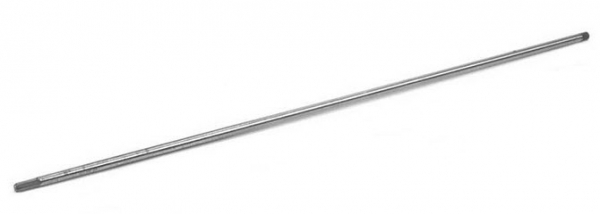

		45-F521128 - Drive Shaft - Short [ More info ] $87.11 6 In Stock.

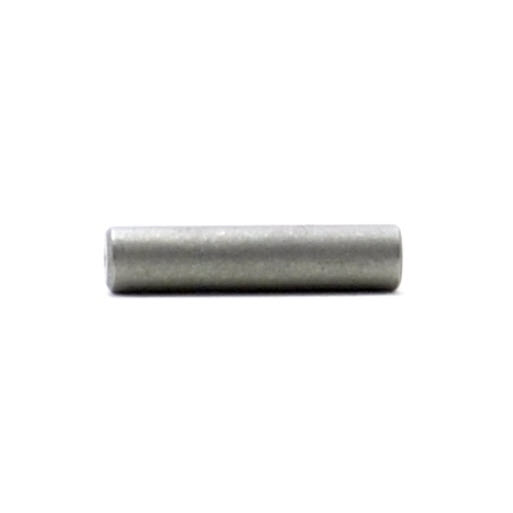

#13	F390563	PIN, WATER PUMP IMPELLER DRIVE (1 required per assembly)
		17-F390563 - Pin, Impeller Drive, NLA [ More info ] $4.59 10+ In Stock.

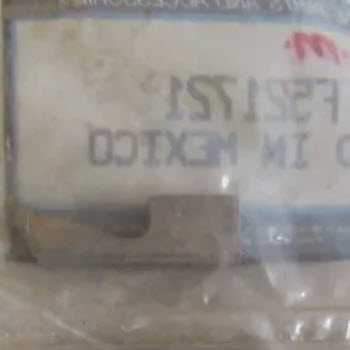

#14	F521721	CAM, CLUTCH SHIFT (1 required per assembly)
		F521721 - Cam, NLA [ More info ] $7.00 10+ In Stock.
#15	F318307	**SEAL, DRIVESHAFT (1 required per assembly)
		26-F318307 - Seal [ More info ] $45.83 $30.80 10+ In Stock.

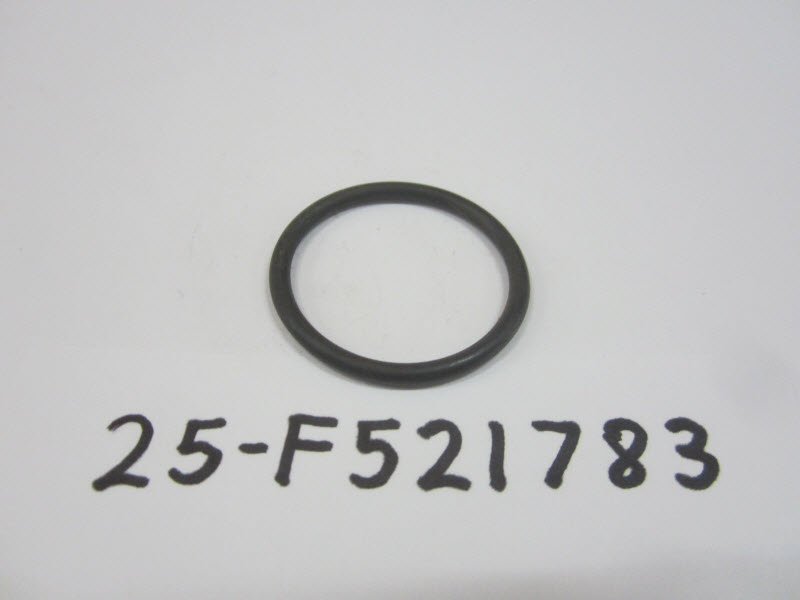

#16	F521783	SEAL (1 required per assembly)
		25-F521783 - Seal, Water Pump Body,NLA [ More info ] $1.78 10+ In Stock.
#17	F1077	FILL HD SCREW, 10-24X1/4 (1 required per assembly)
		10-F1077 - Screw, NLA [ More info ] $1.77 10+ In Stock.
#18	F8074	WASHER (1 required per assembly)
		12-F8074 - WASHER [ More info ] Unavailable
#19	F50109	PLUG, GEAR HOUSING (1 required per assembly)

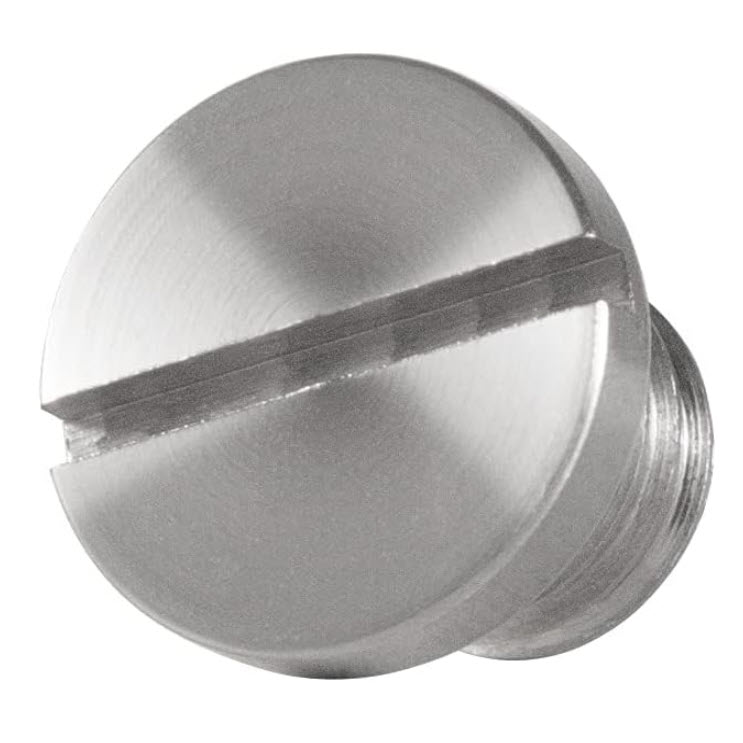

		10-F50109 - Screw -Special [ More info ] $7.77 9 In Stock.
		10-79953A 2 - Drain Screw Kit [ More info ] Unavailable
		10-79953Q 2 - Screw Kit - Priced Individually [ More info ] Unavailable
		10-79953Q04 - Screw Kit - Priced Individually [ More info ] $7.49 10+ In Stock.
		18-2244 - Plug Kit, 10-79953A2 [ More info ] $3.59 $3.48 10+ In Stock.
		10-79953K04 - Drain Screw - Priced Individually [ More info ] $8.20 10+ In Stock.
#20	F2A521054	GEAR HOUSING W/ILLUS. 15, 17, 18, 19 AND 42. (1 required per assembly)
		F2A521054 - Gear Housing Assembly [ More info ] Unavailable
		1600-820090A 2 - Basic Gear Housing Kit [ More info ] Unavailable

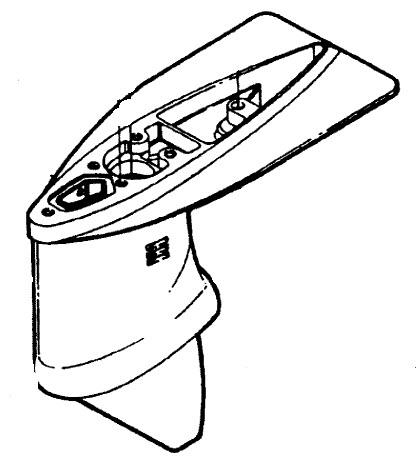

		1600-820090A 7 - Basic Gear Housing Assembly [ More info ] Unavailable
#21	F1199	HEX CAP SCREW, 1/4-20X1 (1 required per assembly)
		F1199 - Screw SS [ More info ] Unavailable
		10-14168 - Screw [ More info ] $1.39 10+ In Stock.
#22	F521266	BEVEL PINION GEAR (1 required per assembly)
		F521266 - Bevel Pinion Gear [ More info ] Unavailable
		43-819250 - Pinion Gear [ More info ] Unavailable
#23	F521728	CLUTCH SHIFT PIN (1 required per assembly)

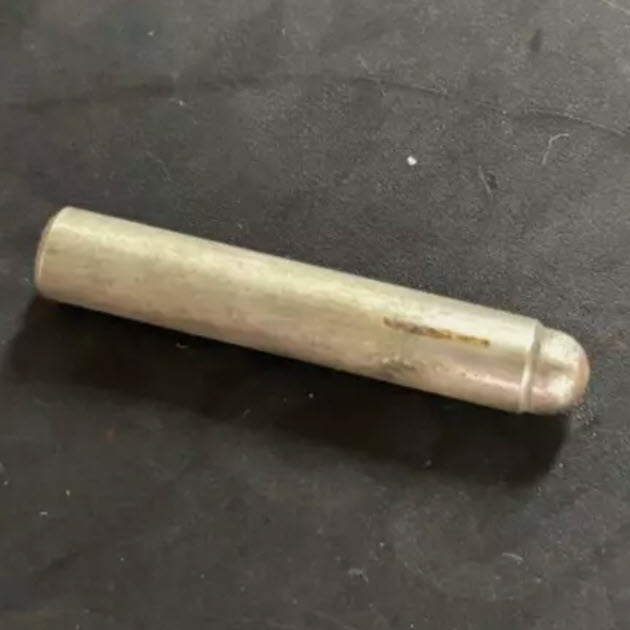

		17-F521728 - Clutch Shift Pin, NLA [ More info ] $5.00 10+ In Stock.
#24	F521023	BEVEL GEAR W/BEARING (1 required per assembly)
		F521023 - Bevel Gear [ More info ] Unavailable
		FA521023 - Bevel Gear [ More info ] Unavailable

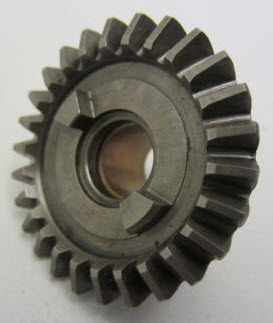

		43-819249A 1 - Front Gear Assembly [ More info ] $27.78 10+ In Stock.

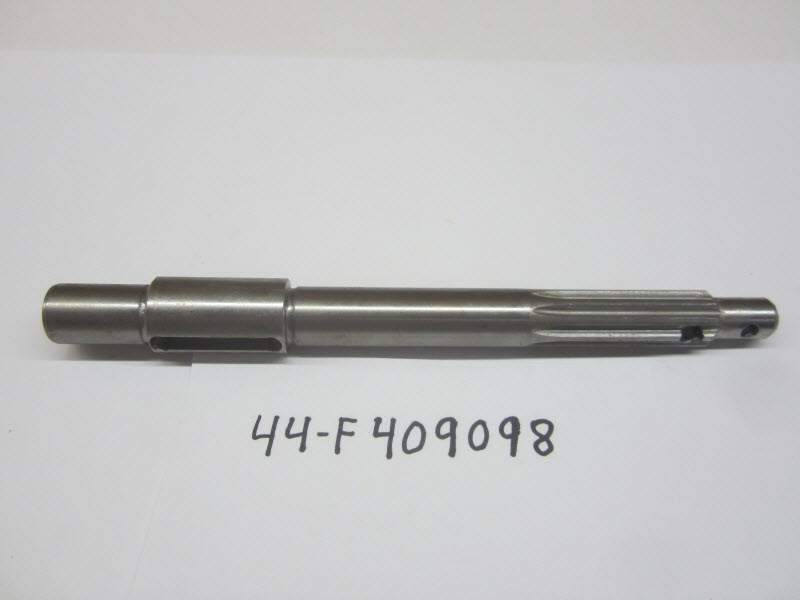

#25	F409098	PROPELLER SHAFT (1 required per assembly)
		44-F409098 - Prop Shaft, 5HP Force, NLA [ More info ] $44.43 4 In Stock.
#26	F409521	CLUTCH (1 required per assembly)

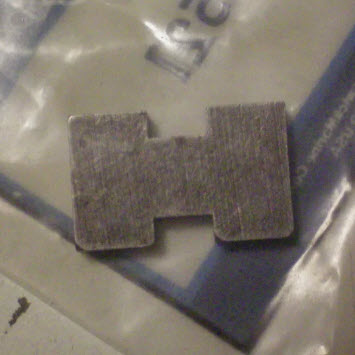

		52-F409521 - Clutch, NLA [ More info ] $7.25 10+ In Stock.
#27	F318372	PIN, CLUTCH GUIDE (1 required per assembly)
		17-F318372 - Clutch Guide Pin, NLA [ More info ] $3.33 10+ In Stock.

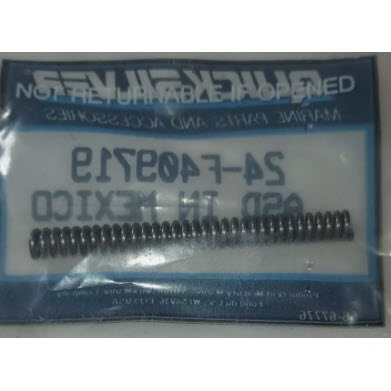

#28	F409719	CLUTCH SPRING (1 required per assembly)
		24-F409719 - Spring, Clutch,NLA [ More info ] $5.56 10+ In Stock.
#29	F521099	SPACER (1 required per assembly)
		23-F521099 - SPACER,NLA [ More info ] Unavailable
#30	FA341298	BEARING CAGE W/BEARING AND ILLUS. 31 (1 required per assembly)
		FA341298 - Cage Assembly [ More info ] Unavailable
		FA341298T - Cage Assembly [ More info ] $71.58 Available to Order: Usually ships within 10 days.
#31	F521307	SEAL, PROPELLER (1 required per assembly)

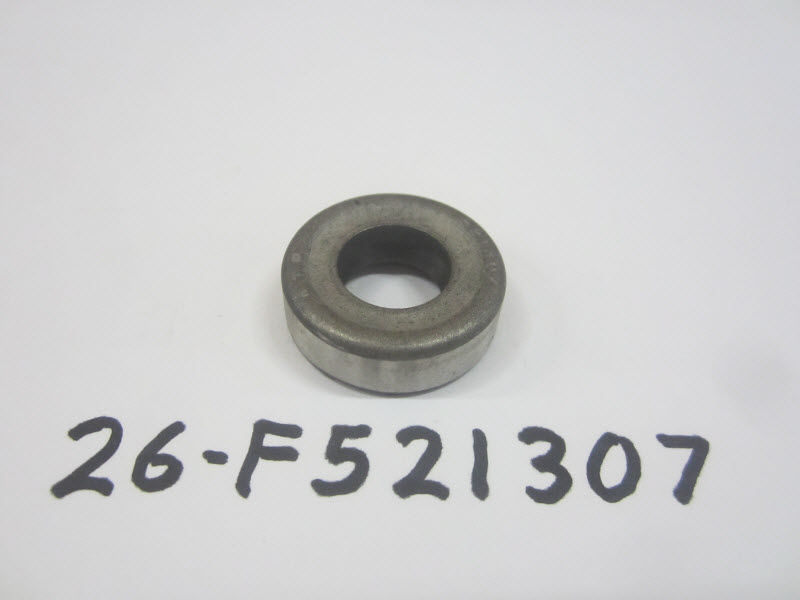

		26-F521307 - Seal, NLA [ More info ] $35.54 10+ In Stock.
#32	F521305	"O" RING (1 required per assembly)
		25-F521305 - O-Ring Seal, Prop Shaft Bearing Cage,NLA [ More info ] $7.24 10+ In Stock.
#33	F521296	RETAINER, PROPELLER SHAFT BEARING CAGE (1 required per assembly)
		F521296 - Retainer [ More info ] Unavailable
		F521296T - Retainer [ More info ] Unavailable
		F521296T1 - Retainer [ More info ] $31.58 Available to Order: Usually ships within 10 days.
#34	F525457	FILL HD SCREW, 1/4-20X5/8 (4 required per assembly)
		10-F525457 - Screw, NLA [ More info ] $1.67 10+ In Stock.
#35	FP332	PROPELLER (1 required per assembly)
		FP332 - Prop [ More info ] Unavailable
		FP712 - PROP [ More info ] Unavailable
		48-820110A20 - Black Diamond Prop 7.25X6.5 [ More info ] $148.02 Available to Order: Usually ships within 10 days.
#36	F286094-1	PROPELLER NUT W/ILLUS. 38 (1 required per assembly)
		F286094-1 - NUT-PROP [ More info ] Unavailable
		11-817752A 1 - Prop Nut Kit [ More info ] $19.99 10+ In Stock.

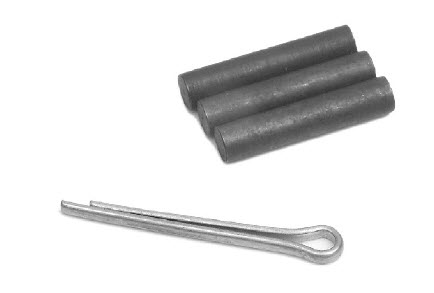

#37	F324101	PROPELLER PIN, PACK OF 3 AND ILLUS. 38 (1 required per assembly)
		F324101 - Propeller Pin, (Pack Of 3) [ More info ] Unavailable
		FA324101 - Prop Pin Kit [ More info ] $13.01 $11.06 7 In Stock.
#38	F1846	COTTER PIN (1 required per assembly)
		18-F1846 - Cotter Pin - Priced Individually [ More info ] Unavailable
		18-45882 - Cotter Pin - Priced Individually [ More info ] $2.88 3 In Stock.
#39	F521246-1	PLUG, WATER PUMP (1 required per assembly)
		19-F521246-1 - Plug - Welch [ More info ] Unavailable
#40	7009	LOCK NUT, 10-24 (1 required per assembly)
		390-7009 - Diode/Rect- (neg), NLA [ More info ] $16.00 10+ In Stock.
#41	1057	GEAR HOUSING SEAL KIT. (1 required per assembly)
		394-1057 - End Cap [ More info ] Unavailable
		394-1577A 2 - End Cap Assembly [ More info ] Unavailable
#42	F8077	WASHER (1 required per assembly)
		F8077 - SEAL [ More info ] Unavailable

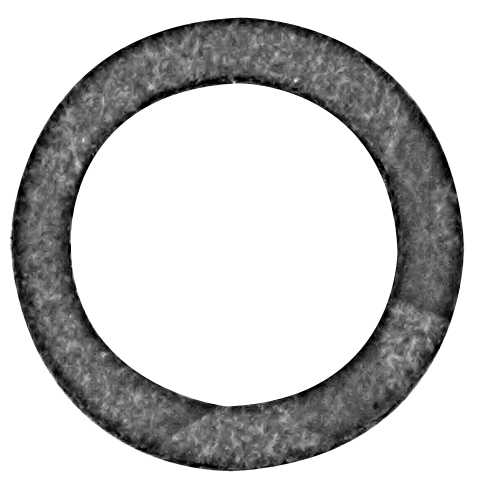

		F8186 - Washer-BLK - Priced Individually [ More info ] Unavailable
		12-19183 - Washer (3/8 Inch Screw) [ More info ] Unavailable
		12-19183 2 - Washer - Priced Individually [ More info ] Unavailable
		12-19183 3 - Seal -Blue - Priced Individually [ More info ] $1.49 10+ In Stock.
		18-2945-9 - Gasket 12-19183 2-Pack [ More info ] $2.29 $2.26 10+ In Stock.
		12-19183Q02 - Seals, Pack of 4 (yes this is actually a pack of 4) [ More info ] $6.69 10+ In Stock.
		12-19183K02 - Seal, Pack of 4 [ More info ] $7.30 10+ In Stock.
#43	FK1072	WATER PUMP KIT. (INCLUDES ITEMS LISTED BELOW) (1 required per assembly)
		FK1072 - Water Pump Kit [ More info ] Unavailable

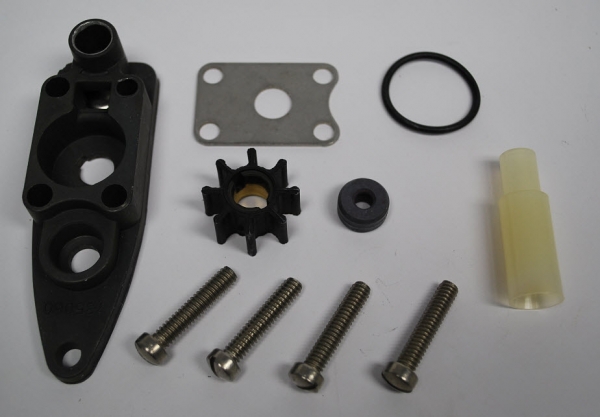

		46-819026A 1 - Water Pump Kit, NLA [ More info ] Unavailable

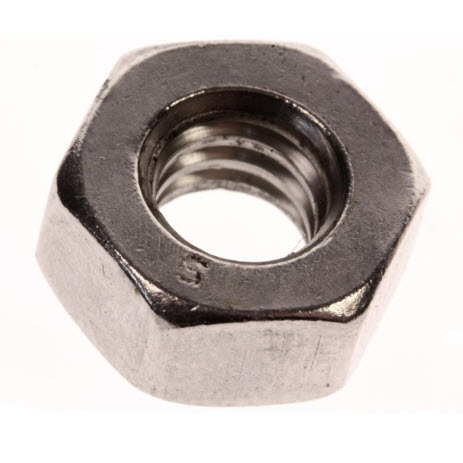

#44	F1341	HEX STUD (1 required per assembly)
		F1341 - Hex Nut 1/4 - 20 [ More info ] Unavailable
		11-64015 - Nut (1 /4-20) [ More info ] $2.80 10+ In Stock.
#45	F601006	STUD (1 required per assembly)

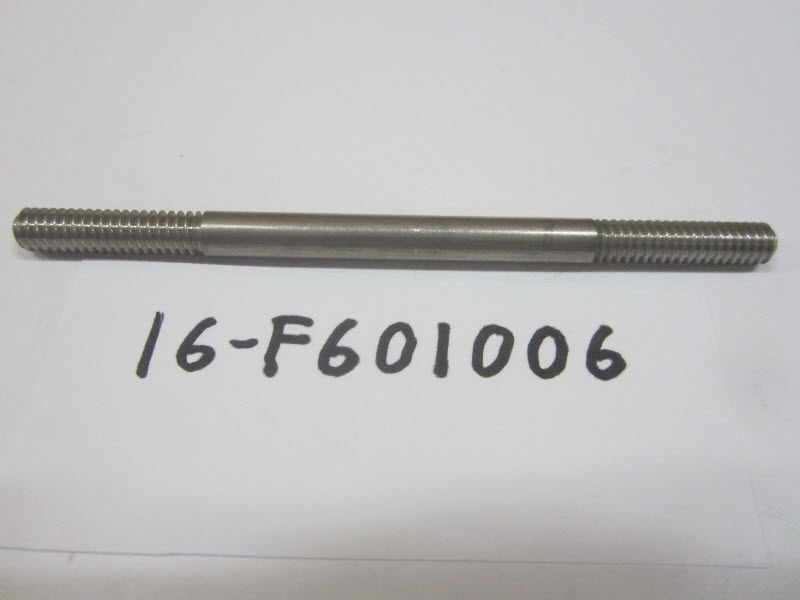

		16-F601006 - Stud, NLA [ More info ] Unavailable
