Parts for Force 15 HP (1998) Ignition System
Tap to zoom. Scroll down to order.

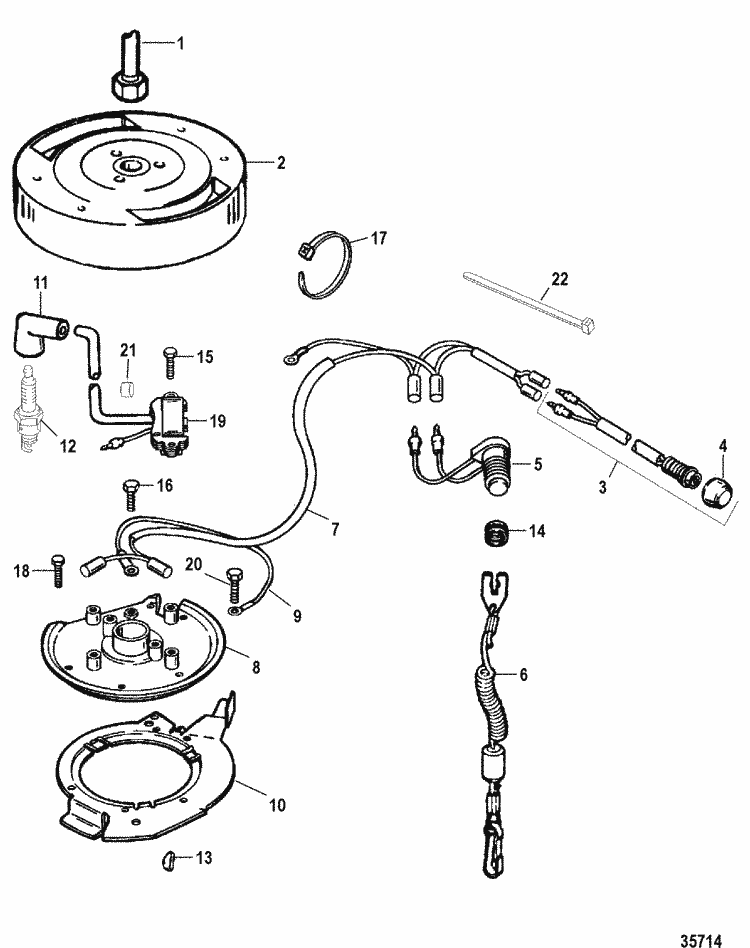

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
#1 | F681091 | NUT (1 required per assembly) |
F681091 - Nut, NLA [ More info ] Unavailable |
||
#2 | 200-824380T 4 | FLYWHEEL (PAINTED) (1 required per assembly) |
200-824380T 4 - Flywheel -wo/Teeth [ More info ] Unavailable |
||
#3 | 87-824440A15 | SWITCH ASSEMBLY, Stop (1 required per assembly) |

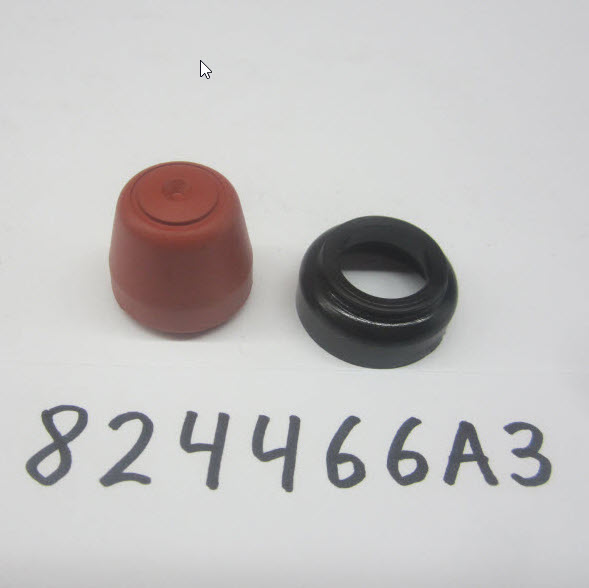

#4 | 824466A 3 | COVER ASSEMBLY, Stop Switch (1 required per assembly) |

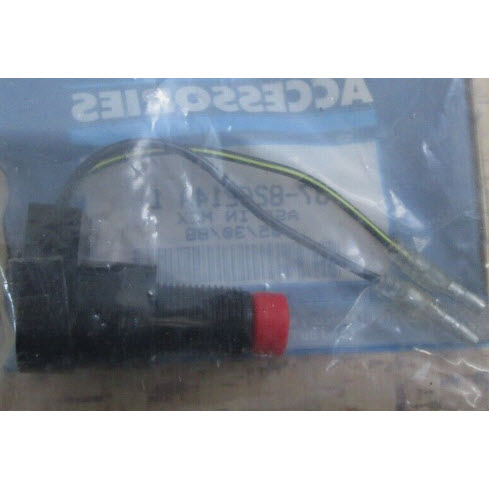

#5 | 87-826214A 1 | SWITCH ASSEMBLY, Emergency Stop (1 required per assembly) |
#6 | 819399A 1 | LANYARD ASSEMBLY (1 required per assembly) |
819399A 1 - Lanyard Assembly [ More info ] Unavailable |
||
879104 - LANYARD W/CLIP,NLA [ More info ] Unavailable |
||
#7 | 84-819379A 7 | HARNESS ASSEMBLY, Engine Stop (1 required per assembly) TORQUE 50 LB FT 67.8 N-M |
#8 | 828243T | PLATE KIT, Stator (1 required per assembly) |
#9 | 84-60466A21 | CABLE ASSEMBLY, Ground (1 required per assembly) |
#10 | 855352 | CAM, Throttle (1 required per assembly) |
#11 | 85-63709A 1 | BOOT/TERMINAL KIT (2 required per assembly) |
85-63709A 1 - Boot Kit - Black - Priced Individually [ More info ] |
||
#12 | 33-312 | SPARK PLUG (2 required per assembly) (9.9) (CHAMPION # L87YC) TORQUE 20 LB IN 27 N-M |
#12 | 33-327 | SPARK PLUG (OPT required per assembly) (9.9) (RFI) (CHAMPION # RL87YC) TORQUE 20 LB IN 27 N-M |
#12 | 33-328 | SPARK PLUG (2 required per assembly) (15) (CHAMPION # L82YC) TORQUE 20 LB IN 27 N-M |
33-328 - Sp #L82YC - Priced Individually [ More info ] Unavailable |
||

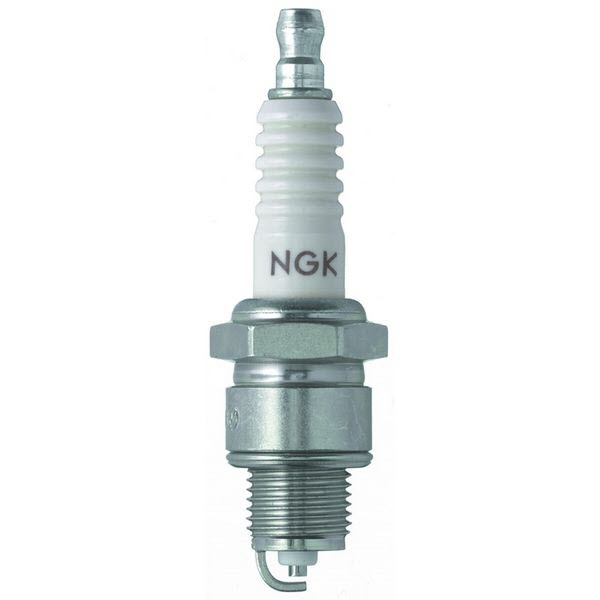

BP7HS - NGK Spark Plug, 5111 [ More info ]
$4.15 $3.23 |
||
#12 | 33-814 | SPARK PLUG (OPT required per assembly) (15) (RFI) (CHAMPION # RL82YC) TORQUE 20 LB IN 27 N-M |
33-814 - Spark Plug - RL82YC - Priced Individually [ More info ] Unavailable |
||
33-896329814 - Spark Plug - RL82YC - Priced Individually [ More info ] |
||

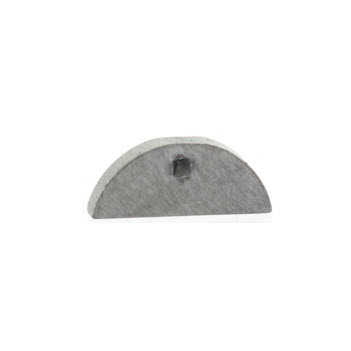

#13 | 28-F458498 1 | KEY, Crankshaft/Flywheel (1 required per assembly) |

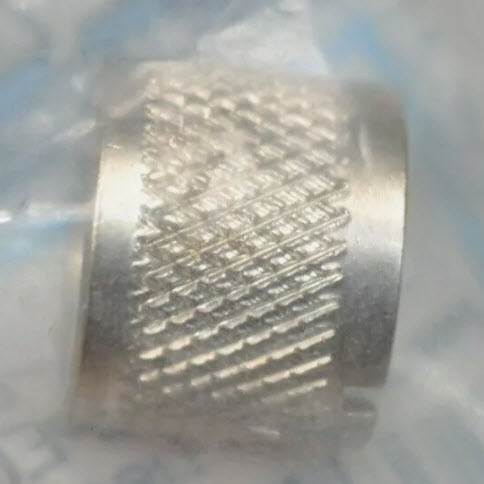

#14 | 11-855594 | NUT (SPECIAL)-STOP SWITCH SLEEVE (1 required per assembly) |
#15 | 10-824353 | SCREW (#8-32 X .750)-IGNITION MODULE (6 required per assembly) TORQUE 20 LB IN 2.3 N-M |
#16 | 10-824352 | SCREW (#10-24 X .375)-GROUND (1 required per assembly) TORQUE 30 LB IN 3.4 N-M |
10-824352 - Screw [ More info ] Unavailable |
||
#17 | 56762 | TIE STRAP, (4.00 Inches) (1 required per assembly) |
#18 | 10-824358 | SCREW (#10-24 X .500)-STATOR PLATE (5 required per assembly) TORQUE 30 LB IN 3.4 N-M |
#19 | 300-850899T | MODULE, Ignition (2 required per assembly) (CUT WIRE AS REQUIRED) |
#21 | 20117A 1 | MARKER SET, Ignition Cables (1 required per assembly) |
#22 | 54-816311 | TIE STRAP, (8.00 Inches) (2 required per assembly) |
54-816311 - TIE STRAP Note: Priced Individually [ More info ] Unavailable |
||
54-816311T - Tie Strap, 8 Inches, Priced Individually [ More info ] |
