Mercruiser V8 (Ford)-302 & 351 C.I.D.
Models 188, 215, 225, 233, 255 & 888 inboard & sterndrive units: Log style direct replacement

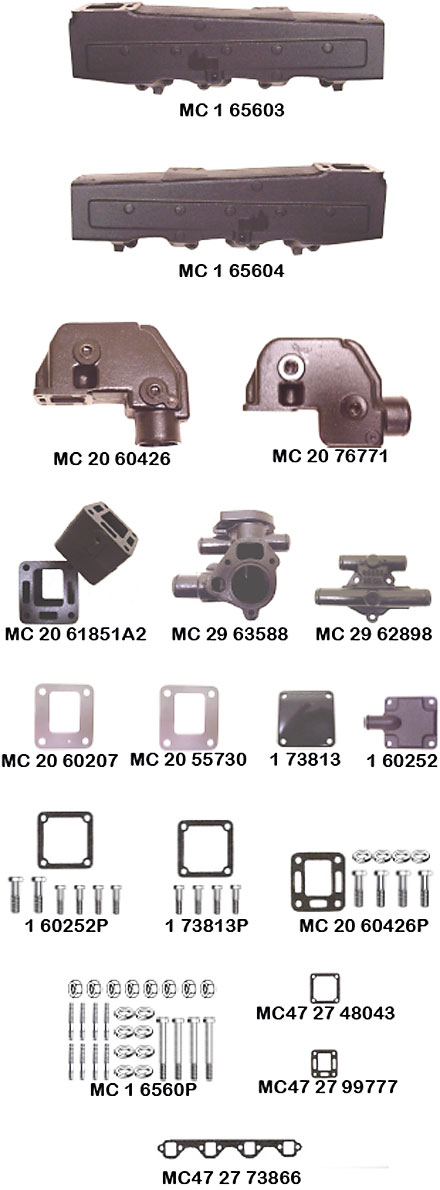

| Part Number | Description |
|---|---|
| MC-1-65603 | Direct replacement water-cooled exhaust manifold (starboard side). Replaces MerCruiser part numbers B-65603A4 and B-54099A5. |
| MC-1-65604 | Direct replacement water-cooled exhaust manifold (port side). Replaces MerCruiser part numbers B-65604A4 and B-54100A5. |
| MC-20-60426 | Direct replacement exhaust elbow riser (utilizes a stainless steel sleeve at the water / air mixing area). Replaces MerCruiser part number B-60426A1 (I/O applications). |
| MC-20-76351 | Direct replacement exhaust elbow riser. Replaces MerCruiser part number B-76351A1 (I/O applications). Not pictured. |
| MC-20-76771 | Direct replacement exhaust elbow riser. Replaces MerCruiser part number B-76771A3 (inboard applications). |
| 1-60252 | Direct replacement exhaust manifold end cap / connector. Replaces MerCruiser part number B-60252. |
| 1-60252P | Front end plate mounting package. |
| 1-73813 | Direct replacement manifold end cap (rear). Supercedes part number 1-54870. |
| 1-73813P | Rear end cap mounting package. |
| MC-1-6560P | Manifold mounting package. |
| MC-20-55730 | Stainless steel fresh water cooling block off plate for use with MerCruiser riser numbers 60426, 76351 and 76771. Requires two (2) gaskets — part number MC47-27-99777. |
| MC-20-60207 | Stainless steel block off plate (with vent hole) for use with MerCruiser riser numbers 60426, 76351 and 76771. Requires two (2) gaskets — part number MC47-27-99777. Used in pre-heating plumbing systems. |
| MC-20-60426P | Exhaust riser elbow mounting package. For use with both MC-2060426 and MC-20-76351 risers. |
| MC-20-61851A2 | Manifold to riser 3" spacers (sold in pairs). Includes all mounting hardware, gaskets and drain plugs. |
| MC-29-62898 | Upper thermostat housing. |
| MC-29-63588 | Lower thermostat housing. |
| MC47-27-54566A1 | Manifold gasket set. |
| MC47-27-48043 | Direct replacement exhaust manifold end cap / connector gasket (will fit both ends). |
| MC47-27-73866 | Direct replacement exhaust manifold to head gasket. |
| MC47-27-99777 | Direct replacement exhaust elbow to manifold gasket. Supersedes MerCruiser part number 27-52076. |
Note
Note: Manifold includes all plugs, gaskets and mounting hardware to head. Risers include plugs, gasket and mounting hardware to mount to manifold.
