150 HP V6 Yamaha 2003 2 Stroke Precise Mix Oil Pump Lines to Carburetor's

[Kobus]

Hi there,
Need help please. I have to replace my precise oil pump and lines from pump / check valves to carburetors.
I make a workshop drawing of the 6 lines from pump to carburetors on paper, run motor on premix till have money for spares.
Install new pump, have six new check valves and all pipes and clamps, all ordered from Yamaha Japan.
My big problem my drawing is missing.
Need help to route each pipe (6) from pump to dedicated carburetor.
Will appreciate any help. Thanks. Kobus



[racerone]

I doubt it matters where they go.----Each moves the same amount of oil.



[Kobus]

When collecting spares from supplier the bloke said I must ensure pipes are dedicated from pump to carburetors?



[boscoe]

Oil hose routing would be depicted in your service manual. Are you unable to find it in there?



[Kobus]

I only have Haynes Clymer online workshop manual, not in this manual.



[racerone]

Strange that the supplier said what he did?



[boscoe]



[boscoe]

You are welcome.



[Kobus]

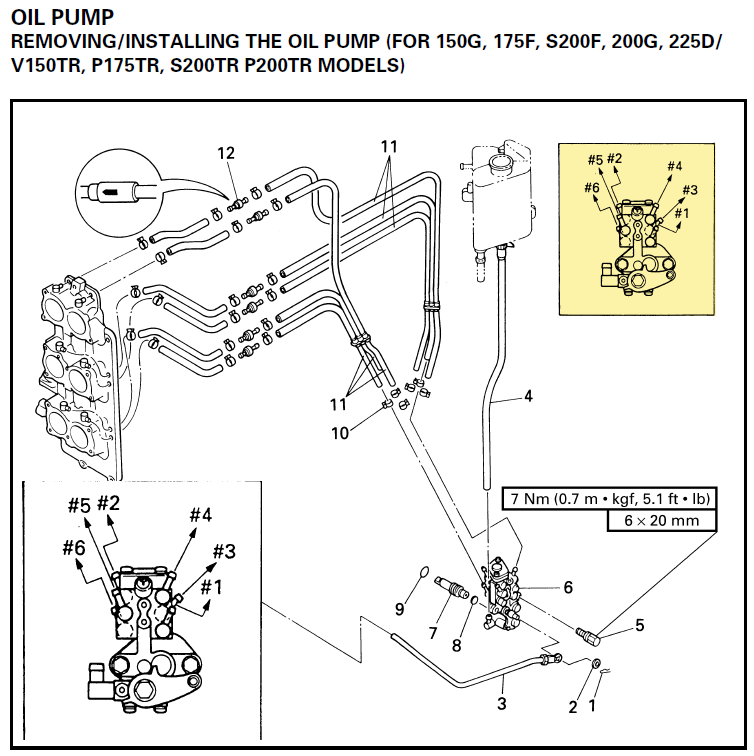

Thank you very much for your illustration.
Much appreciated. Kobus.
