420526-1 - Fuse Panel, 6 Gang, 2-7/16 X 4-1/2 Inch
Fuses and Fuse Holders
Bakelite Fuse Holder W/buss Bar
Multiple gang fuse blocks with brass fuse clips and brass screws. Takes standard 1/4" x 1-1/4" fuses. Fuses not included. Rated - 20 amps. Stamped brass / molded Bakelite.

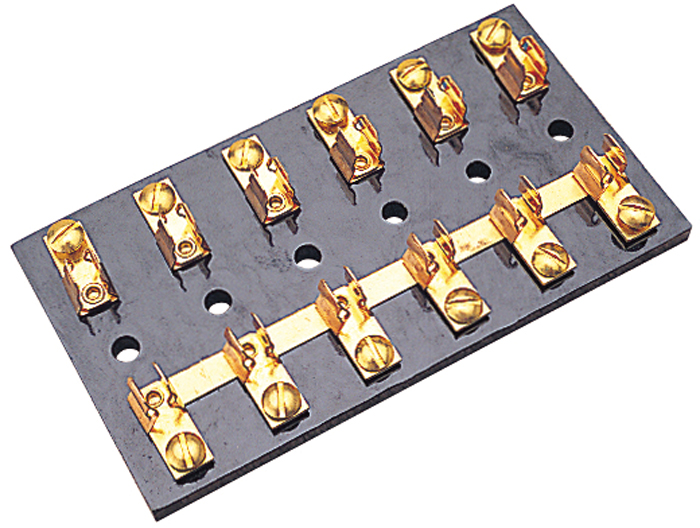

420526-1 Six Gang Fuse Panel
A - 2 7/16 Inch
B - 4 1/2 Inch
Multiple gang Bakelite fuse blocks with brass fuse clips and brass screws.
Includes a built-in buss bar to conveniently connect electrical wires.
Used to provide over-current protection to help safeguard wiring in electrical circuits.
Accepts standard 1/4" x 1-1/4" fuses. Fuses not included. Rated for 20 amps @ 12 volts.
Installs with #8 RH fasteners (not included).
