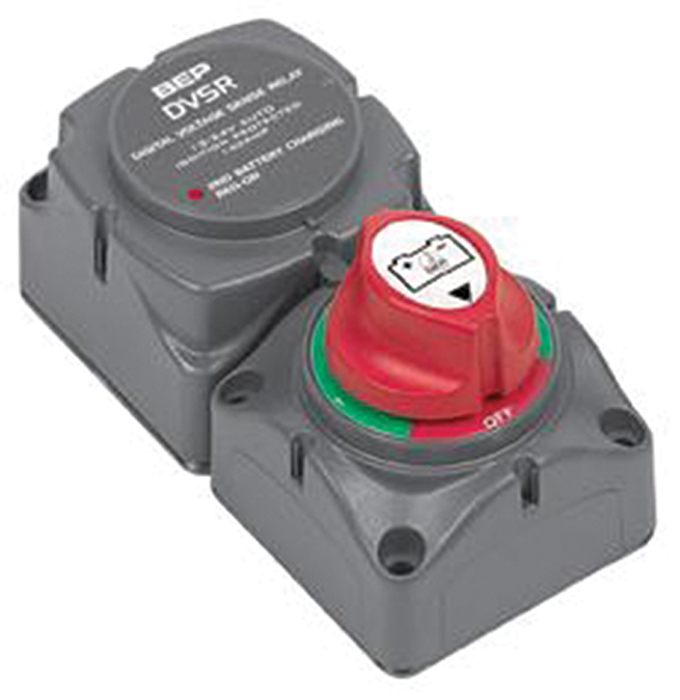

714-140A-DVSR - Battery Distrib Cluster 714-140A-DVSR
Single Engine, Two Battery Banks Dvsr
The 714-140A-DVSR uses a dual sensing DVSR. This system ensures you will always have a fully charged reserve battery. When the switch is in position one, it becomes the sensing battery for the VSR. Battery two, which is in isolation, will be charged via the VSR when the engine is running ensuring it is always fully charged. When the switch is in battery two position, this becomes the sensing battery and battery one is charged via the VSR. The fact that there is always a fully charged battery in reserve is a huge safety factor. Please note the electronic loads are run off the same battery as the engine starting battery.
