29200-0120 - Electric Flush Pump

List Price
$498.89

Your Price
$394.09

Add to cart

Available to order:
Usually ships
within 8 days. Help

Item Number
2214820

Model Number
29200-0120

Manufacturer
Jabsco Pumps

Section
Jabsco Par Electric Flush Pump

Warranty (PDF)
Enlarge photo

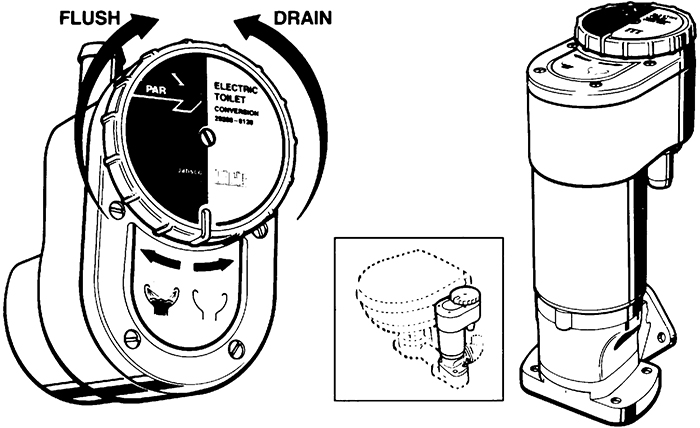

Converts all PAR manually operated toilets to convenient electric operation. It also fits Sealand (Mansfield) 751 toilets. (With Flange Adapter Kit listed below, it also will fit Raritan Compact, Raritan PH & PH 11 and Sealand (Mansfield) 752 toilets). Once converted, the toilet is flushed by simply turning the large control knob on the top of the pump assembly. The self-priming flushing pump rinses the toilet bowl while the waste pump macerates and evacuates the waste. The operator selects from two operating modes to either flush the toilet bowl or drain it. The spring-loaded control knob always returns to the off position. Completing the conversion is quick and easy because the Electric Flush Pump is a direct replacement for the manual pump originally supplied with the toilet. Simply disconnect the inlet hose, remove the discharge elbow from the pump and remove the manual pump assembly. Reattach the inlet hose and discharge elbow and install the Electric Flush Pump on the base. Connect the electrical leads to an appropriate power source and the toilet is ready for electric operation. Inlet port fits 3/4" hose. Height 10-1/2", width 4", depth 7-3/4". Weight 8 Ibs. 12 Volt DC, 24 amp draw.
