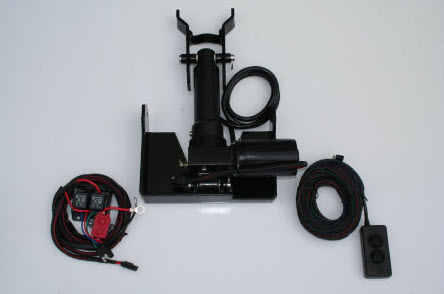

Integral Trim/tilt Johnson/evinrude
The Panther Integral Trim and Tilt will give you the ease of an automatic tilting system without having to buy a separate bracket. In a matter of minutes, the Integral fastens directly to your existing motor bracket without modifying it. If you were to hit a log or any stationary object while skimming across the water, two brass pins are sheared, and your motor pivots up then back down to a safe position allowing you to continue motoring until you can replace the shear pins. The Integral Trim and Tilt will work with Johnson/Evinrude two-stroke outboards 20, 25, 28, 30, and 35 hp made from 1976 to 2004. Programmed shallow water drive (flip switch) MUST be on the side of the motor, NOT the front.
The Panther Integral Trim and Tilt is designed for use with Johnson and Evinrude, 20HP to 35HP outboard motors, made since 1976. Developed to provide trim and tilt features on motors that don't have factory trim and tilt. In a matter of minutes the Panther Integral Trim and Tilt fastens directly to your exiting motor bracket without modification. The Panther Integral Trim and Tilt offers a patented break-away safety feature, that releases the motor in the event of striking a log or any underwater stationary object. What Motors will the Integral Trim & Tilt work with?
- Designed to work with Johnson and Evinrude Two-Stroke outboards.
- Motors made from 1976 to 2004.
- Horse Power Ratings of 20, 25, 28, 30 and 35.
- Locking Shallow Water Drive (Flip Switch) must be on the side of the motor not the front.
