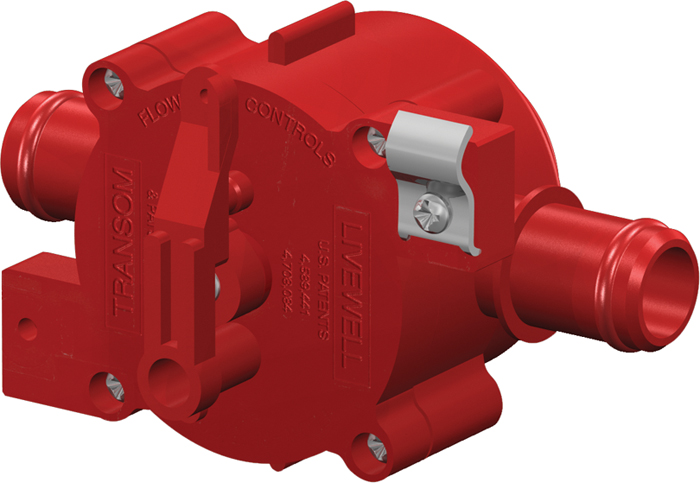

MPV-01-FN01 - Drain Valve, Open/Close, Barbed
V1 2-position Shut Off Valve
The V1 valve provides remote drain control and eliminates the need for drain plugs and standpipes. A short 60° cable throw provides more support, strength and smoothness than long 90° throws used with conventional valves. Features dual seals for positive shut-off in the "CLOSED" position and a straight unrestricted flow path in the "OPEN" position. This valve is non-directional. Available in Qwik-Lok and Barbed versions. The Qwik-Lok version features O-ring seals for use with Qwik-Lok quick connect sockets (MPA-014). Qwik-Lok enables the valve or complete valve pump assembly to be removed for service with two fingers. No tools are required.
|MPV-11-FN01 - Drain Valve, Open/Close, Qwik-lok|
