13001 - CMC Lift PT-130 w/ Gauge
Cook Manufacturing Corp
Jack Plates and Transom Wedges

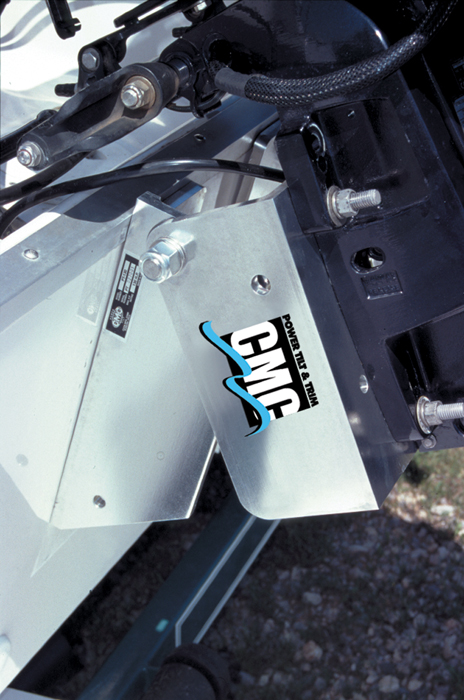

Cmc Electric Hydraulic Power Tilt & Trim
Rated for 130 hp and smaller motors, the 13002 will trim the motor 20° and a total of 65° of trim and tilt. It is actuated with a totally waterproof marine electric hydraulic system that is rated over 7800 lbs. of thrust! This hydraulic system is made of 100% non-ferrous materials which makes it more impervious to saltwater and freshwater than ball screw, electro-mechanical systems equipped on other brands. In fact, it is over twice as powerful as the ball screw electro mechanical actuator. The CMC hydraulic system is completely sealed and submersible and runs without worry of water damage. It is constructed of 1/2" 6061 T6 alloy aluminum extrusions and fastened with stainless steel fasteners for maximum strength and durability. No welds or castings to break. Carry's a 5-year structure warranty. Unit incorporates a 6" set back which enhances boat stability and will put the prop in "cleaner" water, thus giving the prop a better "bite" and eliminating prop slippage. It can also increase top end speed and fuel efficiency. It is great for pontoon boats, too! Since access to the motor on most pontoon boats is very difficult, the 13002 can make it very convenient. It is back saving, and prop saving, simply by flicking a switch when approaching shallow water. Note: clamp-on motors need an adapter (13022).
Model 13001 includes the Gauge.
