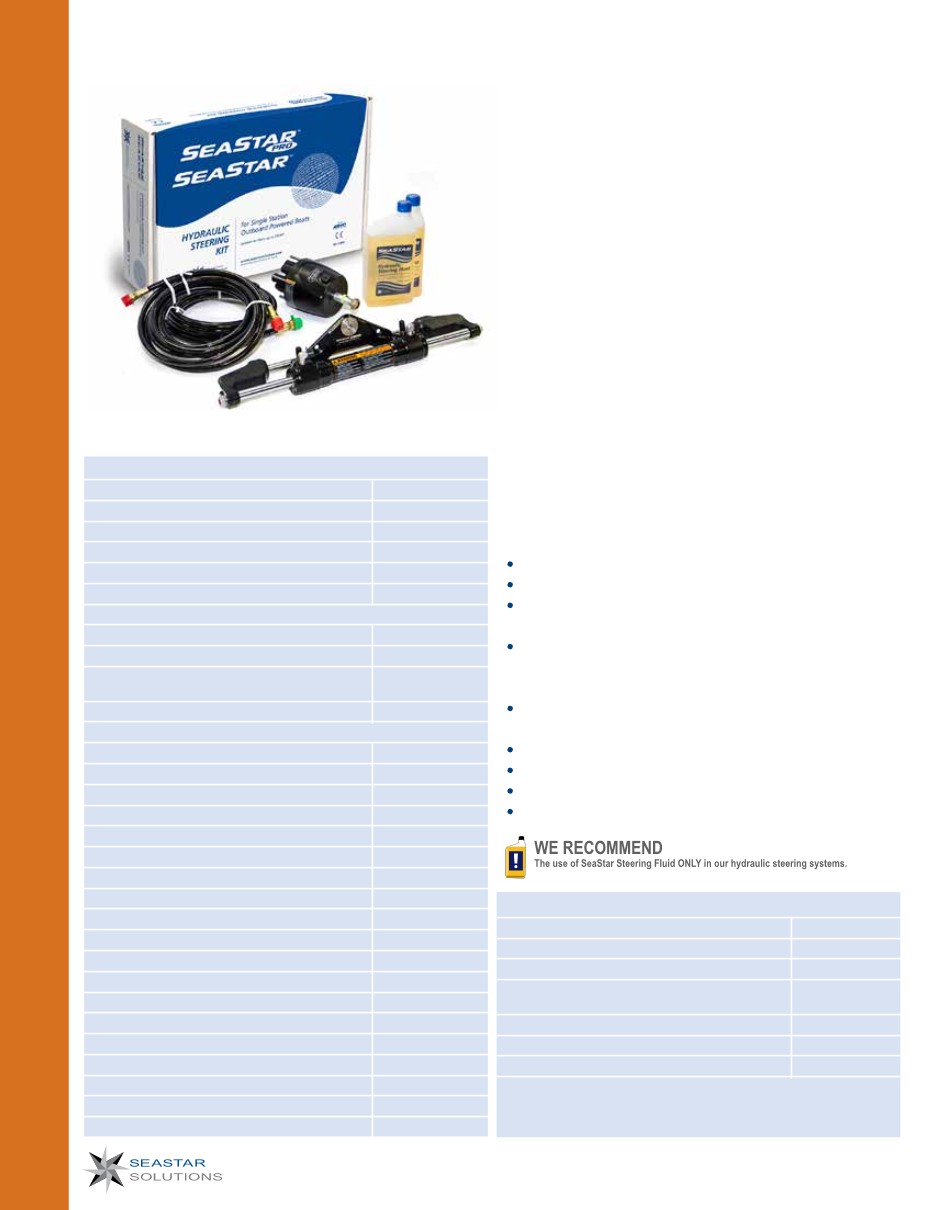

SeaStar Steering (Front Mount Pivot Cylinder)

48
®
SEASTAR STEERING (FRONT MOUNT
PIVOT CYLINDER) SYSTEM:
Unmatched comfort and control. Only with SeaStar
steering. The world’s most popular outboard
hydraulic system offers smooth, super-efficient
steering for today’s high performance hulls with
single or multiple outboards up to 700 HP combined.
It’s the OEM Choice for center consoles, cruisers and
more.
APPLICATIONS:
Single and dual non-power-assisted outboard engines
up to 350 HP (700 combined HP for counter-rotating
duals) that have ABYC standard engine tilt tube.
Ideal for cruisers, runabouts, center console boats,
offshore fishing boats and many more. Suitable for
speeds up to 60 MPH and dual station use (with
purchase of extra helm, hose & fittings). Allows
independent engine tilt in dual engine installations.
Dual engines require purchase of a tie bar kit and
extra hardware.
FEATURES:
Patented steering lock valves.
Low friction hydraulic steering system.
5 turns from lock-to-lock (single cylinder) when
using 1.7 helms.
Compact helm has only a 4-7/16” footprint;
needs only 3” dash hole (Tilt requires larger dash
cut out).
Packaged complete with helm, cylinder, fittings,
oil, bleeder kit and detailed instructions.
Standard 3/4” tapered steering shaft.
Fast, easy installation.
Meets A.B.Y.C. standards.
Meets N.M.M.A. certification requirements.
COMPLETE SYSTEMS
SeaStar 1.7 Steering Kit (with Hoses)
HK63XXA-3
SeaStar 1.7 Steering Kit (no Hoses)
SeaStar 1.7 Tilt Steering Kit (Classic)
SeaStar 1.7 Tilt Steering Kit (Sport)
SeaStar 1.7 Steering Kit
SeaStar 1.7 Tilt Steering Kit (Classic)
COMPONENTS
SeaStar 1.7 - Front Mount Helm
Pivot Mount Outboard Cylinder (Black)
SeaStar Hose Kit (2 hoses)
(Not included in HK6400A-3)
SeaStar Oil (1 Quart)
HA5430 (x2)
OPTIONS
SeaStar 1.7
- Front Mt. Commercial Helm
SeaStar 1.7 - Rear Mount Helm
SeaStar 1.7 - Sport Tilt Helm
SeaStar 1.7 - Classic Tilt Helm
SeaStar 1.7 - Sport Plus Tilt Helm
SeaStar 2.4 - Front Mount Helm
SeaStar 2.4
- Front Mt. Commercial Helm
SeaStar 2.4 - Sport Tilt Helm
SeaStar 2.4 - Classic Tilt Helm
Power Assist, 15' Harness
Pivot Mount Cylinder (Silver)
HC53xxSIL
Pivot Mount Cylinder — PRO (Black)
HC63xx-3
Pivot Mt. Cylinder — PRO (Red)
HC63xxRED-3
SeaStar Round Bezel Kit
SeaStar Backplate Kit
SeaStar 20° Dash
Wedge Kit
SeaStar Bulkhead Hose Kit (2 hoses)
SeaStar Twin Engine Tie Bar Kit
HO6xxx
Add-A-Station/Autopilot Fitting Kit
STEERING - Outboard (Hydraulic)
SERVICE ITEMS
Pivot Cylinder Support bracket Kit
Pivot Cylinder support rod kit
Pivot Cylinder Spacer Kit
Pivot Cylinder elbow hose fitting kit
(for -3 cylinders only)
Pivot Cylinder mounting hardware kit
Pivot Cylinder seal kit
Pivot Cylinder tiller bushing kit
HA5820
* Helms dated 2008-Earlier use HA5417
**The Commercial Helm Pumps are designed with a
stainless steel shaft and heavy duty shaft seal and wiper.
See Page 148
