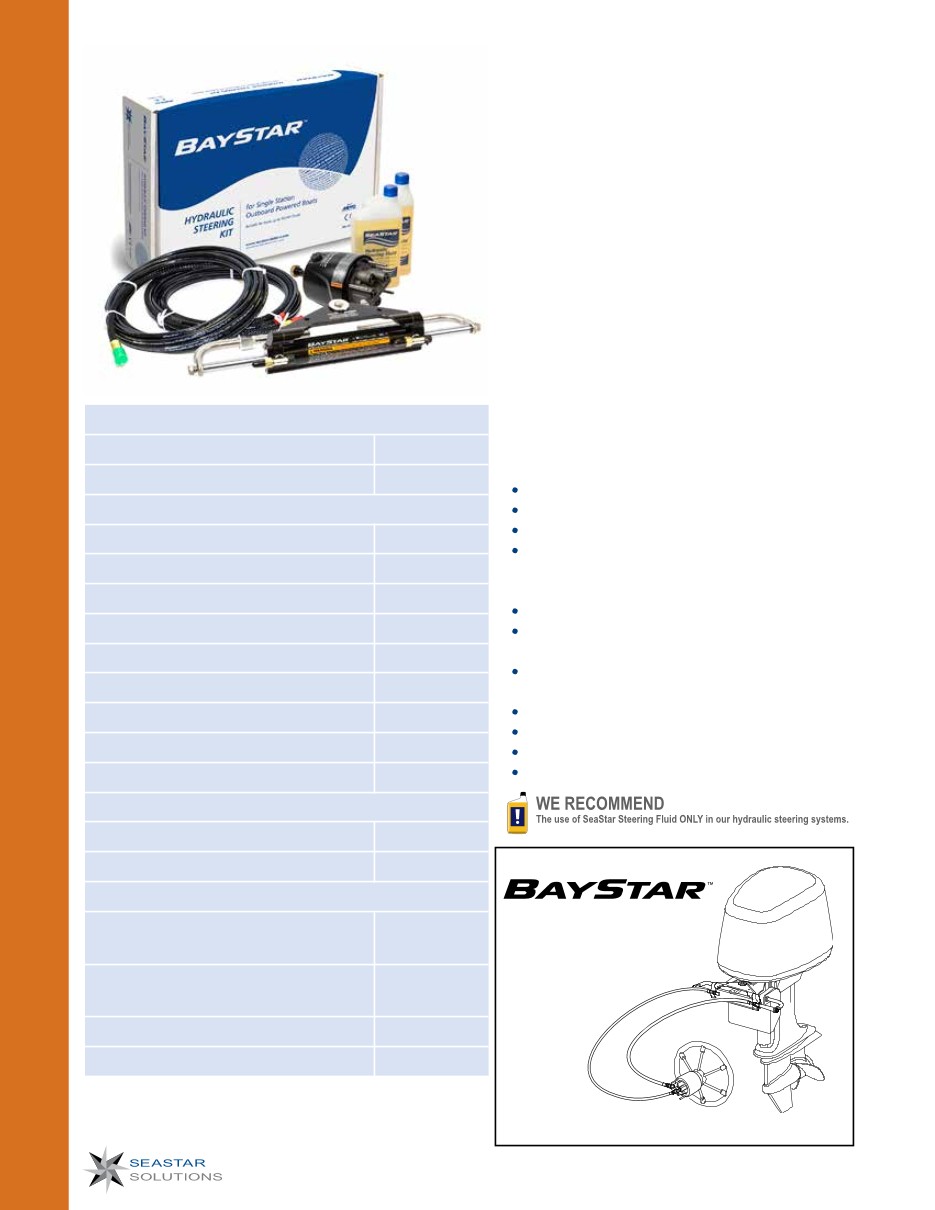

BayStar 1.4 Steering Kit

44
®
BAYSTAR STEERING KIT:
With mechanical steering you sacrifice a degree of
comfort. Traditional hydraulic systems may be more
than is needed on lower horsepower outboard
engines. Built in the tradition of SeaStar, BayStar
brings the same efficiency and durability you would
expect from SeaStar Solutions Hydraulic steering
to smaller outboards up to 150 HP. Compact form
and affordable price make it an ideal upgrade for
mechanically steered boats up to 150 total HP.
APPLICATIONS:
BayStar is for single-outboard powered boats rated
up to 150 HP, including runabouts and inflatables —
and outboard engines with ABYC standard engine
tilt tubes up to 150 HP (total). For single station,
single engine use only.
BayStar is not intended for high speed, high
performance type boats, such as Bass Boats.
FEATURES:
Designed just for smaller outboards.
Low friction hydraulic steering system.
5 turns from lock-to-lock.
Balanced cylinder, featuring a compact design
that fits most splashwells and provides full engine
movement.
Optional five position tilt helm available.
Compact helm has only a 5” footprint; needs only
3” dash hole (standard or Tilt).
Packaged complete with helm, cylinder, fittings,
tubing, oil, fill kit and detailed instructions.
Standard 3/4” tapered steering shaft.
Fast, easy installation.
Meets A.B.Y.C. standards.
Meets N.M.M.A. certification requirements.
BAYSTAR
OUTBOARD STEERING SYSTEM
COMPLETE SYSTEMS
BayStar Steering Kit (20’ tubing run)
BayStar Steering Kit (30’ tubing run)
COMPONENTS
BayStar 1.4 Front Mount Helm
BayStar Compact Cylinder
BayStar Compact Cylinder
BayStar Compact Cylinder
BayStar Compact Cylinder
HK4200 Tubing (2 x 20’ lengths)
HK4230 Tubing (2 x 30’ lengths)
SeaStar Oil (1 Quart)
HA5430 (x2)
BayStar Filler Kit (Ships with Steering Kit) HA5438
OPTIONS
BayStar 1.1 - Front Mount Helm
BayStar 1.4 - Sport Tilt Helm
SERVICE ITEMS
Helm Service Kit
Comes with wheel shaft nut, key, shaft seal & seal plate
Cylinder Support Rod Kit
(ships with 2 rods, nut and clip)
Cylinder Tee/Bleeder Fitting
HF4202
Cylinder Tiller Bushing Kit
HA5820
NOTE:
SeaStar Outboard Steering hoses (Part No. HO51xx)
can be used to plumb a BayStar Steering Systems
STEERING - Outboard (Hydraulic)
See Page 148
