Intermediate Housing Group Parts for 1968 OMC Stern Drive 120hp CU-16C Stern Drive

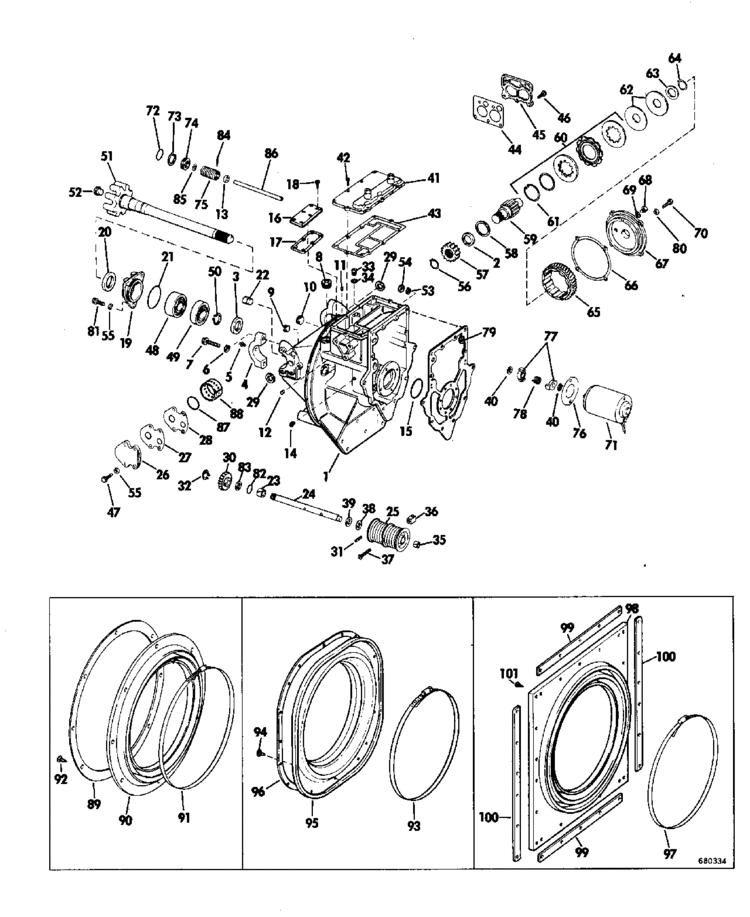

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
| #1 — 382381 — INTERMEDIATE HOUSING & SEAL RETAINER (1 required per assembly) | ||
 |
|
0382381 - Housing [ More info ] Unavailable |
| #2 — 303804 — OIL RETAINER,CLUTCH (1 required per assembly) | ||
  |
0303804 - Oil Retainer [ More info ] Unavailable |
|
  |
|
0321467 - Oil Retainer [ More info ]
|
  |
|
18-2060 - Seal, 321467 [ More info ]
|
|
|
0321467 - Oil Retainer [ More info ]
|
| #3 — 310600 — OIL RETAINER,SHAFT (1 required per assembly) | ||
  |
|
0310600 [ More info ] Unavailable Replaced by 0330137 |
  |
|
0330137 - Oil Retainer Seal [ More info ]
|
  |
|
18-2001 - Seal 330137 [ More info ]
|
|
|
0330137 - Oil Retainer Seal [ More info ]
|
| #4 — 379139 — PIVOT CAP & LUBRICATION FITTING (2 required per assembly) | ||
|
|
0379139 [ More info ] Unavailable Replaced by 0383148 |
  |
|
0383148 - Pivot Cap Assembly [ More info ]
|
| #5 — 313607 — LUBRICATION FITTING (1 required per assembly) | ||
  |
|
0313607 - Lube Fitting [ More info ]
|
  |
|
3852121 - Fitting, Volvo [ More info ]
|
| #6 — 302865 — WASHER,CAP SCREW (4 required per assembly) | ||
  |
|
0302865 - Lock Washer [ More info ]
|
  |
|
0307708 - Steering worm Retaining Lock Washer [ More info ]
|
| #7 — 308745 — SCREW,PIVOT CAP (4 required per assembly) | ||
  |
|
0308745 - Screw,Pivot Cap [ More info ]
|
| #8 — 305124 — PLUG (1 required per assembly) | ||
  |
|
|
| #9 — 314273 — PLUG (1 required per assembly) | ||
  |
|
0314273 - Plug Passage [ More info ]
|
| #10 — 309961 — PPLUG (1 required per assembly) | ||
|
|
0309961 [ More info ] Unavailable Replaced by 0908276 |
  |
|
0908276 - Pipe Plug [ More info ]
|
| #11 — 308897 — PLUG (1 required per assembly) | ||
|
|
|
| #12 — 308898 — PLUG (1 required per assembly) | ||
|
|
0308898 - PLUG [ More info ] Unavailable |
| #13 — 308634 — BUSHING,TILT WORM SHAFT (1 required per assembly) | ||
  |
|
0308634 - Tilt Worm Shaft Bushing [ More info ]
|
| #14 — 313607 — LUBRICATION FITTING (2 required per assembly) | ||
|
|
0313607 - Lube Fitting [ More info ]
|
|
|
3852121 - Fitting, Volvo [ More info ]
|
| #15 — 302377 — O-RING,SLEEVE TO ADAPTER (1 required per assembly) | ||
|
|
0302377 [ More info ] Unavailable Replaced by 0302337 |
  |
|
0302337 - Sleeve to Housing O-Ring [ More info ]
|
|
|
3852044 - O-Ring, Volvo [ More info ]
|
|
|
0302337 - Sleeve to Housing O-Ring [ More info ]
|
| #16 — 313247 — COVER,OIL RESERVOIR (1 required per assembly) | ||
  |
|
|
| #17 — 313246 — GASKET,COVER (1 required per assembly) | ||
  |
|
0313246 - Cover Gasket [ More info ]
|
| #18 — 307195 — SCREW,COVER TO HOUSING (6 required per assembly) | ||
|
|
|
| #382773 — 382773 — RETAINER & SEAL ASSEMBLY. NOT SHOWN (1 required per assembly) | ||
|
|
0382773 - Oil Seal And Retainer Assembly [ More info ]
|
| #19 — 313242 — RETAINER,SEAL (1 required per assembly) | ||
  |
|
0313242 - Seal Retainer [ More info ]
|
| #20 — 309989 — SEAL (1 required per assembly) | ||
  |
|
0309989 - Oil Retainer Seal, NLA [ More info ]
|
  |
|
18-2000 - Seal, 309989 [ More info ]
|
| #21 — 308876 — O-RING,RETAINER (1 required per assembly) | ||
  |
|
0308876 - Crankcase Head O-Ring [ More info ]
|
  |
|
18-7123 - O-Ring 308876 [ More info ]
|
|
|
0308876 - Crankcase Head O-Ring [ More info ]
|
| #22 — 310964 — PLUG. CUE MODELS ONLY (1 required per assembly) | ||
  |
|
|
| #23 — 308532 — BUSHING,REAR. CU MODELS ONLY (1 required per assembly) | ||
  |
|
0308532 - Bushing [ More info ]
|
| #24 — 313237 — SHAFT,STEERING. CU MODELS ONLY (1 required per assembly) | ||
  |
|
0313237 - Shaft - Steering Pulley [ More info ]
|
| #25 — 313322 — PULLEY,STEERING (1 required per assembly) | ||
  |
|
0313322 - Pulley - Steering [ More info ]
|
| #26 — 313264 — COVER,PIVOT CAP (2 required per assembly) | ||
  |
|
0313264 - Pivot Cap Cover [ More info ]
|
| #27 — 313243 — GASKET,COVER (2 required per assembly) | ||
  |
|
0313243 - Cover Gasket [ More info ]
|
| #28 — 313245 — PLATE,COVER (2 required per assembly) | ||
  |
|
0313245 - Pivot Cap Plate [ More info ]
|
| #29 — 313244 — SEAL,PLATE (2 required per assembly) | ||
  |
|
0313244 - Plate Seal, Sold Individually [ More info ]
|
  |
|
18-0923-9 - Seal, 313244, 2PK [ More info ]
|
|
|
0313244 - Plate Seal, Sold Individually [ More info ]
|
| #30 — 313239 — GEAR. CU MODELS ONLY (1 required per assembly) | ||
|
|
0313239 - Steering Gear [ More info ]
|
  |
|
0908461 - Steering Shaft Gear [ More info ]
|
| #31 — 382325 — SPIROL PIN KIT. CU MODELS ONLY (1 required per assembly) | ||
  |
|
0382325 - Roll Pin [ More info ]
|
| #32 — 313238 — RETAINING RING,GEAR TO SHAFT. CU MODELS ONLY (1 required per assembly) | ||
  |
|
0313238 - Retaining Ring [ More info ]
|
  |
|
0911316 - Retaining Ring, Gear Shaft [ More info ]
|
| #33 — 313224 — SCREW PLUG,OIL FILL (1 required per assembly) | ||
  |
|
0313224 - Oil Screw Plug [ More info ]
|
| #34 — 315189 — GASKET,PLUG (1 required per assembly) | ||
  |
|
0315189 - Filter Gasket [ More info ]
|
  |
|
18-0939-9 - Gasket 315189 2-Pack [ More info ]
|
|
|
0315189 - Filter Gasket [ More info ]
|
| #35 — 308693 — BUSHING,FRONT. CU MODELS ONLY (1 required per assembly) | ||
  |
|
0308693 - Bushing [ More info ]
|
| #36 — 308572 — CLAMP,ROPE. CU MODELS ONLY (1 required per assembly) | ||
  |
|
0308572 - Clamp - Rope [ More info ]
|
| #37 — 308695 — SCREW,CLAMP. CU MODELS ONLY (1 required per assembly) | ||
|
|
0308695 - Roll Pin [ More info ]
|
| #38 — 308879 — SHIM. CU MODELS ONLY (0 required per assembly) | ||
  |
|
|
| #39 — 309603 — WASHER. CU MODELS ONLY (1 required per assembly) | ||
|
|
0309603 - Washer [ More info ]
|
| #40 — 310612 — WASHER (2 required per assembly) | ||
  |
|
0310612 - Washer [ More info ]
|
| #41 — 310804 — WATER COVER (1 required per assembly) | ||
  |
|
|
| #42 — 307195 — SCREW,WATER COVER (9 required per assembly) | ||
|
|
|
| #43 — 308452 — GASKET,WATER COVER (1 required per assembly) | ||
  |
|
0308452 - Water Cover Gasket [ More info ]
|
| #44 — 305586 — GASKET (1 required per assembly) | ||
  |
|
0305586 - Housing Gasket [ More info ]
|
|
|
0305586 - Housing Gasket [ More info ]
|
| #45 — 310684 — COVER (1 required per assembly) | ||
  |
|
|
| #46 — 306644 — SCREW,COVER (5 required per assembly) | ||
  |
|
|
| #47 — 308744 — SCREW,PIVOT CAP (8 required per assembly) | ||
  |
|
|
  |
|
|
| #48 — 379593 — BEARING ASSEMBLY,OUTER (1 required per assembly) | ||
  |
|
0379593 - Roller Bearing Assembly [ More info ]
|
| #49 — 377139 — BEARING ASSEMBLY,INNER (1 required per assembly) | ||
  |
|
0377139 - Bearing Assembly [ More info ]
|
  |
|
18-1154 - Bearing, 30-63742, 377139 [ More info ]
|
| #50 — 308629 — RETAINING RING (1 required per assembly) | ||
  |
|
0308629 - Retaining Ring [ More info ]
|
| #51 — 382258 — DRIVESHAFT & BALL GEAR (1 required per assembly) | ||
|
0382258 - Drive Shaft & Ball Gear [ More info ] Unavailable |
|
  |
|
0383177 - Drive Shaft & Ball Gear [ More info ]
|
| #52 — 308679 — PLUG,EXPANSION (1 required per assembly) | ||
  |
|
0308679 - Expansion Plug [ More info ]
|
| #53 — 306453 — WASHER,STUD (12 required per assembly) | ||
|
|
0306453 - Washer [ More info ]
|
| #54 — 306320 — NUT,STUD (12 required per assembly) | ||
|
|
|
| #55 — 302290 — WASHER (11 required per assembly) | ||
  |
|
0302290 - Thrust mount Lock Washer [ More info ]
|
|
|
0302290 - Thrust mount Lock Washer [ More info ]
|
| #56 — 308633 — RETAINING RING (1 required per assembly) | ||
  |
|
0308633 - Retaining Ring [ More info ]
|
  |
|
0911318 - Retaining Ring, Intermediate Housing Group [ More info ]
|
| #57 — 308453 — GEAR (1 required per assembly) | ||
  |
|
0308453 - Gear, Quadrant, NLA [ More info ]
|
| #58 — 308800 — THRUST WASHER (1 required per assembly) | ||
  |
|
0308800 - Thrust Washer, [ More info ]
|
| #59 — 308807 — SHAFT,TILT CLUTCH (1 required per assembly) | ||
  |
|
0308807 - Shaft, NLA [ More info ]
|
| #60 — 380561 — CLUTCH DISC,END PLATE & SHIM ASSEMBLY (1 required per assembly) | ||
  |
|
0380561 - Clutch Plate Assembly [ More info ] Unavailable |
| #61 — 308804 — RETAINING RING (1 required per assembly) | ||
  |
|
0308804 - Retaining Ring [ More info ]
|
| #62 — 308809 — BELLEVILLE SPRING (2 required per assembly) | ||
  |
|
0308809 - Spring Washer [ More info ]
|
| #63 — 309845 — SPACER (1 required per assembly) | ||
  |
|
0309845 - Spacer [ More info ]
|
| #64 — 309844 — RETAINING RING (1 required per assembly) | ||
  |
|
0309844 - Retaining Ring [ More info ]
|
| #65 — 308806 — WORM WHEEL (1 required per assembly) | ||
  |
|
0308806 - Worm Wheel [ More info ]
|
| #66 — 308799 — GASKET,COVER (1 required per assembly) | ||
  |
|
0308799 - Cover Gasket [ More info ]
|
  |
|
18-2863-9 - Gasket 308799 2-Pack [ More info ]
|
|
|
0308799 - Cover Gasket [ More info ]
|
| #67 — 308798 — COVER (1 required per assembly) | ||
|
0308798 - Tilt Clutch Cover [ More info ] Unavailable |
|
  |
|
0908564 - Cover, Tilt Clutch [ More info ] Unavailable |
| #68 — 307551 — FILL SCREW (1 required per assembly) | ||
  |
|
0307551 - Drain Screw, Allen Type, Gasket Included [ More info ]
|
  |
|
18-4255 - Drain Screw, 307551 Allen Type, Gasket Included [ More info ]
|
  |
|
18-2387 - Drain Plug Slotted or Allen - No Gasket [ More info ]
|
|
|
0307551 - Drain Screw, Allen Type, Gasket Included [ More info ]
|
| #69 — 311598 — WASHER (1 required per assembly) | ||
  |
|
0311598 - Drain Plug Washer [ More info ]
|
  |
|
18-42481-9 - Washer, 50PK [ More info ]
|
  |
|
18-4248 - Washer 311598 [ More info ]
|
|
|
0311598 - Drain Plug Washer [ More info ]
|
| #70 — 308743 — SCREW,COVER (4 required per assembly) | ||
  |
|
|
| #71 — 382138 — TILT MOTOR. SEE TILT MOTOR GROUP PRESOLITE MODEL ETK-4102 FOR DETAIL PARTS (1 required per assembly) | ||
  |
|
0382138 - Tilt Motor [ More info ]
|
  |
|
18-6754 - Tilt Motor 382138 [ More info ]
|
|
|
0382138 - Tilt Motor [ More info ]
|
  |
|
6209 - Tilt Trim Motor, OMC [ More info ]
|
| #72 — 302540 — O-RING (1 required per assembly) | ||
  |
|
0302540 - O-Ring [ More info ]
|
  |
|
18-7114 - O-Ring 25-23145, 302540 [ More info ]
|
|
|
0302540 - O-Ring [ More info ]
|
| #73 — 308632 — RETAINING RING (1 required per assembly) | ||
  |
|
0308632 - Retaining Ring [ More info ]
|
| #74 — 308631 — RETAINER BEARING (1 required per assembly) | ||
  |
|
0308631 - Bearing Retainer [ More info ]
|
| #75 — 308725 — WORM (1 required per assembly) | ||
|
|
0308725 [ More info ] Unavailable Replaced by 0908168 |
  |
|
0908168 - Worm Gear [ More info ]
|
| #76 — 311508 — GASKET,TILT MOTOR (1 required per assembly) | ||
  |
|
0311508 - Tilt Motor Gasket [ More info ]
|
|
|
0311508 - Tilt Motor Gasket [ More info ]
|
| #77 — 379594 — COUPLING & KEY (2 required per assembly) | ||
|
|
0379594 - Coupling, 2 required, this is Only 1. [ More info ]
|
  |
|
0980274 - Coupling, 2 required, this is Only 1. [ More info ]
|
| #78 — 309267 — SPRING (1 required per assembly) | ||
  |
|
0309267 - Coupling Spring [ More info ]
|
| #79 — 314199 — GASKET (1 required per assembly) | ||
  |
|
0314199 - Housing Gasket [ More info ] Unavailable |
| #80 — 306396 — LOCKWASHER,COVER (4 required per assembly) | ||
  |
|
0306396 - Lock Washer [ More info ]
|
|
|
3852053 - Screw, Volvo [ More info ]
|
| #81 — 308707 — SCREW,SEAL RETAINER (3 required per assembly) | ||
  |
|
0308707 - Screw ( 13/16 Inch Long) [ More info ]
|
| #82 — 553127 — O-RING. CU MODELS ONLY (1 required per assembly) | ||
  |
0553127 - O-Ring - Driveshaft To Crankcase [ More info ] Unavailable |
|
  |
|
0326649 - O-Ring - Driveshaft [ More info ]
|
  |
|
18-7174-9 - O-Ring (PK5) 326649, 25-45711 [ More info ]
|
|
|
0326649 - O-Ring - Driveshaft [ More info ]
|
| #83 — 308697 — WASHER. CU MODELS ONLY (1 required per assembly) | ||
|
|
0308697 - Washer [ More info ]
|
| #84 — 309525 — PIN,TILT WORM SHAFT (1 required per assembly) | ||
  |
|
|
| #85 — 309272 — WASHER (1 required per assembly) | ||
  |
|
0309272 - Washer [ More info ]
|
| #86 — 310613 — SHAFT,TILT WOR, (1 required per assembly) | ||
|
|
0310613 [ More info ] Unavailable Replaced by 0980183 |
  |
|
0980183 - Shaft, Tilt Worm [ More info ]
|
  |
|
18-2156 - Shaft 980183 [ More info ]
|
|
|
0980183 - Shaft, Tilt Worm [ More info ]
|
| #87 — 308626 — O-RING (2 required per assembly) | ||
  |
|
0308626 - O-Ring [ More info ]
|
  |
|
18-7198-9 - O-Ring (PK5) 25-45710, 308626 [ More info ]
|
|
|
0308626 - O-Ring [ More info ]
|
| #88 — 308602 — LINER (2 required per assembly) | ||
  |
|
0308602 - Liner, Gear Housing Pivot [ More info ]
|
| #381104 — 381104 — TRANSOM SEAL ASSEMBLY,ROUND OPENING. NOT SHOWN (1 required per assembly) | ||
|
|
0381104 - Transom Seal [ More info ] Unavailable |
| #89 — 308455 — RING,TRANSOM SEAL (1 required per assembly) | ||
  |
|
0308455 - Ring, Trans Seal [ More info ]
|
| #90 — 308456 — SEAL,TRANSOM (1 required per assembly) | ||
|
|
0308456 - Seal - Transom NA07 [ More info ] Unavailable |
| #91 — 308735 — CLAMP,SEAL (1 required per assembly) | ||
  |
|
0308735 - Seal Clamp [ More info ]
|
| #92 — 312270 — SCREW (12 required per assembly) | ||
  |
|
|
  |
|
0325539 - Screw, Screen [ More info ]
|
| #382068 — 382068 — TRANSOM SEAL ASSEMBLY,OVAL OPENING. NOT SHOWN (1 required per assembly) | ||
  |
|
0382068 - Transom Seal Kit [ More info ] Unavailable |
| #93 — 308735 — CLAMP,SEAL (1 required per assembly) | ||
|
|
0308735 - Seal Clamp [ More info ]
|
| #94 — 312270 — SCREW (20 required per assembly) | ||
|
|
|
|
|
0325539 - Screw, Screen [ More info ]
|
| #95 — 313080 — SEAL,TRANSOM (1 required per assembly) | ||
  |
|
0313080 - Transom Seal [ More info ]
|
  |
|
18-2767 - Transom Seal 313080 [ More info ]
|
|
|
0313080 - Transom Seal [ More info ]
|
  |
|
26-08670 - Transom Seal, 313080 [ More info ]
|
| #96 — 313081 — PLATE,TRANSOM SEAL (1 required per assembly) | ||
  |
|
|
| #381105 — 381105 — TRANSOM SEAL ASSEMBLY,SQUARE OPENING. NOT SHOWN (1 required per assembly) | ||
|
|
0381105 - Transom Seal Square * [ More info ] Unavailable |
| #97 — 308735 — CLAMP,SEAL (1 required per assembly) | ||
|
|
0308735 - Seal Clamp [ More info ]
|
| #98 — 310975 — SEAL,TRANSOM (1 required per assembly) | ||
|
|
0310975 - Seal -boat Transom [ More info ] Unavailable |
| #99 — 310978 — PLATE,TRANSOM SEAL,SHORT (2 required per assembly) | ||
|
|
0310978 - Plate [ More info ] Unavailable |
| #100 — 310979 — PLATE,TRANSOM SEAL,LONG (2 required per assembly) | ||
|
|
0310979 - CLAMP BLOCK [ More info ] Unavailable |
| #101 — 310981 — SCREW (22 required per assembly) | ||
  |
|
0310981 - Screw, Clamp [ More info ]
|
