Oil Injection Components for Mercury / Mariner (30 / 40 (2 Cylinder) 2-Stroke) Engine
Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]
Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]
# — 822420A94 — GASKET SET (1 required per assembly) | ||
#1 — 822003 — BUSHING (2 required per assembly) | ||
#2 — 822002 — GROMMET (2 required per assembly) | ||
#3 — 822514A 2 — OIL TANK ASSEMBLY (1 required per assembly) | ||
1271-822514A 2 - Oil Tank Assembly [ More info ] Unavailable |
||
#4 — 828765A 1 — CAP ASSEMBLY (1 required per assembly) | ||
#5 — 828766 — GASKET (1 required per assembly) | ||
#6 — NSS — NOT SOLD SEPARATE, Retainer (1 required per assembly) | ||
NSS - NOT SOLD SEPARATE [ More info ] Unavailable |
||
#7 — 821285 — PUSH NUT, (1 required per assembly) | ||
#8 — 19299A 1 — VENT ASSEMBLY (1 required per assembly) | ||
#9 — 64871 — VALVE (1 required per assembly) | ||
#11 — 814200 — CLAMP (2 required per assembly) | ||
#12 — 90049 34 — TUBING, (14.50 Inches Bulk) (Cut to 4.75 Inch Length) (1 required per assembly) | ||
32-90049 34 - Tubing - 25 In, NLA [ More info ] Unavailable |
||
#13 — 826083 — ELBOW (1 required per assembly) | ||
#14 — 823814 55 — TUBING, (25.00 Inches Bulk) (Cut to 1.25 Inch Length) (1 required per assembly) | ||
32-823814 55 - Tubing - 25 In - Priced Individually [ More info ] |
||
#15 — 823770 — GROMMET (1 required per assembly) | ||
25-823770 - GROMMET [ More info ] Unavailable |
||
#16 — 826084 — SPACER (1 required per assembly) | ||
#17 — 12886A 6 — SWITCH ASSEMBLY (1 required per assembly) | ||
#18 — 58376 — SCREW, (.164-18 x .375) (1 required per assembly) | ||
#19 — 72761 — WASHER, (.203 x .562 x .060) (1 required per assembly) | ||
12-72761 - Washer, (.203 X .562 X .060) Stainless Steel [ More info ] |
||
#20 — 823813 35 — TUBING, (15.00 Inches Bulk) (Cut to 10.00 Inch Length) (1 required per assembly) | ||
#21 — 816311T — TIE STRAP, (8.00 Inches) (1 required per assembly) | ||
54-816311T - Tie Strap, 8 Inches, Priced Individually [ More info ] |
||

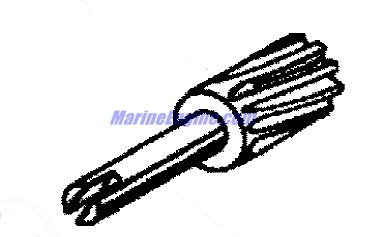

#22 — 826143 — DRIVEN GEAR (1 required per assembly) | ||
#23 — 19278A 2 — BEARING ASSEMBLY (1 required per assembly) | ||
#24 — 17597 — BUSHING, Flanged (1 required per assembly) | ||
#25 — 17596 — JOURNAL BUSHING (1 required per assembly) | ||
#26 — 818902A 2 — OIL INJECTION PUMP (1 required per assembly) | ||
#27 — 36390 — O-RING (1 required per assembly) | ||
#28 — 62705 — O-RING (1 required per assembly) | ||
25-62705 - O-ring (.739 I.d.) [ More info ] Unavailable |
||
18-7105-9 - O-Ring (Pack of 5) 311338, 26-62705 [ More info ] |
||
25-8M0204667 - O RING Note: Priced Individually [ More info ] |
||
#29 — 40011108 — SCREW, (M5 x 20) (2 required per assembly) | ||
#30 — 826581A 1 — LINK (1 required per assembly) | ||
826581A 1 - LINK [ More info ] Unavailable |
||
