Parts for Mercury Marine 75 HP EFI (4-Stroke) Throttle Bracket Assembly

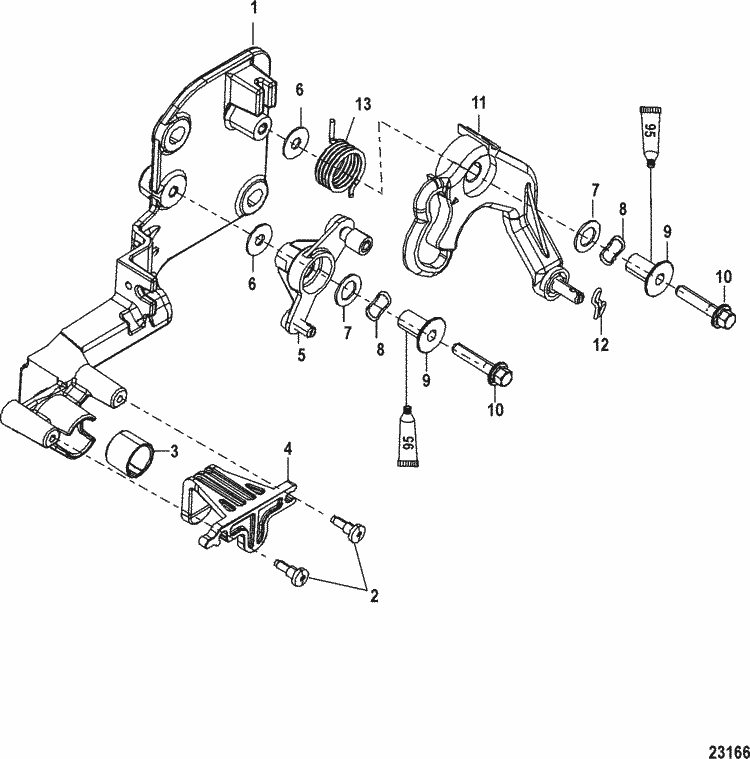

View diagram and parts list below.
Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
#1 | 897763T01 | BRACKET ASSEMBLY, Throttle (1 required per assembly) SN# 1B418905 & Below |
![]() |
897763T01 - 897763T01 - BRACKET ASSEMBLY O [ More info ] Unavailable Replaced by -897763T03 |
|
![]() |
||
#1 | 897763T03 | BRACKET ASSEMBLY, Throttle (1 required per assembly) SN# 1B418906 & Up |
#2 | 10-42975 | DRIVE SCREW (2 required per assembly) |
![]() ![]() |
||
#3 | 824015 | CUP, Barrel Retainer (1 required per assembly) |
![]() ![]() |
||
#4 | 898048T | LATCH, Control Cable (1 required per assembly) |
![]() |
||
#5 | 897765T01 | LEVER ASSEMBLY, Throttle Follower (1 required per assembly) |
![]() |
||
#6 | 12-897936 | WASHER (2 required per assembly) |
![]() |
||
#7 | 12-897937 | WASHER (2 required per assembly) |
![]() |
||
#8 | 13-898093 | WASHER, Wave (2 required per assembly) |
![]() |
||
#9 | 23-897935 | SPACER (2 required per assembly) |
![]() |
23-897935 - Spacer - Priced Individually [ More info ]
|
|
#10 | 10-885525 30 | SCREW, (M6 x 20) Stainless Steel (2 required per assembly) |
![]() ![]() |
10-885525 30 - 10-885525 30 - SCREW (M6 x 30 MM O [ More info ] Unavailable Replaced by 10-8M0103808 |
|
![]() |
||
#11 | 8M0008288 | LEVER ASSEMBLY, Throttle (1 required per assembly) |
![]() |
||
#12 | 8M0001157 | PIN, Bow Tie Clip (1 required per assembly) |
![]() |
||
#13 | 24-897535005 | SPRING, Throttle Cam Return (1 required per assembly) |
![]() |
