Parts for Mercury Marine 75 HP (4-Stroke) (Bodensee) Fuel Pump

Revise Search: All Models > 75 HP (4-Stroke) (Bodensee) > 0T801000 - 1B226999 (USA) > Fuel Pump

NEED PARTS OR KITS?
View diagram and parts list below. Tap to zoom. Scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

Engine section

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

#	27-804345A02	GASKET SET, Powerhead (1 required per assembly)
		27-804345A02 - Powerhead Gasket Set [ More info ] Unavailable

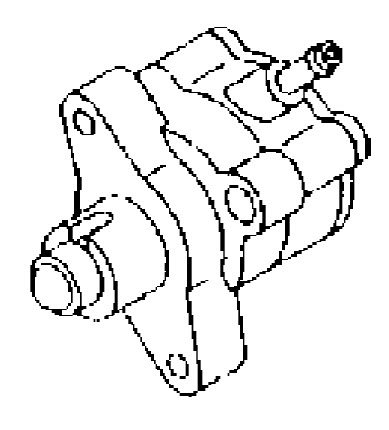

#1	880890T 1	PUMP, Fuel (1 required per assembly)
		880890T 1 - Fuel Pump [ More info ] Unavailable

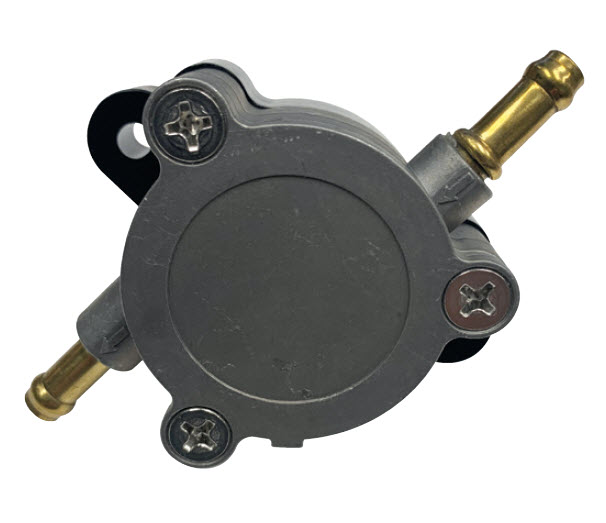

		1399-39547 - Fuel Pump [ More info ] $169.99 4 In Stock.
#2	NSS	NOT SOLD SEPARATE, Body (1 required per assembly)
		NSS - NOT SOLD SEPARATE [ More info ] Unavailable
#3	24-881544	SPRING (1 required per assembly)
		24-881544 - Spring [ More info ] $11.90 1 In Stock.
#4	881545	PLUNGER (1 required per assembly)
		881545 - Plunger [ More info ] $16.00 10+ In Stock.
#5	24-881546	SPRING (1 required per assembly)
		24-881546 - Spring [ More info ] Unavailable
#6	881547	DIAPHRAGM (1 required per assembly)
		881547 - Diaphragm [ More info ] Unavailable
#7	17-881548	PIN (1 required per assembly)
		17-881548 - Pin [ More info ] Unavailable
#11	10-881550	SCREW (3 required per assembly)
		10-881550 - Screw [ More info ] Unavailable
#12	11-881333	NUT (3 required per assembly)
		11-881333 - Nut [ More info ] $1.88 10+ In Stock.
#13	25-804255	O-RING (1 required per assembly)
		25-804255 - O RING [ More info ] Unavailable
		25-8M0050719 - O-Ring [ More info ] $20.17 Available to Order: Usually ships within 10 days.
#14	56762	TIE STRAP, (4.00 Inches) (2 required per assembly)
		56762 - Tie Strap - Priced Individually [ More info ] $0.50 10+ In Stock.
		0317893 - Tie Strap [ More info ] $0.36 10+ In Stock.
#15	10-804256	BOLT, (M6 x 30) (2 required per assembly)
		10-804256 - Bolt, NLA [ More info ] $1.59 10+ In Stock.
#16	32-881543	HOSE (1 required per assembly)
		32-881543 - Hose [ More info ] Unavailable
		32-881543002 - Tubing [ More info ] Unavailable
#17	881542	BRACKET (1 required per assembly)
		881542 - Bracket [ More info ] $6.00 2 In Stock.
#18	10-826957M	BOLT (1 required per assembly)
		10-826957M - Bolt, NLA [ More info ] $4.43 10+ In Stock.
#19	11-82382M	NUT (1 required per assembly)
		11-82382M - Nut - Priced Individually [ More info ] $7.20 $6.12 10+ In Stock.

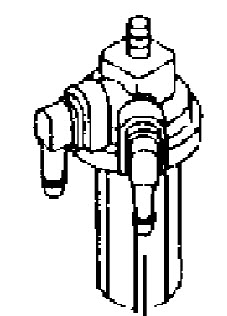

#20	35-881538T 1	FILTER ASSEMBLY (1 required per assembly)
		35-881538T 1 - Filter Assembly [ More info ] Unavailable
		35-881538T02 - Filter [ More info ] Unavailable

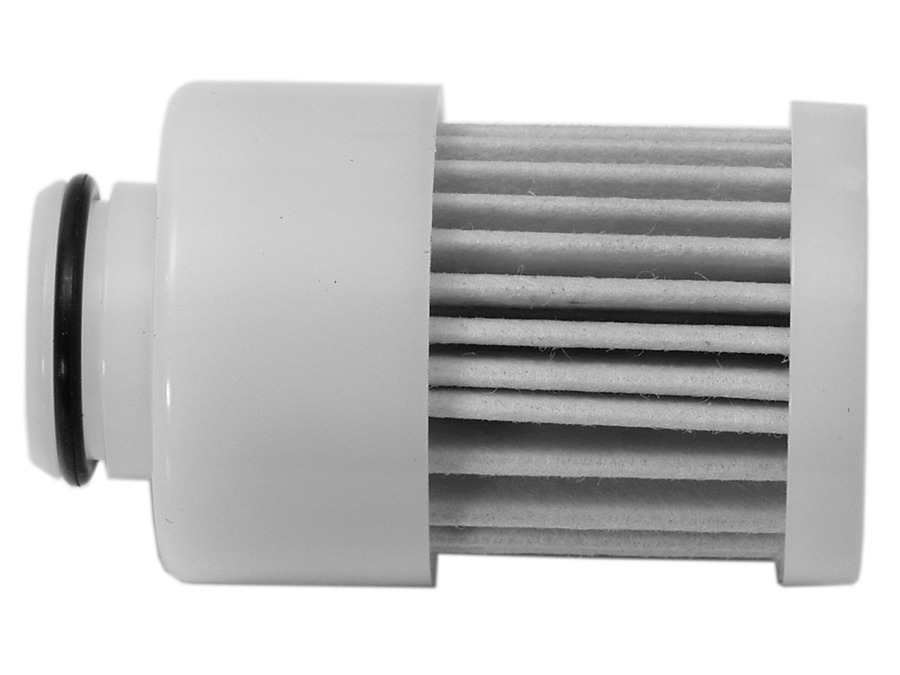

#21	881540	ELEMENT (1 required per assembly)
		881540 - 881540 - ELEMENT 1.75 Inch [ More info ] Unavailable Replaced by -8M0168897
		35-8M0168897 - Fuel Filter [ More info ] $20.92 2 In Stock.

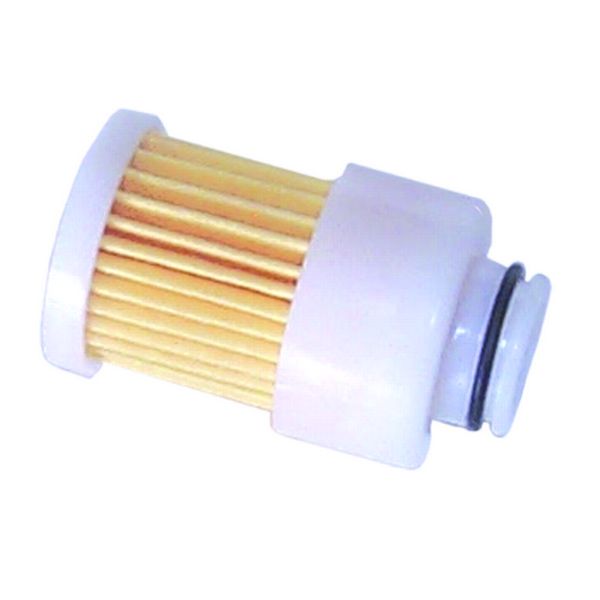

		18-7979 - Filter, 881540 [ More info ] $17.49 $16.69 10+ In Stock.
#22	25-826966M	O-RING (1 required per assembly)
		25-826966M - O-Ring [ More info ] Unavailable
		25-826966T - O-Ring [ More info ] Unavailable
#23	881541	FLOAT (1 required per assembly)
		881541 - Float [ More info ] Unavailable

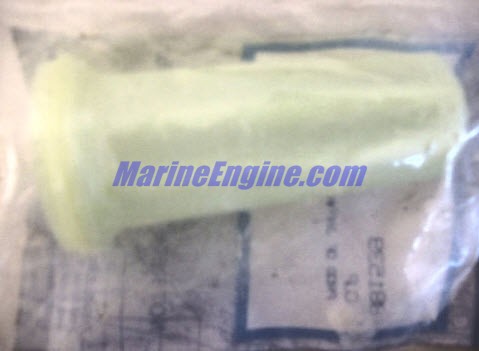

#24	881539	CUP (1 required per assembly)
		881539 - Cup [ More info ] $7.56 4 In Stock.
#26	804260	BRACKET (1 required per assembly)
		804260 - Bracket [ More info ] $10.00 10+ In Stock.
#27	10-804112	BOLT, (M7 x 48) (2 required per assembly)
		10-804112 - Bolt [ More info ] $1.10 1 In Stock.
#28	17-804113	PIN, Dowel (2 required per assembly)
		17-804113 - Pin -Dowel [ More info ] Unavailable
#29	12-84292M	WASHER (2 required per assembly)
		12-84292M - Washer - Priced Individually [ More info ] $1.50 10+ In Stock.
#30	804257	LEVER, Fuel Change (1 required per assembly)
		804257 - Lever [ More info ] Unavailable
#31	881334	SHAFT (1 required per assembly)
		881334 - Shaft [ More info ] $6.00 8 In Stock.
#32	17-804259	PIN (2 required per assembly)
		17-804259 - PIN [ More info ] $0.20 4 In Stock.
		17-82738M - Pin -roll, NLA [ More info ] $1.50 10+ In Stock.
#33	32-830757130	TUBING, (.312) (70.00 Inches Bulk) (Cut to 55 IN.) (1 required per assembly)
		32-830757130 - Tubing-70 Inch [ More info ] Unavailable
		32-8M0047448 - Tubing-70 Inch [ More info ] Unavailable
		32-8M0108349 - Hose-70 Inch [ More info ] Unavailable
#34	54-816311T	TIE STRAP, (8.00 Inches) (1 required per assembly)
		54-816311T - Tie Strap, 8 Inches, Priced Individually [ More info ] $0.60 10+ In Stock.
#35	22-822769	CONNECTOR (1 required per assembly)
		22-822769 - Connector [ More info ] $1.20 2 In Stock.
#37	32-828547T 1	CONDUIT, (.500 Inside Diameter x 3.00 Feet Bulk) (1 required per assembly)
		32-828547T 1 - Conduit (.500 Inside Di [ More info ] $9.80 Available to Order: Usually ships within 10 days.
#38	12-82214M	WASHER (1 required per assembly)
		12-82214M - Washer - Priced Individually [ More info ] $4.90 10+ In Stock.
