Parts for Mercury Marine 75 HP (4 Cylinder) Exhaust Extension Plate

Revise Search: All Models > 75 HP (4 Cylinder) > 6432901 & Up (USA) > Exhaust Extension Plate

NEED PARTS OR KITS?

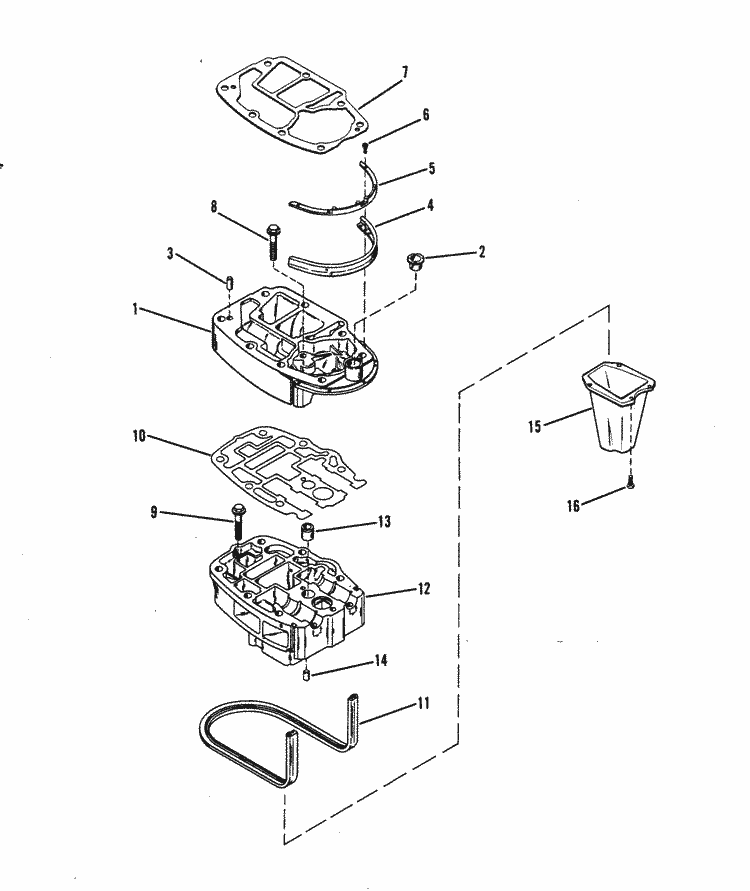

View diagram and parts list below. Tap to zoom. Scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

Engine section

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

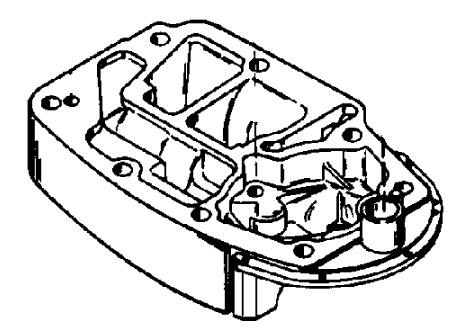

#1	43289A 2	PLATE ASSEMBLY, EXHAUST EXTENSION (1 required per assembly)
		43289A 2 - Plate Assembly [ More info ] $65.00 4 In Stock.
#2	23-27132	BUSHING, NYLON-EXHAUST EXTENSION PLATE (1 required per assembly)
		23-27132 - Bushing [ More info ] $4.51 4 In Stock.
#3	17-23784	DOWEL PIN, EXHAUST EXTENSION PLATE (2 required per assembly)
		17-23784 - Pin, Dowel [ More info ] $5.00 Available to Order: Usually ships within 10 days.
#4	37918	SEAL, EXHAUST EXTENSION PLATE (1 required per assembly)
		37918 - Seal, NLA [ More info ] Unavailable
#5	99358	STRIP, RETAINING - EXHAUST EXTENSION PLATE (1 required per assembly)
		99358 - Strip Retainer, NLA [ More info ] $8.99 1 In Stock.

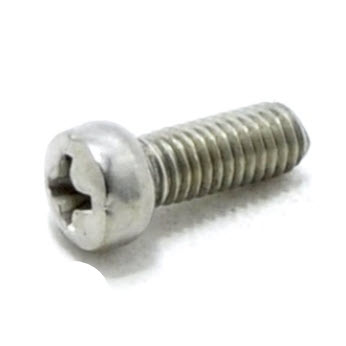

#6	10-37571	SCREW (5 required per assembly) SEAL AND RETAINING STRIP TO EXHAUST PLATE (1/2")
		10-37571 - Screw - Priced Individually [ More info ] $2.33 10+ In Stock.

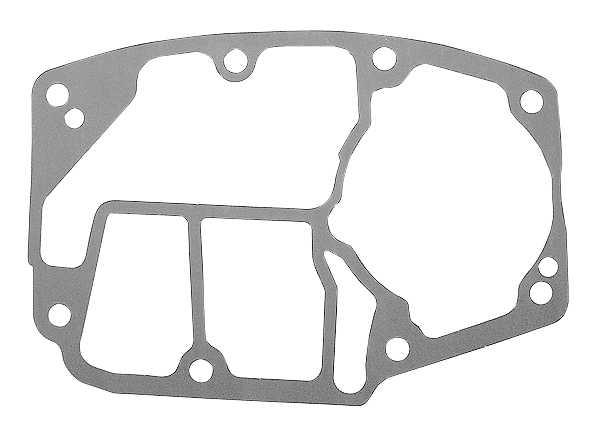

#7	27-69238	GASKET, POWERHEAD (1 required per assembly)
		27-69238 - Powerhead Gasket [ More info ] Unavailable
		27-69238 1 - Gasket [ More info ] $12.40 2 In Stock.
#8	10-66023	SCREW, ADAPTOR PLATE TO HOUSING PLATE (2") (2 required per assembly)
		10-66023 - Screw, NLA [ More info ] Unavailable

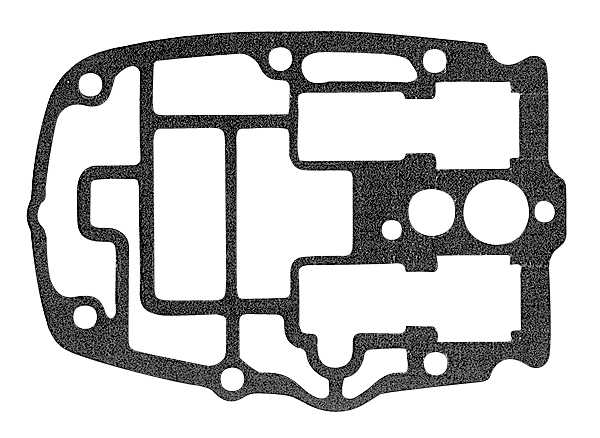

#10	27-66102	GASKET, DRIVE SHAFT HOUSING PLATE (1 required per assembly)
		27-66102 - Drive Shaft Housing Plate Gasket [ More info ] Unavailable
		27-66102 1 - Gasket [ More info ] $18.80 3 In Stock.

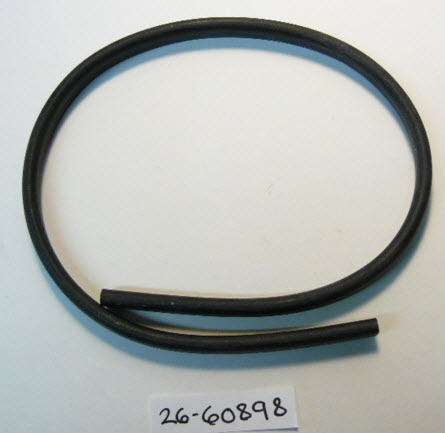

#11	26-60898	SEAL, DRIVE SHAFT HOUSING PLATE (1 required per assembly)
		26-60898 - Seal, NLA [ More info ] Unavailable

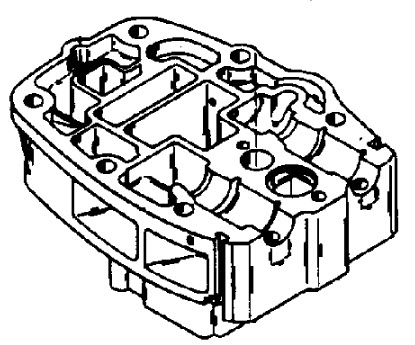

#12	43290A 4	PLATE ASSEMBLY, DRIVE SHAFT HOUSING (1 required per assembly)
		43290A 4 - Plate Assembly [ More info ] $99.00 1 In Stock.
#13	26-38970	SEAL, RUBBER - WATER INLET TUBE (1 required per assembly)
		26-38970 - Seal - Priced Individually [ More info ] $4.90 10+ In Stock.
		18-3110 - Seal, 26-38970 [ More info ] $3.49 $2.77 Available to Order: Usually ships within 10 days.
#15	99698	EXHAUST TUBE (1 required per assembly)
		99698 - Tube, NLA [ More info ] $9.00 5 In Stock.
#16	10-65414	SCREW (4 required per assembly) EXHAUST TUBE TO DRIVE SHAFT HOUSING PLATE (3/4")
		10-65414 - Screw, NLA [ More info ] $1.96 10+ In Stock.
