Parts for Mercury Marine 225 HP (3.0L-DFI) (DTS) Air Compressor Components

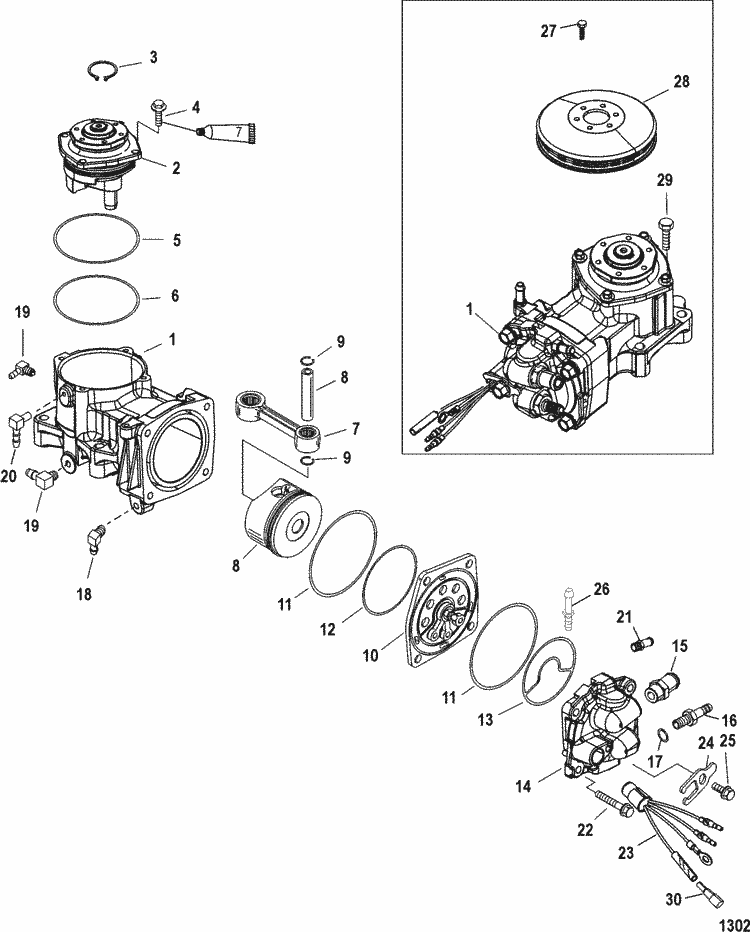

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
| #1 | 828123T32 | COMPRESSOR ASSEMBLY, Air (1 required per assembly) |
 |
|
828123T32 - 828123T32 - COMPRESSOR ASSEMB O [ More info ] Unavailable Replaced by -8M0048555 |
|
|
8M0048555 - 8M0048555 - COMPRESSOR ASSY O [ More info ] Unavailable Replaced by -8M0050657 |
|
|
8M0050657 - 8M0050657 - COMPRESSOR-3.0L O [ More info ] Unavailable Replaced by -8M0060052 |
  |
|
8M0060052 - Compressor-3.0L [ More info ]
|
| #2 | 1173-828131A12 | END CAP ASSEMBLY (1 required per assembly) |
|
|
1173-828131A12 - 1173-828131A12 - END CAP ASSEMBLY O [ More info ] Unavailable Replaced by 1100-8M0050792 |
|
|
1100-8M0050792 - END CAP ASSEMBLY O NLA [ More info ] Unavailable |
| #3 | NSS | NOT SOLD SEPARATE, Snap Ring (1 required per assembly) |
|
|
NSS - NOT SOLD SEPARATE O [ More info ] Unavailable |
| #4 | 10-855939 20 | SCREW, (M6 x 20) (4 required per assembly) |
  |
|
10-855939 20 - Screw - Priced Individually [ More info ]
|
| #5 | 25-67206001 | O-RING (1 required per assembly) |
|
|
25-67206001 - O-Ring [ More info ]
|
| #7 | 653-833146T06 | CONNECTING ROD ASSEMBLY (1 required per assembly) |
|
|
653-833146T06 - Connecting Rod Assembly [ More info ]
|
| #9 | 53-834810 1 | RING, Lock (2 required per assembly) |
|
|
53-834810 1 - Lock Ring [ More info ]
|
| #10 | 835088A10 | REED PLATE ASSEMBLY (1 required per assembly) |
|
|
835088A10 - Reed Plate Assembly [ More info ]
|
| #11 | 25-67207 | O-RING, (3.489 x .070) (2 required per assembly) |
  |
|
25-67207 - O-Ring - Priced Individually [ More info ]
|
| #12 | 25-832804 | O-RING, (2.739 x .070) (1 required per assembly) |
|
|
25-832804 - O-Ring [ More info ]
|
| #13 | 26-828225 | SEAL (1 required per assembly) |
|
|
26-828225 - Seal [ More info ]
|
| #14 | 835087A 8 | HEAD KIT, Compressor (1 required per assembly) |
|
|
835087A 8 - 835087A 8 - HEAD KIT Compress O [ More info ] Unavailable Replaced by -8M0073889 |
|
|
8M0073889 - Compressor Head [ More info ]
|
| #15 | 22-881271 1 | FITTING (1 required per assembly) |
|
|
22-881271 1 - Fitting [ More info ]
|
| #16 | 22-856744 | FITTING (1 required per assembly) |
|
|
22-856744 - Fitting [ More info ]
|
| #17 | 25-831985 | O-RING, (.468 x .078) (1 required per assembly) |
|
|
25-831985 - O-Ring [ More info ]
|
| #18 | 22-99664 2 | FITTING, Elbow 90 Degree (.125-27 x .250) Nylon (1 required per assembly) |
  |
|
22-99664 2 - Elbow [ More info ]
|
| #19 | 21-42864 1 | FITTING, Check Valve (2 required per assembly) |
|
|
21-42864 1 - Fitting [ More info ]
|
| #20 | 22-15133 1 | FITTING (1 required per assembly) |
|
|
22-15133 1 - Fitting [ More info ]
|
| #21 | 22-16604 | FITTING, Straight (.125-27) (1 required per assembly) |
|
|
22-16604 - Fitting [ More info ]
|
| #22 | 10-821273 35 | SCREW, (M8 x 35) (4 required per assembly) |
  |
|
10-821273 35 - Screw [ More info ]
|
| #23 | 13536A14 | SENSOR ASSEMBLY, Temperature (1 required per assembly) |
  |
|
13536A14 - Temperature Sensor [ More info ]
|
| #24 | 13715 1 | RETAINER (1 required per assembly) |
|
|
13715 1 - Retainer [ More info ]
|
| #25 | 10-818934 14 | SCREW, (M8 x 14) (1 required per assembly) |
  |
|
10-818934 14 - Screw [ More info ]
|
| #26 | 821583 2 | PIN, Special (1 required per assembly) |
|
|
821583 2 - Pin (Special) [ More info ]
|
| #27 | 10-855939 12 | SCREW, (M6 x 12) (6 required per assembly) |
  |
|
10-855939 12 - Screw [ More info ]
|
| #28 | 832823 3 | PULLEY (1 required per assembly) |
|
|
832823 3 - Pulley [ More info ]
|
| #29 | 10-8M0045380 | SCREW, (M8 x 50) (4 required per assembly) |
|
|
10-8M0045380 - Screw - Priced Individually [ More info ]
|
| #30 | 13541 | PLUG, Male (1 required per assembly) |
  |
|
|
| #- | 25-832804A03 | O-RING KIT (1 required per assembly) |
|
|
25-832804A03 - O-Ring Kit [ More info ]
|
