Parts for Mercury Marine 200 Cylinder Block & Crankcase Assembly

Revise Search: All Models > 200 > 1558310 - 1866495 > Cylinder Block & Crankcase Assembly

NEED PARTS OR KITS?
• View diagram and parts list below.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

Engine section

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

#1	830-1405A 6	CYLINDER BLOCK AND CRANKCASE ASSEMBLY (1,1,1 required per assembly)
		830-1405A 6 - 830-1405A 6 - CYLINDER BLOCK O [ More info ] Unavailable Replaced by 830-3398A 2
		830-3398A 2 - CYLINDER BLOCK O NLA [ More info ] Unavailable
#2	16-33526	STUD, CYLINDER BLOCK TO DRIVE SHAFT HOUSING (4,4,4 required per assembly)
		16-33526 - 16-33526 - STUD O [ More info ] Unavailable Replaced by 16-66356
		16-66356 - 16-66356 - STUD O [ More info ] Unavailable Replaced by 16-72809
		16-72809 - 16-72809 - STUD (.250-20/.25 O [ More info ] Unavailable Replaced by 16-72809 1
		16-72809 1 - Stud [ More info ] $6.80 Available to order: Usually ships within 8 days.
#4	16-23740	STUD, CARBURETOR TO CRANKCASE (2,2,2 required per assembly)
		16-23740 - 16-23740 - STUD O [ More info ] Unavailable Replaced by 16-65865
		16-65865 - STUD @2 O NLA [ More info ] Unavailable
#5	21-27146A 1	CHECK VALVE ASSEMBLY, CRANKCASE (1,1,1 required per assembly)
		21-27146A 1 - Check Valve Assembly, NLA [ More info ] $8.00 6 in stock.
#6	19-20011	WELCH PLUG, CRANKCASE CHECK VALVE (1,1,1 required per assembly)
		19-20011 - Plug - Welch - Priced Individually [ More info ] $3.80 10+ in stock.
#7	17-23784	DOWEL PIN, CRANKCASE TO CYLINDER BLOCK (2,2,2 required per assembly)
		17-23784 - Pin -Dowel [ More info ] $3.60 2 in stock.
#8	22-30139	PLUG, PIPE - CYLINDER BLOCK (,1,1 required per assembly)
		22-30139 - 22-30139 - PLUG O [ More info ] Unavailable Replaced by 22-32802
		22-32802 - Plug , Priced Individually [ More info ] $2.50 6 in stock.
		22-32802 1 - 22-32802 1 - PLUG Pipe (.125-2 O [ More info ] Unavailable Replaced by 22-32802 2
		22-32802 2 - Plug - (brass) - Priced Individually [ More info ] $5.60 Available to order: Usually ships within 8 days.
		18-4263 - Pipe Plug, 1/8-27 NPT Pi [ More info ] $4.49 $3.24 10+ in stock.
#9	1123-1196A 2	CRANKCASE TOP ASSEMBLY (1,, required per assembly) SERIAL 00000000-01592567
		1123-1196A 2 - Crankcase, NLA [ More info ] $38.00 1 in stock.
#9A	1123-2317A 2	CRANKCASE TOP ASSEMBLY (1,1,1 required per assembly) SERIAL 01592568-09999999
		1123-2317A 2 - End Cap Assembly, NLA [ More info ] $180.00 4 in stock.
#10	30-20464	BEARING, BALL - CRANKCASE TOP (UPPER) (1,1,1 required per assembly)
		30-20464 - 30-20464 - BALL BEARING O [ More info ] Unavailable Replaced by 30-63326
		30-63326 - 30-63326 - BEARING O [ More info ] Unavailable Replaced by 30-63326T
		30-63326T - Ball Bearing [ More info ] $19.50 Available to order: Usually ships within 8 days.
		18-1153 - Bearing 30-63326 [ More info ] $24.49 $19.68 Available to order: Usually ships within 8 days.
#11	15-20514A 1	SHIM, BALL BEARING TO CRANKCASE TOP (AR,AR,AR required per assembly)
		15-20514A 1 - Shim Assembly, NLA [ More info ] $9.00 5 in stock.
#12	31-20594	BEARING, ROLLER - CRANKCASE TOP (UPPER) (1,1,1 required per assembly)
		31-20594 - BEARING O NLA [ More info ] Unavailable

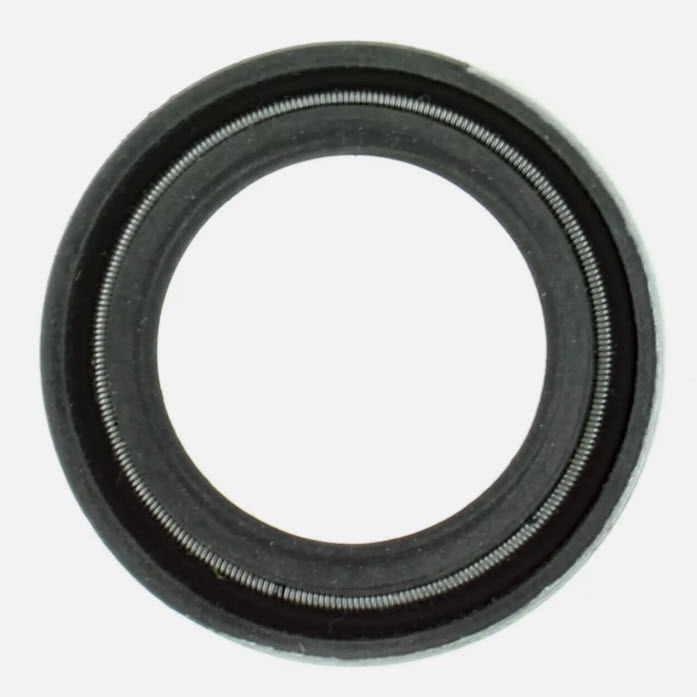

#13	26-31684	OIL SEAL, CRANKCASE TOP (UPPER) (1,1,1 required per assembly)
		26-31684 - Oil Seal - Priced Individually [ More info ] $8.75 10+ in stock.
		26-66300 - Seal - Priced Individually [ More info ] $19.42 $15.74 10+ in stock.
#14	25-31932	"O" RING, CRANKCASE TOP (UPPER) (1,1,1 required per assembly)
		25-31932 - O-Ring, NLA [ More info ] $3.00 10+ in stock.
#15	15-26931	SHIM, SPACER TO CRANKCASE TOP (1,, required per assembly) SERIAL 00000000-01592567
		15-26931 - SHIM O NLA [ More info ] Unavailable
#16	23-26563	SPACER, HOLD DOWN RING TO CRANKCASE TOP (1,, required per assembly) SERIAL 00000000-01592567
		23-26563 - Spacer, NLA [ More info ] $3.50 1 in stock.
#17	29799	RING, MAGNETO HOLD DOWN (1,, required per assembly) SERIAL 00000000-01592567
		29799 - RING O NLA [ More info ] Unavailable
#18	10-28802	SCREW, HOLD DOWN RING TO CRANKCASE TOP (4,, required per assembly) SERIAL 00000000-01592567
		10-28802 - SCREW O NLA [ More info ] Unavailable
#19	54-34598	CLIP, HOLD DOWN RING - CRANKCASE TOP (2,2,2 required per assembly) SERIAL 01592568-09999999
		54-34598 - Clip, NLA [ More info ] $11.00 10+ in stock.
#20	24-34731	SPRING, TENSION - HOLD DOWN RING CLIP (4,4,4 required per assembly) SERIAL 01592568-09999999
		24-34731 - Spring, NLA [ More info ] $2.00 10+ in stock.
#21	10-36205	SCREW, RING CLIP TO CRANKCASE TOP (4,4,4 required per assembly) SERIAL 01592568-09999999
		10-36205 - Screw, NLA [ More info ] $1.25 10+ in stock.
#22	10-28789	SCREW, SPARK ADVANCE - CRANKCASE TOP (1,1,1 required per assembly) SERIAL 01592568-09999999
		10-28789 - Screw, NLA [ More info ] $2.00 10+ in stock.
#23	11-30968	NUT, LOCK - SPARK ADVANCE SCREW (1,1,1 required per assembly) SERIAL 01592568-09999999
		11-30968 - Nut, NLA [ More info ] $1.50 3 in stock.

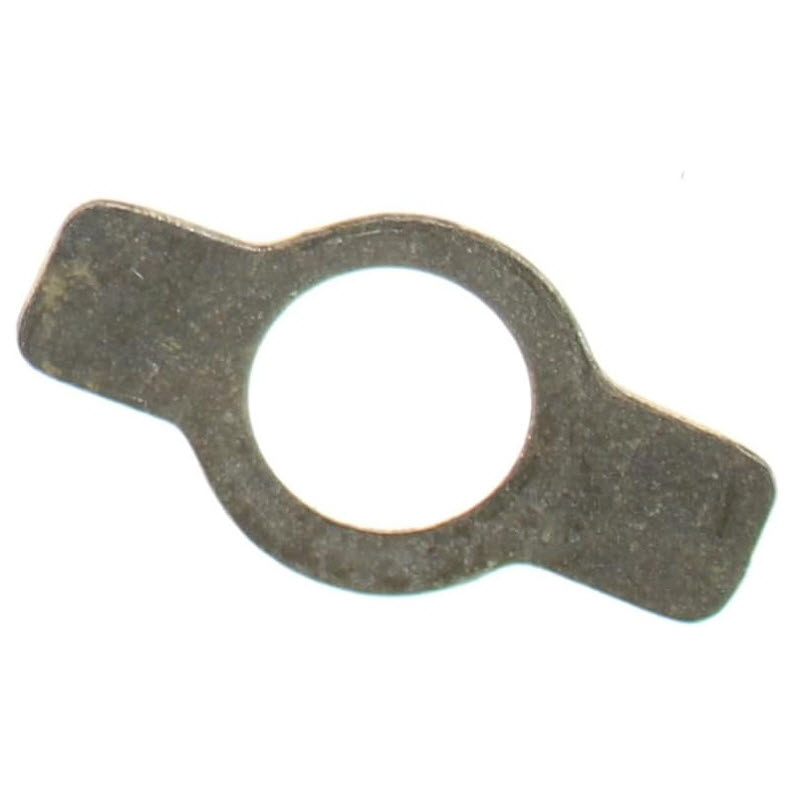

#24	14-20747	TAB WASHER, CRANKCASE TOP FASTENING SCREW (2,2,2 required per assembly)
		14-20747 - Tab Washer, NLA [ More info ] $3.75 10+ in stock.
#25	10-25299	SCREW, CRANKCASE TOP FASTENING (2,2,2 required per assembly)
		10-25299 - Screw - Priced Individually [ More info ] $0.30 7 in stock.

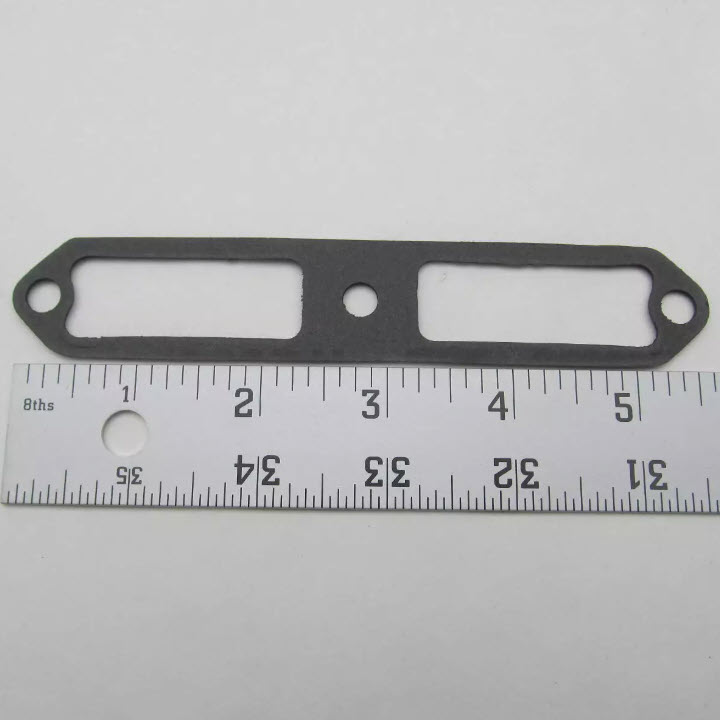

#26	27-26175	GASKET, TRANSFER PORT COVER (1,1,1 required per assembly)
		27-26175 - Gasket [ More info ] $6.00 10+ in stock.
#27	26174	COVER, TRANSFER PORT (1,1,1 required per assembly)
		26174 - Cover, NLA [ More info ] $4.50 10+ in stock.
#28	54-29425	CLAMP, HARNESS - IGNITION WIRES (1,1,1 required per assembly)
		54-29425 - Clamp, NLA [ More info ] $5.50 3 in stock.
#29	12-20533	WASHER, HARNESS CLAMP SCREW (1,1,1 required per assembly)
		12-20533 - Washer - Priced Individually [ More info ] $1.10 10+ in stock.
#30	10-20540	SCREW, PORT COVER TO CYLINDER BLOCK (3,3,3 required per assembly)
		10-20540 - Screw, NLA [ More info ] $1.50 10+ in stock.
#31	1009-1200	COVER, CYLINDER BLOCK (1,1,1 required per assembly)
		1009-1200 - COVER O NLA [ More info ] Unavailable
#32	28805	MOUNT, RUBBER, TOP COWL (CYLINDER BLOCK COVER) (2,2,2 required per assembly)
		28805 - Mount, NLA [ More info ] $20.00 10+ in stock.
#--	13-26993	LOCKWASHER, RUBBER MOUNT - CYLINDER BLOCK COVER (,1,1 required per assembly)
		13-26993 - LockWasher - Priced Individually [ More info ] $1.40 10+ in stock.
#33	11-20083	NUT, RUBBER MOUNT TO CYLINDER BLOCK COVER (2,2,2 required per assembly)
		11-20083 - Nut - Priced Individually [ More info ] $0.80 10+ in stock.
		11-22053 - Nut - Priced Individually [ More info ] $2.00 10+ in stock.
#34	27-26173	GASKET, CYLINDER BLOCK COVER (1,1,1 required per assembly)
		27-26173 - Gasket [ More info ] $11.50 10+ in stock.
#35	10-20653	COVER TO CYLINDER BLOCK (6,6,6 required per assembly)
		10-20653 - Bolt - Priced Individually [ More info ] $1.40 10+ in stock.
#36	11-24652	NUT, CYLINDER BLOCK COVER FASTENING SCREW (6,6,6 required per assembly)
		11-24652 - Nut - Priced Individually [ More info ] $1.20 10+ in stock.

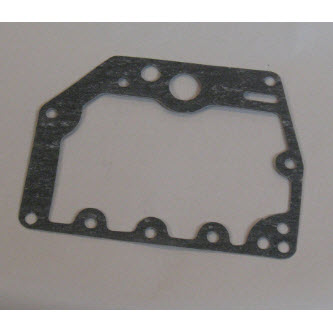

#37	27-28085	GASKET, CYLINDER BLOCK TO BAFFLE PLATE (1,1,1 required per assembly)
		27-28085 - Gasket [ More info ] $11.50 10+ in stock.
#38	28086	PLATE, BAFFLE - EXHAUST MANIFOLD (1,1,1 required per assembly)
		28086 - PLATE O NLA [ More info ] Unavailable

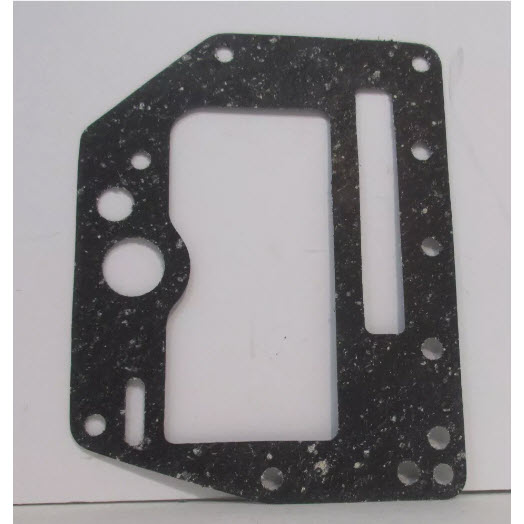

#39	27-28090	GASKET, BAFFLE PLATE TO MANIFOLD COVER (1,1,1 required per assembly)
		27-28090 - Gasket [ More info ] $11.50 6 in stock.
#40	28074	COVER, EXHAUST MANIFOLD (1,1,1 required per assembly)
		28074 - Cover, NLA [ More info ] $34.00 2 in stock.
#41	10-28636	SCREW, MANIFOLD COVER TO CYLINDER BLOCK (6,6,6 required per assembly)
		10-28636 - Screw - Priced Individually [ More info ] $1.40 10+ in stock.
#42	10-28635	SCREW, MANIFOLD COVER TO CYLINDER BLOCK (LOWER REAR) (1,1,1 required per assembly)
		10-28635 - Screw - Priced Individually [ More info ] $1.40 10+ in stock.
#43	30212	TERMINAL BLOCK, EXHAUST MANIFOLD COVER (1,1,1 required per assembly)
		30212 - Terminal Bl, NLA [ More info ] $3.50 10+ in stock.
#44	10-28192	SCREW, TERMINAL BLOCK TO EXHAUST MANIFOLD COVER (2,2,2 required per assembly)
		10-28192 - Screw - Priced Individually [ More info ] $0.50 10+ in stock.
		10-72169 - Screw [ More info ] $1.40 Available to order: Usually ships within 8 days.
#45	10-30663	SCREW, SHORTING SWITCH LEAD TO TERMINAL BLOCK (2,2,2 required per assembly)
		10-30663 - 10-30663 - SCREW (#10-16 x . O [ More info ] Unavailable Replaced by 10-62568
		10-62568 - Screw - Priced Individually [ More info ] $0.80 Available to order: Usually ships within 8 days.
#46	54-24836	CLAMP, SHORTING SWITCH LEAD FASTENING (1,1,1 required per assembly)
		54-24836 - Clip - Priced Individually [ More info ] $3.00 Available to order: Usually ships within 8 days.
#47	22789	"D" WASHER, SHORTING SWITCH LEAD FASTENING SCREW (1,1,1 required per assembly)
		22789 - C Washer - Priced Individually [ More info ] $0.25 10+ in stock.
		69205 - C Washer [ More info ] $0.80 10+ in stock.
		8M0084613 - C-WASHER O [ More info ] Unavailable
#48	10-31206	SCREW, SHORTING SWITCH LEAD CLIP FASTENING (1,1,1 required per assembly)
		10-31206 - 10-31206 - SCREW @5 O [ More info ] Unavailable Replaced by 10-69079
		10-69079 - Screw [ More info ] $0.80 Available to order: Usually ships within 8 days.
#50	26-31507	OIL SEAL, CRANKCASE (LOWER) (2,2,2 required per assembly)
		26-31507 - 26-31507 - SEAL Oil O [ More info ] Unavailable Replaced by 26-79884
		26-79884 - Oil Seal [ More info ] $8.00 10+ in stock.
		26-16977 - Seal [ More info ] $15.10 Available to order: Usually ships within 8 days.
		18-2026 - Seal, 321453 [ More info ] $13.99 $9.76 10+ in stock.
		18-2013 - Seal, 26-16977 [ More info ] $14.49 $9.83 7 in stock.
#51	23-33736	SPACER, PROTECTOR - CRANKSHAFT (1,1,1 required per assembly)
		23-33736 - Spacer, NLA [ More info ] $6.00 10+ in stock.
#52	33803	BRACKET, TOP COWL MOUNTING (1,1,1 required per assembly)
		33803 - Bracket, NLA [ More info ] $6.50 1 in stock.
#53	10-29256	SCREW, COWL MOUNTING BRACKET TO CRANKCASE (2,2,2 required per assembly)
		10-29256 - Screw - Priced Individually [ More info ] $1.80 10+ in stock.
#56	10-26801	SCREW, CENTER MAIN BEARING LOCK (1,1,1 required per assembly)
		10-26801 - Screw - Priced Individually [ More info ] $0.35 10+ in stock.
		10-98260 - Screw [ More info ] $0.80 1 in stock.
#57	14-20091	TAB WASHER, CENTER MAIN BEARING LOCK SCREW (1,1,1 required per assembly)
		14-20091 - Tab Washer - Priced Individually [ More info ] $1.40 10+ in stock.
#58	10-26066	SCREW, CRANKCASE TO CYLINDER BLOCK (1 1/4") (6,6,6 required per assembly)
		10-26066 - Screw, NLA [ More info ] $1.25 10+ in stock.
#59	10-29942	SCREW, CRANKCASE TO CYLINDER BLOCK (2 1/4") (1,, required per assembly)
		10-29942 - 10-29942 - SCREW O [ More info ] Unavailable Replaced by 10-69090
		10-69090 - SCREW O NLA [ More info ] Unavailable
#60	10-21449	SCREW, CRANKCASE TO CYLINDER BLOCK (2") (1,, required per assembly)
		10-21449 - Screw, NLA [ More info ] $2.00 10+ in stock.
#61	10-26132	SCREW, CRANKCASE TO CYLINDER BLOCK (2 1/2") (2,2,2 required per assembly)
		10-26132 - Screw, NLA [ More info ] $3.00 10+ in stock.
#62	11-29250	NUT, CRANKCASE FASTENING SCREW (10,10,10 required per assembly)
		11-29250 - Nut - Priced Individually [ More info ] $2.00 10+ in stock.
#63	25-25429	"O" RING, CRANKCASE FASTENING SCREW (1,1,1 required per assembly)
		25-25429 - O-Ring - Priced Individually [ More info ] $1.60 10+ in stock.
