Parts for Mercury Marine 1150 Ignition Coil

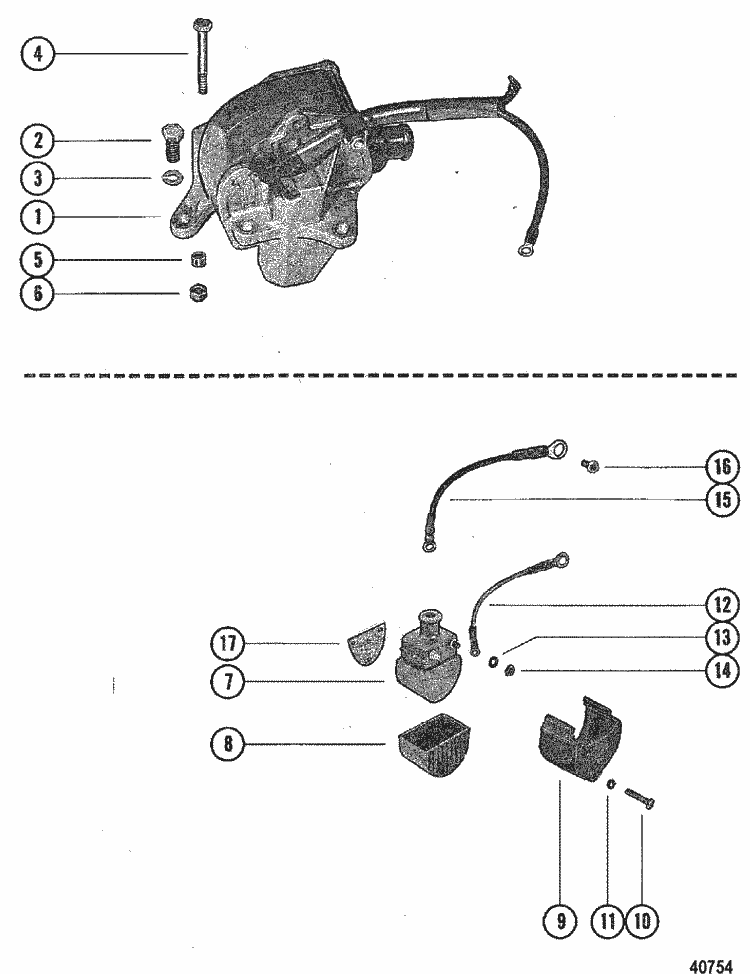

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
| #1 | 332-2983A 5 | COIL ASSEMBLY, Ignition, COMPLETE (1 required per assembly) SN# USA-4112634/Australia-8027114/Canada-7047257 & Below |
 |
|
332-2983A 5 - 332-2983A 5 - COIL O [ More info ] Unavailable Replaced by 332-4895A 5 |
  |
|
332-4895A 5 - Ignition Coil Kit [ More info ]
|
| #2 | 10-37941 | SCREW, (.250 x 1.750) (1 required per assembly) SN# USA-4112634/Australia-8027114/Canada-7047257 & Below |
  |
|
10-37941 - Screw - Priced Individually [ More info ]
|
| #3 | 13-26992 | LOCKWASHER, (.250) Stainless Steel (1 required per assembly) SN# USA-4112634/Australia-8027114/Canada-7047257 & Below |
|
|
13-26992 - LockWasher - Priced Individually [ More info ]
|
| #4 | 10-31471 | SCREW (3-1/4") (2 required per assembly) SN# USA-4112634/Australia-8027114/Canada-7047257 & Below |
|
|
10-31471 - 10-31471 - SCREW O [ More info ] Unavailable Replaced by 10-88488 |
|
|
10-88488 - SCREW O NLA [ More info ] Unavailable |
| #5 | 23-52933 | SPACER (3 required per assembly) SN# USA-4112634/Australia-8027114/Canada-7047257 & Below |
|
|
23-52933 - SPACER O NLA [ More info ] Unavailable |
| #6 | 11-46887 | NUT, (1/4-28) (2 required per assembly) SN# USA-4112634/Australia-8027114/Canada-7047257 & Below |
|
|
11-46887 - 11-46887 - NUT (1/4-28) O [ More info ] Unavailable Replaced by 11-20184 |
  |
|
11-20184 - Nut - Priced Individually [ More info ]
|
| #7 | 332-4895A 2 | COIL ASSEMBLY, Ignition (1 required per assembly) SN# USA-4112635/Australia-8027115/Canada-7047258 & Up |
|
|

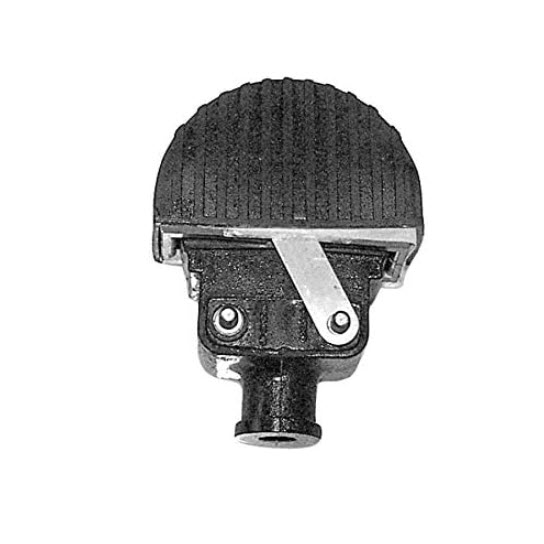

332-4895A 2 - 332-4895A 2 - COIL ASY-IGNITION O [ More info ] Unavailable Replaced by 332-4895T 2 |
  |
|

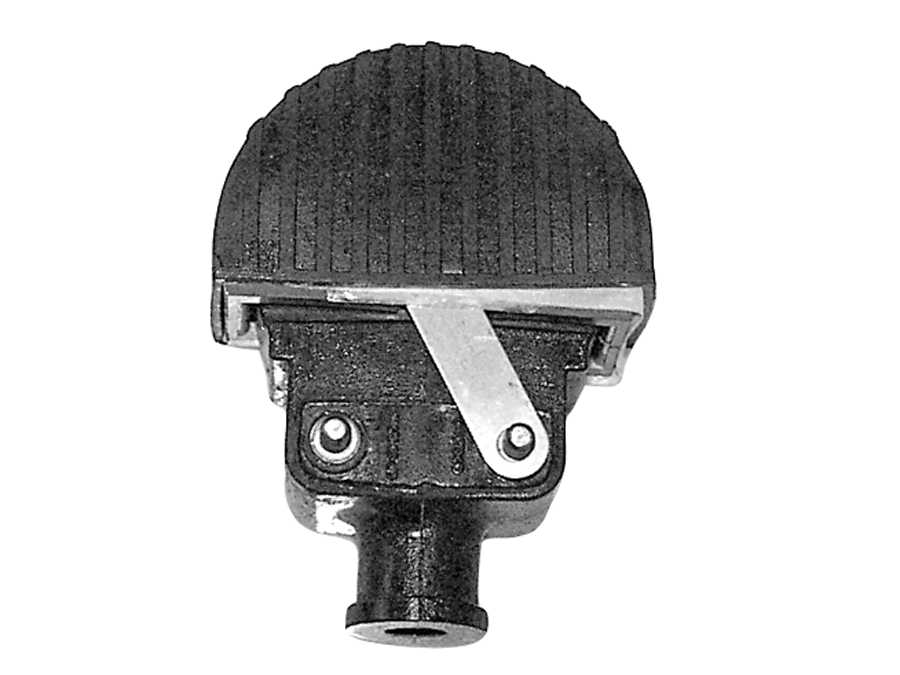

332-4895T 2 - Ignition Coil Assembly [ More info ]
|
| #8 | 63194 | PAD, RUBBER (1 required per assembly) SN# USA-4112635/Australia-8027115/Canada-7047258 & Up |
|
|
63194 - 63194 - PAD O [ More info ] Unavailable Replaced by -72015 |
|
|
72015 - Pad, NLA [ More info ]
|

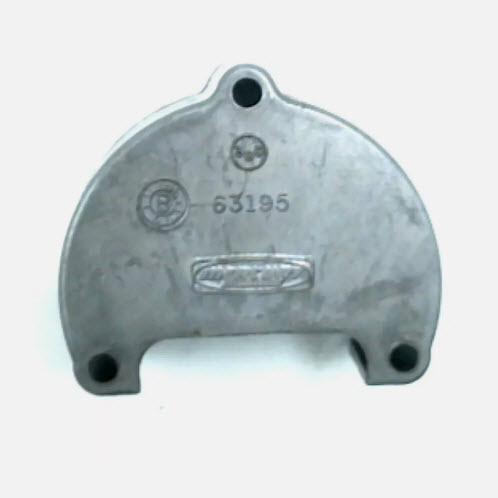

| #9 | 63195 | COVER, IGNITION COIL (1 required per assembly) SN# USA-4112635/Australia-8027115/Canada-7047258 & Up |
  |
|
|
| #10 | 10-69046 | SCREW (2") (3 required per assembly) SN# USA-4112635/Australia-8027115/Canada-7047258 & Up |
|
|
10-69046 - 10-69046 - SCREW O [ More info ] Unavailable Replaced by 10-88856 |
|
|
10-88856 - Screw, NLA [ More info ]
|
| #11 | 12-30164 | WASHER, (.192 x .375 x .0312) Stainless Steel (3 required per assembly) SN# USA-4112635/Australia-8027115/Canada-7047258 & Up |
|
|
12-30164 - Washer - Priced Individually [ More info ]
|
| #12 | 84-60466A 1 | CABLE ASSEMBLY, Black (2.50 Inches) (1 required per assembly) SN# USA-4112635/Australia-8027115/Canada-7047258 & Up |
|
|
84-60466A 1 - Cable Assembly, NLA [ More info ]
|
| #13 | 13-26996 | LOCKWASHER, (#10) Stainless Steel, IGNITION COIL TERMINAL (2 required per assembly) SN# USA-4112635/Australia-8027115/Canada-7047258 & Up |
|
|
13-26996 - LockWasher - Priced Individually [ More info ]
|
| #14 | 11-45076 | NUT, (#10-32) Brass, IGNITION COIL TERMINAL (2 required per assembly) SN# USA-4112635/Australia-8027115/Canada-7047258 & Up |
|
|
11-45076 - Nut - Priced Individually [ More info ]
|
| #15 | 84-66054A 2 | CABLE ASSEMBLY, COIL TO SWITCH BOX (1 required per assembly) SN# USA-4112635/Australia-8027115/Canada-7047258 & Up |
|
|
84-66054A 2 - WIRE ASSY O NLA [ More info ] Unavailable |
| #16 | 10-62568 | SCREW, (#10-16 x .375) (1 required per assembly) SN# USA-4112635/Australia-8027115/Canada-7047258 & Up |
  |
|
10-62568 - Screw - Priced Individually [ More info ]
|
| #17 | 69190 | PLATE, COIL MOUNTING (1 required per assembly) SN# USA-4112635/Australia-8027115/Canada-7047258 & Up |
|
|
|
