Parts for Mercury Mark & Kiekhaefer Mark 6, 6A Starter Assembly

Engine Diagram

Ref. No. Part No. Description Manufacturer List Price Your Price Order

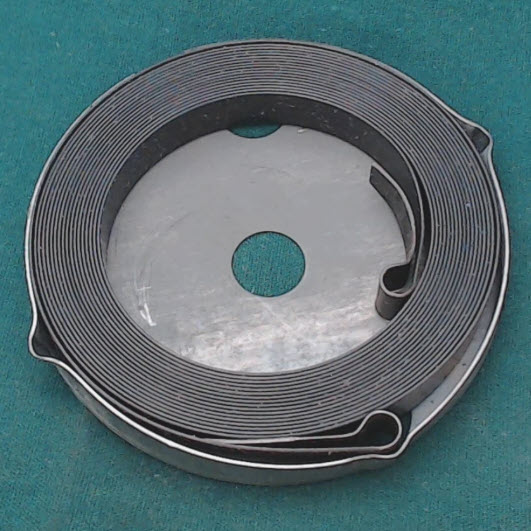

#1 24-24081 SPRING, STARTER (1,1,1,1,1, required per assembly)
SPRING            O - Replaced by 24-24081A 1
24-24081This part has been superseded. SPRING O - Replaced by 24-24081A 1
(more info)
    UnavailableUnavailable Parts
SPRING,NLA 24-24081A 1
24-24081A 1OEM Part 24-24081A 1 - Spring, NLA (more info) About Mercury Marine $24.00 $24.00 Add to shopping cart
10+ in stock. Explain stock levels
#2 24170 SHAFT, STARTER SHEAVE (1,1,1,1,1, required per assembly)
20765    SHAFT 24170
24170OEM Part 24170 - Shaft (more info) About Mercury Marine $1.60 $1.60 Add to shopping cart
1 in stock. Explain stock levels
SHAFT ,NLA 20765
20765OEM Part 20765 - Shaft, NLA (more info) About Mercury Marine $10.00 $10.00 Add to shopping cart
10+ in stock. Explain stock levels
#3 24080A 5 STARTER SHEAVE ASSEMBLY (1,1,1,1,1, required per assembly)
SHEAVE ASSY ,NLA 24080A 5
24080A 5OEM Part 24080A 5 - Sheave Assembly, NLA (more info) About Mercury Marine $22.00 $22.00 Add to shopping cart
10+ in stock. Explain stock levels
#- 17-24171 PIN, RETAINER (1,1,1,1,1, required per assembly)
PIN               O NLA
17-24171 PIN O NLA
(more info)
    UnavailableUnavailable Parts
#- 17-20564 PIN, SPRING ANCHOR (1,1,1,1,1, required per assembly)
ROLL PIN          O NLA
17-20564 ROLL PIN O NLA
(more info)
    UnavailableUnavailable Parts
#- 24078 THREAD GUARD (2,2,2,2,2, required per assembly)
GUARD             O NLA
24078 GUARD O NLA
(more info)
    UnavailableUnavailable Parts
#4 10-24776 SCREW, SHEAVE REINFORCING (2,2,2,2,2, required per assembly)
SCREW             O NLA
10-24776 SCREW O NLA
(more info)
    UnavailableUnavailable Parts
#5 15-20767 SHIM, SHEAVE SHAFT (.010) (1,1,1,1,1, required per assembly)
SHIM              O NLA
15-20767 SHIM O NLA
(more info)
    UnavailableUnavailable Parts
#6 12-24172 WASHER, SHEAVE SHAFT (1,1,1,1,1, required per assembly)
WASHER            O NLA
12-24172 WASHER O NLA
(more info)
    UnavailableUnavailable Parts
#7 24085 RETAINER, STARTER PAWL (1,1,1,1,1, required per assembly)
RETAINER,NLA 24085
24085OEM Part 24085 - Retainer, NLA (more info) About Mercury Marine $3.50 $3.50 Add to shopping cart
10+ in stock. Explain stock levels
#8 13-20511 WASHER, WAVE (1,1,1,1,1, required per assembly)
WAVE WASHER       O - Replaced by 13-29402
13-20511This part has been superseded. WAVE WASHER O - Replaced by 13-29402
(more info)
    UnavailableUnavailable Parts
WAVE WASHER 13-29402
13-29402OEM Part 13-29402 - Wave Washer - Priced Individually (more info) About Mercury Marine $1.40 $1.40 Add to shopping cart
10+ in stock. Explain stock levels
#8 13-28943 WASHER, WAVE (,,,,,1 required per assembly)
WASHER-WAVE       O NLA
13-28943 WASHER-WAVE O NLA
(more info)
    UnavailableUnavailable Parts
#9 24169 COLLAR, SHEAVE SHAFT (1,1,1,1,1, required per assembly)
COLLAR,NLA 24169
24169OEM Part 24169 - Collar, NLA (more info) About Mercury Marine $4.50 $4.50 Add to shopping cart
2 in stock. Explain stock levels
#10 24181A 1 STARTER PAWL ASSEMBLY (2,2,2,2,2, required per assembly)
DISCONTINUED,NLA 24181A 1
24181A 1OEM Part 24181A 1 - Starter Pawl Assembly, NLA (more info) About Mercury Marine $9.00 $9.00 Add to shopping cart
3 in stock. Explain stock levels
#-- 20793 MAGNET, STARTER PAWL (2,2,2,2,2, required per assembly)
MAGNET            O NLA
20793 MAGNET O NLA
(more info)
    UnavailableUnavailable Parts
#11 22681A 1 STARTER CABLE ASSEMBLY (1,1,1,1,1, required per assembly)
CABLE ASSY        O NLA
22681A 1 CABLE ASSY O NLA
(more info)
    UnavailableUnavailable Parts
#12 24082 PLATE, FRICTION (1,1,1,1,1, required per assembly)
PLATE,NLA 24082
24082OEM Part 24082 - Plate (more info) About Mercury Marine $10.00 $10.00 Add to shopping cart
1 in stock. Explain stock levels
#13 22680 RATCHET, STARTER (1,1,1,1,1, required per assembly)
RATCHET           O NLA
22680 RATCHET O NLA
(more info)
    UnavailableUnavailable Parts
#14 23-24805 SPACER, STARTER RATCHET (1,1,1,1,1, required per assembly)
SPACER ,NLA 23-24805
23-24805OEM Part 23-24805 - Spacer, NLA (more info) About Mercury Marine $8.50 $8.50 Add to shopping cart
5 in stock. Explain stock levels
#15 12-20959 WASHER, STARTER RATCHET (AR,,,,, required per assembly)
WASHER Note: must be ordered in multiples of 5 12-20959
12-20959OEM Part 12-20959 - Washer - Priced Individually (more info) About Mercury Marine $1.50 $1.50 Add to shopping cart
10+ in stock. Explain stock levels
#15 12-22248 WASHER, STARTER RATCHET (,AR,AR,AR, required per assembly)
WASHER (.453 x .8 12-22248
12-22248OEM Part 12-22248 - Washer (more info) About Mercury Marine $1.10 $1.10 Add to shopping cart
10+ in stock. Explain stock levels
#15 12-27025 WASHER, STARTER RATCHET (,,,,,1 required per assembly)
WASHER Note: must be ordered in multiples of 5 12-27025 12-27025
12-27025OEM Part 12-27025 - Washer - Priced Individually (more info) About Mercury Marine $1.90 $1.90 Add to shopping cart
10+ in stock. Explain stock levels

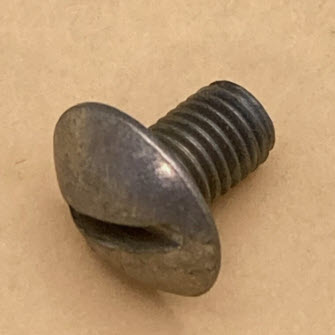

#16 10-22491 SCREW, FRICTION PLATE TO TOP COWL (3,3,3,3,3, required per assembly)
SCREW,NLA 10-22491
10-22491OEM Part 10-22491 - Screw - Priced Individually, NLA (more info) About Mercury Marine $1.25 $1.25 Add to shopping cart
10+ in stock. Explain stock levels

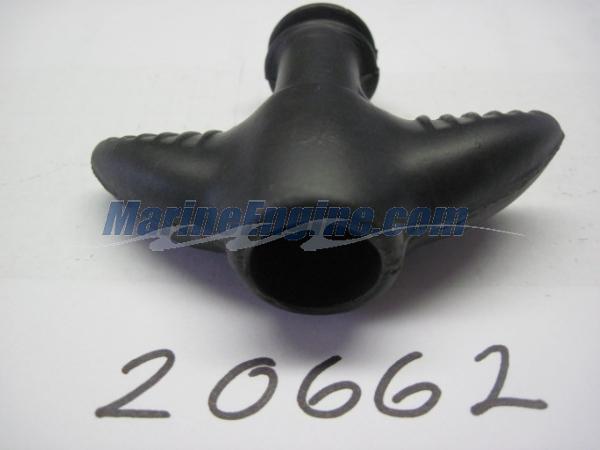

#17 20662 HANDLE, STARTER CABLE (1,1,1,1,1, required per assembly)
HANDLE            O NLA 20662
20662 HANDLE O NLA
(more info)
    UnavailableUnavailable Parts
#18 24804 END CAP, STARTER HANDLE (1,1,1,1,1, required per assembly)
END CAP,NLA 24804
24804OEM Part 24804 - End Cap, NLA (more info) About Mercury Marine $9.50 $9.50 Add to shopping cart
10+ in stock. Explain stock levels
