Parts for Mercury Marine Docking System Motor Assembly

Engine Diagram

Ref. No. Part No. Description Manufacturer List Price Your Price Order
#1 40503T 4 MOTOR ASSEMBLY (3 required per assembly)
MOTOR ASY-DOCKING O NLA
40503T 4 MOTOR ASY-DOCKING O NLA
(more info)
    UnavailableUnavailable Parts
#2 11-40515 NUT (Special) (2 required per assembly)
NUT               O NLA
11-40515 NUT O NLA
(more info)
    UnavailableUnavailable Parts

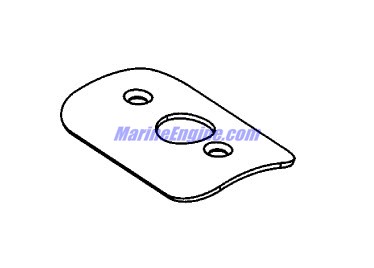

#3 40534 PLATE-Reinforcing (1 required per assembly)
PLATE-REINFORCING O NLA 40534
40534 PLATE-REINFORCING O NLA
(more info)
    UnavailableUnavailable Parts
#4 27-40646T GASKET (1 required per assembly)
GASKET            O NLA 27-40646T
27-40646T GASKET O NLA
(more info)
    UnavailableUnavailable Parts
#5 40544T GRATE-Front (1 required per assembly) (Bow Motor)
GRATE-FRONT       O - Replaced by -40544T 1
40544TThis part has been superseded. GRATE-FRONT O - Replaced by -40544T 1
(more info)
    UnavailableUnavailable Parts
GRATE-FRONT       O NLA
40544T 1 GRATE-FRONT O NLA
(more info)
    UnavailableUnavailable Parts
#6 40509T ANODE (3 required per assembly)
ANODE             O NLA
97-40509T ANODE O NLA
(more info)
    UnavailableUnavailable Parts
#7 12-35044 WASHER (6 required per assembly)
WASHER (.281 x .6 12-35044
12-35044OEM Part 12-35044 - Washer (more info) About Mercury Marine $1.60 $1.60 Add to shopping cart
Available to order:
Usually ships
within 8 days
#8 11-13438 NUT (.250-28) (6 required per assembly)
NUT               O - Replaced by 11-826711  9
11-13438This part has been superseded. NUT O - Replaced by 11-826711 9
(more info)
    UnavailableUnavailable Parts
NUT (.250-28) 11-826711  9
11-826711 9OEM Part 11-826711 9 - Nut (more info) About Mercury Marine $1.80 $1.80 Add to shopping cart
10+ in stock. Explain stock levels

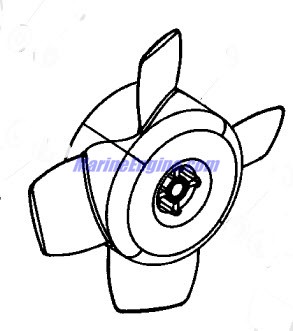

#9 47-40535T IMPELLER (3 required per assembly)
IMPELLER-PPS 47-40535T 47-40535T
47-40535TOEM Part 47-40535T - Impeller -pps (more info) About Mercury Marine $22.05 $22.05 Add to shopping cart
Available to order:
Usually ships
within 8 days
#10 12-40514 WASHER (3 required per assembly)
WASHER (.375 x .6 12-40514
12-40514OEM Part 12-40514 - Washer (more info) About Mercury Marine $12.00 $12.00 Add to shopping cart
Available to order:
Usually ships
within 8 days
#11 11-46356 NUT (.312-24) (3 required per assembly)
NUT (.312-24) 11-46356
11-46356OEM Part 11-46356 - Nut (more info) About Mercury Marine $3.10 $3.10 Add to shopping cart
Available to order:
Usually ships
within 8 days
#12 40545T GRATE-Rear (1 required per assembly) (Bow Motor)
GRATE-REAR 40545T
40545TOEM Part 40545T - Grate- Rear (more info) About Mercury Marine $9.67 $9.67 Add to shopping cart
9 in stock. Explain stock levels
