Parts for MerCruiser Black Scorpion MX 6.2L MPI Transmission & Related Parts (Borg-warner 71C / 72C)
Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
| #1 | 47805A 7 | TRANSMISSION ASSEMBLY (1 required per assembly) (71C)(1.1:1) |
 |
|
47805A 7 - Trans 71C 1.1:1 [ More info ]
|
| #1 | 47805T16 | TRANSMISSION (1 required per assembly) (71C)(1.0:1)(With Walters Adaptor) |
|
|
47805T16 - Trans 71C 1.0 Vdr [ More info ]
|
| #1 | 47810A19 | TRANSMISSION (1 required per assembly) (72C)(1.0:1) |
|
|
47810A19 - TRANSMISSION O [ More info ] Unavailable |
|
|
896346731 - Transmission [ More info ]
|
| #1 | 47811A 7 | TRANSMISSION (1 required per assembly) (72C)(1.50:1) |
|
|
47811A 7 - Trans 72C 1.5:1 [ More info ]
|
|
|
896346732 - Transmission [ More info ]
|
| #2 | 10-60179 | SCREW, (.437-14 x 3.500) (4 required per assembly) |
  |
|
10-60179 - Screw [ More info ]
|

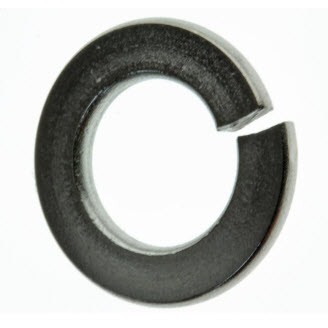

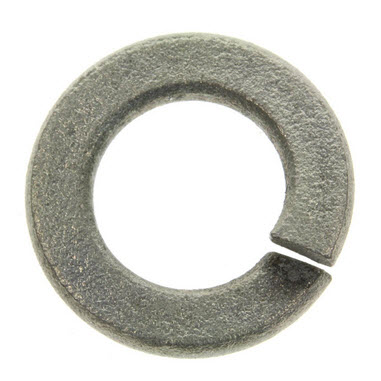

| #3 | 13-32993 | LOCKWASHER, (.437) (6 required per assembly) |
  |
|
13-32993 - LockWasher - Priced Individually [ More info ]
|

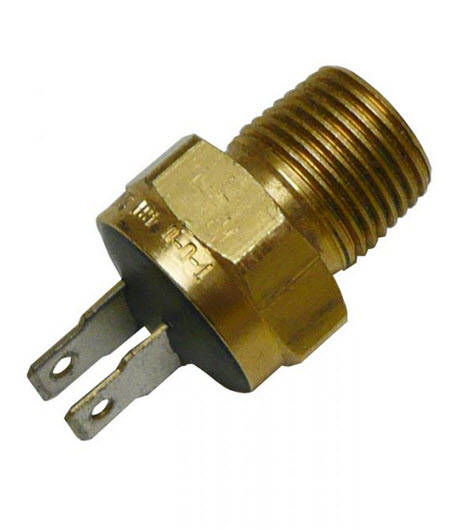

| #4 | 87-88031 | SWITCH ASSEMBLY, Temperature (1 required per assembly) |
|
|
87-88031 - Switch Assembly [ More info ]
|
| #5 | 32-805478 2 | HOSE, (23.00 Inches), Oil (1 required per assembly) (71C) |
  |
|
32-805478 2 - Hose [ More info ]
|
| #6 | 32-805478 1 | HOSE, (19.50), Oil (1 required per assembly) (71C) |
  |
|
32-805478 1 - Oil Hose [ More info ]
|
| #6 | 32-47516 6 | HOSE ASSEMBLY, (30.00 Inches), Oil (1 required per assembly) (72C) |
  |
|
32-47516 6 - Hose Assembly -30 In [ More info ]
|
| #7 | 22-63835 | ELBOW, 45 Degree (1 required per assembly) (71C) |
|
|
22-63835 - Elbow [ More info ]
|
| #7 | 22-88517 | FITTING, Reducing (1 required per assembly) (72C) |
|
|
22-88517 - Fitting [ More info ]
|

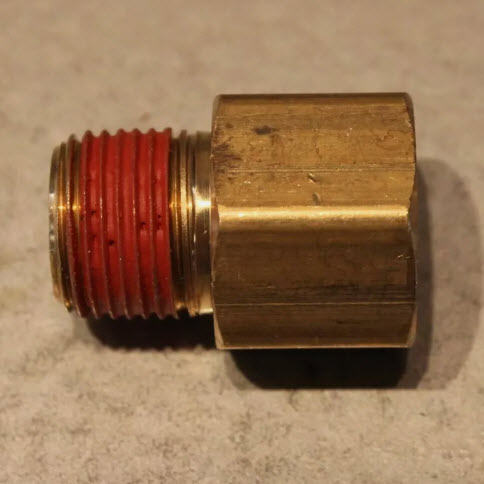

| #8 | 22-47629 | ELBOW, 90 Degree (1 required per assembly) |
  |
|
22-47629 - Elbow [ More info ]
|
| #9 | 87917A 1 | FLANGE ASSEMBLY, (4.00 x 1.00) (OPT required per assembly) |
  |
|
87917A 1 - Flange Assembly, NLA [ More info ]
|
| #10 | 10-60171 | SCREW, (.375-16 x 1.250) (2 required per assembly) |
  |
|
10-60171 - Screw -set [ More info ]
|
| #11 | 10-68101 | SCREW, (.375-16 x 1.375) (4 required per assembly) |
  |
|
10-68101 - Screw [ More info ]
|
| #12 | 13-35048 | LOCKWASHER, (.375) (4 required per assembly) |
  |
|
13-35048 - LockWasher - Priced Individually [ More info ]
|
| #13 | 11-32219 | NUT, (.375-16) (4 required per assembly) |
  |
|
11-32219 - Nut - Priced Individually [ More info ]
|
| #14 | 807484 | BALL JOINT ASSEMBLY, Quick Release (1 required per assembly) |
  |
|
807484 - Ball Joint Assembly [ More info ]
|
| #15 | 861073T02 | BRACKET (1 required per assembly) |
  |
|
861073T02 - Throttle Bracket [ More info ]
|
| #16 | 10-65746 1 | SCREW AND LOCKWASHER, (.250-20 x .625) (2 required per assembly) |
  |
|
10-65746 1 - Screw [ More info ]
|
| #17 | 12-35462 | WASHER, (.2656 x .625 x .0625) Stainless Steel (1 required per assembly) |
|
|
12-35462 - Washer - Priced Individually [ More info ]
|
| #18 | 807485T | BRACKET ASSEMBLY (1 required per assembly) |
  |
|
807485T - Bracket Assembly [ More info ]
|
| #19 | 10-89766 | SCREW, (#10-32 x .620) Stainless Steel (4 required per assembly) |
  |
|
10-89766 - Screw - Priced Individually [ More info ]
|
| #20 | 11-826709106 | NUT, (#10-32) Stainless Steel (4 required per assembly) |
  |
|
11-826709106 - Nut [ More info ]
|
| #21 | 43325 | LEVER (1 required per assembly) |
  |
|
|

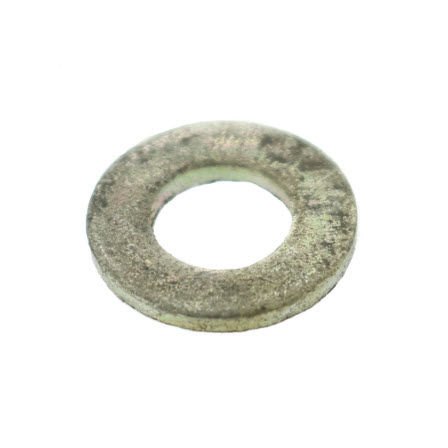

| #22 | 12-20722 | WASHER, (.328 x .625 x .060) (1 required per assembly) |
|
|
12-20722 - Washer [ More info ]
|

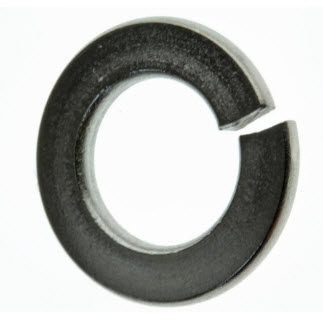

| #23 | 13-26993 | LOCKWASHER, (.312) (1 required per assembly) |
|
|
13-26993 - LockWasher - Priced Individually [ More info ]
|
| #24 | 11-22053 | NUT, (.312-24) (1 required per assembly) |
  |
|
11-22053 - Nut - Priced Individually [ More info ]
|
| #25 | 47613 | SWITCH, Neutral Safety (1 required per assembly) |
  |
|
|

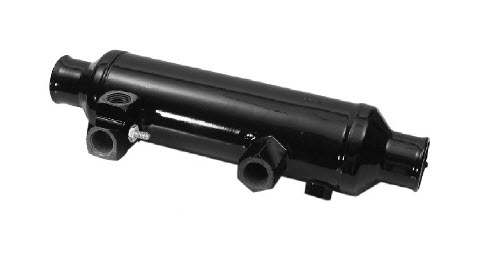

| #26 | 863842T02 | COOLER, Transmission Oil (1 required per assembly) (71C) |
  |
|
863842T02 - Cooler [ More info ]
|
| #26 | 863832T01 | COOLER, Transmission Oil (1 required per assembly) (72C) |
  |
|
863832T01 - Cooler [ More info ]
|
| #27 | 865219T | BRACKET, Cooler (1 required per assembly) |
|
|
865219T - Bracket -tran Cool [ More info ]
|
| #28 | 77223 4 | PAD (1 required per assembly) |
|
|
PAD 77223 4 [ More info ]
|
| #29 | 11-826708 8 | NUT, (.250-20) (1 required per assembly) |
|
|
11-826708 8 - Nut [ More info ]
|
| #30 | 807445T | CLAMP, Cooler (1 required per assembly) |
  |
|
|
| #31 | 10-34353 | SCREW, (.375-16 x 1.00) (2 required per assembly) |
  |
|
10-34353 - Screw - Priced Individually [ More info ]
|

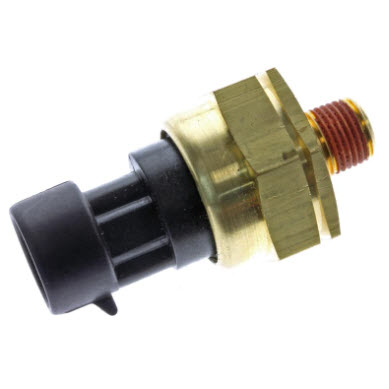

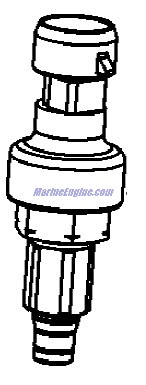

| #33 | 881879010 | SENSOR, Pressure (1 required per assembly) |
  |
|
881879010 - 881879010 - SENSOR O [ More info ] Unavailable Replaced by -8M6000623 |
  |
|

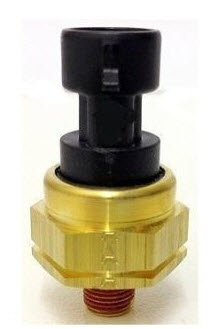

8M6000623 - Sensor [ More info ]
|
| #34 | 11-22024 | NUT, (.437-14) (2 required per assembly) |
  |
|
11-22024 - Nut - Priced Individually [ More info ]
|

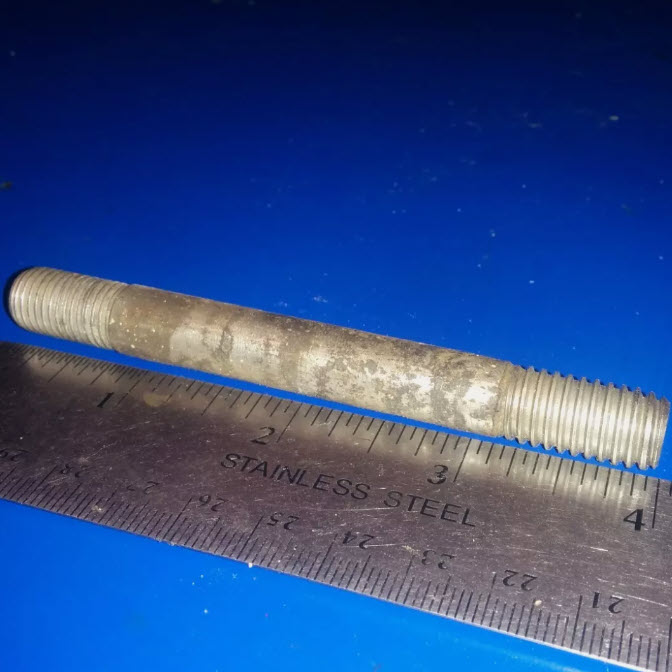

| #35 | 16-57921 | STUD, (.437-14/.437-20 x 4.00) (2 required per assembly) |
|
|
|
| #36 | 866077 | BRACKET, Shift Cable (1 required per assembly) |
  |
|
866077 - Bracket [ More info ]
|
| #37 | 13-40024 7 | LOCKWASHER, (M8) (2 required per assembly) |
|
|
13-40024 7 - LockWasher Note: - Priced Individually [ More info ]
|
| #38 | 10-40001124 | SCREW, (M8 x 14) (2 required per assembly) |
  |
|
10-40001124 - Screw [ More info ]
|
