Parts for MerCruiser 8.2L Mag EC (Base Model) Water Drain System
Tap to zoom. Scroll down to order.

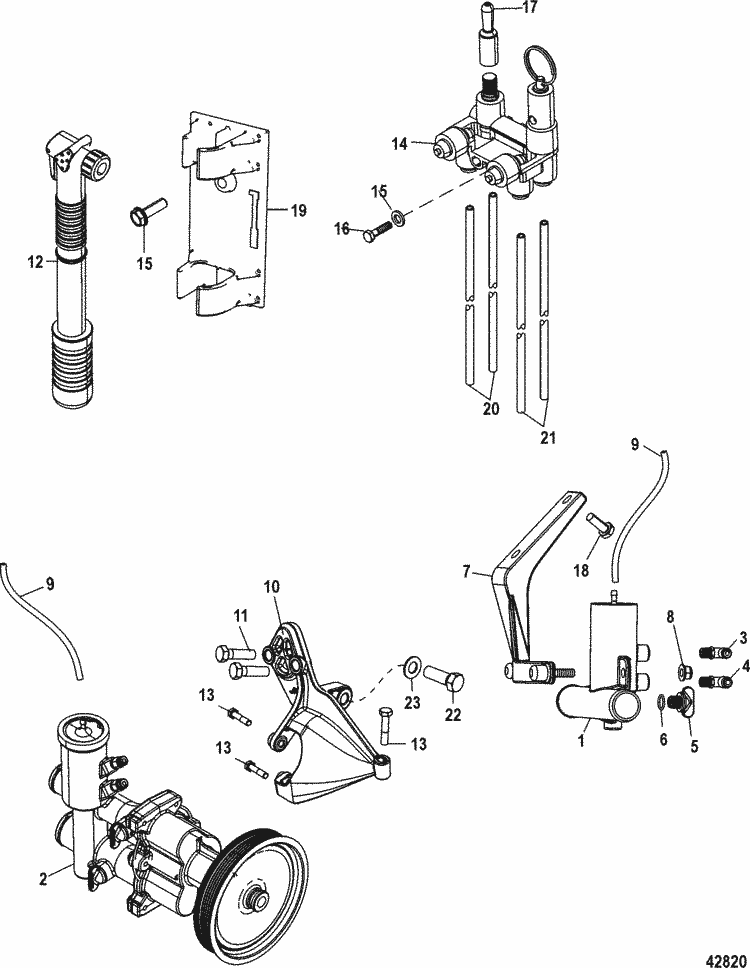

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
#1 | 863717A 2 | ACTUATOR ASSEMBLY, Water Drain (1 required per assembly) Port |
#2 | 46-862914T10 | PUMP KIT, Sea Water, Without Air Fittings (1 required per assembly) See "Seawater Pump" for Component Break down |
46-862914T10 - SeaWater Pump [ More info ] Unavailable |
||
46-8M0118067 - Sea Pump Assembly [ More info ] Unavailable |
||
46-8M0122655 - W Pump SEA W/O AIR 4.3 6.2 MZ [ More info ] Unavailable |
||
46-8M0137216 - Sea Pump Kit [ More info ] Unavailable |
||
46-46302 - Sea Water Pump with Pulley 46-8M0139995 [ More info ] |
||
#2 | 46-862914T11 | PUMP KIT, Sea Water, With Air Fittings (1 required per assembly) See "Seawater Pump" for Component Break down |
46-862914T11 - SeaWater Pump Kit [ More info ] Unavailable |
||
46-8M0118068 - SEA Water Pump W/AIR FIT MZ [ More info ] Unavailable |
||
46-8M0122657 - 46-8M0122657 - SEA PUMP KIT [ More info ] Unavailable Replaced by -8M0137217 |
||
46-8M0137217 - Sea Pump [ More info ] Unavailable |
||
#3 | 22-865288 | FITTING, Gray (90 Degree) (1 required per assembly) |
22-865288 - Fitting - Air [ More info ] Unavailable |
||
#4 | 22-865289 | FITTING, Orange (90 Degree) (1 required per assembly) |
#5 | 22-806608A02 | PLUG ASSEMBLY, (.500-13) Blue (1 required per assembly) |
22-806608A02 - Plug Assembly - Priced Individually [ More info ] Unavailable |
||
22-8M0119211 - Drain Plug, Priced Individually, .5 inch x 13 [ More info ] |
||
#6 | 25-8M2000926 | SEAL (1 required per assembly) |
18-7180 - O-Ring, 925055 [ More info ]
$2.99 $0.24 |
||
#7 | 863863T | BRACKET, Actuator Mounting (1 required per assembly) Port |
#8 | 11-826365 | NUT, (M8), Nylock (2 required per assembly) |
#9 | 32-863056 1 | HOSE, (42.00 Inches Bulk) Black, Air (2 required per assembly) |
#10 | 8M0045295 | BRACKET, Seawater Pump (1 required per assembly) |
#11 | 10-865982007 | SCREW, (.375-16 x 1.25) Hex Flange (2 required per assembly) |
#12 | 863057 | PUMP, Air (1 required per assembly) |
#13 | 10-865152 | SCREW, (M6) (3 required per assembly) |
#14 | 863053T | MANIFOLD ASSEMBLY, Air (1 required per assembly) |
#15 | 10-79968 | SCREW, (#12-11 x .750) (1 required per assembly) |
#16 | 10-821045 45 | SCREW, (M5 x45) (2 required per assembly) |
#17 | 19-8M0046566 | CAP, Service Point (1 required per assembly) |
#18 | 10-98260 | SCREW, (.375-16 x .620) (2 required per assembly) |
#19 | 8M0046157 | BRACKET, Air Pump (1 required per assembly) |
#20 | 32-863055 2 | HOSE, (40.00 Inches Bulk) Green (2 required per assembly) Starboard Cut to 32 Inches, Port Cut to 22 Inches |
32-863055 2 - TUBING-GREEN-40IN [ More info ] Unavailable |
||
32-8M0062605 - Tubing -40 In [ More info ] Unavailable |
||
#21 | 32-863054 2 | HOSE, (40.00 Inches Bulk) Grey (2 required per assembly) Starboard Cut to 32 Inches, Port Cut to 23 Inches |
32-863054 2 - TUBING-GREY-40 IN [ More info ] Unavailable |
||
#22 | 10-47462 | SCREW, (.437-14 x 1.250) (1 required per assembly) |
#23 | 12-22248 | WASHER, (.453 x .875 x .060) (1 required per assembly) |
