Parts for MerCruiser 5.0L MPI Alpha / Bravo EC Fuel Module Components -bravo
Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
| # | 8M0047215 | MODULE KIT, Fuel Pump, Complete, With Drain Port (1 required per assembly) |
  |
|
8M0047215 - Fuel Module Kit [ More info ]
|
| # | 864650A13 | MODULE KIT, Fuel Pump, Complete (1 required per assembly) |
  |
864650A13 - MODULE KIT [ More info ] Unavailable |
|
| #1 | 864650A14 | HOUSING, Fuel Module (1 required per assembly) |
 |
864650A14 - Housing-FUEL MODL [ More info ] Unavailable |
|
|
|
8M0047216 - Fuel Module Housing [ More info ] Unavailable |
| #1 | 8M0047216 | HOUSING, Fuel Module, With Drain Port (1 required per assembly) |
| #2 | 22-8M2010476 | FITTING, (3/8-18) (2 required per assembly) |
|
|
22-8M2010476 - Connector [ More info ]
|
| #3 | 22-806608A02 | PLUG ASSEMBLY, (.500-13) Blue, Housing With Drain Port Only (1 required per assembly) |
  |
22-806608A02 - Plug Assembly - Priced Individually [ More info ] Unavailable |
|
  |
|
22-8M0119211 - Drain Plug, Priced Individually, .5 inch x 13 [ More info ]
|
  |
|
18-4226 - Blue Drain Plug, 22-806608A1 [ More info ]
|
  |
|
22-806608Q01 - Plug - Priced Individually [ More info ]
|
| #4 | 10-892684 | SCREW (8 required per assembly) |
  |
|
10-892684 - Screw - Priced Individually [ More info ]
|
| #5 | 892670A01 | CHECK VALVE KIT (1 required per assembly) |
|
|
892670A01 - Check Valve Kit [ More info ]
|
| #9 | 892677 | COVER, Fuel Module Housing (1 required per assembly) |
  |
892677 - Fuel Module Cover [ More info ] Unavailable |
|
  |
|
8M0086387 - Fuel Module Cover [ More info ] Unavailable |
| #10 | 892681 | REGULATOR (1 required per assembly) |
  |
|
892681 - Regulator [ More info ]
|
  |
|
18-33211 - Fuel Pressure Regulator 892681 [ More info ]
|
| #11 | 866170A01 | PUMP ASSEMBLY, Fuel - Low Pressure (1 required per assembly) |
  |
|
866170A01 - Fuel Pump Kit [ More info ]
|
  |
|
18-8865 - Fuel Pump 866170A01 [ More info ]
|
| #15 | 866169T01 | PUMP ASSEMBLY, Fuel, High Pressure (1 required per assembly) |
  |
|
866169T01 - Fuel Pump Kit [ More info ]
|
  |
|
18-8864 - Fuel Pump NLA only remaining stock available 866169T01 [ More info ]
|
  |
|
1399-39541 - Fuel Pump Kit [ More info ]
|
| #17 | 8M2018790 | FILTER, Pump Suction (1 required per assembly) |
|
|
8M2018790 - FILTER [ More info ] Unavailable |
| #18 | 54-8M2018792 | CLIP (1 required per assembly) |
|
|
548M2018792 - Clip [ More info ]
|
| #20 | 84-895013A02 | HARNESS ASSEMBLY (1 required per assembly) |
|
84-895013A02 - Fuel Module Harness [ More info ] Unavailable |
|
  |
|
84-8M0056175 - Harness [ More info ] Unavailable |
| #23 | 35-892665 | FILTER (1 required per assembly) |
  |
35-892665 - Filter [ More info ] Unavailable |
|
  |
|

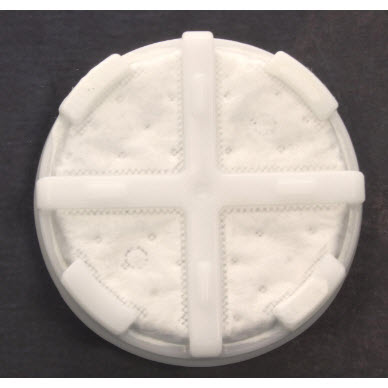

35-8M0204703 - Fuel Filter, GEN 3 Coolfuel [ More info ]
|
| #24 | 892687A02 | CARTRIDGE ASSEMBLY, Fuel Filter (1 required per assembly) |
  |
|
892687A02 - CARTRIDGE ASSEMBL [ More info ] Unavailable |
| #27 | NSS | NOT SOLD SEPARATE, Seal (1 required per assembly) |
|
|
NSS - NOT SOLD SEPARATE [ More info ] Unavailable |
| #28 | 35-866171A01 | FILTER (1 required per assembly) |
  |
35-866171A01 - Fuel Filter [ More info ] Unavailable |
|
  |
|
35-8M0093688 - Fuel Filter [ More info ]
|
  |
|
18-7977-1 - Fuel Filter [ More info ]
|
  |
|
18-7977-1 - Fuel Filter [ More info ]
|
| #31 | 22-88517 | FITTING, Reducing (1 required per assembly) |
  |
|
22-88517 - Fitting [ More info ]
|
| #32 | 26-892683 | SEAL (1 required per assembly) |
  |
|
26-892683 - Seal [ More info ]
|
| #33 | 10-866114 | SCREW, (.250-28) Special (1 required per assembly) |
  |
|
10-866114 - Screw [ More info ]
|
