Parts for MerCruiser 488 (4 Barrel.) Mercury 224 I / L4 1983-1984 Front Cover

Revise Search: All Models > 488 (4 Barrel.) Mercury 224 I / L4 1983-1984 > 6170297 - 6916778 > Front Cover

NEED PARTS OR KITS?
View diagram and parts list below. Tap to zoom. Scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

Engine section

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

#1	71903A 2	FRONT COVER ASSEMBLY (1 required per assembly)
		71903A 2 - Cover, NLA [ More info ] Unavailable
#2	26-97530	SEAL, WATER PUMP (2 required per assembly)
		26-97530 - Seal [ More info ] $22.47 1 In Stock.
		18-0172 - Seal, 26-97530 [ More info ] $16.99 $15.85 3 In Stock.
#3	26-67388	SEAL, FRONT (1 required per assembly)
		26-67388 - Seal [ More info ] $33.42 In Stock
		18-0578 - Seal, 26-67388 [ More info ] $28.99 $26.06 1 In Stock.
#4	22-32802	PIPE PLUG, DRAIN (1 required per assembly)
		22-32802 - Plug , Priced Individually [ More info ] Unavailable
		22-32802 1 - Plug, Brass, Priced Individually [ More info ] Unavailable
		22-32802 2 - Brass Pipe Plug, Priced Individually [ More info ] $7.30 Available to Order: Usually ships within 10 days.
		18-4263 - Pipe Plug, 1/8-27 NPT, Brass [ More info ] $5.19 $4.70 10+ In Stock.
#5	10-35386	SCREW, FRONT COVER TO CYLINDER BLOCK (1") (5 required per assembly)
		10-35386 - Screw - Priced Individually [ More info ] $1.10 Available to Order: Usually ships within 10 days.
#6	12-20084	WASHER, FRONT COVER SCREW (5 required per assembly)
		12-20084 - Washer, (.328 X .562 X .062) [ More info ] $2.91 10+ In Stock.
#7	27-68714	GASKET, FRONT COVER (1 required per assembly)
		27-68714 - Front Cover Gasket [ More info ] Unavailable
		27-68714A 6 - Front Cover Gasket [ More info ] Unavailable
		27-68714A 7 - Gasket Set [ More info ] $34.17 Available to Order: Usually ships within 10 days.
		18-4380 - Gasket Set, 27-68714A6 [ More info ] $30.99 $27.89 3 In Stock.
#8	27-72099	GASKET, IMPELLER COVER (1 required per assembly)
		27-72099 - Impeller Cover Gasket [ More info ] Unavailable

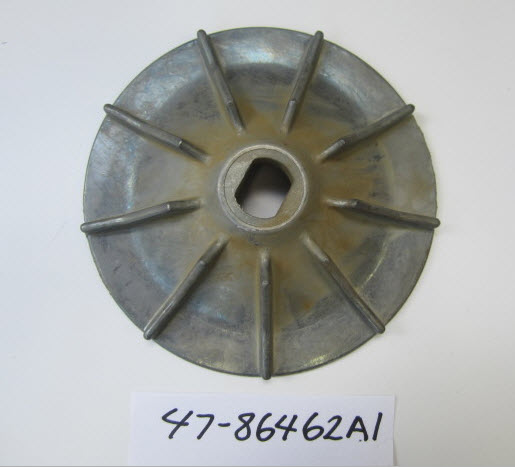

#9	47-86462A 1	IMPELLER, WATER PUMP (1 required per assembly)
		47-86462A 1 - Impeller [ More info ] Unavailable
#10	12-85104	WASHER, IMPELLER SCREW (1 required per assembly)
		12-85104 - Washer, Swivel Tube, NLA [ More info ] $1.53 3 In Stock.
#11	13-21804	LOCKWASHER, IMPELLER SCREW (1 required per assembly)
		13-21804 - LockWasher, NLA [ More info ] $1.99 10+ In Stock.
#12	10-23703	SCREW, IMPELLER (1 required per assembly)
		10-23703 - Screw, NLA [ More info ] $2.49 10+ In Stock.
#13	71902A 1	COVER, IMPELLER (1 required per assembly)
		71902A 1 - Cover [ More info ] Unavailable
#14	10-67450	SCREW, COVER TO CYLINDER BLOCK (2-1/4") (6 required per assembly)
		10-67450 - Screw - Priced Individually [ More info ] $3.88 10+ In Stock.
#17	71904A 1	COVER, WATER INLET (1 required per assembly)
		71904A 1 - Water Inlet Cover [ More info ] $43.99 10+ In Stock.
#18	27-72098	GASKET, WATER INLET COVER (1 required per assembly)
		27-72098 - Water Inlet Cover Gasket [ More info ] Unavailable
#19	10-28668	SCREW, INLET COVER TO IMPELLER COVER (7/8") (3 required per assembly)
		10-28668 - Screw - Priced Individually [ More info ] $1.60 Available to Order: Usually ships within 10 days.
#20	12-21249	WASHER, INLET COVER SCREW (3 required per assembly)
		12-21249 - Washer - Priced Individually [ More info ] $8.20 $1.65 10+ In Stock.
