Parts for MerCruiser 350 Alpha (4 Barrel) Crate Engine Flywheel Housing
Tap to zoom. Scroll down to order.

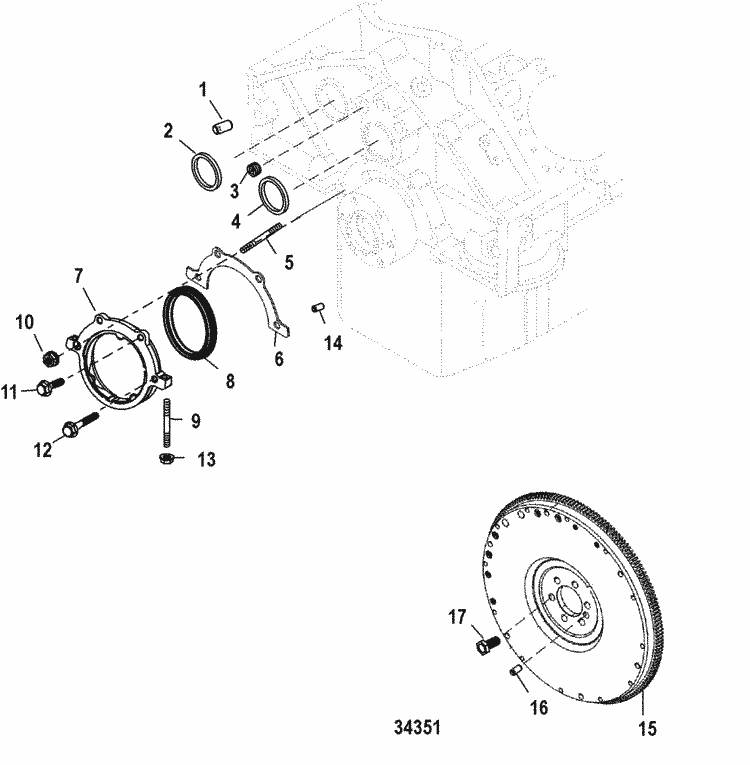

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
# | 27-861246A05 | GASKET SET, Engine Overhaul (1 required per assembly) |
27-861246A05 - Engine Overhaul Gasket Set [ More info ] Unavailable |
||
#1 | 17-843379 | PIN, Dowel (.6206/.6211 x 1.20), Flywheel Housing Location (2 required per assembly) |
17-843379 - Pin -Dowel [ More info ] Unavailable |
||
#2 | 19-34270 | EXPANSION PLUG, (1.625), Engine Core Hole (8 required per assembly) |
#3 | 22-48340 | PLUG, (.250-18 x .41), Oil Galley (4 required per assembly) |
22-8M0204652 - PLUG @2 [ More info ] Unavailable |
||
#4 | 22-72640 | PLUG, Expansion, Camshaft Bearing Hole (1 required per assembly) |
#5 | 16-14827 | STUD, (.250-20 x 2.180) (2 required per assembly) |
#6 | 27-881715 | GASKET, Crankshaft Oil Seal Housing (1 required per assembly) |
#7 | 852940 | HOUSING ASSEMBLY, With Studs, Crankshaft Oil Seal (1 required per assembly) |
#8 | 26-852941 | SEAL, Crankshaft Oil (1 required per assembly) |
#9 | 16-11989 | STUD, (.312-18 x 1.6718) (2 required per assembly) |
#10 | 11-816730 1 | NUT (1 required per assembly) |
11-816730 1 - Nut [ More info ] Unavailable |
||
#11 | 10-14242 | BOLT, (.250-20 x .875) (2 required per assembly) |
#12 | 10-14243 | BOLT, (.250-20 x 1.750) (1 required per assembly) |
10-14243 - BOLT [ More info ] Unavailable |
||
#13 | 11-11971 | NUT, (.312-18) (2 required per assembly) |
11-11971 - Nut, Oil Pan Stud [ More info ] Unavailable |
||
#14 | 17-14263 | PIN, Dowel, Oil Seal Housing Locating (1 required per assembly) |
#15 | 222-9520001 | FLYWHEEL (1 required per assembly) |
222-9520001 - Flywheel [ More info ] Unavailable |
||
#16 | 17-43504 | PIN, Dowel, Flywheel (2 required per assembly) |
#17 | 10-845757 | SCREW, (.437-20 x 1.00) (6 required per assembly) |
