Parts for MerCruiser 3.0L GM 181 I / L4 Power Steering Pump Assembly
Tap to zoom. Scroll down to order.

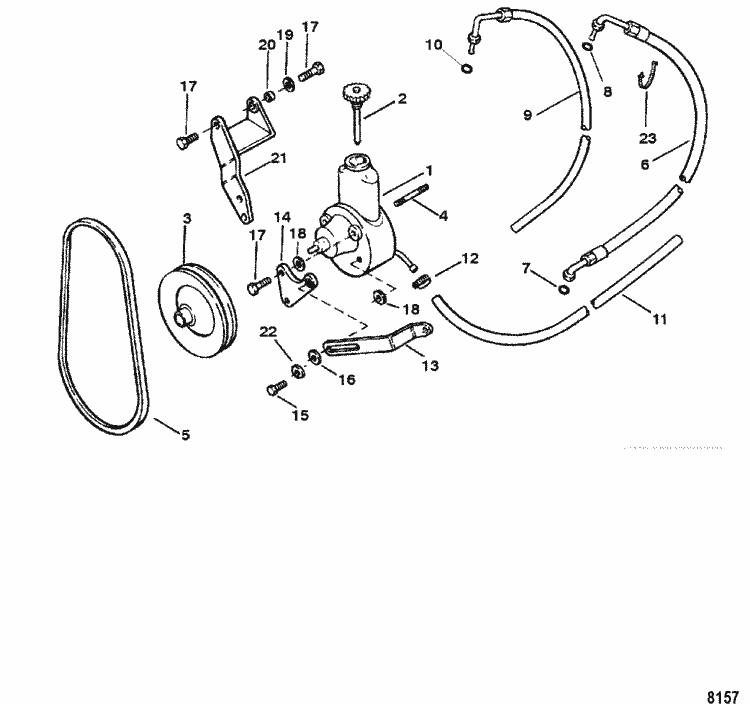

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
# | 861481A 2 | POWER STEERING KIT (1 required per assembly) |

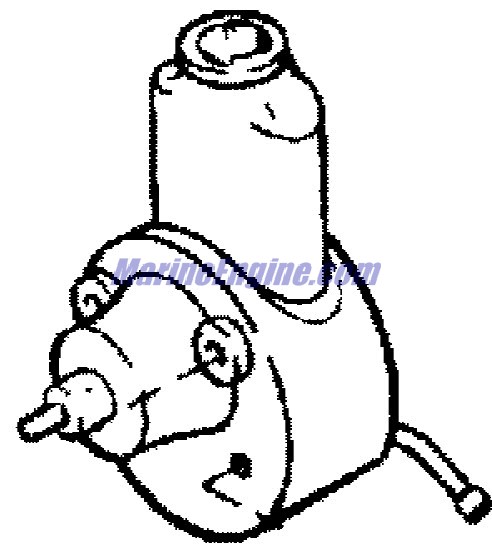

#1 | 16792A40 | PUMP ASSEMBLY (1 required per assembly) |
16792A40 - Power Steering Pump [ More info ] Unavailable |
||
#2 | 36-95805 | CAP (1 required per assembly) |
#3 | 73873A 1 | PULLEY (1 required per assembly) |
#4 | 16-41877 | STUD, (M10) (1 required per assembly) |
16-41877 - Stud [ More info ] Unavailable |
||

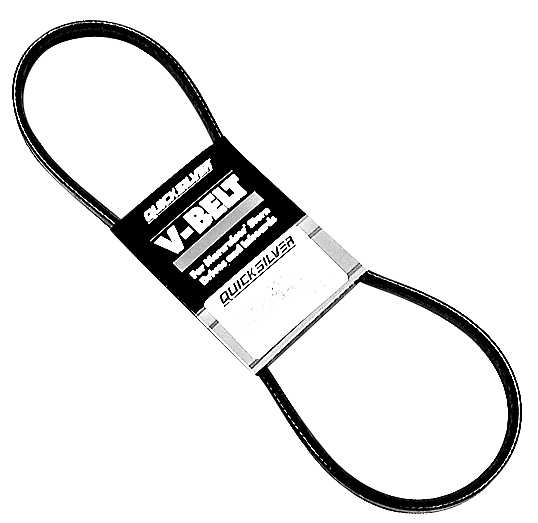

#5 | 57-65607T | V BELT (1 required per assembly) |
57-65607T - V-Belt [ More info ] Unavailable |
||
#6 | 32-806684 | HOSE, Pressure (1 required per assembly) (With (2) 90 Degree Fittings) |
#6 | 32-842435 45 | HOSE ASSEMBLY, Pressure (1 required per assembly) (With (1) 90 Degee and (1) 20 Degree Fitting) |

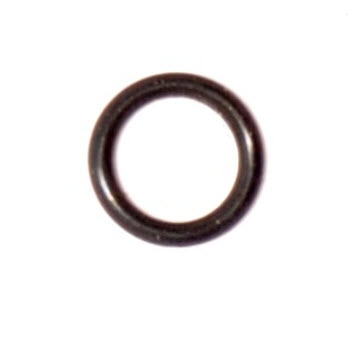

#7 | 25-89879 | O-RING, (.301 x .064) (1 required per assembly) |

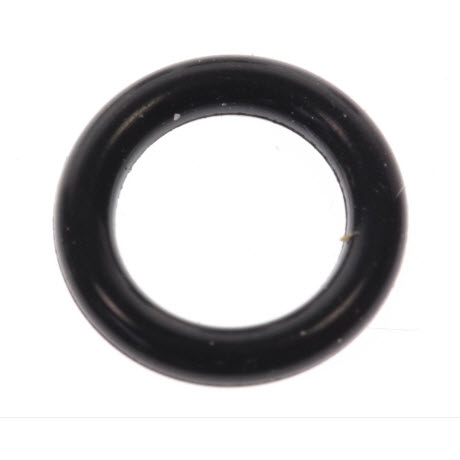

#8 | 25-806232 | O-RING, (.239 x .064) (1 required per assembly) |

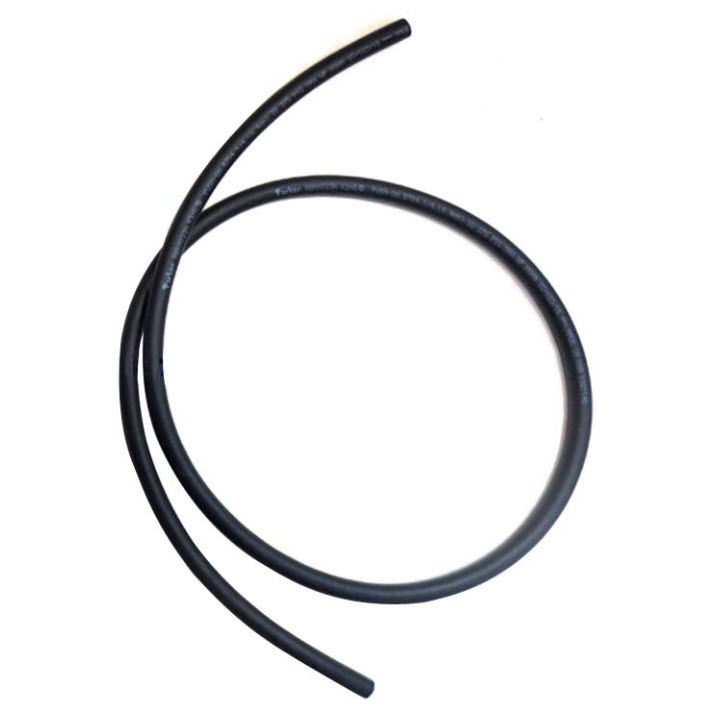

#9 | 32-806221 42 | HOSE ASSEMBLY, (84.00 Inches Bulk), Return (1 required per assembly) (Fittting on One End) (Cut to 14.00 Inch Length) |
#11 | 32-52519 14 | HOSE, (53.00 Inches Bulk), Pump to Oil Cooler (1 required per assembly) (Cut to 31.00 Inch Length) |

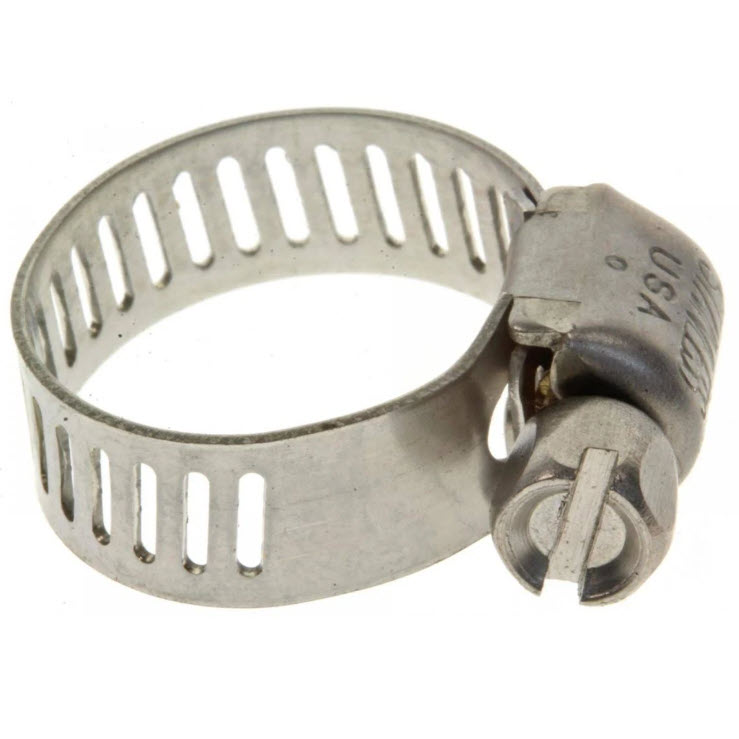

#12 | 54-815504105 | CLAMP, Worm Gear (3 required per assembly) |
#NS | 19-807992 1 | COVER, Hose Clamp End (AR required per assembly) |
19-807992 1 - Cover-.250 - Priced Individually [ More info ] |
||
#13 | 96772A 1 | BRACE, Power Steering Adjusting (1 required per assembly) |
#14 | 96872A 2 | BRACKET (1 required per assembly) |
#15 | 10-76926 | SCREW, (.375-16 x .875) (1 required per assembly) |
#16 | 12-34714 | WASHER (1 required per assembly) |
#17 | 10-40001188 | SCREW, (M10 x 20) (3 required per assembly) |
10-40001188 - Screw [ More info ] Unavailable |
||
#17 | 10-40001195 | SCREW, (M10 x 30) (1 required per assembly) |

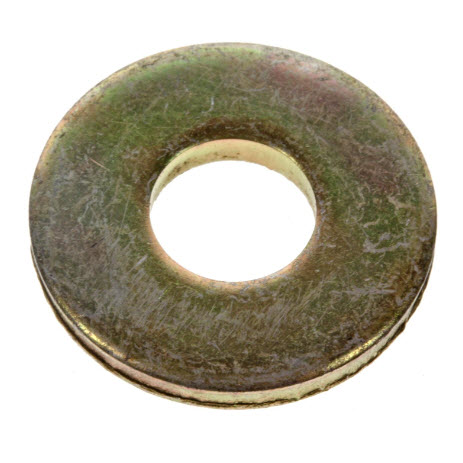

#18 | 23-72057 | SPACER, (1.00 Outside Diameter x .125 x Thick) (2 required per assembly) |

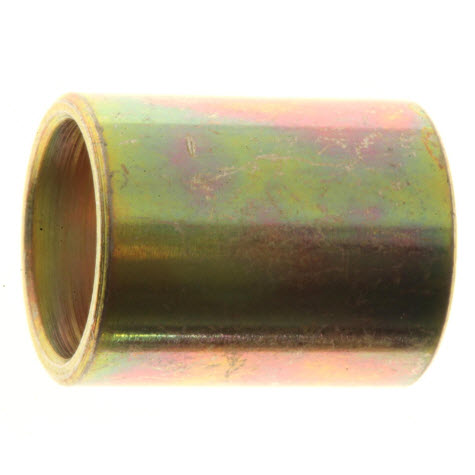

#20 | 23-96818 | BUSHING (1 required per assembly) |
#21 | 65606T | BRACKET (1 required per assembly) |
#22 | 13-35048 | LOCKWASHER, (.375) (1 required per assembly) |
#23 | 61990 | TIE STRAP, (14.00 Inches) (1 required per assembly) |
