Parts for MerCruiser 165 1970-1977 Hydraulic Pump Assembly, Complete

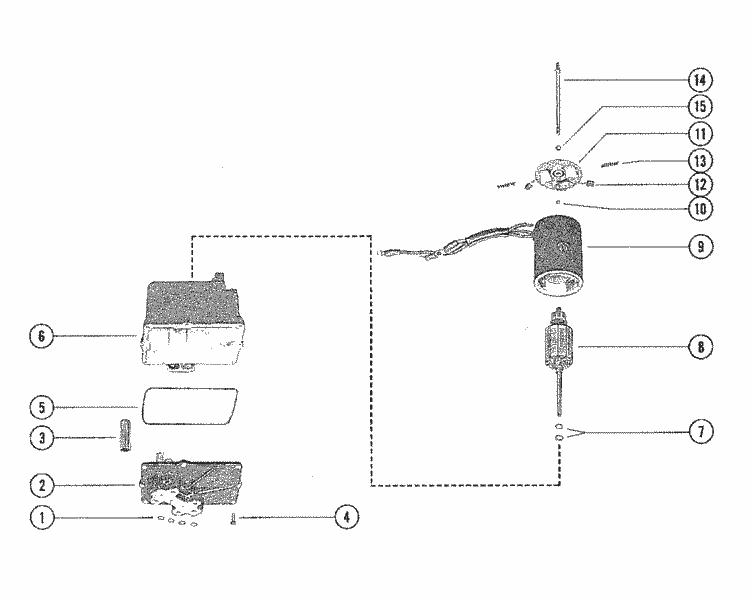

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
| # | -74436A 9 | HYDRAULIC PUMP ASSEMBLY, COMPLETE (1 required per assembly) |
 |
74436A 9 - Hydraulic Pump [ More info ] Unavailable |
|
|
79271A 4 - PUMP ASSY [ More info ] Unavailable |
|
|
88475A 5 - PUMP ASSY [ More info ] Unavailable |
|
|
93247A 4 - Hydraulic Pump [ More info ] Unavailable |
|
  |
|
93247A 7 - Trim Pump Assembly [ More info ]
|
  |
|

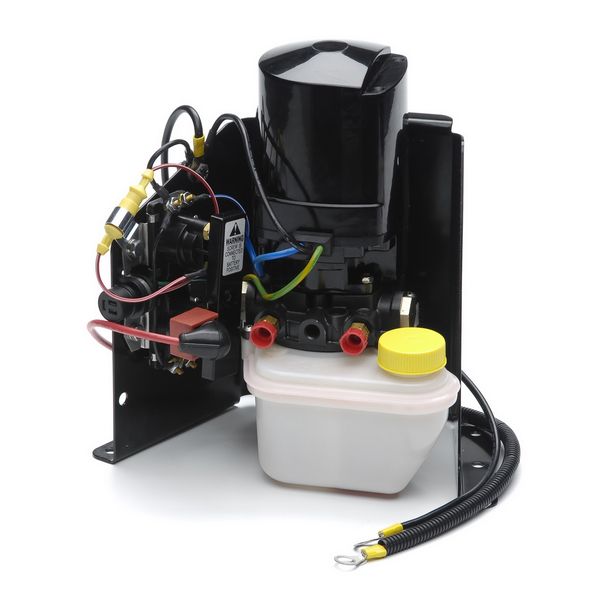

18-6768 - Power Trim Pump, 93247A7 [ More info ]
|
  |
|
18-6763 - Tilt Trim Motor And Reservoir Only [ More info ]
|
| #1 | 25-26834 | "O" RING, HYDRAULIC PUMP (4 required per assembly) |
|
25-26834 - O RING [ More info ] Unavailable |
|
|
25-21720 - O-Ring - Priced Individually [ More info ] Unavailable |
|
  |
|
25-48171 - O-Ring - Priced Individually [ More info ]
|
  |
|
18-7168-9 - O-Ring (PK5) 202893, 25-48171 [ More info ]
|

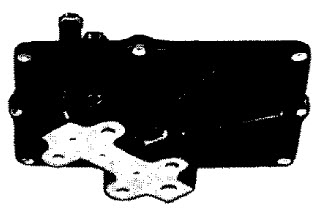

| #2 | 392-2936 | VALVE BODY AND GEAR ASSEMBLY (1 required per assembly) |
  |
392-2936 - Body and Gear [ More info ] Unavailable |
|
  |
|
39-27734 - Valve Body, NLA [ More info ] Unavailable |
| #3 | 392-2618 | CAM, VALVE BODY (1 required per assembly) |
|
|
392-2618 - PL105019, NLA [ More info ] Unavailable |

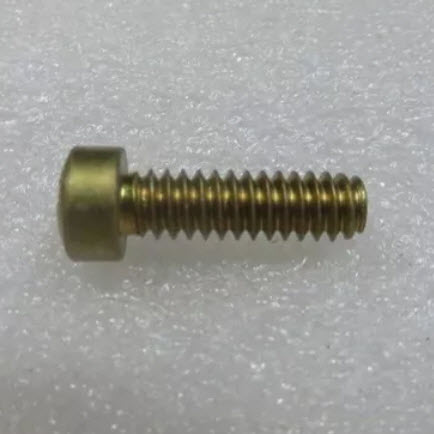

| #4 | 10-20411 | SCREW, VALVE BODY TO RESERVOIR (5/8") (8 required per assembly) |
|
|
10-20411 - Screw, NLA [ More info ]
|

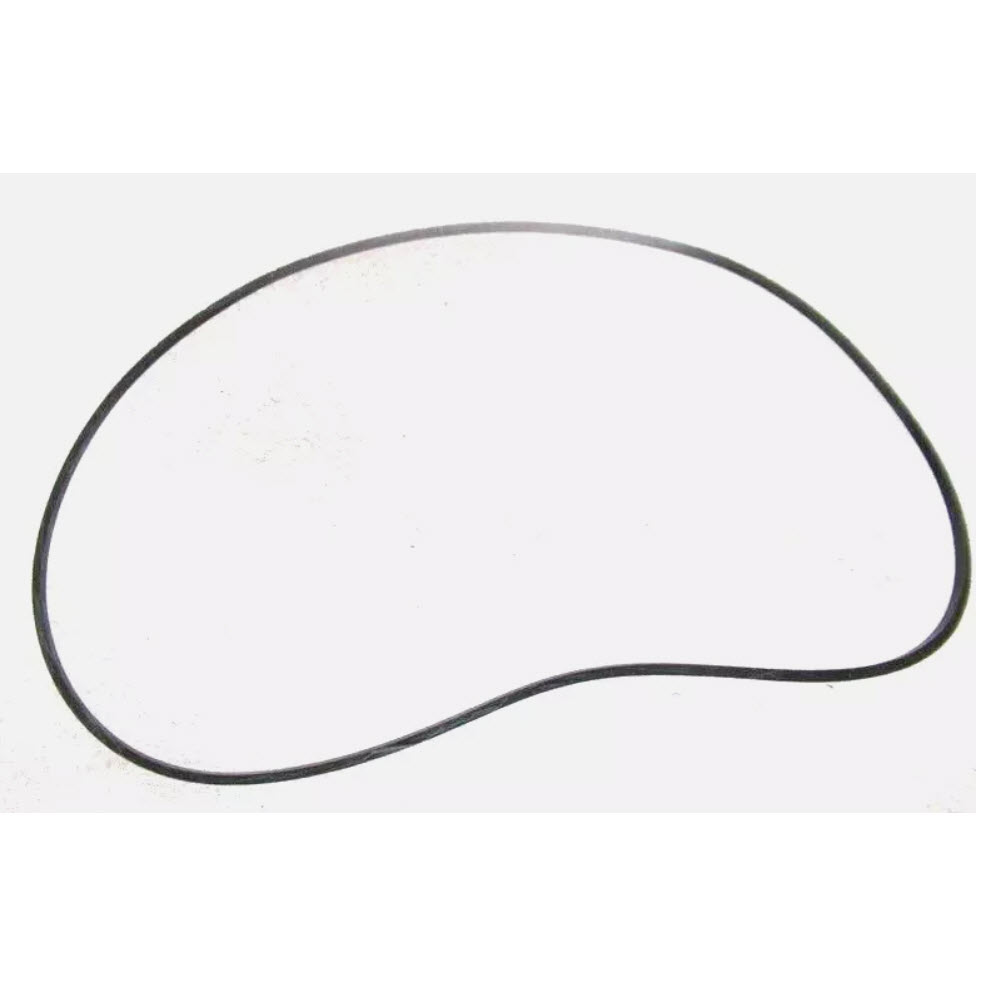

| #5 | 392-2937 | SEAL, RESERVOIR TO VALVE BODY AND GEAR (1 required per assembly) |
  |
|
392-2937 - O-Ring, Reserovir To Valve Body And Gear [ More info ]
|
  |
|
392-7735 - Seal Ring, NLA [ More info ] Unavailable |
| #6 | 392-2939 | RESERVOIR ASSEMBLY (1 required per assembly) |
|
|
392-2939 - Reservoir, NLA [ More info ]
|
| #7 | 392-2623 | WASHER, THRUST - ARMATURE (AR required per assembly) |
|
|
392-2623 - Washer, Armature, NLA [ More info ]
|
| #8 | 392-2943 | ARMATURE, FIELD AND FRAME (1 required per assembly) |
  |
|
392-2943 - Armature [ More info ] Unavailable |

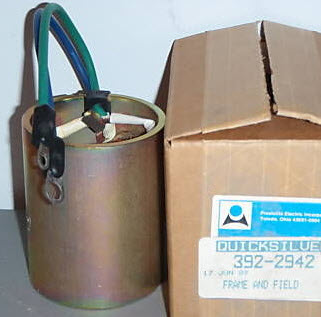

| #9 | 392-2942 | FIELD AND FRAME ASSEMBLY (1 required per assembly) |
  |
|
392-2942 - Frame And Field, NLA [ More info ] Unavailable |
| #10 | 392-2944 | BALL, COMMUTATOR END PLATE (1 required per assembly) |
  |
|
392-2944 - Ball, NLA [ More info ]
|
| #11 | 392-2940 | PLATE ASSEMBLY, COMMUTATOR END (1 required per assembly) |
  |
|
392-2940 - Commutator Head [ More info ]
|
  |
|
TR217 - Head Assembly, 392-9250 [ More info ]
|

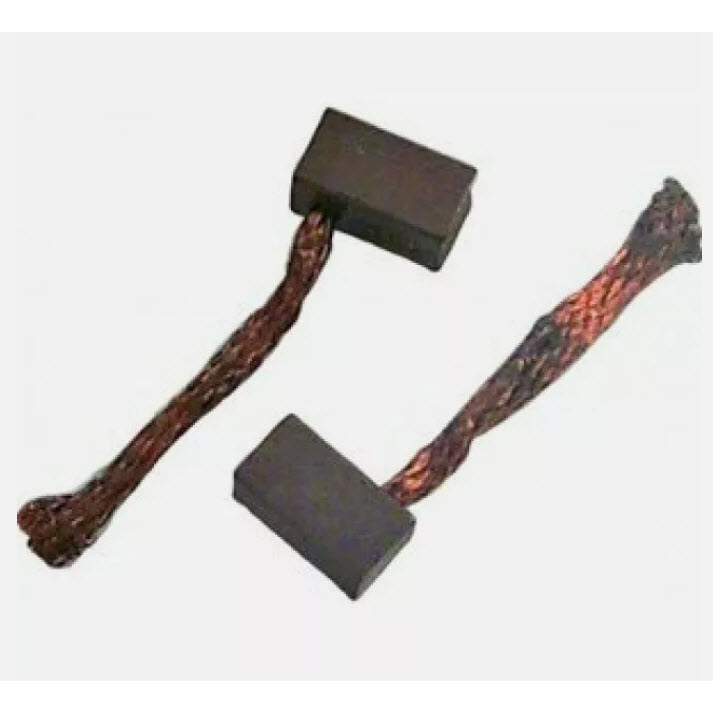

| #12 | 392-2941 | BRUSH SET, COMMUTATOR END PLATE (1 required per assembly) |
|
|
392-2941 - Brush Set [ More info ]
|
  |
|
392-8989 - Brush Set for 3 - Wire Motors Only. [ More info ]
|
| #13 | 392-2529 | SPRING SET, BRUSH TENSION (1 required per assembly) |
  |
|
392-2529 - Spring Set, Brush Tension,NLA [ More info ]
|

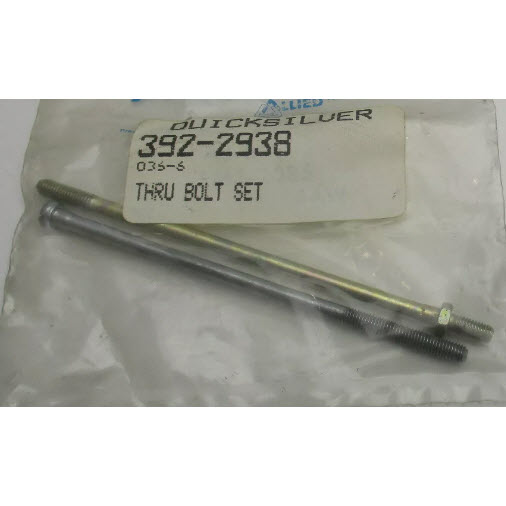

| #14 | 392-2938 | BOLT SET, THRU - PLATE AND FRAME TO RESERVOIR (1 required per assembly) |
|
|
392-2938 - Bolt Set , NLA [ More info ]
|
| #15 | 13-26996 | LOCKWASHER, THRU BOLT (2 required per assembly) |
  |
|
13-26996 - LockWasher - Priced Individually [ More info ]
|
