Parts for Mariner V-175 HP (Ski) Wiring Harness / Starter Solenoid
Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
| #1 | 43429 | PLATE, IGNITION (1 required per assembly) |
 |
|
43429 - 43429 - PLATE O [ More info ] Unavailable Replaced by -43429 1 |
|
|
43429 1 - 43429 1 - IGNITION PLATE O [ More info ] Unavailable Replaced by -43429 2 |
  |
|
43429 2 - Ignition Plate [ More info ]
|
| #2 | 332-7778A12 | SWITCH BOX (2 required per assembly) |
  |
|
332-7778A12 - Switch Box Assembly [ More info ]
|
  |
|

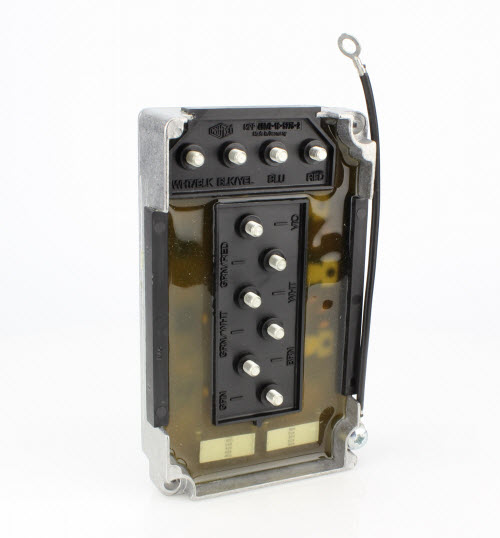

18-5775 - Switch Box, 332-7778A [ More info ]
|
  |
|
114-7778 - Switch Box, 332-7778A3, 12, 14 [ More info ]
|
| #3 | 10-13669 | SCREW, SWITCH BOX TO IGINTION PLATE (2 required per assembly) (2-1/2") |
|
|
10-13669 - Screw, NLA [ More info ]
|
| #4 | 23-94453 | BUSHING, SWITCH BOX SCREW (2 required per assembly) |
|
|
23-94453 - Bushing [ More info ]
|
| #5 | 84-62310A 2 | CABLE ASSEMBLY, SWITCH BOX TO SWITCH BOX (1 required per assembly) |
|
|
84-62310A 2 - Wire Assembly [ More info ]
|
| #6 | 11-45076 | NUT, SWITCH BOX TERMINAL (20 required per assembly) |
|
|
11-45076 - Nut - Priced Individually [ More info ]
|

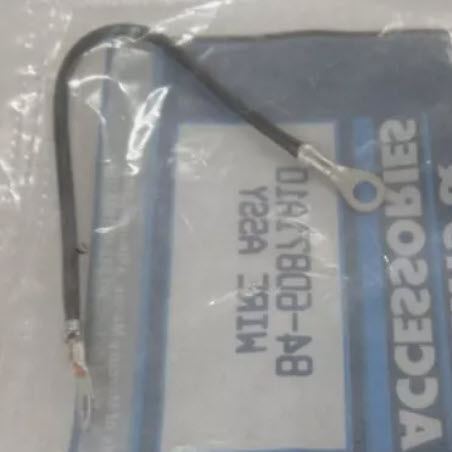

| #7 | 84-60871A10 | WIRE, SWITCH BOX (2 required per assembly) |
|
|
84-60871A10 - Wire Assembly [ More info ]
|
| #8 | 10-62568 | SCREW, WIRE ATTACHING (3 required per assembly) |
  |
|
10-62568 - Screw - Priced Individually [ More info ]
|
| #9 | 84-65999A 3 | CABLE ASSEMBLY, BLACK (1 required per assembly) |
|
|
84-65999A 3 - Wire Assembly [ More info ]
|
| #10 | 10-69092 | SCREW/ IGNITION PLATE (3 required per assembly) (1-1/4") |
|
|
10-69092 - Screw [ More info ]
|
  |
|
10-60411 - Screw - Priced Individually [ More info ]
|
| #11 | 13-26993 | LOCKWASHER, IGNITION PLATE SCREW (3 required per assembly) |
|
|
13-26993 - LockWasher - Priced Individually [ More info ]
|
| #12 | 12-36042 | WASHER, IGNITION PLATE SCREW (6 required per assembly) |
|
|
12-36042 - Washer [ More info ]
|
| #13 | 12-67264 | WASHER, IGNITION PLATE SCREW (RUBBER) (6 required per assembly) |
|
|
12-67264 - Washer [ More info ]
|
| #14 | 23-67268 | BUSHING, IGNITION PLATE SCREW (3 required per assembly) |
|
|
23-67268 - Spacer [ More info ]
|
| #15 | 87-33386A 3 | MERCURY SWITHCH (1 required per assembly) |
  |
|
87-33386A 3 - SWITCH ASSEMLBY O NLA [ More info ] Unavailable |
| #16 | 10-38055 | SCREW, MERCURY SWITCH TO IGNITION PLATE (1 required per assembly) (5/8") |
  |
|
10-38055 - Screw - Priced Individually [ More info ]
|
| #18 | 10-87926 | SCREW, LEAD ATTACHING (1 required per assembly) (1/2") |
  |
|
10-87926 - Screw - Priced Individually [ More info ]
|
| #19 | 84-88439A 3 | BATTERY CABLE, POSITIVE (1 required per assembly) |
|
|
84-88439A 3 - Battery Cable Assembly [ More info ]
|
| #20 | 84-96220A12 | HARNESS, ENGINE (1 required per assembly) |
|
|
84-96220A12 - Engine Harness, NLA [ More info ]
|
| #21 | 88-79091 | FUSE (1 required per assembly) |
  |
|
88-79091 - Fuse - 20 Amp - Priced Individually [ More info ]
|
| #22 | 84-95084A 2 | WIRE ASSEMBLY, FUSE (1 required per assembly) |
|
|
84-95084A 2 - Cable Assembly [ More info ]
|
| #23 | 13473 1 | FUSE HOLDER (1 required per assembly) |
|
|
13473 1 - Fuse Holder, NLA [ More info ]
|
| #24 | 54-90077 | STA-STRAP, HARNESS AND CABLES (AR required per assembly) |
|
|
54-90077 - 54-90077 - TIE STRAP O [ More info ] Unavailable Replaced by 54-816311 |
  |
|
54-816311 - 54-816311 - TIE STRAP (8.00 I O [ More info ] Unavailable Replaced by 54-816311T |
  |
|
54-816311T - Tie Strap, 8 Inches, Priced Individually [ More info ]
|
| #25 | 89-68258A 4 | STARTER SOLENOID (1 required per assembly) |
|
|
89-68258A 4 - 89-68258A 4 - SOLENOID ASSEMBLY O [ More info ] Unavailable Replaced by 89-853654A 1 |
  |
|
89-853654A 1 - Solenoid Kit [ More info ]
|
  |
|
18-5815 - Solenoid 89-853654A1 [ More info ]
|
  |
|
SW275 - Solenoids [ More info ]
|
| #27 | 13-53166 | LOCKWASHER, SOLENOID TERMINALS (5/16") (2 required per assembly) |
|
|
13-53166 - LockWasher - Priced Individually [ More info ]
|
| #28 | 11-68292 | NUT, SOLENOID TERMINALS (5/16-18) (2 required per assembly) |
|
|
11-68292 - Nut - Priced Individually [ More info ]
|
| #29 | 10-31716 | SCREW, SOLENOID TO IGNITION PLATE (2 required per assembly) (5/8") |
  |
|
10-31716 - Screw - Priced Individually [ More info ]
|
| #30 | 13-26992 | LOCKWASHER (2 required per assembly) SOLENOID TO IGNITION PLATE SCREW |
|
|
13-26992 - LockWasher - Priced Individually [ More info ]
|
| #31 | 84-65999A 2 | CABLE ASSEMBLY, UPPER MOUNT (BLACK) (1 required per assembly) |
|
|
84-65999A 2 - Wire Assembly [ More info ]
|
| #32 | 85-78866 | INSULATOR, SOLENOID (1 required per assembly) |
|
|
85-78866 - Insulator, NLA [ More info ]
|
| #33 | 54-47483 | "J" CLIP (2 required per assembly) |
|
|
54-47483 - J Clip [ More info ]
|
| #34 | 84-88528A 2 | CABLE ASSEMBLY (6"- RED/WHITE) (1 required per assembly) |
|
|
84-88528A 2 - Cable Assembly, NLA [ More info ]
|
| #34 | 84-91865A 1 | CABLE ASSEMBLY (3" WHITE/BLACK) (1 required per assembly) |
|
|
84-91865A 1 - Cable Assembly, NLA [ More info ]
|
