Parts for Mariner 50MH Cylinder Block

Revise Search: All Models > 50MH > 0N056165 & Up > Cylinder Block

NEED PARTS OR KITS?
View diagram and parts list below. Tap to zoom. Scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

Engine section

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

#	802806A99	POWERHEAD ASSEMBLY (1 required per assembly) (40 Lightning XR/50)
		802806A99 - 802806A99 - POWERHEAD ASSEMBL [ More info ] Unavailable Replaced by -802806A01
		802806A01 - 802806A01 - POWERHEAD [ More info ] Unavailable Replaced by -802806A02
		802806A02 - 802806A02 - POWERHEAD [ More info ] Unavailable Replaced by -8M0062094
		8M0062094 - 8M0062094 - POWERHEAD [ More info ] Unavailable Replaced by 61-8M0069647
		61-8M0069647 - 61-8M0069647 - POWERHEAD [ More info ] Unavailable Replaced by -8M0069514
		8M0069514 - 8M0147022 [ More info ] Unavailable
		8M0147022 - SHORT BLOCK [ More info ] Unavailable
#	19-898101264	WELCH PLUG (1 required per assembly)
		19-898101264 - Plug-WELCH [ More info ] $8.70 Available to Order: Usually ships within 10 days.
#	27-812937A02	GASKET SET, Powerhead (1 required per assembly)
		27-812937A02 - 27-812937A02 - GASKET SET Powerh [ More info ] Unavailable Replaced by 27-812937A03
		27-812937A03 - 27-812937A03 - GASKET [ More info ] Unavailable Replaced by 27-8M0047034
		27-8M0047034 - 27-8M0047034 - GASKET SET [ More info ] Unavailable Replaced by 27-8M0062092
		27-8M0062092 - 27-8M0062092 - GASKET SET [ More info ] Unavailable Replaced by 27-8M0081614
		278M0081614 - Gasket Set [ More info ] $245.25 Available to Order: Usually ships within 10 days.
#	851886A06	POWERHEAD ASSEMBLY (1 required per assembly) (40)
		851886A06 - 851886A06 - POWERHEAD ASSEMBL [ More info ] Unavailable Replaced by -851886T07
		851886T07 - 851886T07 - POWERHED [ More info ] Unavailable Replaced by -8M0046561
		8M0046561 - Powerhead [ More info ] Unavailable
		8M0146290 - SHORT BLOCK [ More info ] Unavailable
#	804056A 1	STARTER MOTOR KIT (1 required per assembly)
		804056A 1 - Electric Start Kit [ More info ] Unavailable
#1	878-815013A11	CYLINDER BLOCK ASSEMBLY (1 required per assembly) (40)
		878-815013A11 - 878-815013A11 - CYLINDER BLOCK AS [ More info ] Unavailable Replaced by 878-8M0082197
		8788M0082197 - Cylinder Block [ More info ] Unavailable
#1	878-815013A 4	CYLINDER BLOCK (1 required per assembly) (40 Lightning XR/50)
		878-815013A 4 - 878-815013A 4 - CYLINDER BLOCK [ More info ] Unavailable Replaced by 878-8M0082198
		8788M0082198 - Cylinder Block [ More info ] Unavailable
#2	10-16695 1	BOLT (14 required per assembly)
		10-16695 1 - Bolt [ More info ] $3.20 Available to Order: Usually ships within 10 days.
#3	12-40022 17	WASHER (14 required per assembly)
		12-40022 17 - Washer, Carburetor Stud [ More info ] $1.40 Available to Order: Usually ships within 10 days.
#4	17-16119	PIN, Dowel (2 required per assembly)
		17-16119 - Dowel Pin [ More info ] $7.90 $6.72 4 In Stock.
#5	17-95218 12	PIN, Dowel (1 required per assembly)
		17-95218 12 - PIN Dowel [ More info ] Unavailable
#6	21-853696	BLEED VALVE (3 required per assembly)
		21-853696 - BLEED VALVE NLA [ More info ] Unavailable
#7	22-812960	CONNECTOR (3 required per assembly)
		22-812960 - Nipple Fitting [ More info ] $1.50 1 In Stock.
		228M0064617 - Nipple Fitting [ More info ] $6.50 Available to Order: Usually ships within 10 days.
#8	32-95223009	TUBING, (220 mm) (1 required per assembly)
		32-95223009 - TUBING (220 mm) NLA [ More info ] Unavailable
#9	32-898101227	HOSE, Rubber (330 mm) (1 required per assembly)
		32-898101227 - Hose, NLA [ More info ] Unavailable
#10	54-95332002	CLIP (6 required per assembly)
		54-95332002 - Clip [ More info ] $0.90 Available to Order: Usually ships within 10 days.
#11	979-9630 5	CYLINDER HEAD (1 required per assembly)
		979-9630 5 - Cylinder Head [ More info ] $220.83 Available to Order: Usually ships within 10 days.
#12	27-812939 10	GASKET (1 required per assembly)
		27-812939 10 - Cylinder Head Gasket [ More info ] Unavailable
		278M0062091 - Cylinder Head Gasketead [ More info ] $97.17 Available to Order: Usually ships within 10 days.
#13	855548	COVER (1 required per assembly)
		855548 - Cover [ More info ] $85.83 Available to Order: Usually ships within 10 days.
#14	27-812939 11	GASKET (1 required per assembly)
		27-812939 11 - Cylinder Head Cover Gasket [ More info ] Unavailable
		278M0115016 - Gasket [ More info ] $60.75 Available to Order: Usually ships within 10 days.
#15	10-16698 2	BOLT (14 required per assembly)
		10-16698 2 - BOLT [ More info ] Unavailable
		10-8M0068940 - 10-8M0068940 - BOLT [ More info ] Unavailable Replaced by 10-8M0106717
		108M0106717 - Bolt [ More info ] $7.00 Available to Order: Usually ships within 10 days.
#16	12-16238 1	WASHER (14 required per assembly)
		12-16238 1 - 12-16238 1 - WASHER [ More info ] Unavailable Replaced by 12-8M0065568
		128M0065568 - 128M0106719 [ More info ] Unavailable
		12-8M0106719 - 12-8M0106719 - WASHER [ More info ] Unavailable Replaced by 12-8M0106725
		128M0106725 - Washer [ More info ] $4.70 Available to Order: Usually ships within 10 days.
#17	10-16695007	SCREW (4 required per assembly)
		10-16695007 - 10-16695007 - SCREW [ More info ] Unavailable Replaced by 10-8M0068939
		10-8M0068939 - 10-8M0068939 - BOLT [ More info ] Unavailable Replaced by -898101953
		10-898101953 - Bolt - Priced Individually [ More info ] $5.90 1 In Stock.
#18	32-812940010	TUBING, (160 mm) (1 required per assembly)
		32-812940010 - TUBING (160 mm) NLA [ More info ] Unavailable
#19	853704 1	THERMOSTAT (1 required per assembly)
		853704 1 - Thermostat [ More info ] $71.83 Available to Order: Usually ships within 10 days.
#20	853705 1	COVER (1 required per assembly)
		853705 1 - Cover [ More info ] $23.33 Available to Order: Usually ships within 10 days.
#21	27-853702 4	GASKET (1 required per assembly)
		27-853702 4 - Gasket [ More info ] $4.60 Available to Order: Usually ships within 10 days.
#22	10-825702002	BOLT, Stainless Steel (3 required per assembly)
		10-825702002 - BOLT [ More info ] Unavailable
		10-879194263 - Bolt [ More info ] Unavailable
		10-823042 - Bolt [ More info ] $3.70 Available to Order: Usually ships within 10 days.
#23	19-855549	PLUG (1 required per assembly)
		19-855549 - Plug [ More info ] $2.20 Available to Order: Usually ships within 10 days.
#24	823913Q	ANODE (1 required per assembly)
		97-823913Q - Anode, Aluminum [ More info ] $20.63 2 In Stock.
#25	10-16705 1	BOLT, (M6 x 20) (1 required per assembly)
		10-16705 1 - Bolt [ More info ] $5.90 Available to Order: Usually ships within 10 days.
#26	855550	LIFTING EYE (1 required per assembly)
		855550 - 855550 - LIFTING EYE [ More info ] Unavailable Replaced by -8M0137792
		8M0137792 - LIFTING EYE [ More info ] $7.30 Available to Order: Usually ships within 10 days.
#27	10-16830 4	BOLT (1 required per assembly)
		10-16830 4 - BOLT [ More info ] Unavailable
#29	1100-853713 1	END CAP, Lower (1 required per assembly)
		1100-853713 1 - End Cap - Lower [ More info ] $44.17 Available to Order: Usually ships within 10 days.
#30	25-853709 1	O-RING (1 required per assembly)
		25-853709 1 - O-Ring [ More info ] $4.10 Available to Order: Usually ships within 10 days.
#31	26-853707 7	SEAL, Oil (1 required per assembly)
		26-853707 7 - Seal [ More info ] Unavailable
#32	26-853707 8	SEAL, Oil (1 required per assembly)
		26-853707 8 - Oil Seal [ More info ] $7.90 Available to Order: Usually ships within 10 days.
#34	853706 1	COVER, Exhaust (1 required per assembly)
		853706 1 - 853706 1 - COVER Exhaust [ More info ] Unavailable Replaced by -8M0081401
		8M0081401 - Exhaust Cover [ More info ] $117.00 Available to Order: Usually ships within 10 days.
#35	853706 2	COVER, Exhaust (1 required per assembly)
		853706 2 - Exhaust Cover [ More info ] $52.08 Available to Order: Usually ships within 10 days.
#36	27-812939 5	GASKET (2 required per assembly)
		27-812939 5 - 27-812939 5 - GASKET [ More info ] Unavailable Replaced by 27-812939017
		27-812939017 - 27-812939017 - GASKET [ More info ] Unavailable Replaced by 27-812939020
		27-812939020 - Gasket [ More info ] $17.17 Available to Order: Usually ships within 10 days.
#37	10-825009026	BOLT (14 required per assembly)
		10-825009026 - Bolt [ More info ] $2.50 2 In Stock.
#38	21-42657A 3	CHECK VALVE (3 required per assembly)
		21-42657A 3 - Check Valve Assembly [ More info ] $7.00 Available to Order: Usually ships within 10 days.
#39	22-812960 3	NIPPLE (1 required per assembly)
		22-812960 3 - NIPPLE [ More info ] Unavailable
		22-898101961- Nipple [ More info ] $4.00 Available to Order: Usually ships within 10 days.
#40	32-851848005	HOSE, (260 mm) (1 required per assembly)
		32-851848005 - ORD 32-879194470 [ More info ] Unavailable
#41	25-855551	GROMMET (Electric) (1 required per assembly)
		25-855551 - Grommet [ More info ] $3.90 1 In Stock.
#42	33-41263M	SPARK PLUG (3 required per assembly) (40)(NGK-B7HS-10)
		33-41263M - NGK B7HS-10 - Priced Individually [ More info ] Unavailable
		338M0114740 - S Plug B7HS - Priced Individually [ More info ] Unavailable
		33-828942 - NGK Spark Plug BR7HS-10 - Priced Individually [ More info ] $6.40 Available to Order: Usually ships within 10 days.

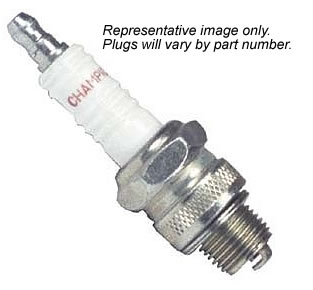

		L82C - Champion Spark Plug ( #811M) [ More info ] $3.73 $3.40 10+ In Stock.
#42	33-828942	SPARK PLUG, (NGK# BR7HS-10) (Opt. required per assembly) (40)(NGK-BR7HS-10)
#42	33-84409M	PLUG (3 required per assembly) (40 Lightning XR/50)(NGK-B8HS-10)
		33-84409M - NGK B8HS-10 Note: Priced Individually [ More info ] Unavailable
		33-824406 8 - NGK BR8HS-10 - Priced Individually [ More info ] Unavailable
		33-8M0181926 - NGK BR8HS-4 @4 [ More info ] Unavailable
		B8HS-10 - NGK Spark Plug, 5126 [ More info ] $4.21 $4.08 10+ In Stock.
#42	33-824406 8	SPARK PLUG (Opt. required per assembly) (40 Lightning XR/50)(NGK-BR8HS-10)
		33-824406 8 - NGK BR8HS-10 - Priced Individually [ More info ] Unavailable
#43	54-95306	CLAMP (1 required per assembly)
		54-95306 - Clamp [ More info ] Unavailable
		548M0130961 - Clamp [ More info ] $5.10 Available to Order: Usually ships within 10 days.
#44	10-823042064	SCREW (1 required per assembly)
		10-823042064 - 10-823042064 - SCREW [ More info ] Unavailable Replaced by 10-879194247
		10-879194247 - SCREW [ More info ] Unavailable
#45	803992	COVER PLATE (Manual) (1 required per assembly)
		803992 - COVER PLATE [ More info ] Unavailable
#46	27-855569 2	GASKET (Manual) (1 required per assembly)
		27-855569 2 - 27-855569 2 - GASKET [ More info ] Unavailable Replaced by 27-855569004
		27-855569004 - 27-855569004 - GASKET [ More info ] Unavailable Replaced by 27-8M0081613
		278M0081613 - Gasket [ More info ] $8.30 Available to Order: Usually ships within 10 days.
#47	10-16223 3	SCREW (Manual) (2 required per assembly)
		10-16223 3 - Bolt [ More info ] $3.00 Available to Order: Usually ships within 10 days.
