Parts for Mariner 28 HP Fuel Lines & Filter

#1 81041M FUEL LINE CONNECTOR ASS'Y (1 required per assembly)
81041M - CONNECTOR Fuel Pi  - Replaced by -93099M


81041M - Connector [ More info ]
Unavailable
93099M - CONNECTOR ASSEMBL  - Replaced by -95483M


93099M - CONNECTOR [ More info ]
Unavailable
95483M - CONNECTOR          - Replaced by -14187M


95483M - CONNECTOR-FUEL [ More info ]
Unavailable
14187M - CONNECTOR
14187M

About Mercury Marine

OEM Part

14187M - Fuel Line Connector, Straight, Old Style [ More info ]
Unavailable
#2 10-82423M BOLT, CONNECTOR ATTACHING (1 required per assembly)
BOLT,NLA 10-82423M


About Mercury Marine

OEM Part

10-82423M - Bolt, NLA [ More info ]

Add to shopping cart $1.25
10+ In Stock.

#3 13-82212M LOCK WASHER, CONNECTOR BOLT (1 required per assembly)
LOCKWASHER 13-82212M


About Mercury Marine

OEM Part

13-82212M - LockWasher - Priced Individually [ More info ]

Add to shopping cart $2.80
10+ In Stock.

#4 35-80617M FILTER ASS'Y (1 required per assembly) SERIAL 00000000-00004605
35-80617M - FILTER ASSEMBLY F  - Replaced by 35-11931M


35-80617M - Fuel Filter [ More info ]
Unavailable
35-11931M - FILTER ASSEMBLY    - Replaced by 35-826964M


35-11931M - Filter [ More info ]
Unavailable
35-826964M - FILTER ASSEMBLY    - Replaced by 35-826964T
35-826964M

35-826964M - FILTER ASSY [ More info ]
Unavailable

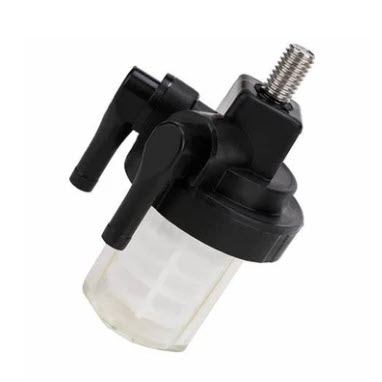

FILTER ASSY-FUEL 35-826964T
35-826964T

About Mercury Marine

OEM Part

35-826964T - Filter Assembly [ More info ]

Add to shopping cart $89.67
Available to Order: Usually ships within 10 days.

#5 25-80619M GASKET, FUEL BOWL (1 required per assembly) SERIAL 00000000-00004605
25-80619M - O RING @2          NLA


About Mercury Marine

OEM Part

25-80619M - O-RING,NLA [ More info ]
Unavailable
#6 27-82790M PACKING (1 required per assembly) SERIAL 00004606-09999999
GASKET 27-82790M


About Mercury Marine

OEM Part

27-82790M - Filter Gasket [ More info ]

Add to shopping cart $6.60
10+ In Stock.

#7 35-80618M CLAMP, FUSE HOLDER (1 required per assembly) SERIAL 00000000-00004605
35-80618M - ELEMENT            NLA


About Mercury Marine

OEM Part

35-80618M - ELEMENT,NLA [ More info ]
Unavailable
#8 35-82783M ELEMENT, FILTER (1 required per assembly) SERIAL 00004606-09999999
35-82783M - ELEMENT            - Replaced by 35-11934M


35-82783M - Element - Priced Individually [ More info ]
Unavailable
35-11934M - FILTER             - Replaced by 35-826965M
35-11934M

35-11934M - Filter [ More info ]
Unavailable
35-826965M - FILTER             - Replaced by 35-826965T
35-826965M

35-826965M - Filter [ More info ]
Unavailable
FILTER-FUEL,NLA 35-826965T
35-826965T

About Mercury Marine

OEM Part

35-826965T - Filter [ More info ]

Add to shopping cart $19.99
10 In Stock.

#9 35-80616M FUEL BOWL (1 required per assembly) SERIAL 00000000-00004605
35-80616M - FILTER             NLA


About Mercury Marine

OEM Part

35-80616M - FILTER,NLA [ More info ]
Unavailable
#10 82784M CUP, FILTER (1 required per assembly) SERIAL 00004606-09999999
82784M - BOWL Fuel          - Replaced by -11935M


82784M - Bowl [ More info ]
Unavailable
11935M - CUP                NLA


About Mercury Marine

OEM Part

11935M - Bowl, NLA [ More info ]
Unavailable
#11 25-82792M O-RING (1 required per assembly) SERIAL 00004606-09999999
25-82792M - O-RING             - Replaced by 25-84957M


25-82792M - O-Ring - Priced Individually [ More info ]
Unavailable
O RING 25-84957M


About Mercury Marine

OEM Part

25-84957M - O-Ring - Priced Individually [ More info ]

Add to shopping cart $6.50
10+ In Stock.

#12 80620M BRACKET, FUEL FILTER (1 required per assembly)
BRACKET,NLA 80620M


About Mercury Marine

OEM Part

80620M - Bracket, NLA [ More info ]

Add to shopping cart $6.00
3 In Stock.

#13 11-82382M NUT, FUEL FILTER ATTACHING (1 required per assembly)
NUT 11-82382M


About Mercury Marine

OEM Part

11-82382M - Nut - Priced Individually [ More info ]

Add to shopping cart $7.20 $6.12
10+ In Stock.

#14 13-82200M LOCK WASHER, FUEL FILTER NUT (1 required per assembly)
13-82200M - WASHER             - Replaced by 13-82215M


13-82200M - LOCKWASHER Note: Priced Individually [ More info ]
Unavailable
LOCKWASHER 13-82215M


About Mercury Marine

OEM Part

13-82215M - LockWasher - Priced Individually [ More info ]

Add to shopping cart $2.30
Available to Order: Usually ships within 10 days.

#15 10-82422M BOLT, BRACKET ATTACHING (1 required per assembly)
10-82422M - SCREW @10          - Replaced by 10-84247M


10-82422M - SCREW Note: Priced Individually [ More info ]
Unavailable
10-84247M - BOLT               - Replaced by 10-91725M


10-84247M - BOLT Note: Priced Individually [ More info ]
Unavailable
10-91725M - BOLT               - Replaced by 10-826957M


10-91725M - BOLT [ More info ]
Unavailable
BOLT,NLA 10-826957M


About Mercury Marine

OEM Part

10-826957M - Bolt, NLA [ More info ]

Add to shopping cart $4.43
10+ In Stock.

#16 13-82197M LOCK WASHER, BRACKET BOWL (1 required per assembly)
13-82197M - WASHER             - Replaced by 13-82212M


13-82197M - LockWasher - Priced Individually [ More info ]
Unavailable
#17 32-82014M FUEL LINE, CONNECTOR TO FILTER (1 required per assembly)
32-82014M - FUEL LINE          - Replaced by 32-84972M


32-82014M - Fuel Line [ More info ]
Unavailable
32-84972M - HOSE               - Replaced by 32-82012M


32-84972M - Hose [ More info ]
Unavailable
LINE-FUEL,NLA 32-82012M


About Mercury Marine

OEM Part

32-82012M - Fuel Line, NLA [ More info ]

Add to shopping cart $14.43
10+ In Stock.

#18 32-81566M FUEL LINE, FUEL FILTER TO FUEL PUMP (1 required per assembly)
32-81566M - LINE Fuel          - Replaced by 32-81112M


32-81566M - Fuel Line [ More info ]
Unavailable
32-81112M - HOSE               NLA


About Mercury Marine

OEM Part

32-81112M - Fuel Line, NLA [ More info ]
Unavailable
#19 32-80605M FUEL LINE, FUEL PUMP TO CARBURETOR (1 required per assembly)
32-80605M - HOSE               - Replaced by 32-81324M


32-80605M - Fuel Line [ More info ]
Unavailable
HOSE,NLA 32-81324M


About Mercury Marine

OEM Part

32-81324M - Hose, NLA [ More info ]

Add to shopping cart $8.88
3 In Stock.

#20 54-82047M CLAMP, FUEL LINE (6 required per assembly)
54-82047M - CLAMP


About Mercury Marine

OEM Part

54-82047M - Clip - Priced Individually [ More info ]
Unavailable
#21 80454M CAP, OVER FLOW PIPE (1 required per assembly) SERIAL 00000000-00005305
80454M - CAP                NLA


About Mercury Marine

OEM Part

80454M - Cap, NLA [ More info ]
Unavailable
#22 83323M CAP, DRAIN PIPE (1 required per assembly) SERIAL 00000000-00005305
CAP,NLA 83323M


About Mercury Marine

OEM Part

83323M - Cap, NLA [ More info ]

Add to shopping cart $1.50
6 In Stock.
