Parts for Mariner 25 HP K Flywheel
Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
| #1 | 11-96650M | NUT (1 required per assembly) |
 |
|
11-96650M - Nut [ More info ] Unavailable |
| #2 | 12-96651M | WASHER (1 required per assembly) |
|
|
12-96651M - Washer, NLA [ More info ]
|
| #3 | 253-827084 1 | FLYWHEEL ASSEMBLY (1 required per assembly) (M-000252/ML-303099 & UP) |
|
|
253-827084 1 - FLYWHEEL ASSEMBLY NLA [ More info ] Unavailable |
| #3 | 253-827084M | FLYWHEEL ASSEMBLY (1 required per assembly) (M-000251/ML-303098 & BELOW) |
|
|
253-827084M - Flywheel [ More info ] Unavailable |
| #4 | 253-827085A 1 | BASE ASSEMBLY (1 required per assembly) (M-000252/ML-303099 & UP) |
|
|
253-827085A 1 - BASE ASSY NLA [ More info ] Unavailable |
| #4 | 253-827085M | BASE ASSEMBLY (1 required per assembly) (M-000251/ML-303098 & BELOW) |
|
|
253-827085M - Flywheel Assembly [ More info ] Unavailable |
| #5 | 827088M | PULSER COIL (1 required per assembly) |
|
|
827088M - Pulser Coil, NLA [ More info ]
|
| #6 | 827089M | PULSER COIL (1 required per assembly) |
|
|
827089M - Pulser Coil, NLA [ More info ]
|
| #7 | 827087M | LIGHTING COIL (1 required per assembly) |
|
|
827087M - Lighting Coil [ More info ] Unavailable |
| #8 | 10-82499M | SCREW (1 required per assembly) |
|
|
10-82499M - Screw, NLA [ More info ]
|
| #9 | 54-814546M | CLAMP (1 required per assembly) |
|
|
54-814546M - Clamp [ More info ] Unavailable |
| #10 | 827086 1 | IGNITION COIL (1 required per assembly) (M-000252/ML-303099 & UP) |
|
|
827086 1 - 827086 1 - IGNITION COIL [ More info ] Unavailable Replaced by -827086T 1 |
|
|
827086T 1 - Ignition Coil [ More info ] Unavailable |

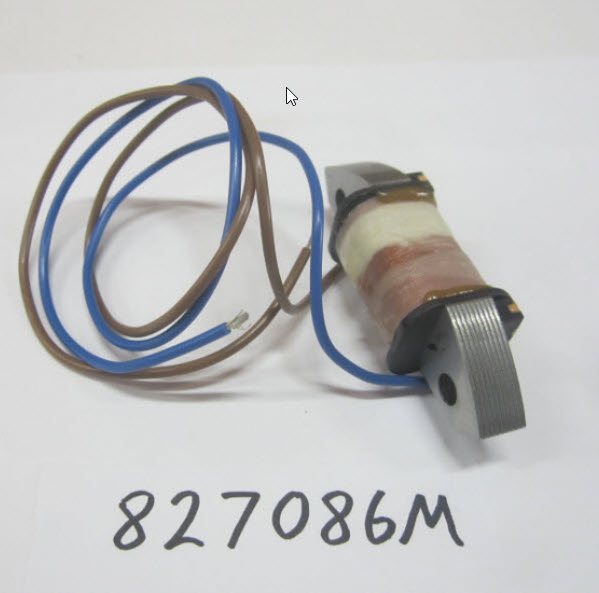

| #10 | 827086M | IGNITION COIL (1 required per assembly) (M-000251/ML-303098 & BELOW) |
|
|
827086M - Ignition Coil, NLA [ More info ]
|
| #11 | 25-814545M | GROMMET (2 required per assembly) |
|
|
25-814545M - Grommet [ More info ]
|
| #12 | 10-96671M | SCREW (4 required per assembly) |
|
|
10-96671M - Screw, NLA [ More info ]
|
| #13 | 19139M | RETAINER (1 required per assembly) |
|
|
19139M - Retainer, NLA [ More info ]
|
