Parts for Mariner 200 HP (DFI) Throttle Linkage
Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
| #1 | 825268 1 | LEVER, Throttle Control (1 required per assembly) |
  |
825268 1 - Throttle Lever [ More info ] Unavailable |
|
  |
825268 2 - LEVER-THROTTLE [ More info ] Unavailable |
|
  |
|
8M0040987 - Throttle Lever [ More info ]
|
| #2 | 10-818934 35 | SCREW, (M8 x 35) (1 required per assembly) |
  |
|
10-818934 35 - Screw [ More info ]
|
| #3 | 12-36042 | WASHER (1 required per assembly) |
 |
|
12-36042 - Washer [ More info ]
|
| #4 | 23-821113 | BUSHING (1 required per assembly) |
|
|
23-821113 - Bushing [ More info ]
|
| #5 | 10-40124 | SCREW, (M6 x 55) (2 required per assembly) |
  |
|
10-40124 - Screw [ More info ]
|
| #6 | 11-40021 2 | NUT, (M6) Stainless Steel (2 required per assembly) |
  |
|
11-40021 2 - Nut [ More info ]
|
| #7 | 42942 | CAP (2 required per assembly) |
  |
|
42942 - Nylon Cap [ More info ]
|
| #8 | 42927 | INSERT (1 required per assembly) |
  |
|
|
| #9 | 11-40138 6 | NUT, (M6) Stainless Steel (1 required per assembly) |
  |
|
11-40138 6 - Nut - Priced Individually [ More info ]
|
| #10 | 23-93248 1 | BUSHING (1 required per assembly) |
  |
|
23-93248 1 - Bushing, New Number 238M0215006 [ More info ] Unavailable |
| #11 | 858354 1 | LINK (1 required per assembly) |
|
|
858354 1 - Throttle Link [ More info ]
|
| #12 | 824010 2 | BRACKET (1 required per assembly) |
  |
|
824010 2 - Anchor Bracket [ More info ]
|
  |
|
824010T05 - Bracket -Anchor [ More info ]
|
| #13 | 824016 | LATCH (1 required per assembly) |
  |
|
|
| #14 | 10-42975 | DRIVE SCREW (2 required per assembly) |
  |
|
10-42975 - Screw - Drive [ More info ]
|
| #15 | 824015 | CUP, Barrel Retainer (2 required per assembly) |
  |
|
824015 - Barrel Retainer Cup [ More info ]
|
| #17 | 54-859172 | CLAMP (1 required per assembly) |
|
|
54-859172 - Clamp [ More info ]
|
| #18 | 10-821550 25 | SCREW, (M8 x 25) Stainless Steel (1 required per assembly) |
  |
|
10-821550 25 - Screw - Priced Individually [ More info ]
|
| #19 | 854653 1 | GUIDE, Roller (1 required per assembly) |
|
854653 1 - Bracket [ More info ] Unavailable |
|
  |
896662 - 8M0039052 [ More info ] Unavailable |
|
  |
|
8M0039052 - Bracket [ More info ]
|

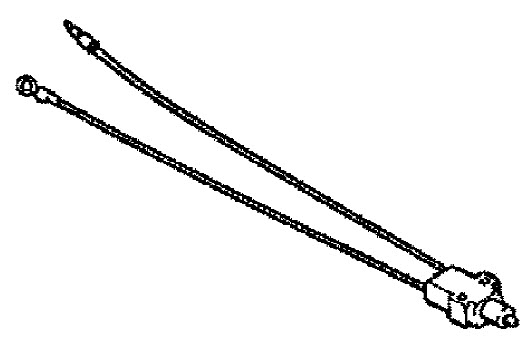

| #20 | 87-814281A 2 | SWITCH (1 required per assembly) |
  |
|
87-814281A 2 - Switch Assembly [ More info ]
|
  |
|
87-8M0052931 - Switch [ More info ]
|
| #21 | 54-816311T | TIE STRAP, (8.00 Inches) (1 required per assembly) |
  |
|
54-816311T - Tie Strap, 8 Inches, Priced Individually [ More info ]
|
| #22 | 10-824706 20 | SCREW, (M3.5 x 20) (2 required per assembly) |
  |
|
10-824706 20 - Screw [ More info ]
|
| #23 | 12-43430 | WASHER (1 required per assembly) |
|
|
12-43430 - Washer, Upper Mount Screw [ More info ]
|
| #24 | 12-35459 | WASHER (1 required per assembly) |
  |
|
12-35459 - Washer (.265 X .620 X .06) [ More info ]
|
| #25 | 12-36001 | WASHER (1 required per assembly) |
  |
|
12-36001 - Washer - Priced Individually [ More info ]
|
  |
|
18-4270 - Washer 12-36001 [ More info ]
|
