Cylinder & Crankcase Parts for 1981 Johnson 25 hp J25RWLCIM Outboard Motor
|

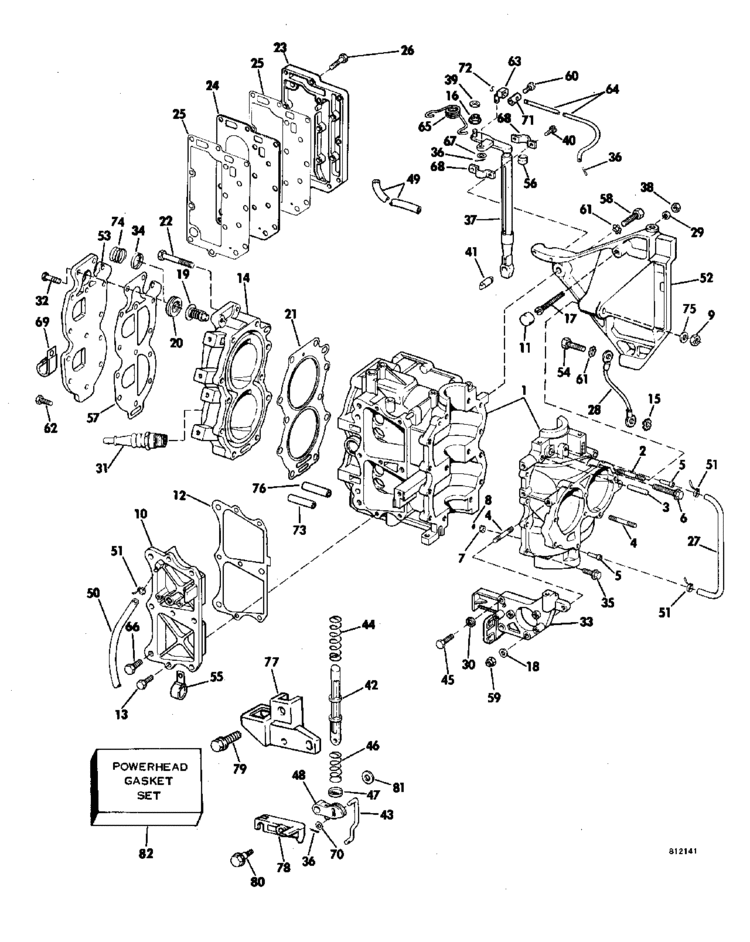

Reference numbers in this diagram can be found in a light blue row below.
Each product listed below that blue row is the original or an equivalent part. [ Example ]
Reference numbers in this diagram can be found in a light blue row below.
Each product listed below that blue row is the original or an equivalent part. [ Example ]
#2
— 308354 — STUD, STARTER BRACKET (1 required per assembly) |
|
0308354 |
0308354 - Stud |
|
 |
$6.99 |
$6.99 |
10+ in stock.  |
#3
— 305070 — TAPER PIN (1 required per assembly) |
|
0305070 |
0305070 - Pin |
|
|
$1.54 |
$1.54 |
10+ in stock. |
#4
— 308353 — STUD (7 required per assembly) |
|
308353 |
308353 - STUD |
|
|
$4.28 |
$1.52 |
10+ in stock. |
#5
— 303423 — NIPPLE, OIL HOSE (2 required per assembly) |
|
0303423 |
0303423 - Vintage, Nipple
Replaces OEM # 0303423 |
|
|
$7.84 |
$7.84 |
10+ in stock. |
#6
— 318622 — SCREW, CYL. TO CRANKCASE (6 required per assembly) |
|
0318622 |
0318622 - Screw |
|
|
$4.99 |
$4.99 |
10+ in stock. |
#8
— 305344 — SCREEN (1 required per assembly) |
|
0305344 |
0305344 - Screen |
|
|
$4.99 |
$4.99 |
Out of stock:
Usually ships
in 5-7 days |
#11
— 314416 — BUMPER, SPARK ADJ. SCREW (1 required per assembly) |
|
0314416 |
0314416 - Bumper |
|
|
$5.99 |
$5.99 |
10+ in stock. |
#13
— 300646 — SCREW, BY-PASS COVER (6 required per assembly) |
|
0300646 |
0300646 - Screw |
|
|
$4.99 |
$4.99 |
10 in stock. |
#15
— 306488 — LOCKWASHER, GROUND LEAD (2 required per assembly) |
|
0306488 |
0306488 - Vintage, Washer
Replaces OEM # 0306488 |
|
|
$2.50 |
$2.50 |
10+ in stock. |
#16
— 307841 — BUSHING, CONTROL LEVER (1 required per assembly) |
|
0307841 |
0307841 - Sleeve |
|
|
$7.99 |
$7.99 |
10+ in stock. |
#22
— 305027 — SCREW, CYLINDER HEAD (10 required per assembly) |
|
0305027 |
0305027 - Screw |
|
|
$8.99 |
$8.99 |
Out of stock:
Usually ships
in 5-7 days |
#23
— 391465 — EXHAUST COVER, OUTER (1 required per assembly) |
|
0391465 |
L/P 99.97
| |
|
|
|
Unavailable |
#24

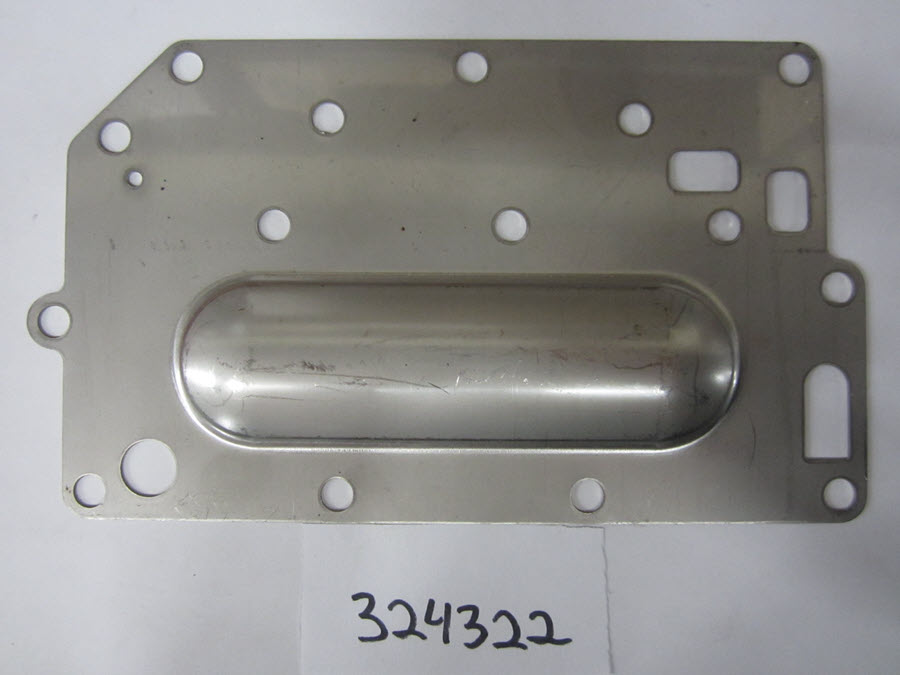

— 324322 — EXHAUST COVER, INNER (1 required per assembly) |
|
0324322 |
0324322 - Vintage, Exh Cover
Replaces OEM # 0324322 |
|
|
$18.00 |
$18.00 |
10+ in stock. |
#26
— 312978 — SCREW, EXHAUST COVER (15 required per assembly) |
|
0312978 |
0312978 - Screw |
|
|
$5.99 |
$5.99 |
10+ in stock. |
#28
— 376349 — GROUND LEAD ASSY. (1 required per assembly) |
|
0376349 |
0376349 - Lead |
|
|
$8.30 |
$8.30 |
10+ in stock. |
#29
— 306396 — LOCKWASHER, SPARK ADJ. (1 required per assembly) |
|
0306396 |
0306396 - Lockwasher |
|
|
$8.99 |
$8.99 |
Out of stock:
Usually ships
in 5-7 days |
|
3852053 |
3852053 - Screw, Volvo
Replaces OEM # 0306396 |
|
 |
$4.42 |
$4.42 |
2 in stock. |
#32
— 308742 — SCREW, COVER, THERMOSTAT BOSS (3 required per assembly) |
|
0308742 |
0308742 - Screw |
|
|
$2.99 |
$2.99 |
10+ in stock. |
#33
— 325340 — BRACKET, STARBOARD (1 required per assembly) |
|
0325340 |
0325340 - Bracket |
|
|
$73.99 |
$73.99 |
1 in stock. |
#35
— 314979 — SCREW, CYLINDER TO C'CASE (8 required per assembly) |
|
0314979 |
0314979 - Screw Exh Cover |
|
|
$4.99 |
$4.99 |
10+ in stock. |
#36
— 303049 — COTTER PIN (4 required per assembly) |
|
0303049 |
0303049 - Cotter Pin |
|
|
$0.40 |
$0.40 |
10+ in stock. |
#37
— 386464 — CONTROL LEVER & PIN (1 required per assembly) |
|
0386464 |
0386464 - Lever, NLA
Replaces OEM # 0386464 |
|
|
$75.00 |
$75.00 |
2 in stock. |
#39
— 305831 — WASHER (1 required per assembly) |
|
0305831 |
0305831 - Shim |
|
|
$4.99 |
$4.99 |
10+ in stock. |
#40
— 319547 — SCREW, BEARING CLAMP (2 required per assembly) |
|
0319547 |
0319547 - Vintage, Screw
Replaces OEM # 0319547 |
|
|
$3.50 |
$3.50 |
10+ in stock. |
#42
— 325332 — PLUNGER (1 required per assembly) |
|
0325332 |
0325332 - Plunger |
|
|
$10.99 |
$10.99 |
1 in stock. |
#44
— 325583 — SPRING, SHIFT DETENT (1 required per assembly) |
|
0325583 |
0325583 - Vintage, Spring
Replaces OEM # 0325583 |
|
|
$7.00 |
$7.00 |
10+ in stock. |
#45
— 314951 — SCREW (1 required per assembly) |
|
0314951 |
0314951 - Screw |
|
|
$4.99 |
$4.99 |
Out of stock:
Usually ships
in 5-7 days |
#46
— 325584 — SPRING, NEUTRAL DETENT (1 required per assembly) |
|
0325584 |
0325584 - Spring |
|
|
$3.99 |
$3.99 |
Out of stock:
Usually ships
in 5-7 days |
#47
— 325586 — RETAINER, SPRING NEUTRAL DETENT (1 required per assembly) |
|
0325586 |
0325586 - Retainer |
|
|
$4.99 |
$4.99 |
Out of stock:
Usually ships
in 5-7 days |
#48
— 325587 — LEVER, LOCKOUT (1 required per assembly) |
|
0325587 |
0325587 - Lever |
|
|
$30.80 |
$30.80 |
2 in stock. |
#51
— 320107 — CLAMP, HOSE (4 required per assembly) |
|
0320107 |
0320107 - Tie Strap |
|
|
$0.19 |
$0.19 |
10+ in stock. |
#55
— 314254 — CLAMP (1 required per assembly) |
|
0314254 |
0314254 - Clamp |
|
|
$21.99 |
$21.99 |
10+ in stock. |
#56
— 320524 — BEARING, CONTROL LEVER (1 required per assembly) |
|
0320524 |
0320524 - Ff Bearing |
|
|
$10.99 |
$10.99 |
10+ in stock. |
#60
— 304221 — SCREW (1 required per assembly) |
|
0304221 |
0304221 - Screw |
|
|
$4.99 |
$4.99 |
10+ in stock. |
#65
— 321721 — SPRING (1 required per assembly) |
|
0321721 |
0321721 - Spring |
|
|
$30.99 |
$30.99 |
10+ in stock. |
#66
— 306450 — SCREW, BY-PASS COVER (3 required per assembly) |
|
0306450 |
0306450 - Screw |
|
|
$2.99 |
$2.99 |
Out of stock:
Usually ships
in 5-7 days |
#69
— 310439 — CLAMP (1 required per assembly) |
|
0310439 |
0310439 - Clamp |
|
|
$4.99 |
$4.99 |
Out of stock:
Usually ships
in 5-7 days |
#70
— 303715 — WASHER (2 required per assembly) |
|
0303715 |
0303715 - Washer |
|
|
$4.99 |
$4.99 |
10+ in stock. |
#71
— 304222 — COLLAR (1 required per assembly) |
|
0304222 |
0304222 - Collar |
|
|
$6.99 |
$6.99 |
10+ in stock. |
#72
— 307565 — PIN, ROD, PIVOT PIN (2 required per assembly) |
|
0307565 |
0307565 - Pin |
|
|
$1.59 |
$1.59 |
10+ in stock. |
#75
— 306482 — WASHER, STARTER MTG. BRKT. (2 required per assembly) |
|
0306482 |
0306482 - Washer |
|
|
$4.28 |
$4.28 |
10+ in stock. |
#77
— 325326 — BRACKET, SAFETY SWITCH & CABLE. 25RWCIM - 25RWLCIM MODELS ONLY (1 required per assembly) |
|
0325326 |
0325326 - Bracket |
|
|
$14.99 |
$14.99 |
Out of stock:
Usually ships
in 5-7 days |
#78
— 325589 — LEVER, STARTER LOCKOUT. 25RWCIM - 25RWLCIM MODELS ONLY (1 required per assembly) |
|
0325589 |
0325589 - Lever |
|
|
$5.99 |
$5.99 |
Out of stock:
Usually ships
in 5-7 days |
#79

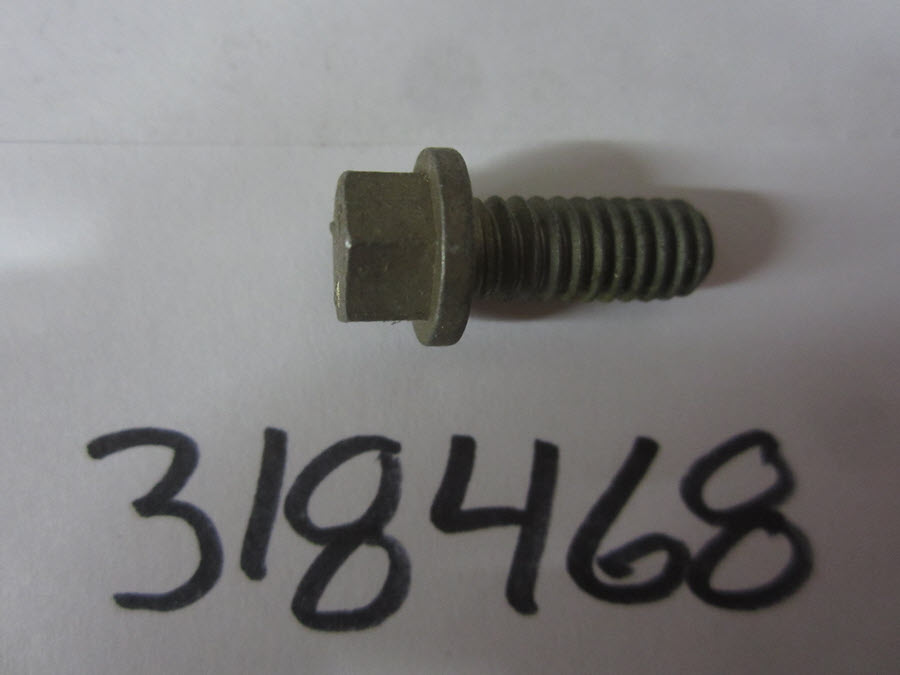

— 318468 — SCREW, BRACKET. 25RWCIM - 25RWLCIM MODELS ONLY (1 required per assembly) |
|
0318468 |
0318468 - Vintage, Screw
Replaces OEM # 0318468 |
|
|
$4.05 |
$4.05 |
10+ in stock. |
#80
— 327443 — SCREW, STARTER LOCKOUT. 25RWCIM - 25RWLCIM MODELS ONLY (1 required per assembly) |
|
0327443 |
0327443 - Screw |
|
|
$14.99 |
$14.99 |
1 in stock. |
#81
— 304051 — WASHER, SAFETY SWITCH BRACKET. 25RWCIM - 25RWLCIM MODELS ONLY (1 required per assembly) |
|
0304051 |
0304051 - Washer |
|
|
$2.65 |
$2.65 |
10+ in stock. |
|
0328703 |
0328703 - Washer |
|
|
$3.54 |
$3.54 |
10 in stock. |
