Exhaust Housing - Rope Start Only Parts for 1981 Johnson 25 hp J25ELCIB Outboard Motor
|

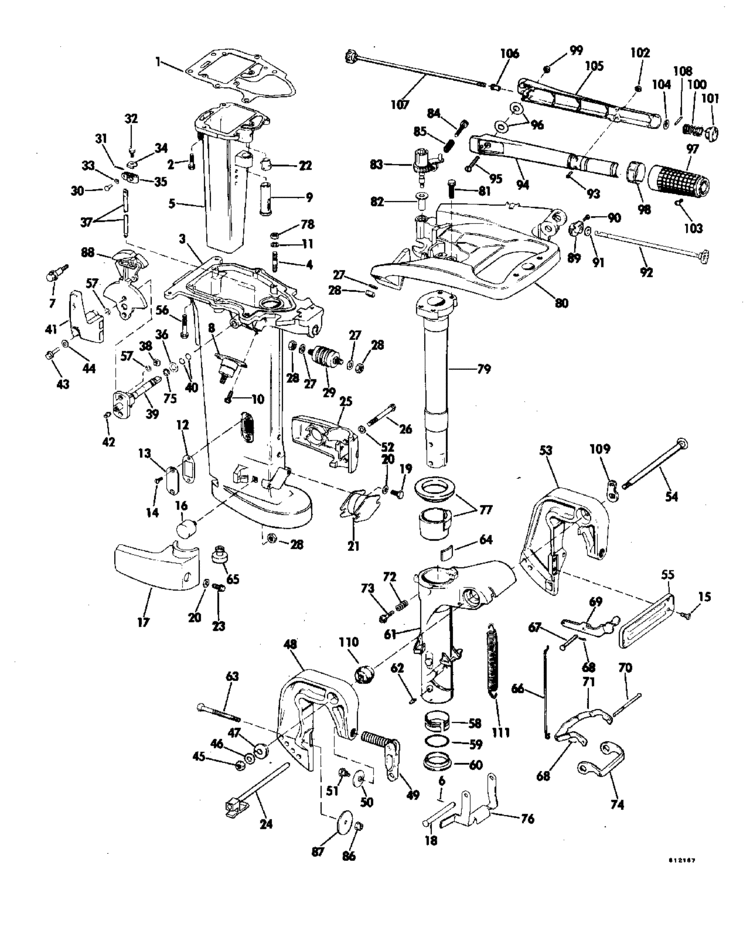

Reference numbers in this diagram can be found in a light blue row below.
Each product listed below that blue row is the original or an equivalent part. [ Example ]
Reference numbers in this diagram can be found in a light blue row below.
Each product listed below that blue row is the original or an equivalent part. [ Example ]
#3
— 391140 — EXHAUST HOUSING ASSY. (1 required per assembly) |
|
0391140 |
L/P 138.15
| |
|
|
|
Unavailable |
#4
— 324815 — STUD (2 required per assembly) |
|
0324815 |
0324815 - Stud |
|
 |
$18.99 |
$18.99 |
10+ in stock.  |
#6
— 305650 — COTTER PIN, SHALLOW WATER DRIVE (1 required per assembly) |
|
0305650 |
0305650 - Cotter Pin |
|
|
$0.62 |
$0.62 |
10+ in stock. |
#8
— 303879 — RUBBER MOUNT, UPPER SIDE, STD. ONLY (2 required per assembly) |
|
0303879 |
0303879 - Rubber Mount |
|
|
$73.99 |
$73.99 |
10+ in stock. |
#8
— 325974 — RUBBER MOUNT, UPPER SIDE, LONG ONLY (2 required per assembly) |
|
0325974 |
0325974 - Rubber Mount |
|
|
$27.16 |
$27.16 |
10+ in stock. |
#9
— 321513 — GUIDE, WATER TUBE (1 required per assembly) |
|
0321513 |
L/P 8.30
| |
|
|
|
Unavailable |
#13
— 303862 — PLATE, EXH. HSG. COVER (1 required per assembly) |
|
0303862 |
0303862 - V,COVER PLATE |
|
|
$16.50 |
$16.50 |
10+ in stock. |
#14
— 303587 — SCREW, CVER PLATE (2 required per assembly) |
|
0303587 |
0303587 - Screw |
|
|
$1.59 |
$1.59 |
10+ in stock. |
#15
— 310379 — SCREW, STRAP (4 required per assembly) |
|
0310379 |
0310379 - Screw |
|
|
$4.99 |
$4.99 |
10+ in stock. |
#16
— 321470 — RUBBER MOUNT, LOWER SIDE, STD. ONLY (2 required per assembly) |
|
0321470 |
0321470 - Rubber Mount |
|
|
$24.99 |
$24.99 |
10+ in stock. |
#16
— 325975 — RUBBER MOUNT, LOWER SIDE, LONG ONLY (2 required per assembly) |
|
0325975 |
0325975 - Rubber Mount |
|
|
$17.99 |
$17.99 |
Out of stock:
Usually ships
in 5-7 days |
#17
— 323109 — HOUSING, LOWER MOUNT, STBD (1 required per assembly) |
|
0323109 |
0323109 - Housing-lwr Mt |
|
|
$104.99 |
$104.99 |
1 in stock. |
#18
— 324445 — PIN, SHALLOW WATER DRIVE (1 required per assembly) |
|
0324445 |
0324445 - Vintage, Pin-link
Replaces OEM # 0324445 |
|
|
$10.92 |
$10.92 |
10+ in stock. |
#20
— 303886 — WASHER, MEDIUM (4 required per assembly) |
|
0303886 |
0303886 - Washer |
|
|
$2.99 |
$2.99 |
10+ in stock. |
#21
— 321469 — RUBBER MOUNT, LOWER FRONT (1 required per assembly) |
|
0321469 |
0321469 - Rubber Mount |
|
|
$38.22 |
$38.22 |
10+ in stock. |
#23
— 309942 — SCREW, MOUNT TO HOUSING (2 required per assembly) |
|
0309942 |
0309942 - Screw |
|
|
$4.99 |
$4.99 |
Out of stock:
Usually ships
in 5-7 days |
#24
— 391270 — TILT PIN ASSY (1 required per assembly) |
|
0391270 |
0391270 - Tilt Pin |
|
|
$32.99 |
$32.99 |
8 in stock. |
#27
— 303884 — WASHER, LARGE (4 required per assembly) |
|
0303884 |
0303884 - Washer |
|
|
$3.99 |
$3.99 |
10+ in stock. |
#28
— 303889 — NUT, UPPER MOUNT (6 required per assembly) |
|
0303889 |
0303889 - Nut |
|
|
$4.99 |
$4.99 |
10+ in stock. |
#29
— 304800 — RUBBER MOUNT, UPPER FRONT (1 required per assembly) |
|
0304800 |
L/P 12.20
| |
|
|
|
Unavailable |
#30
— 319541 — PIN, SHIFT ROD TO LEVER (1 required per assembly) |
|
0319541 |
0319541 - Pin |
|
|
$8.99 |
$8.99 |
10+ in stock. |
#33
— 304380 — WASHER, BOW (1 required per assembly) |
|
0304380 |
0304380 - Bow Washer |
|
|
$4.99 |
$4.99 |
10+ in stock. |
#34
— 319537 — CLIP, SHIFT ROD LEVER (1 required per assembly) |
|
0319537 |
0319537 - Clip |
|
|
$4.99 |
$4.99 |
10+ in stock. |
#36
— 303775 — WASHER, LEVER TO HSG. (2 required per assembly) |
|
0303775 |
0303775 - Washer |
|
|
$4.99 |
$4.99 |
10+ in stock. |
#37
— 304859 — SHIFT ROD, UPPER (1 required per assembly) |
|
304859 |
304859 - SHIFT ROD |
|
|
$29.99 |
$12.78 |
10+ in stock. |
#38
— 203688 — NUT, ADJUSTMENT SCREW (2 required per assembly) |
|
0203688 |
0203688 - Nut |
|
|
$3.99 |
$3.99 |
10+ in stock. |
#43
— 324960 — SCREW, HANDLE ADJUSTMENT (1 required per assembly) |
|
0324960 |
0324960 - Screw |
|
|
$2.99 |
$2.99 |
10+ in stock. |
#44
— 552783 — WASHER, GEARSHIFT HANDLE ADJ (2 required per assembly) |
|
0552783 |
0552783 - Washer |
|
|
$3.84 |
$3.84 |
2 in stock. |
#46
— 306433 — WASHER (1 required per assembly) |
|
0306433 |
0306433 - Vintage, Washer
Replaces OEM # 0306433 |
|
|
$4.00 |
$4.00 |
10+ in stock. |
#47
— 302051 — SPRING, TILTING SHAFT (1 required per assembly) |
|
0302051 |
0302051 - Spring |
|
|
$52.99 |
$52.99 |
4 in stock. |
#52
— 304144 — LOCKWASHER (2 required per assembly) |
|
0304144 |
0304144 - Washer |
|
|
$4.99 |
$4.99 |
3 in stock. |
#54
— 319756 — BOLT, TILTING SHAFT (1 required per assembly) |
|
0319756 |
0319756 - Tilt Bolt |
|
|
$55.99 |
$55.99 |
8 in stock. |
#55
— 310378 — STRAP, STERN BRACKET (1 required per assembly) |
|
0310378 |
0310378 - Vintage, Strap
Replaces OEM # 0310378 |
|
|
$13.28 |
$13.28 |
10+ in stock. |
#56
— 324871 — SCREW, HOUSING TO CYLINDER (4 required per assembly) |
|
0324871 |
0324871 - Screw |
|
|
$4.08 |
$4.08 |
10+ in stock. |
#58
— 309967 — BUSHING, PILOT SHAFT, LOWER (1 required per assembly) |
|
0309967 |
0309967 - Bushing |
|
|
$7.99 |
$7.99 |
10+ in stock. |
#59
— 301917 — O-RING (1 required per assembly) |
|
0301917 |
0301917 - O-ring |
|
|
$0.76 |
$0.76 |
10+ in stock. |
#60
— 309966 — WASHER, THRUST (1 required per assembly) |
|
0309966 |
0309966 - Washer |
|
|
$4.99 |
$4.99 |
1 in stock. |
#62
— 313607 — FITTING, LUBE (1 required per assembly) |
|
0313607 |
0313607 - Fitting |
|
|
$4.99 |
$4.99 |
4 in stock. |
#65
— 326071 — BUMPER, MOUNT HOUSING (1 required per assembly) |
|
0326071 |
0326071 - Bumper |
|
|
$5.99 |
$5.99 |
1 in stock. |
#66
— 303978 — LINK, REVERSE LOCK ARM (1 required per assembly) |
|
0303978 |
0303978 - Vintage, Link
Replaces OEM # 0303978 |
|
|
$5.00 |
$5.00 |
10+ in stock. |
#67
— 303930 — PIVOT SHAFT, LOCK LEVER (1 required per assembly) |
|
0303930 |
0303930 - Vintage, Shaft
Replaces OEM # 0303930 |
|
|
$9.00 |
$9.00 |
10+ in stock. |
#68
— 306376 — COTTER PIN, PIVOT SHAFT (2 required per assembly) |
|
0306376 |
0306376 - Cotter Pin |
|
|
$0.28 |
$0.28 |
10+ in stock. |
#69
— 303980 — ARM, MANUAL LOCKING LEVER (1 required per assembly) |
|
0303980 |
0303980 - Vintage, Arm
Replaces OEM # 0303980 |
|
|
$21.00 |
$21.00 |
9 in stock. |
#70
— 303949 — ROD, REVERSE LOCK (1 required per assembly) |
|
0303949 |
0303949 - Vintage, Rod
Replaces OEM # 0303949 |
|
|
$55.71 |
$55.71 |
10+ in stock. |
#72
— 551113 — SPRING, CO-PILOT (1 required per assembly) |
|
0551113 |
0551113 - Spring |
|
|
$9.99 |
$9.99 |
8 in stock. |
#73
— 321531 — SCREW, CO-PILOT ADJUSTMENT (1 required per assembly) |
|
0321531 |
0321531 - Screw Steering Adj |
|
|
$5.99 |
$5.99 |
Out of stock:
Usually ships
in 5-7 days |
#74
— 303950 — LINK, REVERSE LOCK (1 required per assembly) |
|
0303950 |
0303950 - Vintage, Link
Replaces OEM # 0303950 |
|
|
$21.00 |
$21.00 |
10+ in stock. |
#75
— 315786 — RETAINER, SHIFT SHAFT (1 required per assembly) |
|
0315786 |
0315786 - Retainer |
|
|
$4.99 |
$4.99 |
7 in stock. |
#76
— 324444 — LINK, SHALLOW WATER DRIVE (1 required per assembly) |
|
0324444
Replaces OEM #0324444 |
L/P 55.00
Replaces OEM # 0324444 | |
|
|
|
Unavailable |
#79
— 326315 — PILOT SHAFT, STEERING BRKT. ELECTRIC MODELS USE 394342 ROPE MODELS USE 394343. ELECTRIC MODELS USE 394342 ROPE MODELS USE 394343 (1 required per assembly) |
|
0326315 |
SEE PRICEBOOK
| |
|
|
|
Unavailable |
#82
— 303854 — BUSHING, THROTTLE CONTROL (1 required per assembly) |
|
0303854 |
0303854 - Bushing |
|
|
$4.96 |
$4.96 |
10+ in stock. |
#85
— 552368 — SPRING, IDLE STOP SCREW (1 required per assembly) |
|
0552368 |
0552368 - Spring |
|
|
$5.99 |
$5.99 |
10+ in stock. |
#87
— 315776 — WASHER (2 required per assembly) |
|
315776 |
315776 - WASHER SB |
|
|
$3.99 |
$1.70 |
10+ in stock. |
#89
— 303142 — PINION, CONTROL THROTTLE (1 required per assembly) |
|
0303142 |
0303142 - Pinion |
|
|
$50.00 |
$50.00 |
5 in stock. |
#90
— 303951 — SCREW, THROTTLE PINION (1 required per assembly) |
|
0303951 |
0303951 - Screw |
|
|
$14.99 |
$14.99 |
10+ in stock. |
#91
— 305347 — BUSHING, THROTTLE SHAFT (2 required per assembly) |
|
0305347 |
0305347 - Bushing |
|
|
$9.99 |
$9.99 |
10+ in stock. |
#92
— 387057 — GEAR AND SHAFT, SHORT (1 required per assembly) |
|
0387057 |
0387057 - Gear And Shaft-short |
|
|
$56.99 |
$56.99 |
Out of stock:
Usually ships
in 5-7 days |
#93
— 133452 — SCREW, HANDLE HALVES (2 required per assembly) |
|
0133452 |
0133452 - Vintage, Screw
Replaces OEM # 0133452 |
|
|
$3.18 |
$3.18 |
10+ in stock. |
#94
— 322933 — HANDLE, STEERING, INNER HALF (1 required per assembly) |
|
0322933
Replaces OEM #0322933 |
L/P 48.17
Replaces OEM # 0322933 | |
|
|
|
Unavailable |
#95
— 303078 — SCREW, HANDLE HALVES (1 required per assembly) |
|
0303078 |
0303078 - Screw |
|
|
$0.70 |
$0.70 |
10+ in stock. |
|
0330976 |
0330976 - Screw |
|
|
$2.59 |
$2.59 |
10+ in stock. |
#96
— 303079 — WASHER, HANDLE TO BRKT (2 required per assembly) |
|
0303079 |
0303079 - Washer |
|
|
$4.99 |
$4.99 |
10+ in stock. |
#98
— 319215 — PLATE (1 required per assembly) |
|
0319215 |
0319215 - V,PLATE |
|
|
$13.75 |
$13.75 |
10+ in stock. |
#100
— 301656 — SPRING, HANDLE GRIP (1 required per assembly) |
|
0301656 |
0301656 - Spring |
|
|
$7.96 |
$7.96 |
10+ in stock. |
#101
— 303282 — BLOCK, FRICTION, GRIP (1 required per assembly) |
|
0303282 |
0303282 - Block |
|
|
$15.80 |
$15.80 |
10+ in stock. |
#102
— 133079 — NUT, HANDLE HALVES (2 required per assembly) |
|
0133079 |
0133079 - Nut |
|
|
$4.99 |
$4.99 |
6 in stock. |
#104
— 303252 — WASHER, GRIP SPRING (1 required per assembly) |
|
0303252 |
0303252 - Washer |
|
|
$4.99 |
$4.99 |
10+ in stock. |
#105
— 322932 — HANDLE, STEERING, OUTER HALF (1 required per assembly) |
|
0322932 |
L/P 63.98
| |
|
|
|
Unavailable |
#107
— 390676 — GEAR AND SHAFT, LONG (1 required per assembly) |
|
0390676 |
0390676 - Gear And Shaft |
|
|
$69.99 |
$69.99 |
3 in stock. |
#109
— 300364 — LINK, SAFETY CHAIN (1 required per assembly) |
|
0300364 |
0300364 - Link |
|
|
$4.99 |
$4.99 |
10+ in stock. |
#110
— 301983 — WASHER, CONICAL, TILTING SHAFT (2 required per assembly) |
|
0301983 |
0301983 - Washer |
|
|
$5.99 |
$5.99 |
10+ in stock. |
#111
— 303979 — SPRING, REVERSE LOCK (1 required per assembly) |
|
0303979 |
0303979 - Vintage, Spring
Replaces OEM # 0303979 |
|
|
$19.00 |
$19.00 |
10+ in stock. |
