Motor Cover Group Parts for 1968 Johnson 65 hp VXH-14B Outboard Motor
|

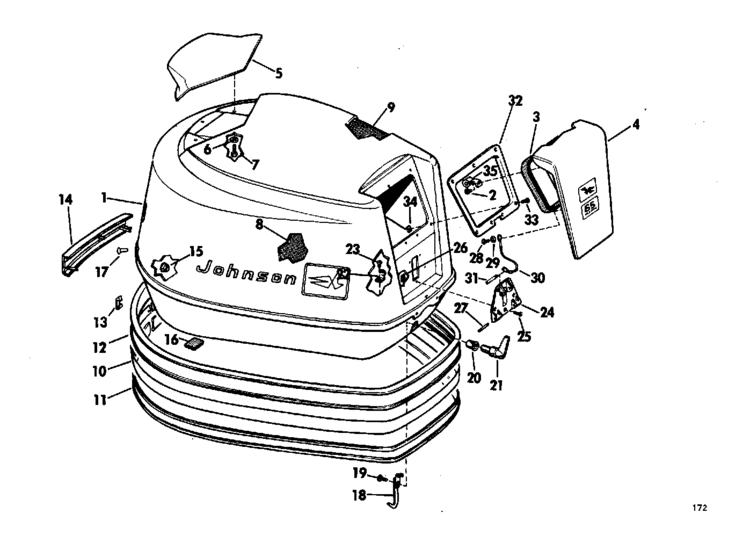

Reference numbers in this diagram can be found in a light blue row below.
Each product listed below that blue row is the original or an equivalent part. [ Example ]
Reference numbers in this diagram can be found in a light blue row below.
Each product listed below that blue row is the original or an equivalent part. [ Example ]
| Ref. No. |
Part No. |
Description |
Type |
Manufacturer |
List Price |
Your Price |
Order |
#1
— 382614 — MOTOR COVER ASSY.COMPLETE (1 required per assembly) |
|
0382614 |
| |
|
|
|
Unavailable |
#2
— 305685 — SCREW,ROLLER LATCH (2 required per assembly) |
|
0305685 |
0305685 - Vintage, Screw
Replaces OEM # 0305685 |
|
 |
$1.25 |
$1.25 |
10+ in stock.  |
#4
— 382685 — FRONT DOOR AND DECAL ASSEMBLY (1 required per assembly) |
|
0382685 |
L/P 11.85
| |
|
|
|
Unavailable |
#5
— 307679 — HANDLE,TILT (1 required per assembly) |
|
0307679
Replaces OEM #0307679 |
HANDLE
Replaces OEM # 0307679 | |
|
$31.50 |
|
Unavailable |
#6
— 306407 — WASHER (3 required per assembly) |
|
0306407 |
0306407 - Washer |
|
|
$3.99 |
$3.99 |
10+ in stock. |
#8
— 307956 — SOUND BLANKET,SIDE (1 required per assembly) |
|
0307956 |
| |
|
|
|
Unavailable |
#9
— 307957 — SOUND BLANKET,TOP (1 required per assembly) |
|
0307957 |
| |
|
|
|
Unavailable |
#10
— 310228 — TRIM,BANDING (1 required per assembly) |
|
0310228 |
| |
|
|
|
Unavailable |
#11
— 312575 — INSERT,MOLDING STRIP (1 required per assembly) |
|
0312575 |
L/P 8.34
| |
|
|
|
Unavailable |
#12
— 310224 — STRIP,MOLDING (1 required per assembly) |
|
0310224 |
L/P 9.85
| |
|
|
|
Unavailable |
#13
— 310227 — CLIP,BANDING (1 required per assembly) |
|
0310227 |
0310227 - Vintage, Clip
Replaces OEM # 0310227 |
|
|
$3.32 |
$3.32 |
10+ in stock. |
#14
— 312606 — COVER,MOLDING STRIP (1 required per assembly) |
|
0312606 |
| |
|
|
|
Unavailable |
#15
— 204307 — FASTENER,COVER,REAR (3 required per assembly) |
|
0204307 |
0204307 - Vintage, Fastener
Replaces OEM # 0204307 |
|
|
$4.00 |
$4.00 |
10+ in stock. |
#16
— 307925 — PAD (1 required per assembly) |
|
0307925 |
0307925 - Vintage, Pad
Replaces OEM # 0307925 |
|
|
$3.71 |
$3.71 |
10+ in stock. |
#19
— 303311 — SCREW (1 required per assembly) |
|
0303311 |
0303311 - Vintage, Screw
Replaces OEM # 0303311 |
|
|
$3.06 |
$3.06 |
10+ in stock. |
#20
— 553769 — BUSHING (1 required per assembly) |
|
0553769 |
0553769 - Bushing |
|
|
$10.99 |
$10.99 |
10+ in stock. |
#21
— 308293 — HANDLE,FRONT LATCH (1 required per assembly) |
|
0308293 |
0308293 - Vintage, Handle
Replaces OEM # 0308293 |
|
|
$24.00 |
$24.00 |
10+ in stock. |
#22

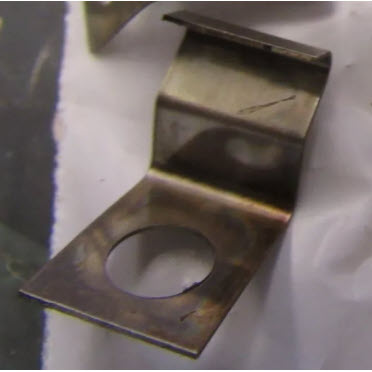

— 307908 — SPRING (1 required per assembly) |
|
0307908 |
0307908 - Vintage, Spring
Replaces OEM # 0307908 |
|
|
$5.00 |
$5.00 |
10+ in stock. |
#23
— 307907 — SCREW (1 required per assembly) |
|
0307907 |
0307907 - Vintage, Screw
Replaces OEM # 0307907 |
|
|
$1.91 |
$1.91 |
10+ in stock. |
#24
— 379122 — HINGE PLATE & FASTENER ASSY. (1 required per assembly) |
|
0379122 |
0379122 - Vintage, Plate
Replaces OEM # 0379122 |
|
|
$8.00 |
$8.00 |
7 in stock. |
#25
— 204461 — SCREW (5 required per assembly) |
|
0204461 |
0204461 - V,SCREW |
|
|
$1.98 |
$1.98 |
10+ in stock. |
#27
— 306106 — PIN,HINGE (2 required per assembly) |
|
0306106 |
0306106 - Vintage, Pin
Replaces OEM # 0306106 |
|
|
$2.53 |
$2.53 |
10+ in stock. |
#28
— 307426 — SCREW (1 required per assembly) |
|
0307426 |
0307426 - Vintage, Screw
Replaces OEM # 0307426 |
|
|
$1.25 |
$1.25 |
10+ in stock. |
#30
— 379123 — STRAP (1 required per assembly) |
|
0379123 |
0379123 - Strap |
|
|
$3.00 |
$3.00 |
10+ in stock. |
#31
— 309558 — PIN,STRAP TO HINGE PLATE (1 required per assembly) |
|
0309558 |
0309558 - Vintage, Dowel
Replaces OEM # 0309558 |
|
|
$1.25 |
$1.25 |
5 in stock. |
#32
— 379119 — FRAME & FASTENER ASSY. (1 required per assembly) |
|
0379119
Replaces OEM #0379119 |
DOOR FRAME
Replaces OEM # 0379119 | |
|
$16.74 |
|
Unavailable |
#35
— 383028 — LATCH,ROLLER (2 required per assembly) |
|
0383028
Replaces OEM #0383028 |
ROLLER LATCH
Replaces OEM # 0383028 | |
|
$1.31 |
|
Unavailable |
#382358
— 382358 — OWNER'S MANUAL. NOT SHOWN (1 required per assembly) |
|
0382358 |
| |
|
|
|
Unavailable |
 |
Manual 382358 |
Owners Manual |
|
$24.95 |
$24.95 |
|
#382856
— 382856 — DECAL SET. NOT SHOWN (1 required per assembly) |
|
0382856 |
| |
|
|
|
Unavailable |
