Parts for Force 90 HP (1995) Adapter Plate - Upper

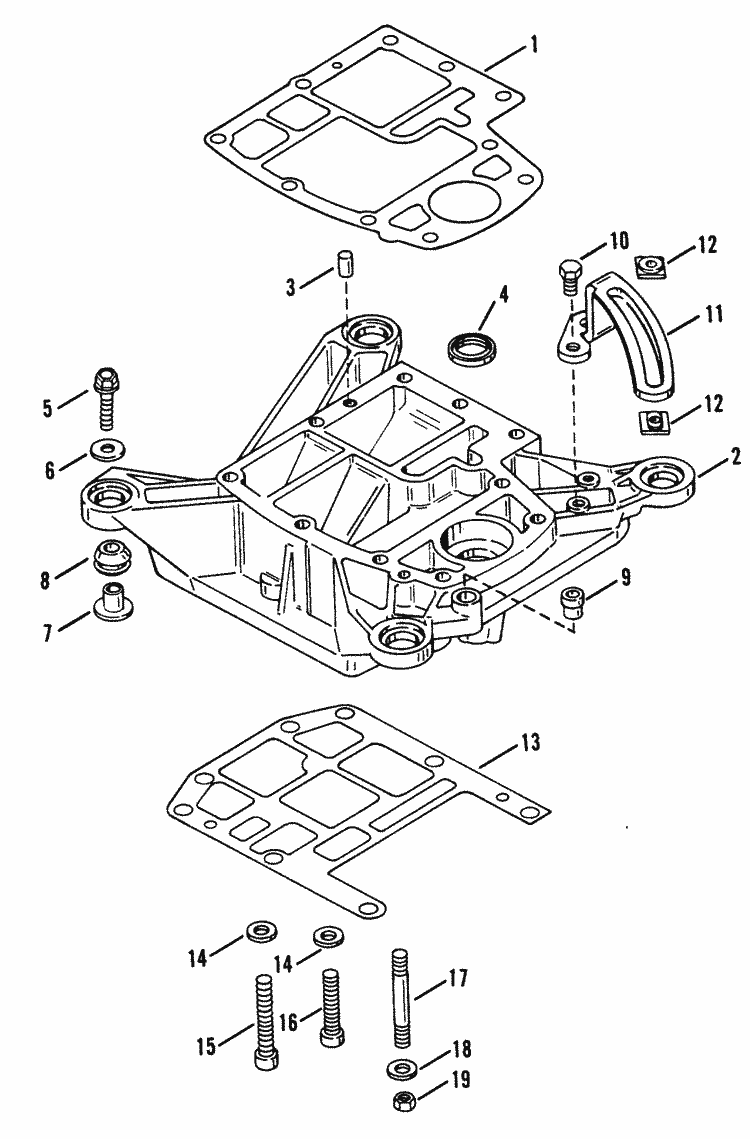

Engine Diagram

Ref. No. Part No. Description Manufacturer List Price Your Price Order
#1 27-826549 GASKET, Powerhead to Upper Adapter Plate (1 required per assembly)
GASKET 27-826549 27-826549
27-826549OEM Part 27-826549 - Gasket (more info) About Mercury Marine $19.50 $16.70 Add to shopping cart
Available to order:
Usually ships
within 8 days
#2 820192A 1 PLATE ASSEMBLY, Upper Adapter (1 required per assembly)
PLATE ASSY,NLA 820192A 1 820192A 1
820192A 1OEM Part 820192A 1 - Plate Assembly (more info) About Mercury Marine $375.00 $375.00 Add to shopping cart
9 in stock. Explain stock levels
#3 17-23784 PIN, Dowel (2 required per assembly)
PIN Dowel 17-23784
17-23784OEM Part 17-23784 - Pin -Dowel (more info) About Mercury Marine $3.50 $3.50 Add to shopping cart
2 in stock. Explain stock levels
#4 26-819740 SEAL, Driveshaft (1 required per assembly)
SEAL 26-819740 26-819740
26-819740OEM Part 26-819740 - Seal (more info) About Mercury Marine $6.20 $6.20 Add to shopping cart
4 in stock. Explain stock levels
#5 10-818934 35 SCREW (M8 x 35) (4 required per assembly)
SCREW (M8 x 35) 10-818934 35 10-818934 35
10-818934 35OEM Part 10-818934 35 - Screw (more info) About Mercury Marine $2.70 $2.70 Add to shopping cart
Available to order:
Usually ships
within 8 days
#6 12-56720 WASHER (4 required per assembly)
WASHER (.330 x .7 12-56720
12-56720OEM Part 12-56720 - Washer (more info) About Mercury Marine $1.40 $1.40 Add to shopping cart
4 in stock. Explain stock levels
#7 23-19064 BUSHING, Adapter Plate Grommet (4 required per assembly)
BUSHING 23-19064
23-19064OEM Part 23-19064 - Bushing (more info) About Mercury Marine $16.00 $16.00 Add to shopping cart
10+ in stock. Explain stock levels
#8 25-825380 GROMMET, Adapter Plate (4 required per assembly)
GROMMET @5        O - Replaced by 25-825380001
25-825380This part has been superseded. GROMMET @5 O - Replaced by 25-825380001
(more info)
    UnavailableUnavailable Parts
GROMMET Note: must be ordered in multiples of 5 25-825380001 25-825380001
25-825380001OEM Part 25-825380001 - Grommet - Priced Individually (more info) About Mercury Marine $5.30 $5.30 Add to shopping cart
3 in stock. Explain stock levels
#9 23-F40689-1 BEARING, Towershaft Lower (1 required per assembly)
BEARING,NLA 23-F40689-1
23-F40689-1OEM Part 23-F40689-1 - Bearing, NLA (more info) About Mercury Marine $1.25 $1.25 Add to shopping cart
10+ in stock. Explain stock levels
#10 10-19938 20 SCREW (M8 x 20) With Dry Loc (2 required per assembly)
SCREW 10-19938 20
10-19938 20OEM Part 10-19938 20 - Screw (more info) About Mercury Marine $2.00 $2.00 Add to shopping cart
10 in stock. Explain stock levels
#11 820280 RAIL, Shift (1 required per assembly)
RAIL-SHIFT        O NLA 820280
820280 RAIL-SHIFT O NLA
(more info)
    UnavailableUnavailable Parts
#12 820277 SLIDE, Shift (2 required per assembly)
SLIDE-SHIFT Note: must be ordered in multiples of 2,NLA 820277
820277OEM Part 820277 - Slide- Shift - Priced Individually, NLA (more info) About Mercury Marine $5.00 $5.00 Add to shopping cart
10+ in stock. Explain stock levels
#13 27-826550 GASKET, Adapter Plate/Driveshaft Housing (1 required per assembly)
GASKET 27-826550 27-826550
27-826550OEM Part 27-826550 - Gasket (more info) About Mercury Marine $18.25 $18.25 Add to shopping cart
Available to order:
Usually ships
within 8 days
#14 12-37828 WASHER (10 required per assembly)
WASHER (.390 x .6 12-37828
12-37828OEM Part 12-37828 - Washer (more info) About Mercury Marine $0.50 $0.50 Add to shopping cart
Available to order:
Usually ships
within 8 days
#15 10-19929325 SCREW (3/8-16 x 3-1/4") With Dri Loc (3 required per assembly)
SCREW (.325-16 x 10-19929325 10-19929325
10-19929325OEM Part 10-19929325 - Screw - Priced Individually (more info) About Mercury Marine $13.40 $13.40 Add to shopping cart
4 in stock. Explain stock levels
#16 10-19929175 SCREW (3/8-16 x 1-3/4") With Dri Loc (7 required per assembly)
SCREW (.375-16 x 10-19929175 10-19929175
10-19929175OEM Part 10-19929175 - Screw - Priced Individually (more info) About Mercury Marine $7.70 $7.70 Add to shopping cart
Available to order:
Usually ships
within 8 days
#17 16-820702 1 STUD (M10) (8 required per assembly)
STUD @2           O NLA
16-820702 1 STUD @2 O NLA
(more info)
    UnavailableUnavailable Parts
#18 12-45175 WASHER (8 required per assembly)
WASHER @2         O - Replaced by 12-856774
12-45175This part has been superseded. WASHER @2 O - Replaced by 12-856774
(more info)
    UnavailableUnavailable Parts
WASHER (.406 x .7 12-856774
12-856774OEM Part 12-856774 - Washer (more info) About Mercury Marine $1.50 $1.50 Add to shopping cart
1 in stock. Explain stock levels
#19 11-13914 NUT (M10) ( required per assembly)
1140140 11-13914 11-13914
11-13914OEM Part 11-13914 - Nut - Priced Individually (more info) About Mercury Marine $1.00 $1.00 Add to shopping cart
2 in stock. Explain stock levels
NUT (M10) 11-40140 11-40140
11-40140OEM Part 11-40140 - Nut - Priced Individually (more info) About Mercury Marine $2.40 $2.40 Add to shopping cart
10+ in stock. Explain stock levels
#20 800-818153A24 COMPONENT OF POWERHEAD ASS'Y ( required per assembly)
POWERHEAD ASSY    O - Replaced by 800-818153T24
800-818153A24This part has been superseded. POWERHEAD ASSY O - Replaced by 800-818153T24
(more info)
    UnavailableUnavailable Parts
POWERHEAD ASSY    O NLA
800-818153T24 POWERHEAD ASSY O NLA
(more info)
    UnavailableUnavailable Parts
#21 27-809122A1 COMPONENT OF POWERHEAD SET ( required per assembly)
GASKET SET        O - Replaced by 27-809122A 2
27-809122A 1This part has been superseded. GASKET SET O - Replaced by 27-809122A 2
(more info)
    UnavailableUnavailable Parts
GASKET SET 27-809122A 2 27-809122A 2
27-809122A 2OEM Part 27-809122A 2 - Gasket Set (more info) About Mercury Marine $130.83 $130.83 Add to shopping cart
2 in stock. Explain stock levels
