Parts for Force 90 HP (1990 L-Drive) Trim Pump & Lines

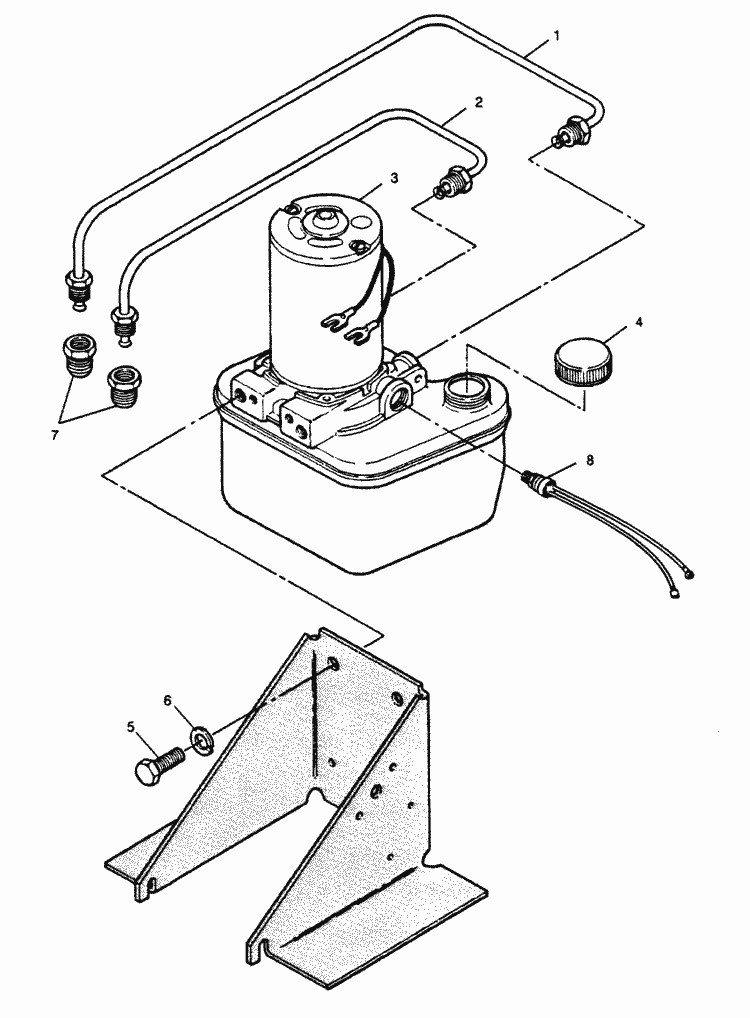

Engine Diagram

Ref. No. Part No. Description Manufacturer List Price Your Price Order
#1 F695243 LINE, HYDRAULIC (UP) (1 required per assembly)
HOSE,NLA 32-F695243
32-F695243OEM Part 32-F695243 - Hose, NLA (more info) About Mercury Marine $42.00 $42.00 Add to shopping cart
5 in stock. Explain stock levels
#2 F695253 LINE, HYDRAULIC (DOWN) (1 required per assembly)
HOSE-HYD,NLA 32-F695253
32-F695253OEM Part 32-F695253 - Hydraulic Hose, NLA (more info) About Mercury Marine $52.00 $52.00 Add to shopping cart
10+ in stock. Explain stock levels
#3 F695541-1 PUMP, HYDRAULIC W/ RESERVOIR (1 required per assembly)
PUMP ASSY-TRIM    O NLA
F695541-1 PUMP ASSY-TRIM O NLA
(more info)
    UnavailableUnavailable Parts
#4 F17637 CAP (1 required per assembly)
3618526 F17637
F17637OEM Part F17637 - Cap (more info) About Mercury Marine $1.60 $1.60 Add to shopping cart
1 in stock. Explain stock levels
36861597 36-18526
36-18526OEM Part 36-18526 - Cap (more info) About Mercury Marine $1.50 $1.50 Add to shopping cart
10+ in stock. Explain stock levels
ORD 36-865448A01  O NLA
36-861597 ORD 36-865448A01 O NLA
(more info)
    UnavailableUnavailable Parts
#5 F1871 SCREW, 3/8 - 16 X 3/4 (2 required per assembly)
SCREW             O - Replaced by 10-98261
F1871This part has been superseded. SCREW O - Replaced by 10-98261
(more info)
    UnavailableUnavailable Parts
SCREW (.375-16 x 10-98261 10-98261
10-98261OEM Part 10-98261 - Screw (more info) About Mercury Marine $0.80 $0.80 Add to shopping cart
Available to order:
Usually ships
within 8 days
#6 F2014 WASHER (2 required per assembly)
WASHER SS         O - Replaced by 12-34931
F2014This part has been superseded. WASHER SS O - Replaced by 12-34931
(more info)
    UnavailableUnavailable Parts
WASHER (.406 x .7 12-34931
12-34931OEM Part 12-34931 - Washer (more info) About Mercury Marine $1.60 $1.60 Add to shopping cart
10+ in stock. Explain stock levels
#7 F698059 FITTING, HYDRAULIC (2 required per assembly)
FITTING           O - Replaced by 22-819052
F698059This part has been superseded. FITTING O - Replaced by 22-819052
(more info)
    UnavailableUnavailable Parts
FITTING           O - Replaced by 22-48166
22-819052This part has been superseded. FITTING O - Replaced by 22-48166
(more info)
    UnavailableUnavailable Parts
FITTING 22-48166
22-48166OEM Part 22-48166 - Connector (more info) About Mercury Marine $4.60 $4.60 Add to shopping cart
Available to order:
Usually ships
within 8 days
#8 F695602 SWITCH, PRESSURE (1 required per assembly)
SWITCH            O - Replaced by 87-819446
F695602This part has been superseded. SWITCH O - Replaced by 87-819446
(more info)
    UnavailableUnavailable Parts
SWITCH,NLA 87-819446
87-819446OEM Part 87-819446 - Switch (more info) About Mercury Marine $50.00 $50.00 Add to shopping cart
10+ in stock. Explain stock levels
