Parts for Force 85 HP (1989) Crankshaft & Piston

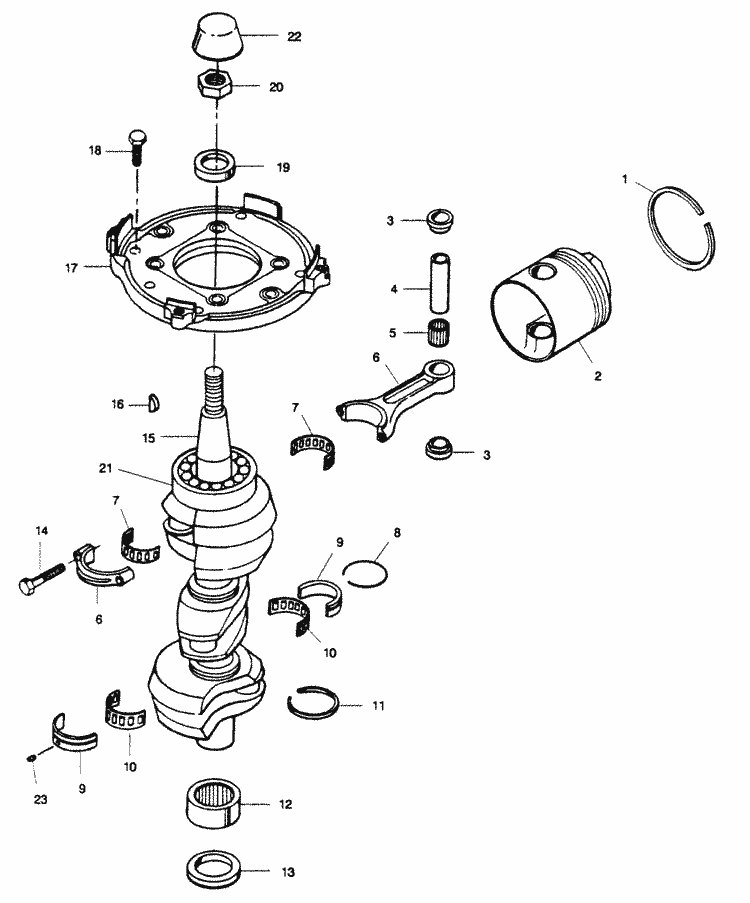

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
| #1 | 39-817869A 1 | PISTON RINGS (2 PER SET) STANDARD (3 required per assembly) Y (414) 673-9151. ORIGINAL FORCE P/N A663260-1 |
 |
|
39-817869A 1 - Rings - 2 - Standard [ More info ]
|
  |
|
18-39010 - Rings, 39-817869A1 [ More info ]
|
| #- | FSA663260 | PISTON RINGS (2 PER SET) .010 OVERSIZE (3 required per assembly) |
|
|
FSA663260 - FSA663260 - RING SET O [ More info ] Unavailable Replaced by 39-817869A 2 |
  |
|
39-817869A 2 - Rings - 2-.010, NLA [ More info ]
|
| #- | 39-817869A 3 | PISTON RINGS (2 PER SET) .030 OVERSIZE (3 required per assembly) |
  |
|
39-817869A 3 - Rings - 2-.030 [ More info ]
|
| #2 | F691015 | PISTON - STANDARD (3 required per assembly) Y (414) 673-9151. |
|
|
700-F691015 - 700-F691015 - PISTON O [ More info ] Unavailable Replaced by 700-834794 |
|
|
700-834794 - 700-834794 - PISTON-STD O [ More info ] Unavailable Replaced by 700-834794T |
|
|
700-834794T - Piston - Std [ More info ]
|
|
|
700-834794T 3 - PISTON-STD O NLA [ More info ] Unavailable |
  |
|
18-4629 - Piston .700-834794T3 Std [ More info ]
|
| #- | FSA691015 | PISTON .010 OVERSIZE (3 required per assembly) |
|
|
FSA691015 - Piston - .010 Oversize [ More info ]
|
|
|
700-834794A 1 - 700-834794A 1 - PISTON-.010 O [ More info ] Unavailable Replaced by 700-834794A 4 |
|
|
700-834794A 4 - PISTON-.010 OS O NLA [ More info ] Unavailable |
  |
|
18-4630 - Piston .700-834794A4.010 [ More info ]
|
| #- | 700-818133A 1 | PISTON .030 OVERSIZE (3 required per assembly) |
|
|
700-818133A 1 - Piston Kit -.030 [ More info ]
|
|
|
700-834794A 2 - Piston - .030 [ More info ]
|
|
|
700-834794A 5 - Piston - .030 Os [ More info ]
|
  |
|
18-4631 - Piston .700-834794A5.030 [ More info ]
|
| #3 | F335215 | SPACER, PISTON PIN (2 PER PISTON) (6 required per assembly) Y (414) 673-9151. |
|
|
23-F335215 - Piston Pin Spacer [ More info ]
|
  |
|
23-826806 - Piston Pin Spacer [ More info ]
|
| #4 | F85017 | PISTON PIN (3 required per assembly) Y (414) 673-9151. |
|
|
F85017 - F85017 - PIN Piston O [ More info ] Unavailable Replaced by 41-F85017-3 |
  |
|
41-F85017-3 - Piston Pin, NLA [ More info ]
|
| #5 | F335217-1 | BEARING PISTON PIN (26 PER SET) (3 required per assembly) Y (414) 673-9151. |
  |
|
31-F335217-1 - Bearing [ More info ]
|
| #6 | 600-818052A 4 | CONNECTING ROD W/CAP (3 required per assembly) Y (414) 673-9151. ORIGINAL FORCE P/N 2A335016-3 |
|
|
600-818052A 4 - 600-818052A 4 - CONNECTING ROD AS O [ More info ] Unavailable Replaced by 600-818052A 6 |
  |
|
600-818052A 6 - 600-818052A 6 - CONNECTING ROD AS O [ More info ] Unavailable Replaced by 600-818052T 6 |
  |
|
600-818052T 6 - Connecting Rod [ More info ]
|
| #7 | FK85228-1 | BEARING CAGE W/ROLLER (3 required per assembly) Y (414) 673-9151. |
|
|
FK85228-1 - FK85228-1 - CAGE AND ROLLERS O [ More info ] Unavailable Replaced by 31-62596A 2 |
  |
|
31-62596A 2 - Cage Roller, for One Rod Only [ More info ]
|
| #8 | F85410 | SNAP RING (2 required per assembly) Y (414) 673-9151. |
|
|
53-F85410 - RING O NLA [ More info ] Unavailable |
| #9 | FA85655-1 | CRANKSHAFT MAIN BEARING RACE (2 required per assembly) Y (414) 673-9151. |
  |
|
31-FA85655-1 - Bearing - Center Main [ More info ]
|
  |
|
31-803604T - Bearing - Center Main [ More info ]
|
| #10 | F85571 | BEARING CAGE W/ROLLER (2 required per assembly) Y (414) 673-9151. |
|
|
F85571 - F85571 - BEARING ASSEMBLY O [ More info ] Unavailable Replaced by 31-819193 |
  |
|
31-819193 - Bearing Assembly [ More info ]
|
| #11 | F316579 | SEAL, CRANKCASE (2 required per assembly) Y (414) 673-9151. |
  |
|
F316579 - Crankcase Seal [ More info ]
|
| #12 | FA523014 | CRANKSHAFT LOWER MAIN BEARING (1 required per assembly) Y (414) 673-9151. |
  |
|
31-FA523014 - 31-FA523014 - BEARING ASSEMBLY O [ More info ] Unavailable Replaced by 31-818050A 4 |
  |
|
31-818050A 4 - 31-818050A 4 - BEARING ASSEMBLY O [ More info ] Unavailable Replaced by 31-818050T 4 |
  |
|
31-818050T 4 - Bearing Assembly [ More info ]
|
| #13 | F523146-1 | SEAL, CRANKSHAFT LOWER (1 required per assembly) Y (414) 673-9151. |
  |
|
26-F523146-1 - Seal [ More info ]
|
  |
|
26-828627 - Seal [ More info ]
|
  |
|
18-8354 - Seal, 26-828627, 26F52314 [ More info ]
|
| #14 | F85634-2 | CONNECTING ROD SCREW (6 required per assembly) Y (414) 673-9151. |
  |
|
10-91012 - Screw -spec - Priced Individually [ More info ]
|
| #15 | FA85018-2 | CRANKSHAFT (1 required per assembly) Y (414) 673-9151. |
  |
|
FA85018-2 - FA85018-2 - CRANKSHAFT ASSEMB O [ More info ] Unavailable Replaced by -FA85018-3 |
  |
|
FA85018-3 - FA85018-3 - CRANKSHAFT ASSY O [ More info ] Unavailable Replaced by 400-FA85018-4 |
  |
|
400-816989A 3 - CrankShaft Kit [ More info ]
|
  |
|
400-816989A 5 - CRANKSHAFT KIT O NLA [ More info ] Unavailable |
| #16 | F85498-1 | FLYWHEEL KEY (1 required per assembly) |
  |
|
28-F85498-1 - Key [ More info ]
|
| #17 | F2A615144 | CRANKSHAFT BEARING CAGE (1 required per assembly) |
|
|
F2A615144 - F2A615144 - CAGE ASSEMBLY Cra O [ More info ] Unavailable Replaced by 1100-818070A 1 |
|
|
1100-818070A 1 - CAGE ASSEMBLY O NLA [ More info ] Unavailable |
| #18 | F2081 | HEX SOC. HD. SCREW, 1/4 - 20 X 3/4 (5 required per assembly) |
|
|
|
  |
|
10-92160 - Screw [ More info ]
|
| #20 | F1968 | FLYWHEEL NUT (1 required per assembly) |
  |
|
|
| #21 | F284659-2 | CRANKSHAFT THRUST BEARING, UPPER (1 required per assembly) Y (414) 673-9151. |
  |
|
30-803893T - Ball Bearing [ More info ]
|
| #22 | F2067 | PLASTIC CAP (1 required per assembly) |
|
|
19-F2067 - Cap, NLA [ More info ]
|
| #23 | F85909-1 | BEARING LOCATING PIN (PRESSED INTO BLOCK) (3 required per assembly) Y (414) 673-9151. |
|
|
17-823605 - Locating Pin [ More info ]
|
