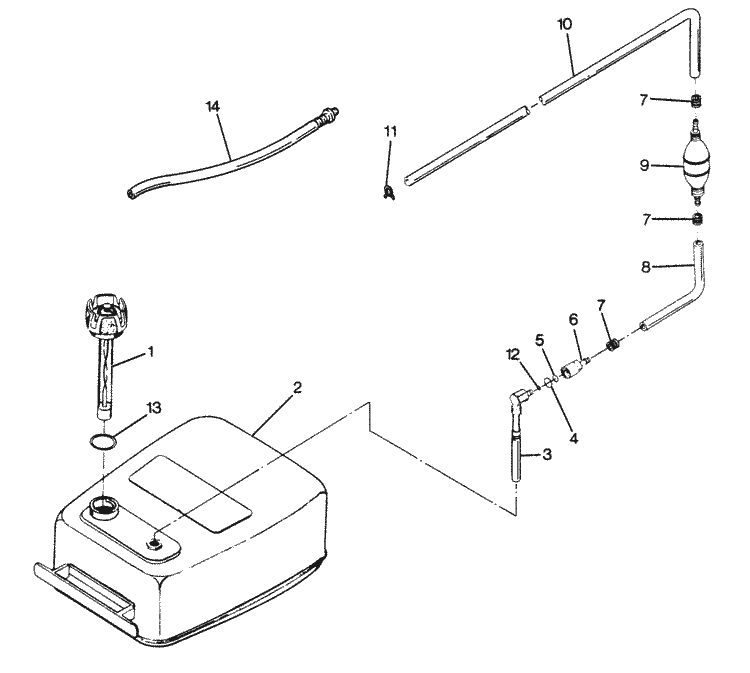

Parts for Force 85 HP (1987) Fuel Tank & Line
Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
| #1 | F409251-1 | GAUGE CAP (CANADA) (FORCE MODELS) (1 required per assembly) |
  |
|
36-F409251-1 - Fuel Gauge Cap, NLA [ More info ]
|
| #2 | F5H026-1 | FUEL TANK ACC. ITEM (FORCE MODELS) (1 required per assembly) |
 |
|
F5H026-1 - F5H026-1 - TANK Fuel, 6 Gall O [ More info ] Unavailable Replaced by -F5H215-1 |
|
|
F5H215-1 - F5H215-1 - TANK-6 GAL O [ More info ] Unavailable Replaced by 1200-819039A 1 |
|
|
1200-819039A 1 - 1200-819039A 1 - TANK ASSEMBLY O [ More info ] Unavailable Replaced by 1259-823504A 3 |
|
|
1259-823504A 3 - TANK ASSEMBLY Fue O NLA [ More info ] Unavailable |
| #3 | F485755-1 | FUEL TANK ADAPTER (1 required per assembly) |
|
|
F485755-1 - Fuel Adapter, NLA [ More info ]
|
| #4 | F17816 | SEAL, FUEL LINE COUPLER (LARGE) (1 required per assembly) |
|
|
F17816 - Large Seal [ More info ]
|
| #5 | F17815 | SEAL, FUEL LINE COUPLER (SMALL) (1 required per assembly) |
|
|
F17815 - Small Seal [ More info ]
|
| #6 | F197787-3 | FUEL LINE COUPLER (1 required per assembly) |
  |
|
F197787-3 - F197787-3 - COUPLER Fuel O [ More info ] Unavailable Replaced by -F197787Q3 |
  |
|
F197787Q3 - Fuel Coupler Assembly - Priced Individually [ More info ]
|
  |
|
18-8062 - Fitting, F197787-3 [ More info ]
|
  |
|
F197787T3 - Coupler- Fuel - Priced Individually [ More info ]
|
| #7 | F298788 | FERRULE (3 required per assembly) |
|
|
F298788 - F298788 - FERRULE O [ More info ] Unavailable Replaced by 54-41582 7 |
  |
|
54-41582 7 - 54-41582 7 - CLAMP Nylon O [ More info ] Unavailable Replaced by 54-41582Q 7 |
  |
|
54-41582Q 7 - Clamps - Set of 4 [ More info ]
|
  |
|
18-8020-9 - Snapper Clamp, 10PK [ More info ]
|
  |
|
54-41582T 7 - Clamps - Set of 4 [ More info ]
|
| #8 | FA84754-1 | FUEL LINE SHORT (1 required per assembly) W/ILLUS. 7 |
|
|
FA84754-1 - FA84754-1 - LINE KIT Fuel O [ More info ] Unavailable Replaced by 32-819248 67 |
|
|
32-819248 67 - 32-819248 67 - HOSE-25 INCH O [ More info ] Unavailable Replaced by 32-99127109 |
  |
|
32-99127109 - 32-99127109 - LINE (57.00 Inche O [ More info ] Unavailable Replaced by 32-830756109 |
  |
|
32-830756109 - 32-830756109 - HOSE (57.00 Inche O [ More info ] Unavailable Replaced by 32-8M0047428 |
  |
|
32-8M0047428 - 32-8M0047428 - HOSE (57.00 Inche [ More info ] Unavailable Replaced by 32-8M0108355 |
  |
|
32-8M0108355 - Hose, 57 Inch [ More info ]
|
| #9 | 89396A38 | PRIME BULB (1 required per assembly) W/LITERATURE ORIGINAL FORCE P/N S 387766-1 |
|
|
89396A38 - Primer Bulb - Priced Individually [ More info ]
|
  |
|
89396Q38 - 89396Q38 - PRIMER BULB O [ More info ] Unavailable Replaced by -89396Q01 |
  |
|
89396Q01 - PRIMER BULB @4 O NLA [ More info ] Unavailable |
  |
|
18-8004EP-1 - Primer Bulb -5/16 Inch [ More info ]
|
| #10 | 32-817738A 1 | FUEL LINE LONG (1 required per assembly) W/ILLUS. 7 AND 11 ORIGINAL FORCE P/N A 197752-1 |
|
|
32-817738A 1 - LINE ASSEMBLY Fue O NLA [ More info ] Unavailable |
| #11 | F97772 | FUEL LINE CLAMP (1 required per assembly) |
|
|
F97772 - F97772 - CLAMP O [ More info ] Unavailable Replaced by 54-63933 |
|
|
54-63933 - Clamp, NLA [ More info ]
|
| #12 | F17817 | SEAL, FUEL TANK ADAPTER (1 required per assembly) |
|
|
F17817 - Fuel Tank Adapter Seal, NLA [ More info ]
|
| #- | F224394-3 | DECAL, FUEL MIXTURE (USA) (NOT SHOWN) (1 required per assembly) |
| #- | FC311398 | DECAL, FUEL MIXTURE (CANADA) (NOT SHOWN) (1 required per assembly) |
|
|
FC311398 - FC311398 - DECAL O [ More info ] Unavailable Replaced by -FC409398 |
|
|
FC409398 - DECAL O NLA [ More info ] Unavailable |
| #13 | F17818 | GASKET (1 required per assembly) |
|
|
|
| #- | F310398 | DECAL, FUEL CAUTION (NOT SHOWN) (1 required per assembly) |
|
|
37-F310398 - DECAL O NLA [ More info ] Unavailable |
| #14 | FA612754 | FUEL LINE, SHORT (BAYLINER MODELS) (1 required per assembly) |
|
|
FA612754 - FA612754 - LINE ASSEMBLY Fue O [ More info ] Unavailable Replaced by 32-820661A 1 |
|
|
32-820661A 1 - HOSE/COUPLER KIT O NLA [ More info ] Unavailable |
| # | FS409752 | FUEL LINE COMPLETE (FORCE MODELS). (1 required per assembly) INCLUDES ALL ITEMS MARKED WITH AN ASTERISK (*) |
|
|
FS409752 - FS409752 - LINE ASSEMBLY Fue O [ More info ] Unavailable Replaced by 32-822379A12 |
  |
|
32-822379A12 - 32-822379A12 - LINE ASSEMBLY Fue O [ More info ] Unavailable Replaced by 32-858623A12 |
  |
|
32-858623A12 - 32-858623A12 - LINE ASSEMBLY Fue O [ More info ] Unavailable Replaced by 32-858623Q12 |
  |
|
32-858623Q12 - 32-858623Q12 - LINE ASSEMBLY Fue O [ More info ] Unavailable Replaced by 32-877683Q12 |
  |
|
32-877683Q12 - HOSE ASSEMBLY Fue O NLA [ More info ] Unavailable |
  |
|
18-8011EP-2 - Fuel Line Assembly - Chrysler/Force [ More info ]
|
| # | FA630752 | FUEL LINE COMPLETE (BAYLINER MODELS). (1 required per assembly) INCLUDES ALL ITEMS MARKED WITH AN ASTERISK (*) |
|
|
FA630752 - FA630752 - LINE ASSEMBLY Fue O [ More info ] Unavailable Replaced by 32-819380A 7 |
|
|
32-819380A 7 - HOSE O NLA [ More info ] Unavailable |
