Parts for Force 75 HP (1996) Shift Linkage-upper Gear

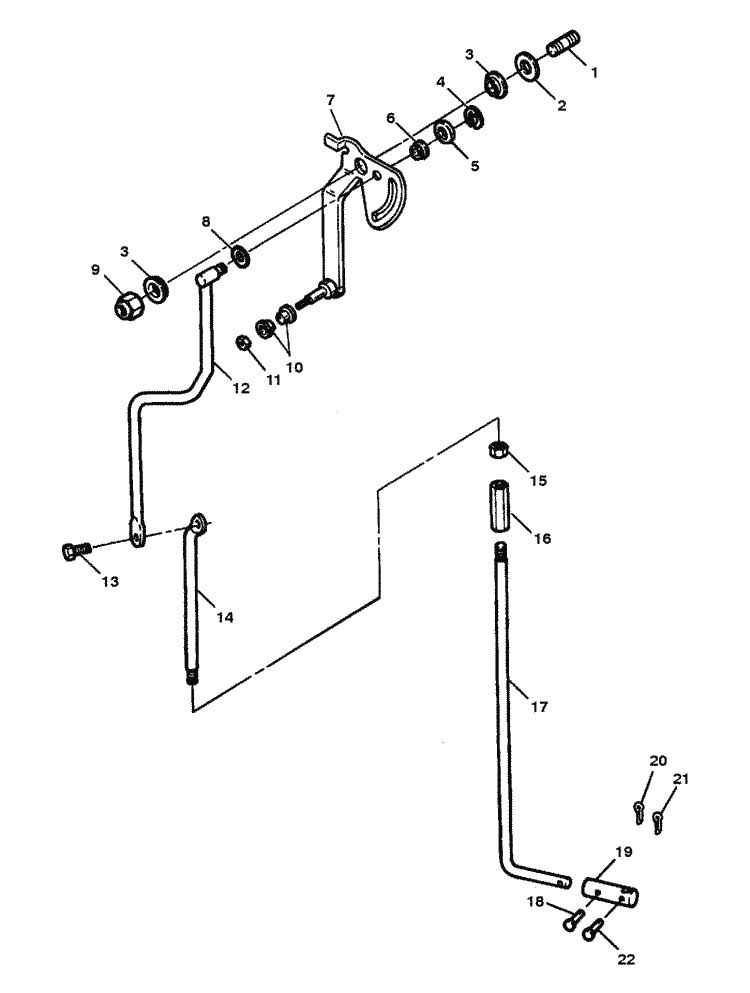

Engine Diagram

Ref. No. Part No. Description Manufacturer List Price Your Price Order
#1 16-826387 1 STUD (.375-16 x 1.625) (1 required per assembly)
STUD              O - Replaced by 16-826387  2
16-826387 1This part has been superseded. STUD O - Replaced by 16-826387 2
(more info)
    UnavailableUnavailable Parts
STUD 16-826387  2
16-826387 2OEM Part 16-826387 2 - Stud (more info) About Mercury Marine $3.60 $3.60 Add to shopping cart
10+ in stock. Explain stock levels
#2 12-34931 WASHER (1 required per assembly)
WASHER (.406 x .7 12-34931
12-34931OEM Part 12-34931 - Washer (more info) About Mercury Marine $1.60 $1.60 Add to shopping cart
10+ in stock. Explain stock levels
#3 23-F269052 BEARING-Shift Arm (2 required per assembly)
BUSHING           O NLA
23-F269052 BUSHING O NLA
(more info)
    UnavailableUnavailable Parts
#4 53-13194 RING-Retaining (1 required per assembly)
RING Retaining 53-13194 53-13194
53-13194OEM Part 53-13194 - Ring - Retaining - Priced Individually (more info) About Mercury Marine $0.86 $0.86 Add to shopping cart
3 in stock. Explain stock levels
#5 12-20546 WASHER (1 required per assembly)
WASHER Note: must be ordered in multiples of 5 12-20546
12-20546OEM Part 12-20546 - Washer - Priced Individually (more info) About Mercury Marine $2.00 $2.00 Add to shopping cart
10+ in stock. Explain stock levels
#6 23-97896 BUSHING (1 required per assembly)
BUSHING 23-97896
23-97896OEM Part 23-97896 - Bushing (more info) About Mercury Marine $3.00 $2.03 Add to shopping cart
10+ in stock. Explain stock levels

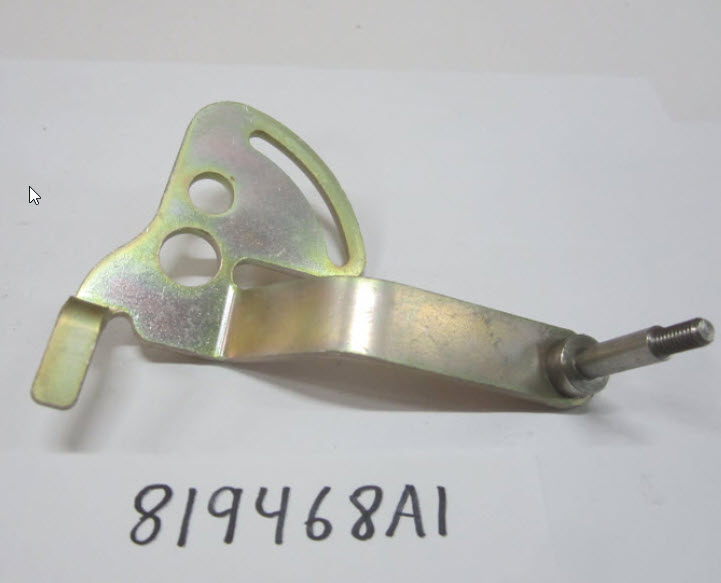

#7 819468A 1 ARM ASSEMBLY-Gear Shift (1 required per assembly)
ARM ASSY-70/75,NLA 819468A 1
819468A 1OEM Part 819468A 1 - Arm Assembly -70/75, NLA (more info) About Mercury Marine $20.00 $20.00 Add to shopping cart
10+ in stock. Explain stock levels
#8 13-F8049 WASHER-Wave (1 required per assembly)
WASHER-BOW        O NLA
13-F8049 WASHER-BOW O NLA
(more info)
    UnavailableUnavailable Parts
#9 11-68411 NUT (.375-16) (1 required per assembly)
NUT @5            O - Replaced by 11-826709 12
11-68411This part has been superseded. NUT @5 O - Replaced by 11-826709 12
(more info)
    UnavailableUnavailable Parts
NUT (.375-16) Sta 11-826709 12
11-826709 12OEM Part 11-826709 12 - Nut - Priced Individually (more info) About Mercury Marine $4.60 $4.60 Add to shopping cart
Available to order:
Usually ships
within 8 days
#10 23-819452 BUSHING (2 required per assembly)
BUSHING 23-819452
23-819452OEM Part 23-819452 - Bushing (more info) About Mercury Marine $4.80 $4.80 Add to shopping cart
10+ in stock. Explain stock levels
#11 11-34059 NUT (#10-32) (1 required per assembly)
NUT               O - Replaced by 11-826709  6
11-34059This part has been superseded. NUT O - Replaced by 11-826709 6
(more info)
    UnavailableUnavailable Parts
NUT (#10-32) Stai 11-826709  6
11-826709 6OEM Part 11-826709 6 - Nut (more info) About Mercury Marine $2.40 $2.40 Add to shopping cart
Available to order:
Usually ships
within 8 days
#12 819511 ROD-Upper Gear Shift (1 required per assembly)
ROD-GEAR SHIFT,NLA 819511
819511OEM Part 819511 - Gear Shift Rod, NLA (more info) About Mercury Marine $44.00 $44.00 Add to shopping cart
10+ in stock. Explain stock levels
#13 10-F2214 SCREW (.250-28 x .500) (1 required per assembly)
SCREW-SS,NLA 10-F2214
10-F2214OEM Part 10-F2214 - Screw -ss, NLA (more info) About Mercury Marine $2.00 $2.00 Add to shopping cart
10+ in stock. Explain stock levels
#14 F684611 ROD-Gear Shift Extension (1 required per assembly)
EXTENSION F684611 F684611
F684611OEM Part F684611 - Gear Shift Rod (more info) About Mercury Marine $32.67 $32.67 Add to shopping cart
Available to order:
Usually ships
within 8 days
#15 11-68292 NUT (.312-18) (1 required per assembly)
NUT (.312-18) 11-68292
11-68292OEM Part 11-68292 - Nut - Priced Individually (more info) About Mercury Marine $2.60 $2.60 Add to shopping cart
10+ in stock. Explain stock levels
#16 F141704 COUPLING-Gear Shift Rod (1 required per assembly)
COUPLER F141704 F141704
F141704OEM Part F141704 - Coupler (more info) About Mercury Marine $27.00 $27.00 Add to shopping cart
Available to order:
Usually ships
within 8 days
#17 819318A 1 ROD ASSEMBLY-Gear Shift Intermediate (1 required per assembly)
ROD ASSEMBLY 819318A 1
819318A 1OEM Part 819318A 1 - Shift Rod Assembly (more info) About Mercury Marine $314.17 $314.17 Add to shopping cart
Available to order:
Usually ships
within 8 days
#18 17-F85372 PIN-Gear Shift Rod Lower (1 required per assembly)
PIN 17-F85372
17-F85372OEM Part 17-F85372 - Gear Shift Pin (more info) About Mercury Marine $4.30 $4.30 Add to shopping cart
5 in stock. Explain stock levels
#19 F749704 COUPLING-Gear Shift Rod (1 required per assembly)
COUPLING          O NLA
F749704 COUPLING O NLA
(more info)
    UnavailableUnavailable Parts
#20 18-F1015 PIN-Cotter (1 required per assembly)
COTTER PIN 18-F1015
18-F1015OEM Part 18-F1015 - Cotter Pin - Priced Individually (more info) About Mercury Marine $0.80 $0.80 Add to shopping cart
7 in stock. Explain stock levels
#- 800-818153A37 POWERHEAD ASSEMBLY (1 required per assembly) (Serial # 0E138600 Thru 0E181482)
POWERHEAD KIT     O - Replaced by 800-818153A53
800-818153A37This part has been superseded. POWERHEAD KIT O - Replaced by 800-818153A53
(more info)
    UnavailableUnavailable Parts
POWERHEAD KIT     O - Replaced by 800-818153A62
800-818153A53This part has been superseded. POWERHEAD KIT O - Replaced by 800-818153A62
(more info)
    UnavailableUnavailable Parts
PH F75 98         O NLA
800-818153A62 PH F75 98 O NLA
(more info)
    UnavailableUnavailable Parts
#- 800-818153A53 POWERHEAD ASSEMBLY (1 required per assembly) (Serial # 0E181483 Thru 0E287999)
