Parts for Force 50 HP (1988) Recirculation System & Starter Brackets

Revise Search: All Models > 50 HP (1988) > 507Y8A ( ) > Recirculation System & Starter Brackets

NEED PARTS OR KITS?
View diagram and parts list below.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

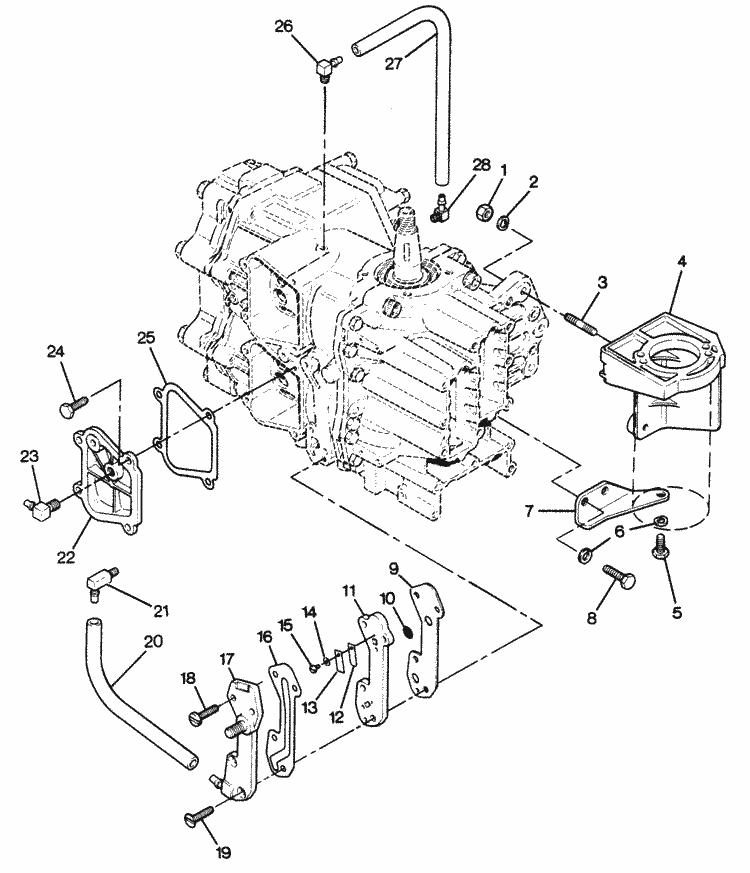

Engine section

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

#1	F1515	NUT, HEX 5/16 - 18 (3 required per assembly)
		F1515 - F1515 - NUT (.312-18) O [ More info ] Unavailable Replaced by 11-68292
		11-68292 - Nut - Priced Individually [ More info ] $2.70 10+ in stock.
#2	F8096	LOCKWASHER, SPRING (3 required per assembly)
		F8096 - F8096 - LOCKWASHER (.312) O [ More info ] Unavailable Replaced by 13-53166
		13-53166 - LockWasher - Priced Individually [ More info ] $1.40 10+ in stock.
#3	F307211	STUD (3 required per assembly)
		16-F307211 - Stud, NLA [ More info ] $5.00 10+ in stock.
#4	F345427-1	BRACKET, STARTER MOUNTING (1 required per assembly)
		F345427-1 - Bracket [ More info ] $108.25 Available to order: Usually ships within 8 days.
#5	F1854	SCREW, HEX SLOT HD. 1/4 - 20 X 5/8 (1 required per assembly)
		F1854 - F1854 - SCREW (.250-20 x O [ More info ] Unavailable Replaced by 10-28635
		10-28635 - Screw - Priced Individually [ More info ] $1.40 10+ in stock.
#6	F8083	LOCKWASHER, SPRING (3 required per assembly)
		F8083 - F8083 - LOCKWASHER (.250) O [ More info ] Unavailable Replaced by 13-26992
		13-26992 - LockWasher - Priced Individually [ More info ] $0.80 10+ in stock.
#7	F575675	BRACKET, STARTER MOUNTING, LOWER (1 required per assembly)
		F575675 - BRACKET O NLA [ More info ] Unavailable
#9	F93748-1	GASKET, CYLINDER DRAIN REED PLATE (1 required per assembly)
		27-F93748-1 - Gasket [ More info ] $2.10 10+ in stock.
#10	F93811	SCREEN, CYLINDER DRAIN REED PLATE (2 required per assembly)
		35-F93811 - Screen, NLA [ More info ] $1.60 10+ in stock.
#11	F3A433757	REED PLATE, CYLINDER DRAIN (1 required per assembly) W/ILLUS. 15, 14, 13, 12-10
		F3A433757 - Cylinder Drain Reed Plate , NLA [ More info ] $55.00 6 in stock.
#12	F18160-3	REED, CYLINDER DRAIN (2 required per assembly)
		34-F18160-3 - Reed [ More info ] $7.30 10+ in stock.
#13	F93920	REED STOP, CYLINDER DRAIN (2 required per assembly)
		F93920 - Reed Stop, NLA [ More info ] $1.80 10+ in stock.
#14	F8003	WASHER, PLAIN (2 required per assembly)
		F8003 - F8003 - WASHER O [ More info ] Unavailable Replaced by 12-18552
		12-18552 - Washer [ More info ] $2.10 Available to order: Usually ships within 8 days.
#15	F1286	SCREW, PAN HD., 4 - 40 X 3/16 (2 required per assembly)
		10-F1286 - Screw, NLA [ More info ] $1.60 10+ in stock.
#16	F93472-1	GASKET, CYLINDER DRAIN COVER (1 required per assembly)
		27-F93472-1 - Gasket [ More info ] $5.80 10+ in stock.
#17	FA433471	COVER CYLINDER DRAIN W/FITTING (1 required per assembly)
		FA433471 - COVER ASSY O NLA [ More info ] Unavailable
#18	F1446	SCREW, SLOTTED PAN HD., 1/4 - 20 X 1 (2 required per assembly)
		10-F1446 - SCREW O NLA [ More info ] Unavailable
#19	F1136	SCREW, FLAT HD., 1/4 - 20 X 1 (2 required per assembly)
		10-F1136 - Screw, NLA [ More info ] $1.65 10+ in stock.
#20	F433254	HOSE (1 required per assembly)
		F433254 - F433254 - HOSE O [ More info ] Unavailable Replaced by 32-F691796
		32-F691796 - 32-F691796 - HOSE O [ More info ] Unavailable Replaced by 32-819029 62
		32-819029 62 - Hose -22.5 Inch, NLA [ More info ] $7.50 10+ in stock.
#21	F404801	ELBOW (1 required per assembly)
		22-F404801 - Fitting, NLA [ More info ] $8.50 10+ in stock.
#22	FA411222	COVER, TRANSFER PORT (1 required per assembly) W/LITERATURE
		FA411222 - FA411222 - COVER KIT O [ More info ] Unavailable Replaced by -817790A 1
		817790A 1 - Cover Kit - PORT [ More info ] $82.00 4 in stock.
#23	F84314-2	ELBOW, FUEL LINE (1 required per assembly)
		22-F84314-2 - Elbow, NLA [ More info ] $14.50 10+ in stock.
#24	F1922	SCREW, HEX HD., 1/4 - 20 X 5/8 (5 required per assembly)
		10-F1922 - Screw, NLA [ More info ] $1.35 7 in stock.
#25	F40223	GASKET, TRANSFER PORT COVER (2 required per assembly)
		27-F40223 - 27-F40223 - GASKET O [ More info ] Unavailable Replaced by 27-820500
		27-820500 - 27-820500 - GASKET O [ More info ] Unavailable Replaced by 27-820500A 3
		27-820500A 3 - Gasket Kit [ More info ] $12.00 10+ in stock.
		18-0869-9 - Gasket 27-F40223 2-Pack [ More info ] $23.98 $18.89 3 in stock.
#27	F433758	HOSE, LOWER MAIN BEARING TO ELBOW (1 required per assembly)
		F433758 - F433758 - HOSE O [ More info ] Unavailable Replaced by -FS433758
		FS433758 - Hose Kit [ More info ] $25.00 7 in stock.
#28	F463314	ELBOW W/CHECK VALVE (1 required per assembly)
		21-F463314 - Check Valve, NLA [ More info ] $11.50 10+ in stock.
