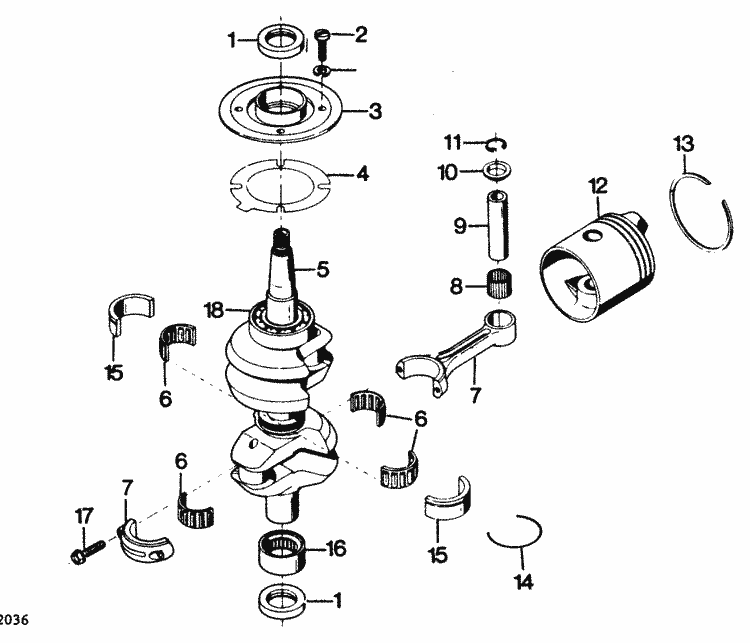

Parts for Force 50 HP (1987) Crankshaft & Piston Group
Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
| # | 39-818115A 1 | PISTON RINGS (2 PER SET) .030 OVERSIZE (2 required per assembly) |
 |
|
39-818115A 1 - Rings - 2 Per Set, .030 OS, NLA [ More info ]
|
| # | 700-817990A 2 | PISTON .010 OVERSIZE (2 required per assembly) |
|
700-817990A 2 - Piston Kit-.010 [ More info ] Unavailable |
|
|
|
700-817990A 3 - Piston Kit -.010, NLA [ More info ] Unavailable |
| # | FSA435260 | PISTON RINGS (2 PER SET) .010 OVERSIZE (2 required per assembly) |
|
|
39-FSA435260 - Rings - 2 Per Set, .010 OS, NLA [ More info ]
|
| # | 700-818114A 2 | PISTON .030 OVERSIZE (2 required per assembly) |
|
700-818114A 2 - Piston Kit-.030 [ More info ] Unavailable |
|
|
|
700-818114A 3 - Piston Kit-.030,NLA [ More info ] Unavailable |
| #1 | F40146-1 | CRANKSHAFT SEAL (2 required per assembly) |
|
26-F40146-1 - Seal [ More info ] Unavailable |
|
  |
|
26-819394 - Seal [ More info ]
|
| #2 | F1441 | PAN HD SCREW, 1/4 - 20 X 7/8 (4 required per assembly) |
|
|
10-F1441 - SCREW,NLA [ More info ]
|
| #3 | FA466144 | CRANKSHAFT BEARING CAGE (1 required per assembly) W/ILLUS. 1 |
|
|
1100-FA466144 - Cage Assembly, NLA [ More info ] Unavailable |
| #4 | F366277 | BEARING CAGE GASKET (1 required per assembly) |
  |
|
27-F366277 - Gasket [ More info ]
|
| #5 | FA435018 | CRANKSHAFT (1 required per assembly) W/ILLUS. 18 |
|
|
FA435018 - CrankShaft Assembly, NLA [ More info ]
|
| #6 | FK85228-1 | BEARING CAGE W/ROLLERS (16 PER SET) (2 required per assembly) |
|
FK85228-1 - Cage/Roller Set [ More info ] Unavailable |
|
  |
|
31-62596A 2 - Cage Roller, for One Rod Only [ More info ]
|
| #7 | 600-818052A 4 | CONNECTING ROD (2 required per assembly) W/CAP AND ILLUS. 17 ORIGINAL FORCE P/N S 366016-4 |
|
600-818052A 4 - Connecting Rod Assembly [ More info ] Unavailable |
|
  |
600-818052A 6 - Connecting Rod [ More info ] Unavailable |
|
  |
|
600-818052T 6 - Connecting Rod [ More info ]
|
| #8 | F335217-1 | BEARING (2 required per assembly) |
  |
|
31-F335217-1 - Bearing - Piston Pin [ More info ]
|
| #9 | F40017-2 | PISTON PIN (2 required per assembly) |
|
|
41-F40017-2 - Piston Pin, NLA [ More info ]
|
| #10 | F366215 | SPACER (4 required per assembly) |
  |
|
23-F366215 - Spacer - Piston Pin [ More info ]
|
| #11 | F428096 | RETAINER, PISTON PIN (4 required per assembly) |
|
|
53-F428096 - Retainer [ More info ]
|
| #12 | F428015-1 | PISTON, STANDARD (2 required per assembly) |
|
F428015-1 - Piston [ More info ] Unavailable |
|
|
|
700-817950A 2 - Piston - Standard [ More info ]
|
|
|
700-817950A 3 - Piston - Standard, NLA [ More info ] Unavailable |
| #13 | FA435260 | PISTON RINGS (2 PER SET) STANDARD (2 required per assembly) |
  |
|
FA435260 - Piston Ring Set - 2 Per Set - Standard, NLA [ More info ]
|
| #14 | F40410 | SNAP RING (1 required per assembly) |
|
|
53-F40410 - Ring -snap, NLA [ More info ]
|
| #15 | FA40655 | CRANKSHAFT CENTER MAIN BEARING RACE (1 required per assembly) W/ILLUS. 14 |
  |
|
31-FA40655 - Bearing, NLA [ More info ]
|
| #16 | F90014 | CRANKSHAFT LOWER MAIN BEARING (1 required per assembly) |
  |
|
31-F90014 - Bearing - Crankshaft Lower Main [ More info ]
|
| #17 | F85634-2 | CONNECTING ROD SCREW (4 required per assembly) |
  |
10-F85634-2 - Connecting Rod Screw [ More info ] Unavailable |
|
  |
|
10-91012 - Screw - Special - Priced Individually [ More info ] Unavailable |
| #18 | F366013 | CRANKSHAFT THRUST BEARING UPPER (1 required per assembly) |
  |
|
30-F366013 - Ball Bearing, NLA [ More info ]
|
| #19 | F8060 | EXTERNAL TOOTH LOCKWASHER (4 required per assembly) |
|
|
13-F8060 - LockWasher, NLA [ More info ]
|
