Parts for Force 40 HP (1997) Ignition & Electrical Components

Revise Search: All Models > 40 HP (1997) > 0E203000 - 0E287999 ( ) > Ignition & Electrical Components

NEED PARTS OR KITS?
View diagram and parts list below. Tap to zoom. Scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

Engine section

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

#1	19-45907	PLUG (Yellow)-Crankshaft/Flywheel (1 required per assembly)
		19-45907 - Plug [ More info ] $6.80 3 In Stock.
#2	11-42979	NUT (M16) (1 required per assembly) TORQUE 125 LB FT. 170 N-M
		11-42979 - Nut (M16 X 1.5) [ More info ] $4.30 Available to Order: Usually ships within 10 days.
#3	12-68229	WASHER (1 required per assembly)
		12-68229 - Washer, (.641 X 1.250 X .190), Flywheel Nut [ More info ] Unavailable
		12-33001 - Washer, Flywheel Nut [ More info ] $11.20 Available to Order: Usually ships within 10 days.
#4	261-9008A34	FLYWHEEL ASSEMBLY (1 required per assembly)
		261-9008A34 - Flywheel [ More info ] Unavailable
		261-9008A52 - Flywheel,NLA [ More info ] Unavailable
#5	FA609853	DECAL KIT-Shift to Neutral (1 required per assembly)
		FA609853 - Decal Kit [ More info ] Unavailable
		37-825149A 1 - Decal Kit [ More info ] $85.00 10+ In Stock.
#6	10-19926100	SCREW (#10-24 x 1.00) With Dri Lok (6 required per assembly) TORQUE 180 LB IN. 9 N-M
		10-19926100 - Screw - Priced Individually [ More info ] $4.80 8 In Stock.
#7	398-9873A28	STATOR ASSEMBLY (1 required per assembly) (BLACK)
		398-9873A28 - Stator Assembly [ More info ] Unavailable
		398-832075A 4 - Stator Assembly [ More info ] Unavailable
		398-832075A21 - Stator Assembly [ More info ] $387.42 In Stock
		18-5870 - Stator, 398-832075A4 [ More info ] $324.99 $294.87 10+ In Stock.
		174-2075K 2 - Mercury Red Stator 16 Amp [ More info ] $281.77 5 In Stock.
#7	398-832075A 4	STATOR ASSEMBLY (1 required per assembly) (RED)
		398-832075A 4 - Stator Assembly [ More info ] Unavailable
#8	828301	TRIGGER ASSEMBLY (1 required per assembly)
		828301 - 855744A2 [ More info ] Unavailable
		854509 - TRIGGER ASY-2 CYL [ More info ] Unavailable
		855744A 2 - Trigger Assembly -2 Cyl [ More info ] $187.50 Available to Order: Usually ships within 10 days.
		134-5744-2 - Trigger, 855744A2 [ More info ] $160.57 1 In Stock.
#9	56762	CABLE TIE (4.00 In.) (AR required per assembly)
		56762 - Tie Strap - Priced Individually [ More info ] $0.50 10+ In Stock.
		0317893 - Tie Strap [ More info ] $0.36 10+ In Stock.
#10	54-816311	CABLE TIE (8.00 In.) (AR required per assembly)
		54-816311 - TIE STRAP Note: Priced Individually [ More info ] Unavailable
		54-816311T - Tie Strap, 8 Inches, Priced Individually [ More info ] $0.60 10+ In Stock.

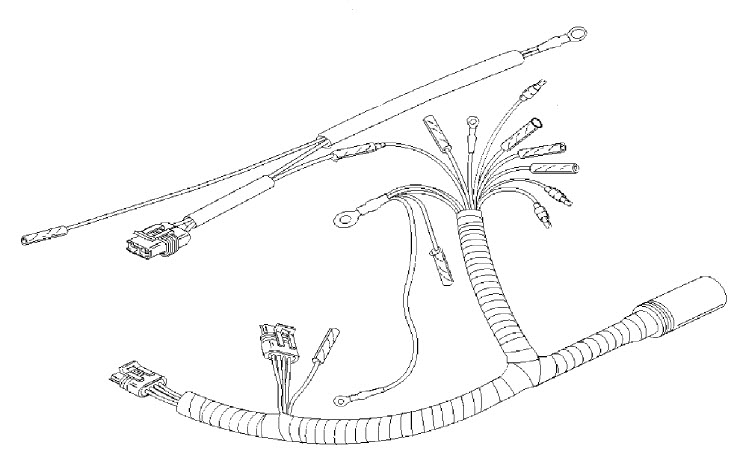

#11	84-828296A 1	HARNESS ASSEMBLY-Wiring (1 required per assembly)
		84-828296A 1 - Harness Assembly [ More info ] $205.92 Available to Order: Usually ships within 10 days.
#12	13541	PLUG-Male (1 required per assembly)
		13541 - Plug [ More info ] $3.10 Available to Order: Usually ships within 10 days.
#13	828054	COVER-Fuse (1 required per assembly)
		828054 - Fuse Cover [ More info ] $5.70 Available to Order: Usually ships within 10 days.
#14	88-812619	FUSE (20 AMP) (1 required per assembly)
		88-812619 - Fuse - Yellow - 20 Amp [ More info ] $4.50 10+ In Stock.
#15	10-812832	SCREW (#10-16 x .500) (1 required per assembly)
		10-812832 - SCREW [ More info ] Unavailable
		10-878608 - Screw [ More info ] $1.60 Available to Order: Usually ships within 10 days.
#16	92753	RETAINER-Harness Connector (1 required per assembly)
		92753 - Harness Retainer [ More info ] $3.60 1 In Stock.
#17	84-F381896 4	CABLE-Battery (1 required per assembly)
		84-F381896-4 - Battery Cable [ More info ] Unavailable
		84-855844A 1 - Battery Cable Assembly [ More info ] Unavailable
		84-88439A50 - Battery Cable Kit [ More info ] $123.92 1 In Stock.
		84-8M0210761 - CABLE KIT-BATTERY Q=T [ More info ] In Stock
#18	13-53166	LOCKWASHER (.312)-Ground (1 required per assembly)
		13-53166 - LockWasher - Priced Individually [ More info ] $1.70 10+ In Stock.
#19	10-39349	SCREW (.312-18 x .750)-Ground (1 required per assembly)
		10-39349 - Screw - Priced Individually [ More info ] $1.70 10+ In Stock.
#20	33-827C	SPARK PLUG (CHAMPION # L76V) (2 required per assembly)
		33-827C - SP #L76V Note: Priced Individually [ More info ] Unavailable
		33-896329827 - Spark Plug - L76V - Priced Individually [ More info ] Unavailable
		L76V - Champion Spark Plug ( #827M) [ More info ] $11.49 10+ In Stock.
#20	33-898	SPARK PLUG (RFI) (CHAMPION # QL76V) (2 required per assembly)
		33898 - Rod, NLA [ More info ] Unavailable
		33-896329898 - Spark Plug - QL76V - Priced Individually [ More info ] Unavailable
		QL76V - Champion Spark Plug ( #898M) [ More info ] $12.26 10+ In Stock.
#21	827509A 4	CDM MODULE ASSEMBLY-Ignition (2 required per assembly)
		827509A 4 - CDM MODULE ASSY [ More info ] Unavailable
		827509A10 - CDM Module Assembly [ More info ] Unavailable
		114-7509 - CDM Module, 827509A10 [ More info ] $108.57 In Stock
#22	84-821945A61	CABLE ASY-High Tension (Cut as Req'd) (2 required per assembly)
		84-821945A61 - Cable Assembly - Black [ More info ] $19.45 10+ In Stock.
#23	85-63709A 1	BOOT/TERMINAL KIT-Ignition Cable (2 required per assembly)
		85-63709A 1 - Boot Kit - Black - Priced Individually [ More info ] $7.90 10+ In Stock.
#24	10-90192	SCREW (.250-20 x .750) (4 required per assembly)
		10-90192 - Screw [ More info ] $1.70 Available to Order: Usually ships within 10 days.
#25	10-40056105	SCREW (M5 x 10)-Ground Cable (1 required per assembly)
		10-40056105 - Screw [ More info ] $1.15 Available to Order: Usually ships within 10 days.
#26	10-817626	SCREW (#10-16 x .375) (1 required per assembly)
		10-817626 - SCREW [ More info ] Unavailable
		10-878607 - Screw [ More info ] $1.10 Available to Order: Usually ships within 10 days.
#27	84-88807A36	CABLE ASSEMBLY-Ground-Exhaust Cover (1 required per assembly)
		84-88807A36 - Cable Assembly [ More info ] $3.90 1 In Stock.
#28	10-86885	SCREW (.250-20 x 1.500) (2 required per assembly)
		10-86885 - Screw [ More info ] $3.10 10+ In Stock.
#29	54-55098	J CLIP-Voltage Regulator (1 required per assembly)
		54-55098 - J Clip - Priced Individually [ More info ] $4.90 9 In Stock.
		54-8M0024808 - J-CLIP [ More info ] Unavailable
#30	815279T 5	VOLTAGE REGULATOR (1 required per assembly)
		815279T 5 - REG KIT-VOLT-BULL [ More info ] $99.99 1 In Stock.
		830179A 1 - Voltage Regulator [ More info ] Unavailable
		854514A 1 - Voltage Regulator [ More info ] $134.99 10+ In Stock.
		883071A 1 - Voltage Regulator [ More info ] $358.08 Available to Order: Usually ships within 10 days.
		18-5744 - Voltage Regulator, 815279-4 [ More info ] $287.99 $260.78 In Stock
		194-5279 - Voltage Regulator Rectifier, 815279T [ More info ] $291.11 In Stock
		194-2115K 1 - Voltage Regulator, 883071A1, 883072T2 [ More info ] $257.09 4 In Stock.
#31	11-68219	NUT (#10-32) (2 required per assembly)
		11-68219 - Nut (#10-32) [ More info ] $2.90 10+ In Stock.
#32	13-26996	LOCKWASHER (#10) (2 required per assembly)
		13-26996 - LockWasher - Priced Individually [ More info ] $1.20 10+ In Stock.
#33	85-830233	BOOT (RED)-Starter Relay Insulator (1 required per assembly)
		85-830233 - Boot (red) [ More info ] $4.50 Available to Order: Usually ships within 10 days.
#34	89-F460917 1	RELAY-Starter (1 required per assembly) (STYLE I)
		89-F460917-1 - Solenoid [ More info ] Unavailable
		89-817109A 3 - Solenoid Kit [ More info ] $79.67 Available to Order: Usually ships within 10 days.
		18-5835 - Solenoid, 89-817109A3 - 4 Post [ More info ] $54.99 $49.88 7 In Stock.
		SW295 - Solenoid [ More info ] $39.75 $37.03 5 In Stock.
		SW109 - Solenoid [ More info ] $41.40 $38.51 2 In Stock.
#35	54-65292	J CLIP-Starter Relay (1 required per assembly)
		54-65292 - J Clip [ More info ] Unavailable
#38	11-68292	NUT (.312-18) (2 required per assembly)
		11-68292 - Nut (5/16 Inch) [ More info ] $1.50 10+ In Stock.
		11-8M0204668 - NUT @5 [ More info ] Unavailable
#39	89-817109A 3	SOLENOID KIT-Starter (1 required per assembly) (STYLE II)
#40	10-853652	SCREW (.250-20 x 1.125) (2 required per assembly) (STYLE II)
		10-853652 - Screw [ More info ] $1.10 Available to Order: Usually ships within 10 days.
#41	23-818968	BUSHING (2 required per assembly) (STYLE II)
		23-818968 - Bushing [ More info ] Unavailable
		BUSHING [ More info ] Unavailable
#43	25-822179	GROMMET (2 required per assembly) (STYLE II)
		25-822179 - Grommet [ More info ] $4.30 $3.66 3 In Stock.
